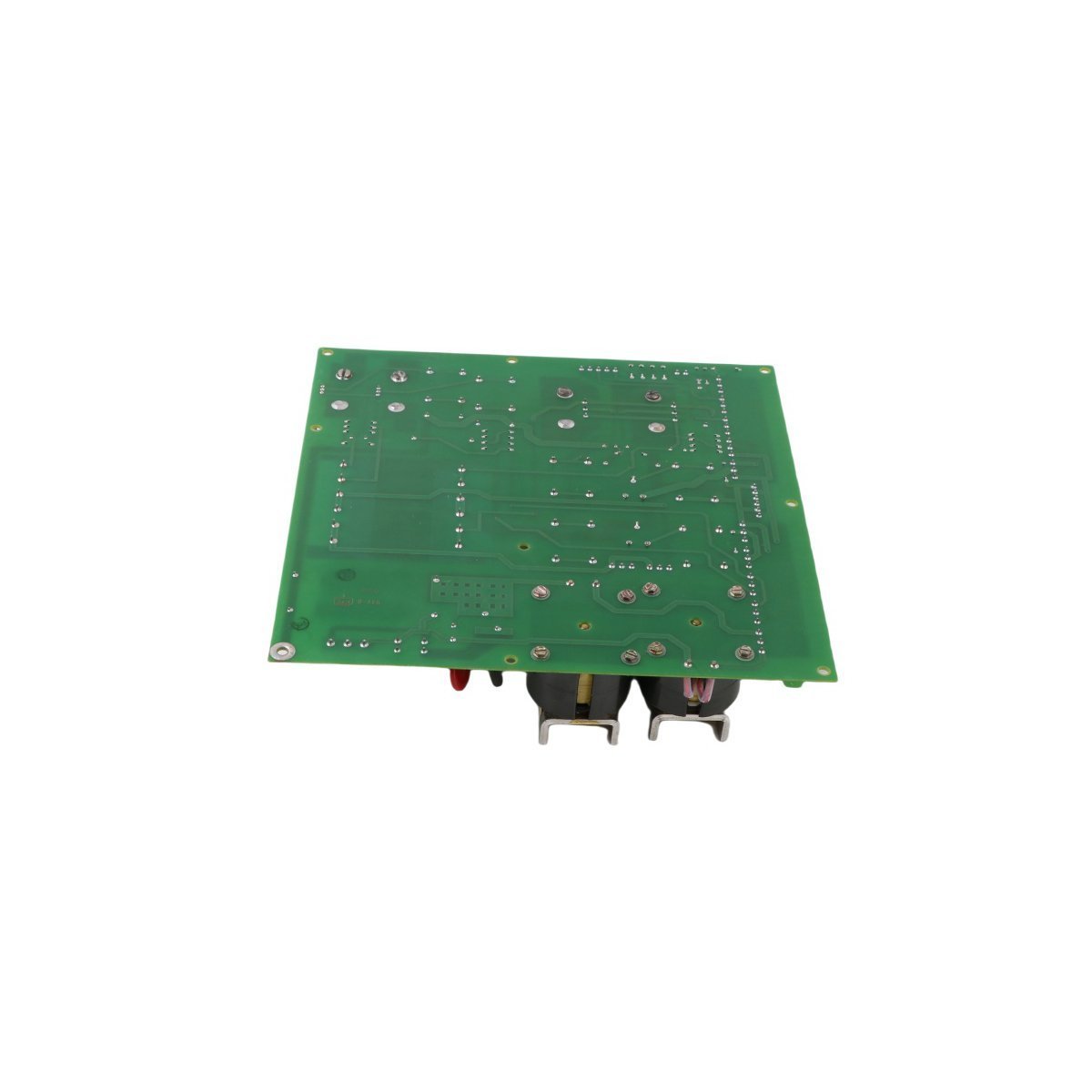

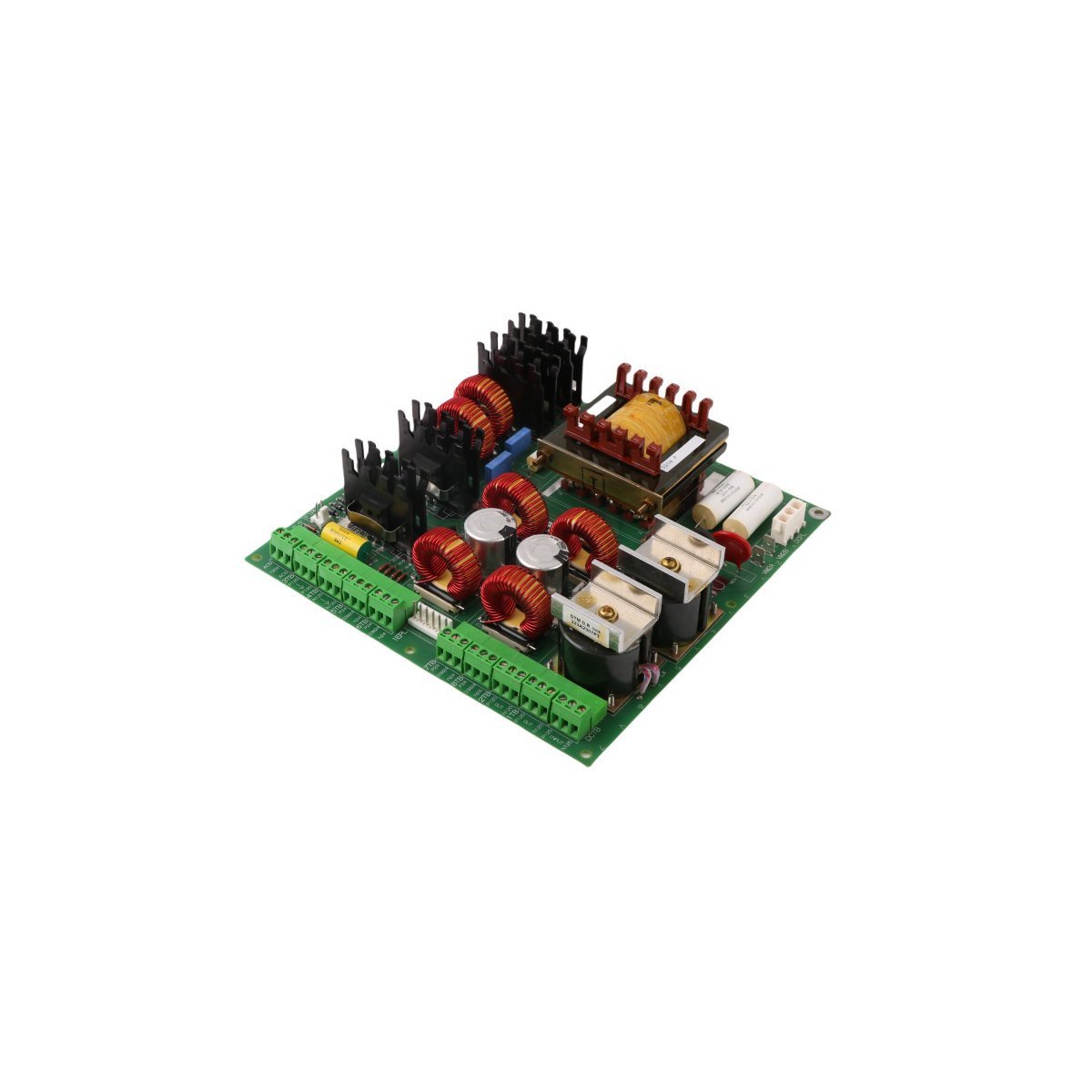

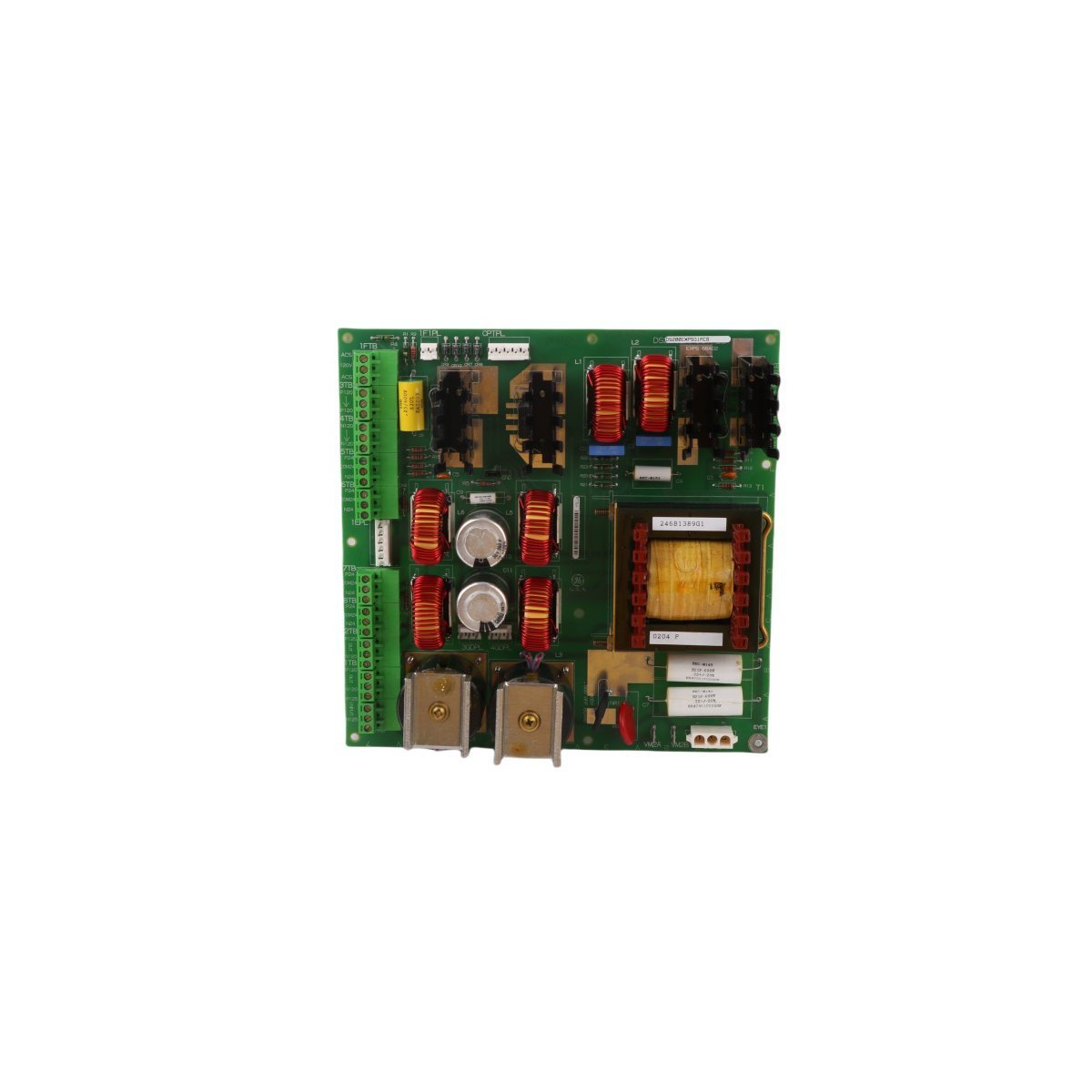

General electric DS200EXPSG1ACB Bulk Power Supply Board

The DS200EXPSG1ACB serves as a primary bulk power distribution module within General Electric excitation systems. While part of the broader Speedtronic legacy, this specific board supports the EX2100 series and late-model Mark V systems. It converts incoming source power into stabilized DC voltages for downstream control components.

The “ACB” suffix indicates a specific hardware revision history. This version includes two functional improvements and one artwork redesign. These updates enhance electrical stability and heat dissipation during continuous operation. The board manages critical power loads for both steam and gas turbine controllers.

Reliability remains a core feature of this power supply interface. It incorporates high-quality capacitors to filter electrical noise effectively. Furthermore, the board architecture provides overcurrent protection to safeguard sensitive microprocessor-based cards in the same rack.

Operational Features and Maintenance

Maintenance teams can utilize the integrated reset button to clear transient faults quickly. The green diagnostic LED provides immediate visual confirmation of the board status. A lit LED indicates that the module passed all internal startup diagnostics. Conversely, a dark LED suggests a hardware failure or power loss.

Engineers can access multiple test points distributed across the PCB surface. These points allow for precise voltage metering during routine inspections. The board utilizes three 9-pin connectors for secure signal and power transmission. Proper installation requires adherence to strict anti-static protocols to prevent component degradation.

Application in Industrial Automation

This bulk power supply board plays a vital role in heavy-duty power generation environments. It provides the necessary energy for excitation control logic and relay operation. Because it occupies a central position in the power hierarchy, its health is critical for turbine uptime. The rugged design ensures long-term performance in high-temperature industrial cabinets.
