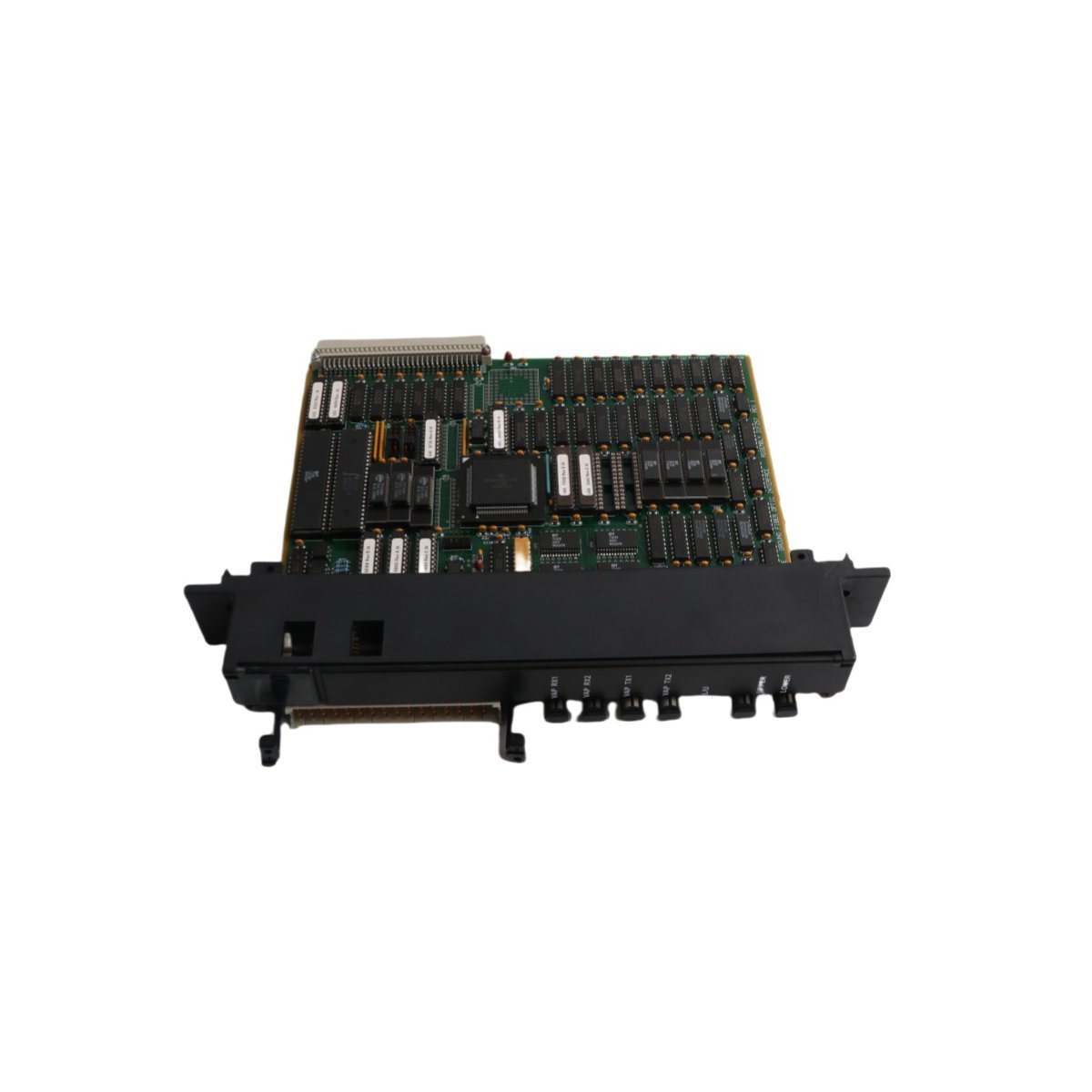

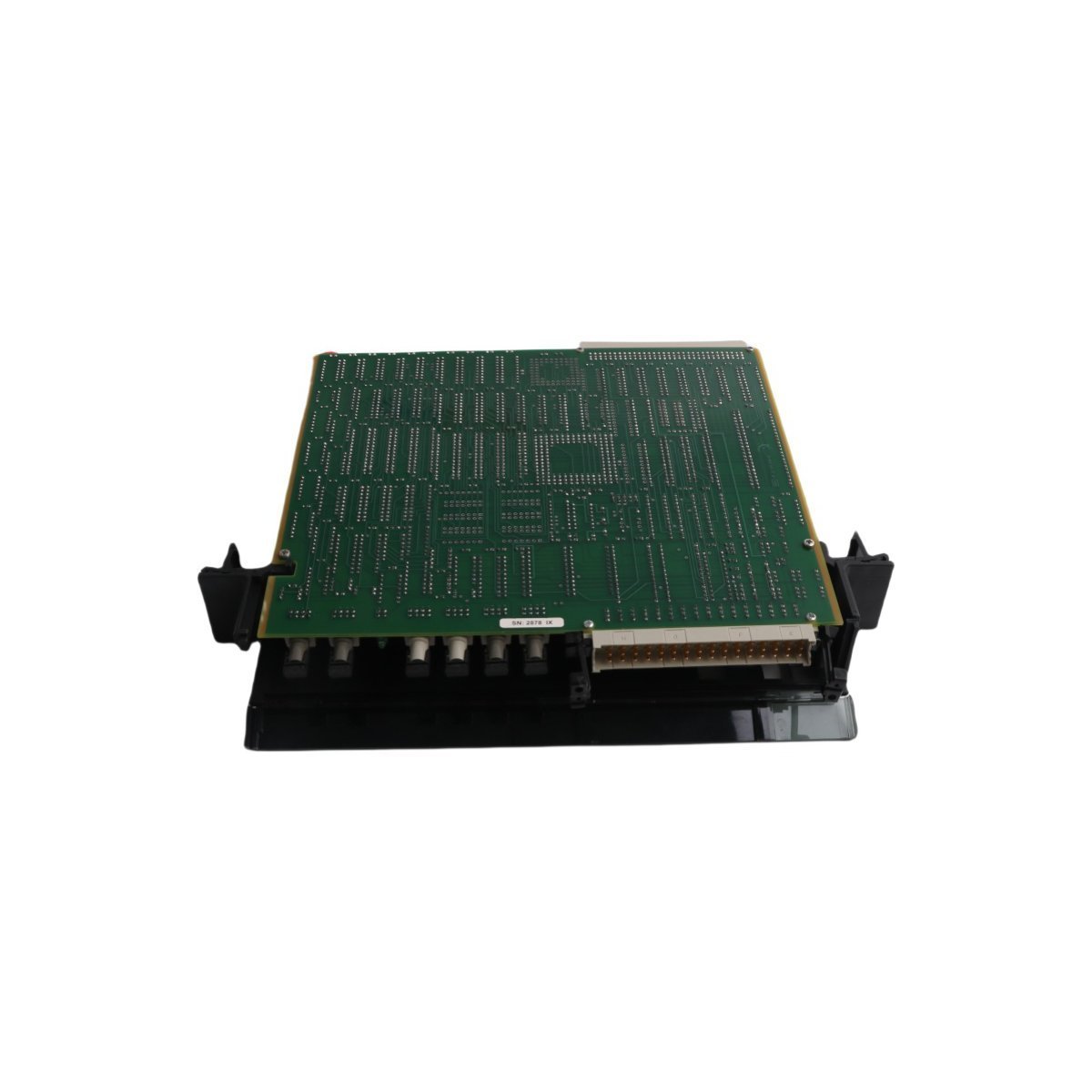

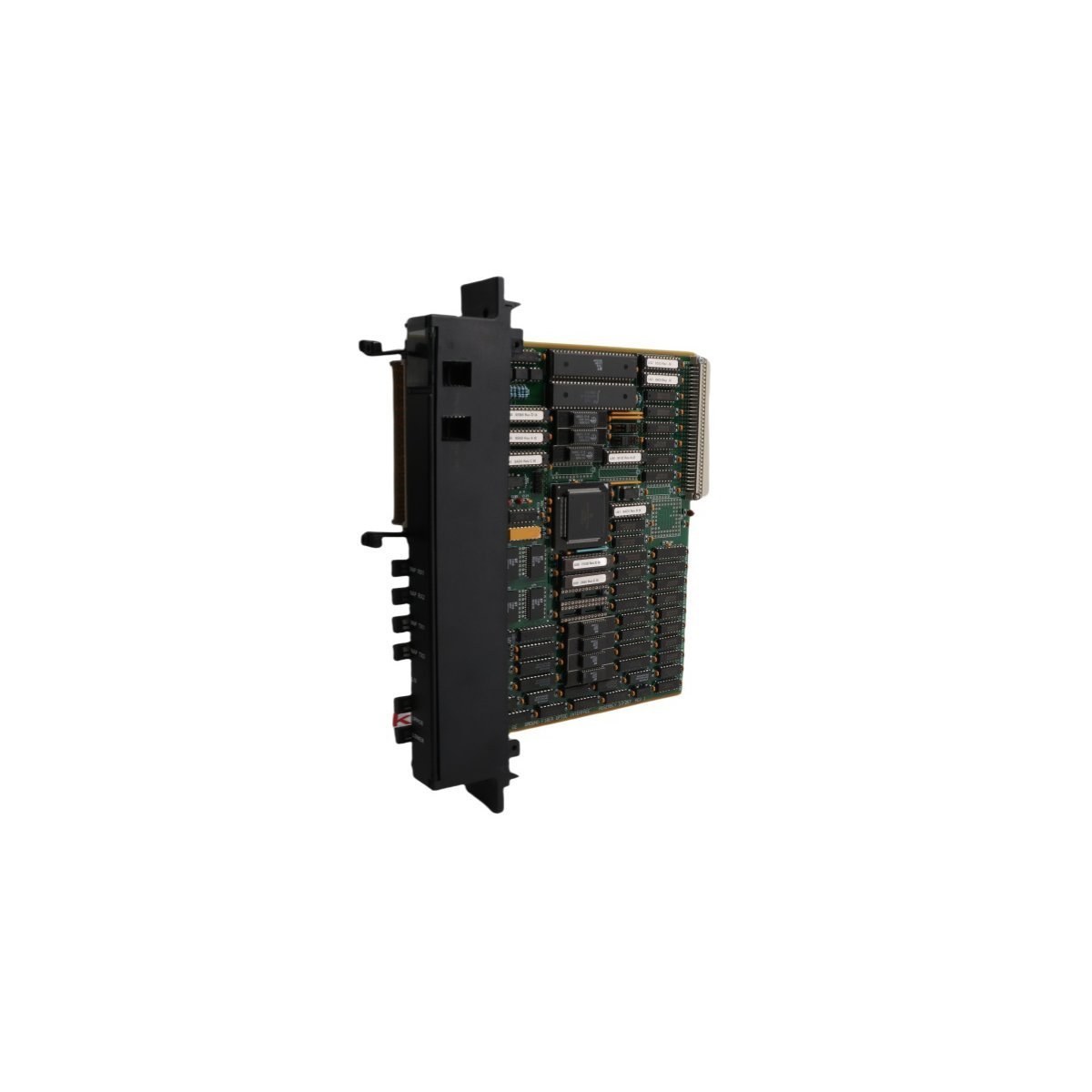

General Electric 151X1225DF01PC03RA Power Converter

The General Electric 151X1225DF01PC03RA serves as a high-precision power converter within the Mark VIE control architecture. This module facilitates stable energy transition for complex Distributed Control Systems (DCS). It specifically supports GE Gas Turbine platforms and heavy industrial drive systems. Engineers designed this unit to deliver consistent DC output under varying load conditions. Consequently, it maintains the integrity of sensitive electronic components across the control network.

Operational Performance and Efficiency

This converter utilizes a 24V DC input to generate multiple output voltage rails. It provides reliable ±15V DC or +5V DC power to downstream control hardware. The unit maintains an impressive efficiency rating of 85% or higher. Furthermore, the module regulates voltage within a tight ±1% margin. This precision effectively eliminates fluctuations that might disrupt signal processing.

The hardware also features superior noise suppression capabilities. It keeps ripple and noise levels below 1% of the total output voltage. Because of this, the 151X1225DF01PC03RA ensures clean power for high-speed digital controllers. The robust internal circuitry handles currents up to 10A without compromising thermal stability.

Technical Specifications

Durability and Environmental Standards

GE built the 151X1225DF01PC03RA for longevity in demanding industrial environments. The rugged housing protects internal components from vibration and electromagnetic interference. It operates reliably in humidity levels ranging from 5% to 95% non-condensing. Additionally, the wide storage temperature range ensures safety during transport and long-term warehousing.

This converter excels in power generation, grid management, and advanced motor control applications. Its straightforward integration process reduces installation time for system upgrades. As a critical component of the Mark VIE ecosystem, it enhances overall system uptime. This module represents a dependable choice for maintaining large-scale automation stability.
