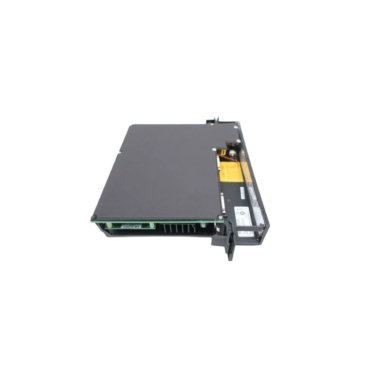

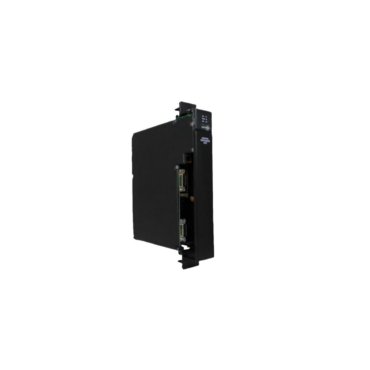

GE Fanuc IC697CPX772 Digital I/O Module

The GE Fanuc IC697CPX772 serves as a high-performance 32-bit controller within the Series 90-70 PLC family. It utilizes an 80486DX4 microprocessor to manage complex automation logic at high speeds. This CPU handles large-scale data processing for distributed industrial networks. Consequently, it supports up to 2,000 discrete inputs and 8,000 words of analog data. The module excels in math-intensive tasks due to its built-in floating-point calculation capabilities. Furthermore, its robust design ensures stable execution in demanding factory environments. It remains a reliable choice for managing intricate control loops and high-speed machinery.

Technical Specifications

Processing and Memory Performance

This CPU module features a 96 MHz clock speed for rapid instruction handling. It executes Boolean logic in just 0.4 microseconds per instruction. Moreover, the 512 KB RAM provides ample space for user program storage and data registers. The non-volatile 256 KB flash memory protects the application firmware during power cycles. Furthermore, a lithium battery backs up the internal memory for up to six months. This setup prevents data loss during extended facility downtime. Additionally, the integrated real-time clock maintains high temporal accuracy for time-stamped operations.

Connectivity and Communication

The IC697CPX772 includes three versatile serial communication ports for external integration. Port 1 uses an RJ11 connector to provide standard RS-232 serial access. Ports 2 and 3 utilize 15-pin D-shell connectors for RS-485 networked communication. Specifically, Port 2 incorporates optocoupler isolation to block electrical interference. The module supports several protocols, including SNP, SNPX, and RTU Master/Slave. Therefore, it connects easily to human-machine interfaces (HMI) and programming terminals. These ports also facilitate remote monitoring through dedicated Ethernet routers or gateways.
