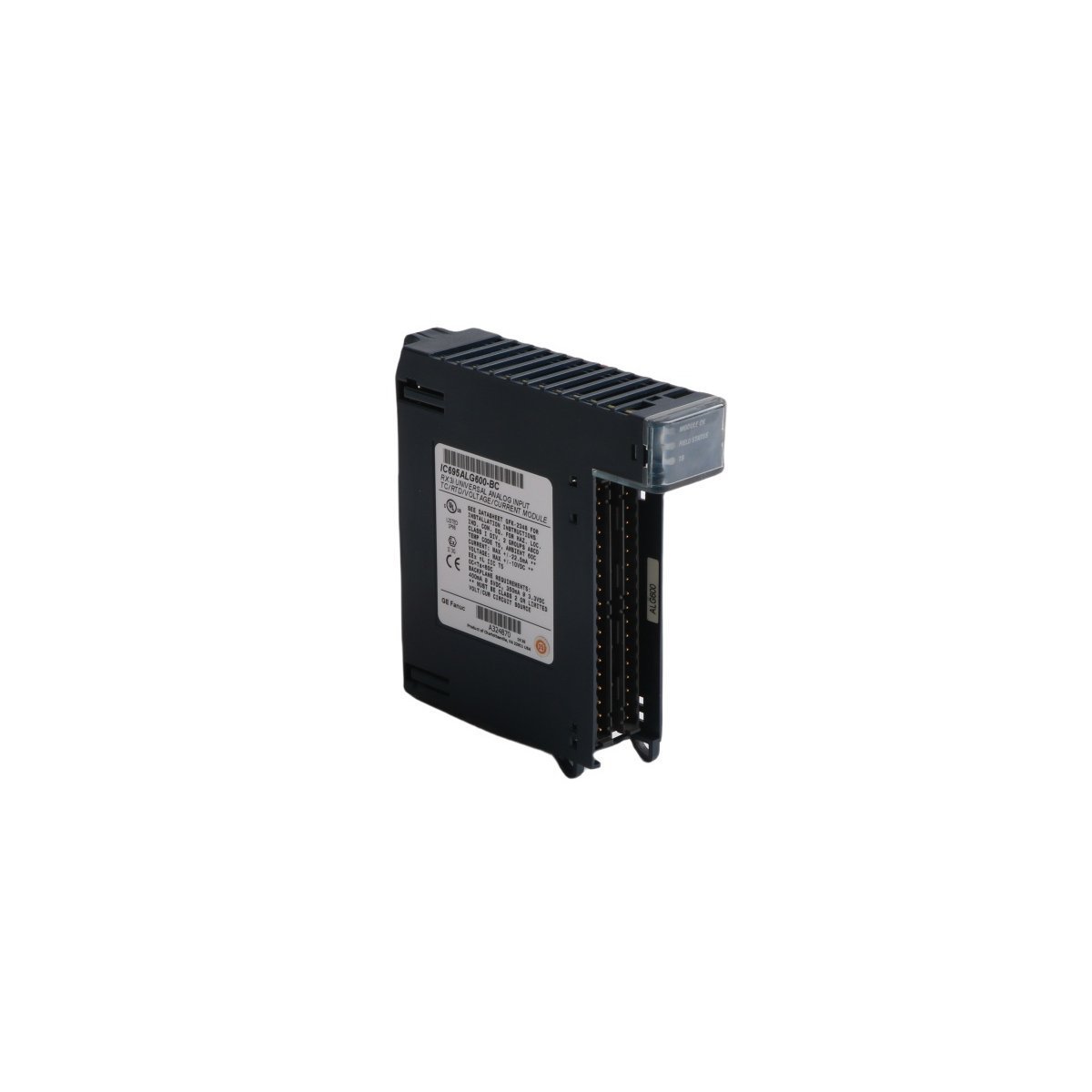

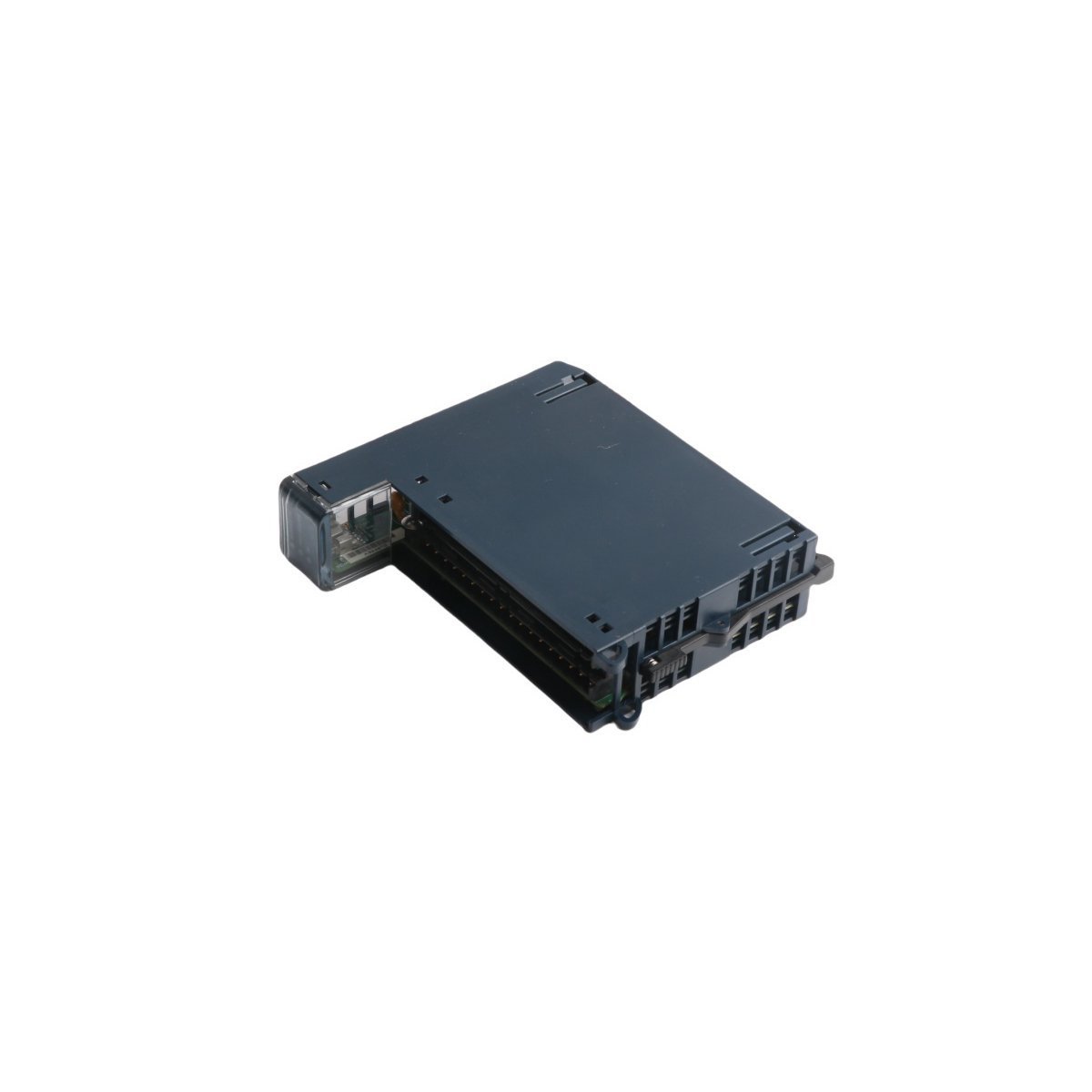

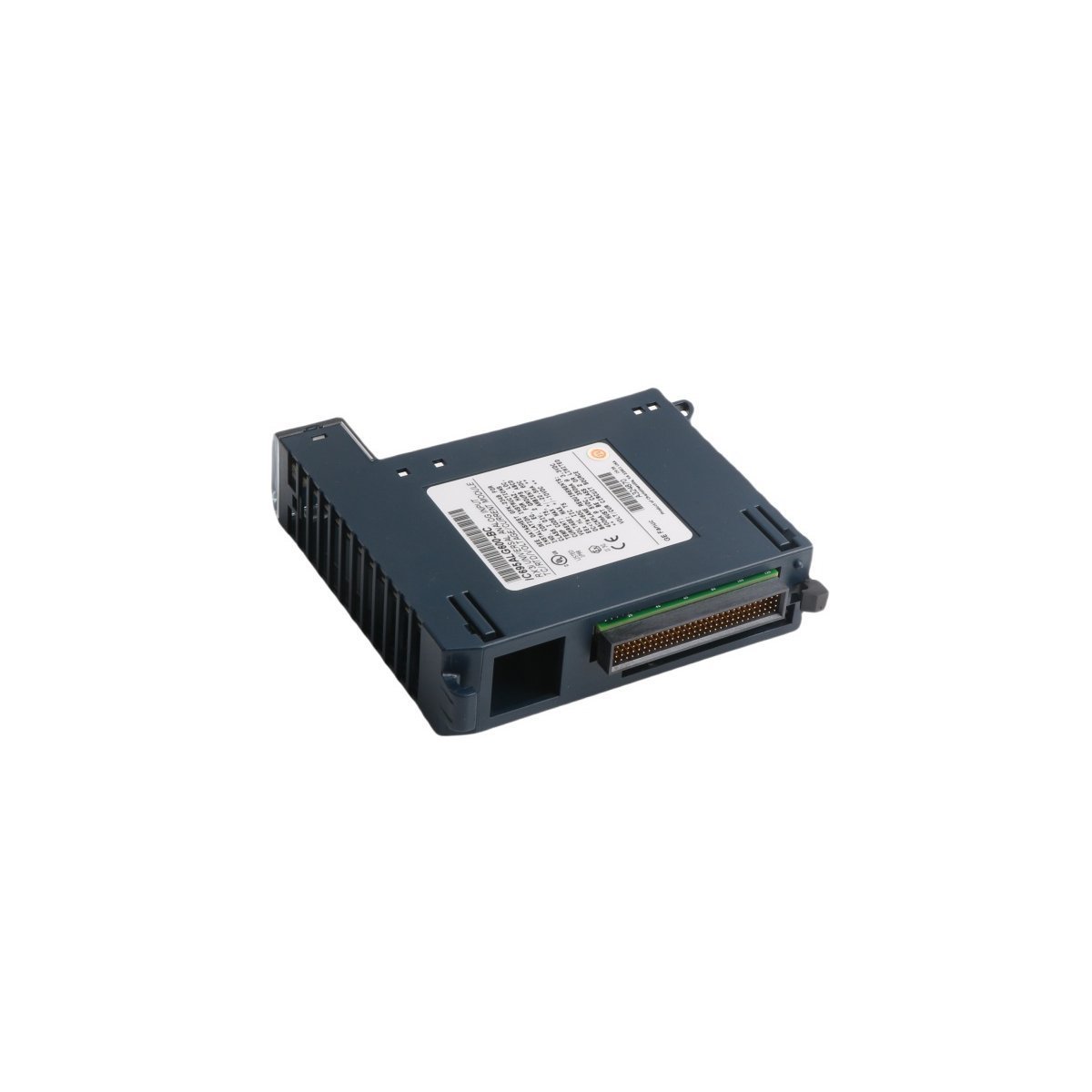

Technical Specifications
| Parameter | Details |
| Brand | GE Fanuc (Emerson) |
| Model Number | IC695ALG600 |
| Product Family | PACSystems RX3i |
| Input Channels | 8 Channels (2 Groups of 4) |
| Voltage Ranges | 0 to 10V, 1 to 5V, +/- 10V |
| Current Ranges | 0 to 20mA, 4 to 20mA, +/- 20mA |
| Sensor Support | RTD, Thermocouple, Resistance |
| Module Weight | 0.24 kg |
| Dimensions | 3.5 x 13.5 x 13.5 cm |
Advanced Signal Processing
This universal module features two isolated groups with four channels each for maximum signal integrity. Every channel undergoes independent configuration to match the specific field device requirements. Moreover, the hardware includes advanced onboard diagnostics to detect open wires or out-of-range values. The IC695ALG600 also utilizes an internal microprocessor to linearize temperature data automatically. Furthermore, the module filters electrical noise to ensure stable readings in high-interference areas. It also provides flash memory for easy firmware upgrades via the RX3i backplane. These technical attributes guarantee long-term accuracy and operational reliability.
Integration and Hardware Requirements
The IC695ALG600 requires the RX3i universal backplane for power and communication. It draws 5.4 watts of power during peak operation. To complete the installation, users must select a compatible terminal block like the IC694TBB032. Furthermore, the module requires PACSystems RX3i CPU firmware version 2.80 or higher. For software configuration, Proficy Machine Edition 5.0 SP1A serves as the minimum standard. The module also features front-panel LEDs for Field Status and Terminal Block health. These visual indicators help technicians verify the connection integrity without external tools. This seamless integration accelerates the commissioning of new control systems.
