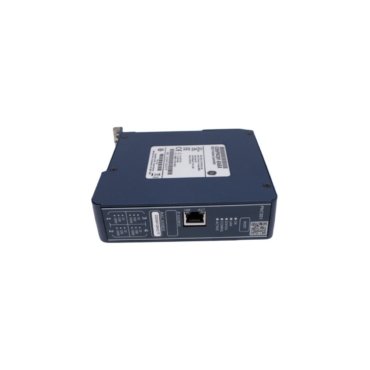

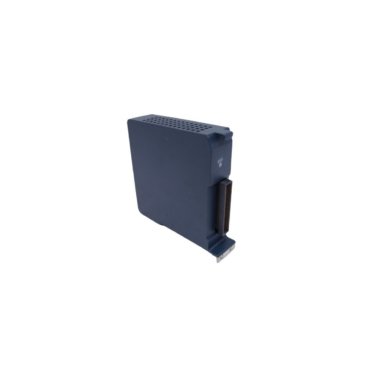

GE Fanuc IC695PNC001 PROFINET Controller Module

The GE Fanuc IC695PNC001 acts as a dedicated PROFINET master interface for the PACSystems RX3i platform. This module enables high-speed data exchange between the central PLC and remote I/O devices. It integrates seamlessly into the RX3i universal backplane to expand networking capabilities. Furthermore, the unit manages complex automation traffic with minimal impact on CPU scan times. It supports various network layouts including star, ring, and daisy-chain topologies. This flexibility makes it ideal for distributed control in large manufacturing plants. It remains a vital component for modernizing industrial communication infrastructures.

Network Connectivity and Performance

This controller features four physical ports to handle diverse networking requirements. Two standard RJ-45 ports provide copper connectivity for immediate system integration. Additionally, two SFP slots allow for fiber optic connections via separate transceivers. The module utilizes a single IP address to manage all four ports effectively. Furthermore, users can install up to four PNC001 modules in one CPU rack. This configuration supports a maximum of 128 devices across the entire network. Adjustable update rates allow for precise tuning of high-speed machine logic. Consequently, the module ensures synchronized performance across the factory floor.

Advanced System Diagnostics

The IC695PNC001 incorporates a micro USB port for direct local access. This port facilitates quick setup via a command-line interface on a PC. Moreover, the hardware includes a dedicated restart button for manual module resets. Front-panel LEDs provide real-time feedback on port activity and module health. The unit also supports firmware updates through the WinLoader utility software. Furthermore, the module allows for Hot Swapping (RIUP) during active system operation. This feature minimizes downtime during hardware maintenance or network expansions. These diagnostic tools simplify troubleshooting for field engineers.

Technical Specifications
