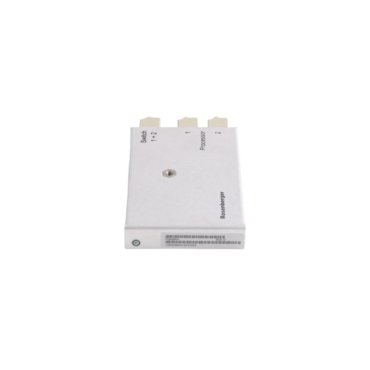

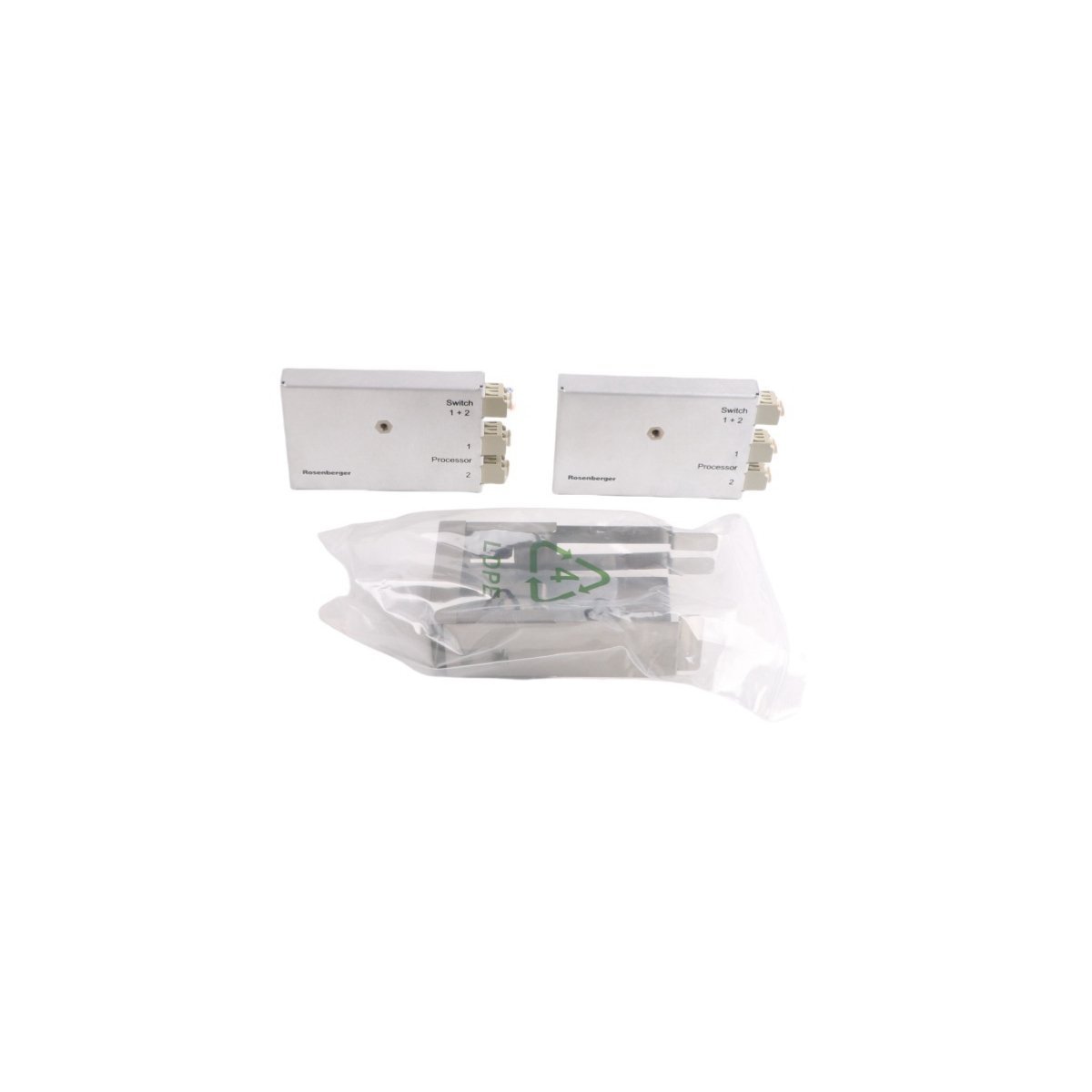

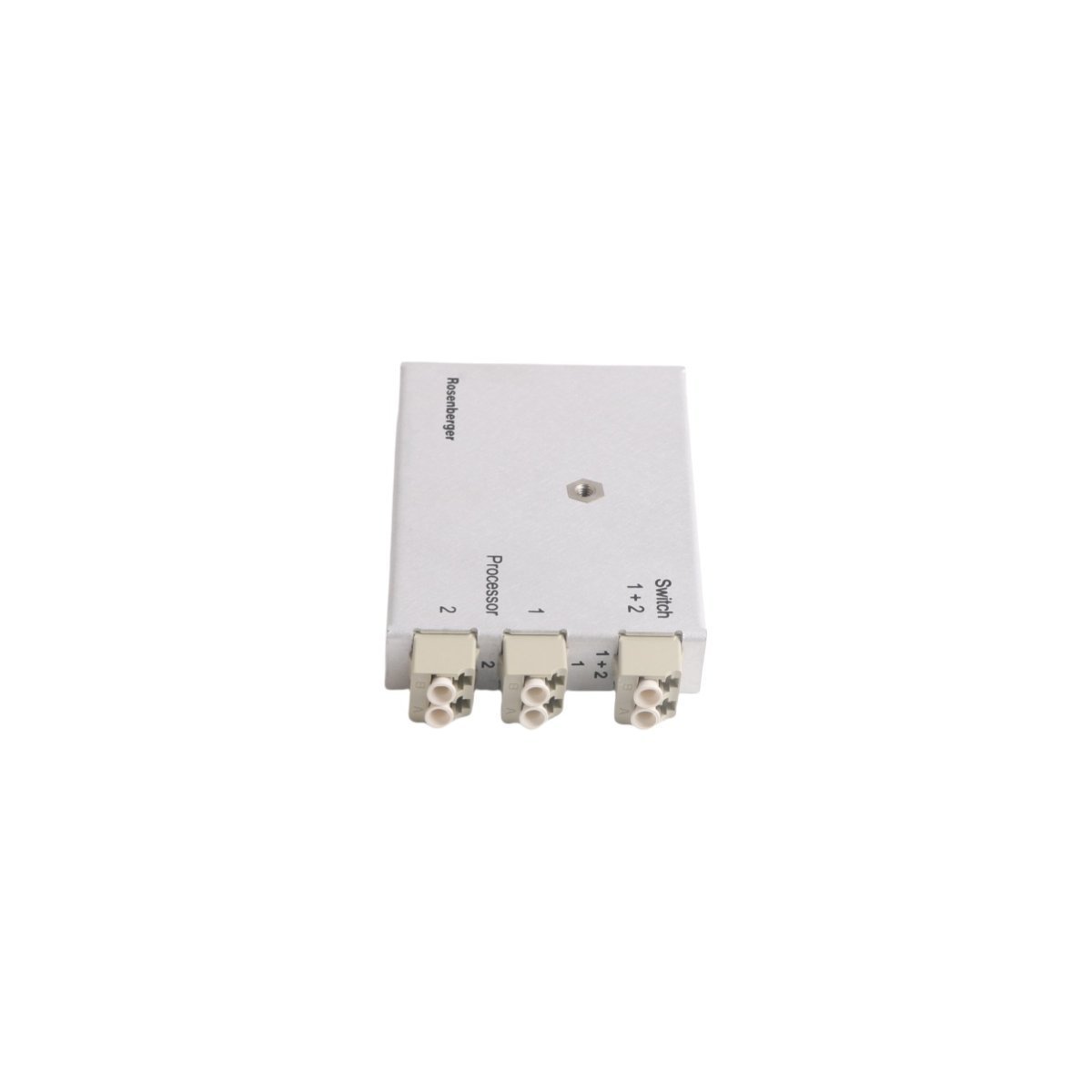

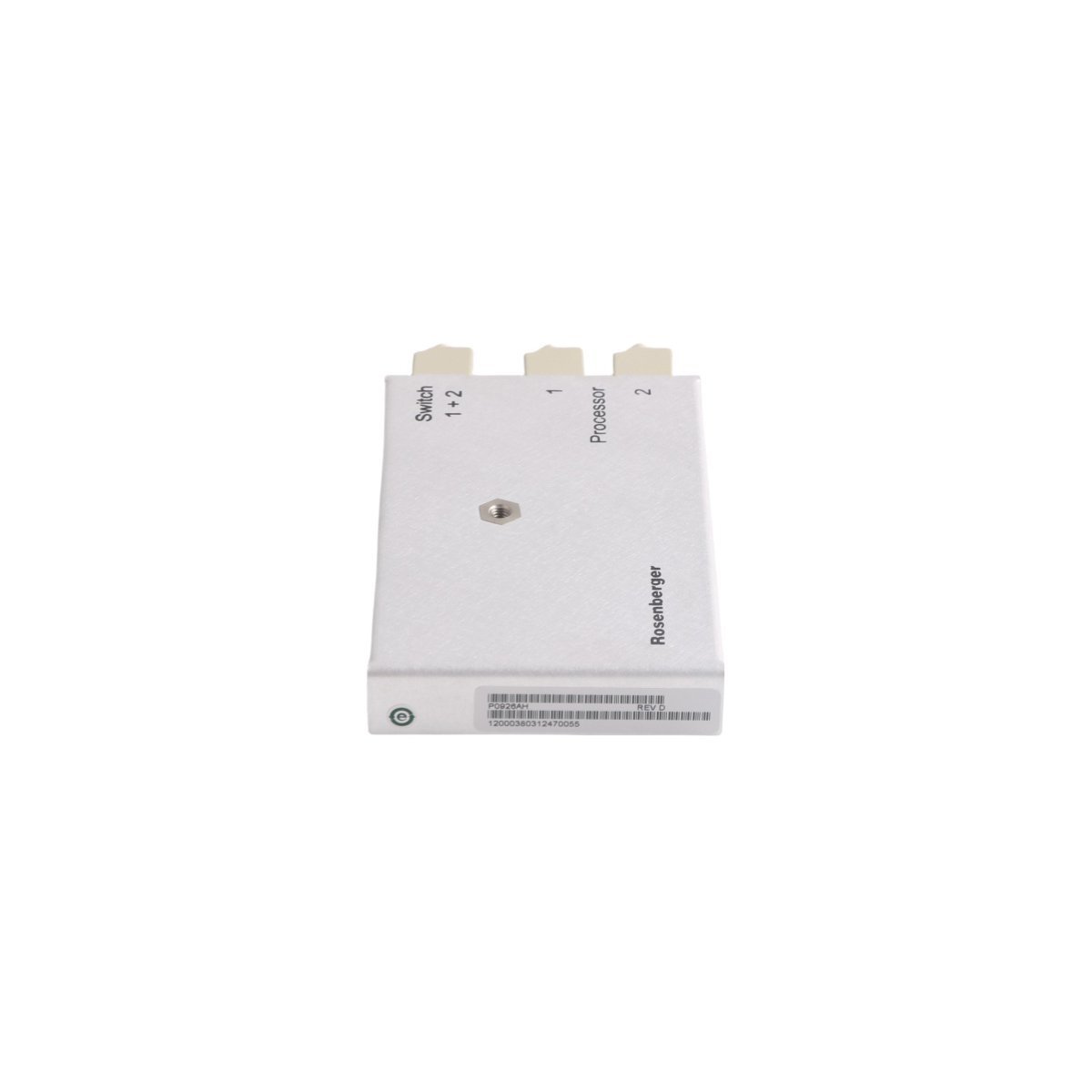

Foxboro P0926MX Splitter

Technical Specifications

• Brand: Foxboro (Invensys / Schneider Electric)
• Model Number: P0926MX
• Product Series: I/A Series DCS
• Equipment Type: Signal Splitter / Interface Module
• Input/Output Capacity: 8 Independent Channels
• Frequency Output: 30 kHz
• Maximum Current Capacity: 20 Amperes
• Operating Voltage: Up to 220V
• Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Compliance Standards: CE, UL, and ISO 9001
• Weight: 0.46 kg
• Dimensions: 24.0 x 19.8 x 5.5 cm

The Foxboro P0926MX functions as a specialized signal splitter and interface module designed specifically for the I/A Series Distributed Control System (DCS). This component plays a vital role in industrial automation by managing and distributing electronic signals across multiple control paths. By using this splitter, plant engineers can branch input or output signals to various system segments without compromising the integrity of the data. This capability proves essential in complex architectures where a single process variable must reach both primary control logic and secondary monitoring or recording devices.

Industrial Performance and Robust Architecture

Designed to operate within demanding power and signal environments, the P0926MX delivers a frequency output of 30 kHz. This high-speed performance ensures that the module handles rapid signal fluctuations typical in high-precision manufacturing and chemical processing. The hardware supports an 8-channel input/output configuration, which provides extensive flexibility for system designers. Furthermore, the unit features a high current capacity of up to 20A, allowing it to drive substantial loads while maintaining stable operation across the entire interface.
