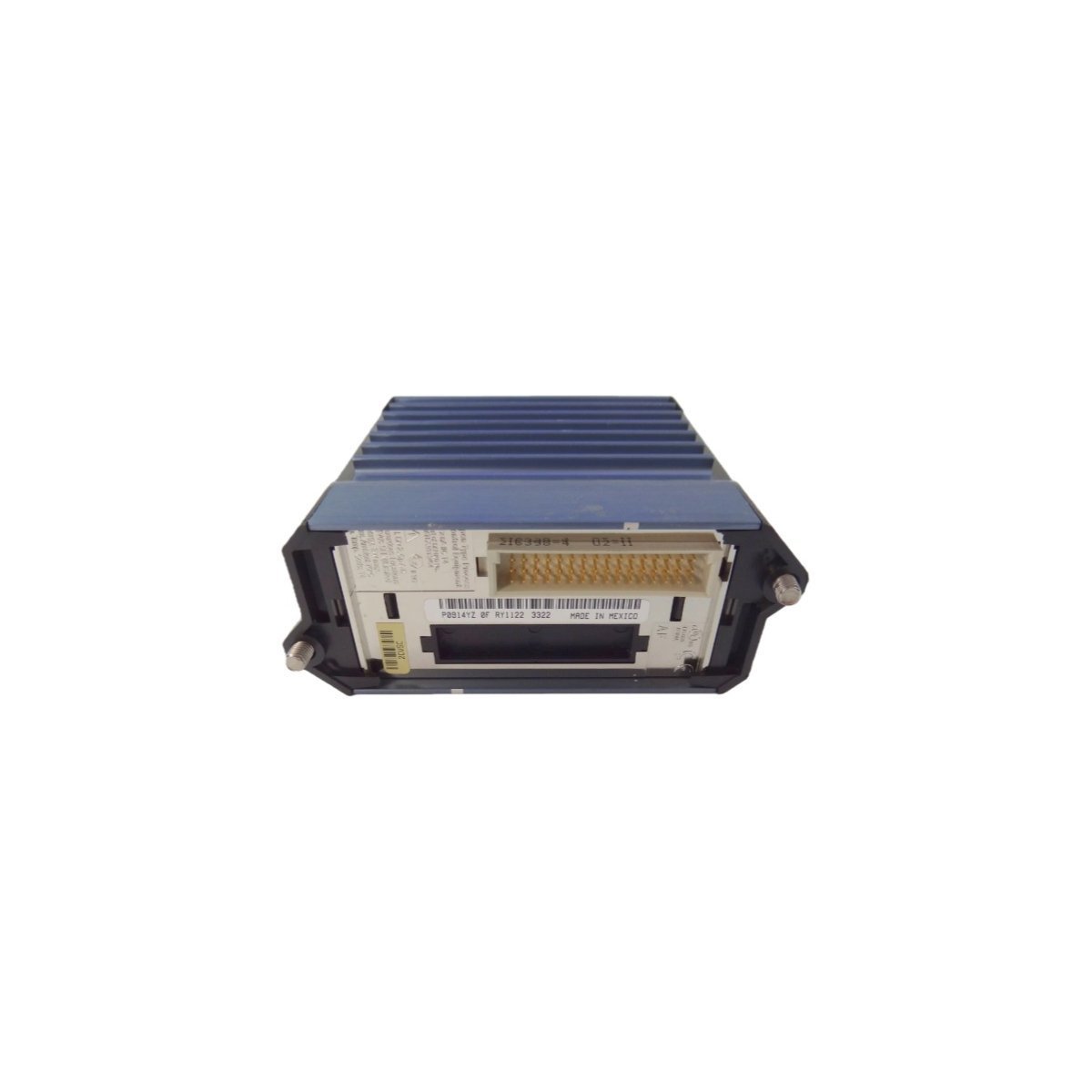

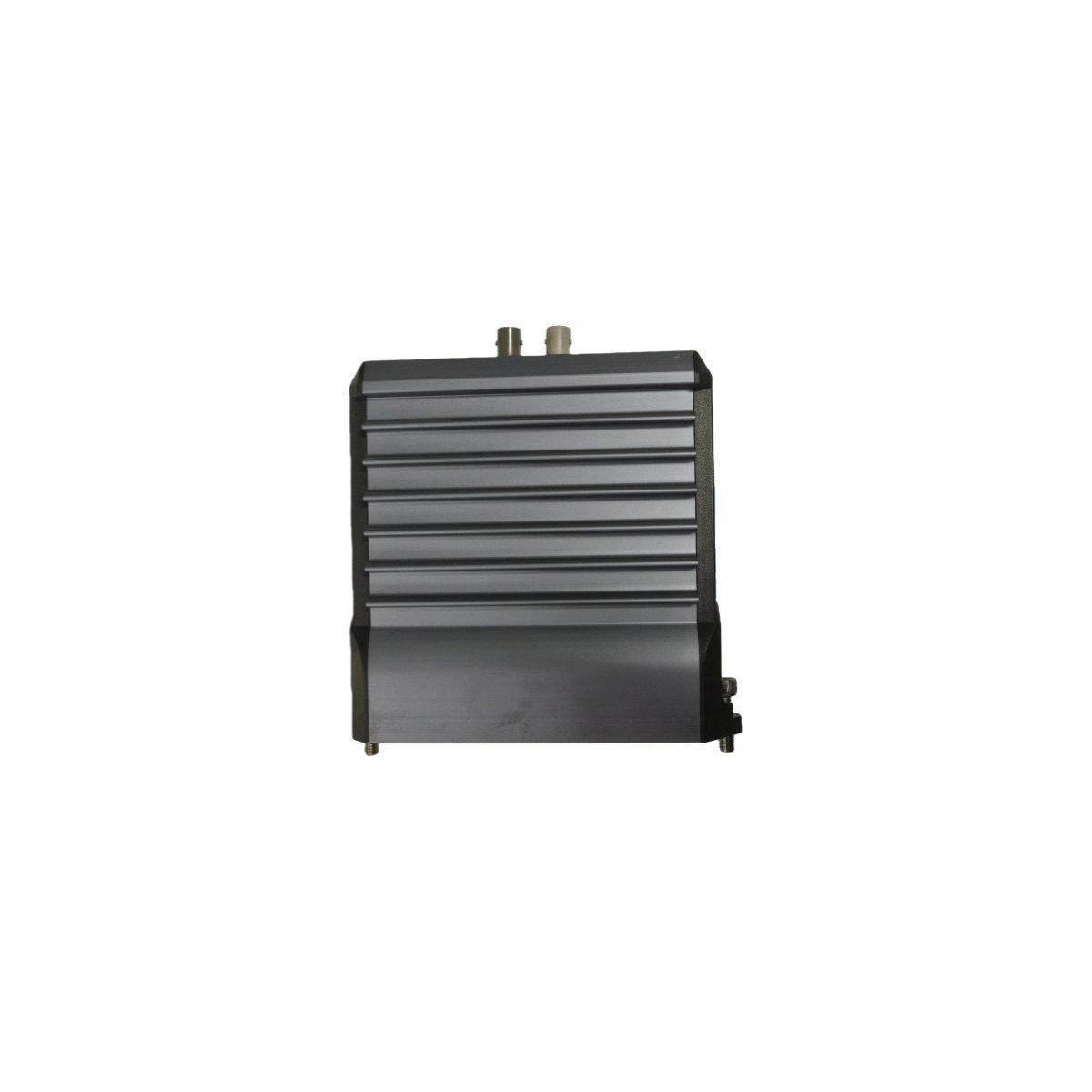

Foxboro FCM2F10 P0916TQ Fieldbus Communications Module

Technical Specifications

Industrial Hardware Design

The FCM2F10 features a compact, modular form factor optimized for DIN rail mounting and rack integration. Its ruggedized exterior protects internal circuitry from harsh plant conditions. Furthermore, the module integrates seamlessly with the existing I/A Series communication protocols. This means no special software configuration is necessary to establish the fiber link. Because it uses single-mode optics, it provides superior signal clarity over the long ranges required by refineries, water treatment plants, and large-scale manufacturing facilities.

Key Operational Features

• Extended Range: Connects remote baseplates up to 10km away via single-mode fiber.
• Redundancy Support: Compatible with dual-cable fieldbus designs for high availability.
• Environmental Tolerance: Wide operating temperature range for unconditioned cabinets.
• Signal Integrity: Fiber optics prevent data corruption from lightning or industrial noise.

Reliable Data Integration and Redundancy

This communications module acts as a transparent bridge for the module Fieldbus, supporting both analog and digital signal types. To ensure maximum uptime in mission-critical environments, users can deploy the FCM2F10 in redundant pairs. In this configuration, separate modules manage the “A” and “B” fieldbus cables independently. The fiber optic medium provides total immunity to electromagnetic interference and ground loops. Consequently, the system remains stable even when connecting remote buildings or passing through high-voltage electrical zones.
