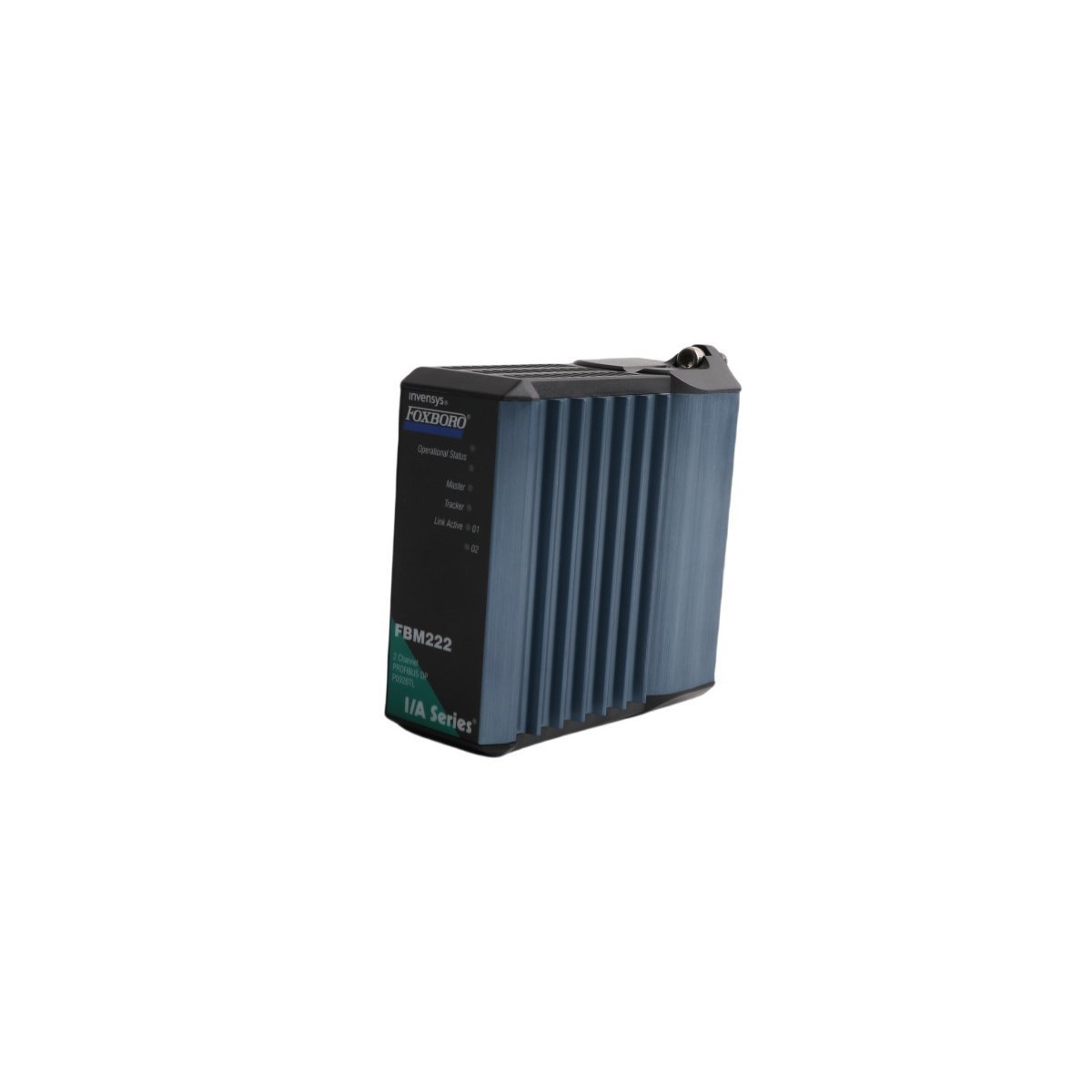

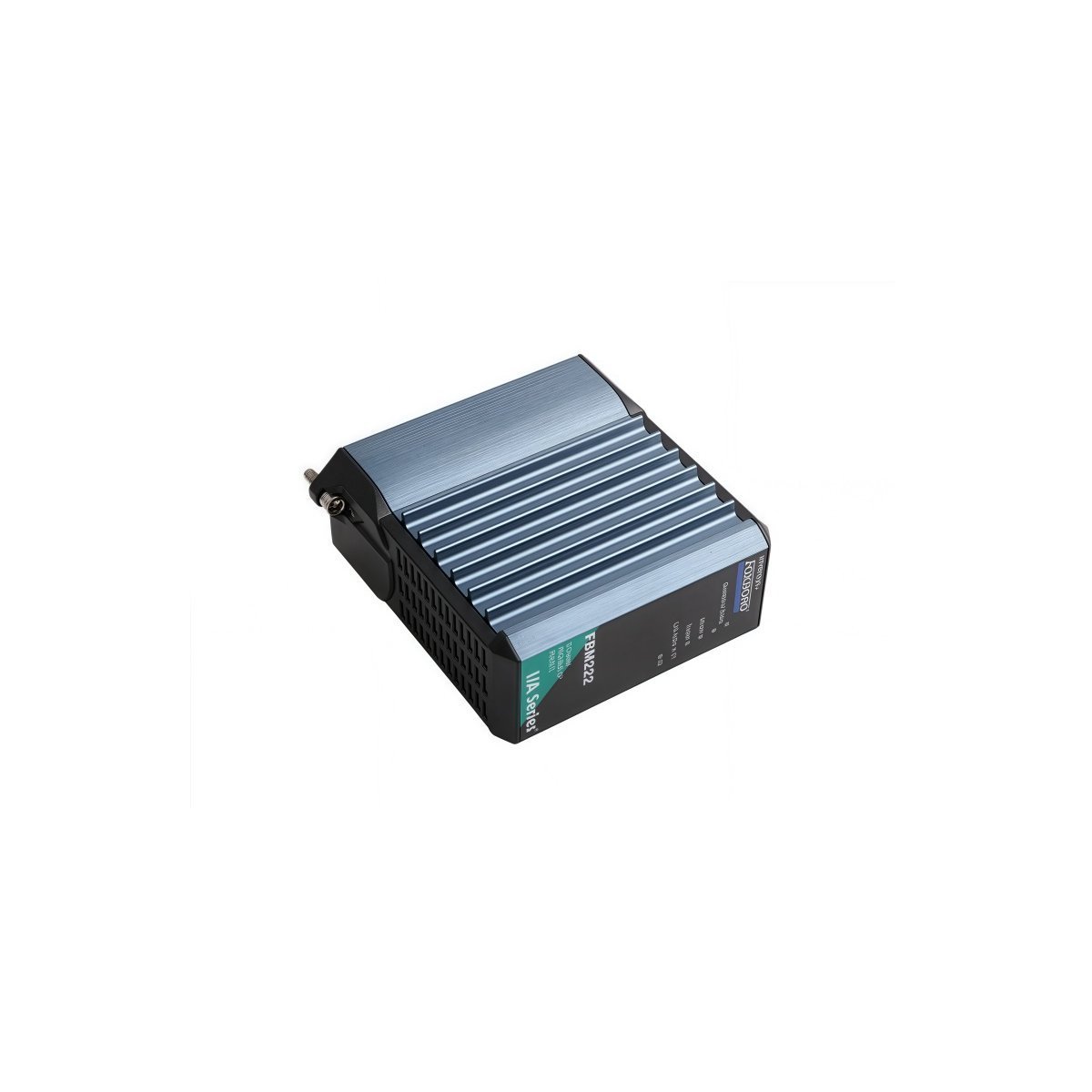

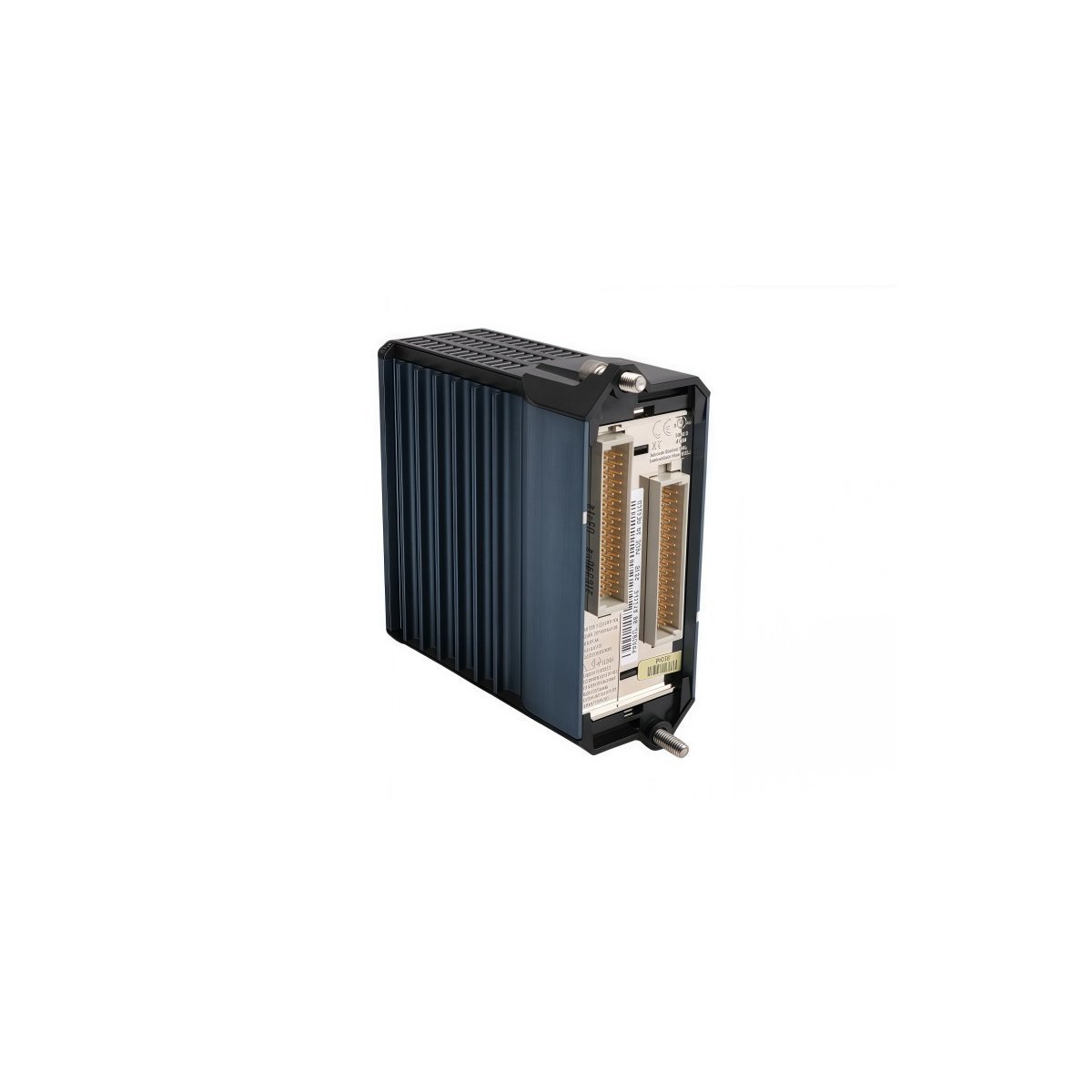

Foxboro FBM222 P0926TL PROFIBUS Communication Module

The Foxboro FBM222 (P0926TL) is a specialized communication interface designed for the Foxboro Evo and I/A Series Distributed Control Systems (DCS). This module serves as a high-speed gateway between the control system and various field instruments. It facilitates seamless connectivity with PROFIBUS-DP and PROFIBUS-PA slave devices, including motor drives, actuators, and remote I/O stations. By using this module, plant operators can achieve real-time data exchange and comprehensive device monitoring across complex industrial networks.

Technical Specifications

Dynamic Device Management and Scalability

The FBM222 offers exceptional flexibility for expanding industrial facilities. It allows engineers to add, modify, or remove field devices while the system remains operational. This “run-time” configuration capability prevents costly process shutdowns during upgrades. Additionally, the module supports both Class 1 and Class 2 Masters. This allows for simultaneous control operations and engineering tool access. The unit even maintains compatibility with FBM223 termination assemblies, which simplifies hardware migrations while preserving existing field wiring.

Key Operational Advantages

Integrating the FBM222 into your automation strategy provides several technical benefits:

• Superior Data Mapping: Propagates PROFIBUS-PA values and status directly to I/A Series control blocks.
• Transparent Diagnostics: Provides user-selectable status parameters and read-back values for all output data.
• Enhanced Safety: Galvanic isolation protects the internal DCS logic from field-side electrical surges.
• Efficient Upgrades: Compatible with legacy termination assemblies for fast hardware transitions.
