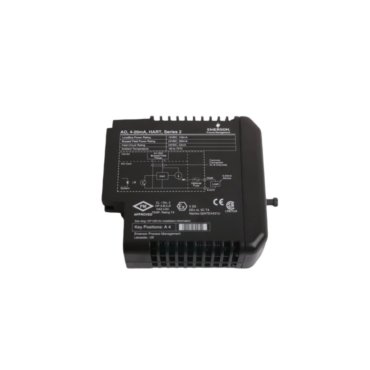

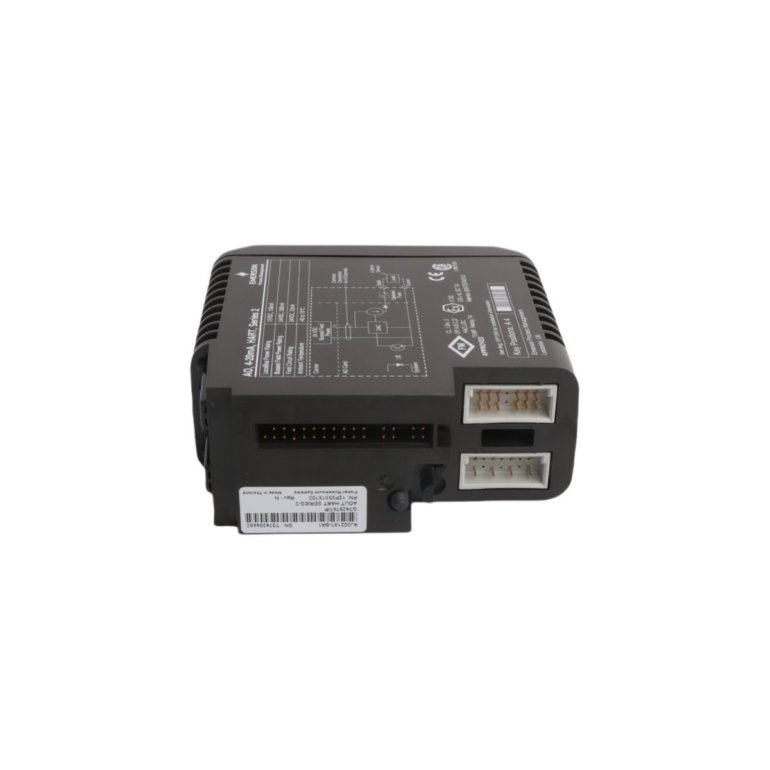

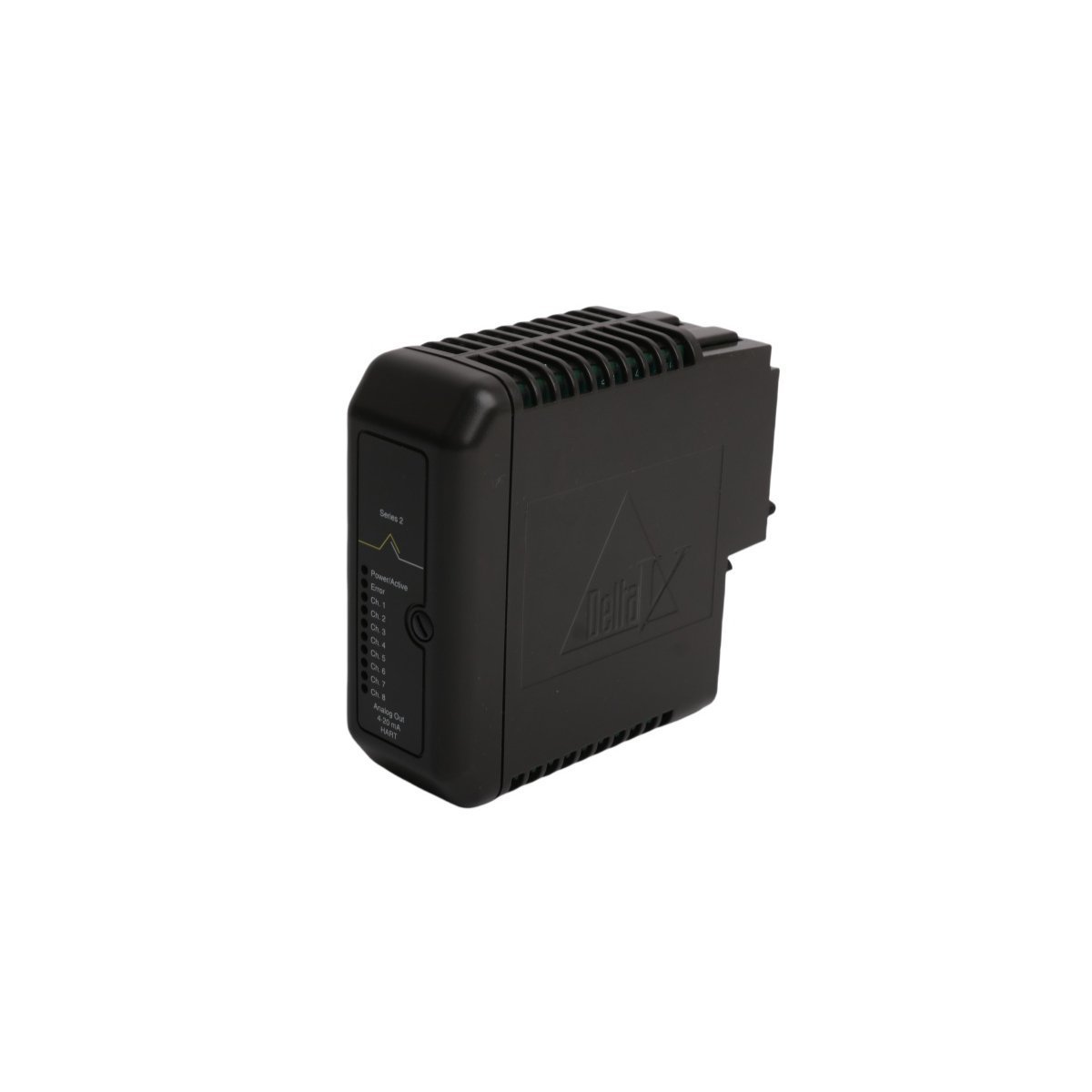

Emerson KJ3222X1-BK1 12P4705X032 SE4003S2B1 Analog Input Module

The Emerson KJ3222X1-BK1 12P4705X032 provides precise 8-channel signal acquisition for M-series control environments. This module primarily converts standard 4–20 mA DC field signals into digital data. It utilizes a sophisticated 24-bit A/D converter to ensure maximum measurement depth. Because it supports an extended range up to 25 mA, it handles unexpected signal surges easily. The module serves as a critical link between field sensors and the controller. Consequently, it supports accurate monitoring for pressure, flow, and temperature variables. Therefore, it remains a staple in modern chemical and energy production plants.

Rugged Performance in Challenging Environments

Engineers designed the SE4003S2B1 hardware to maintain accuracy despite severe temperature fluctuations. It exhibits an incredibly low thermal drift across its entire operating spectrum. Furthermore, the unit operates reliably in high-humidity areas without performance loss. Since the module features a removable terminal block, technicians can perform maintenance quickly. This design allows for fast wiring changes using standard industrial gauges. The robust internal circuitry also protects the system against common-mode electrical noise. These attributes guarantee long-term stability in demanding petrochemical and manufacturing facilities.

Comprehensive Technical Specifications

Enhanced System Availability and Maintenance

The KJ3222X1-BK1 12P4705X032 integrates perfectly with redundant DeltaV carrier configurations. This setup ensures continuous data flow even if a single component fails. Moreover, the module provides real-time diagnostic alerts for channel health monitoring. This transparency allows operators to address field instrument issues before they affect production. Because the hardware meets strict DCS safety standards, it optimizes overall plant security. The simplified mounting process also reduces engineering costs during system expansion. Ultimately, this analog input card delivers the reliability needed for high-stakes industrial automation.
