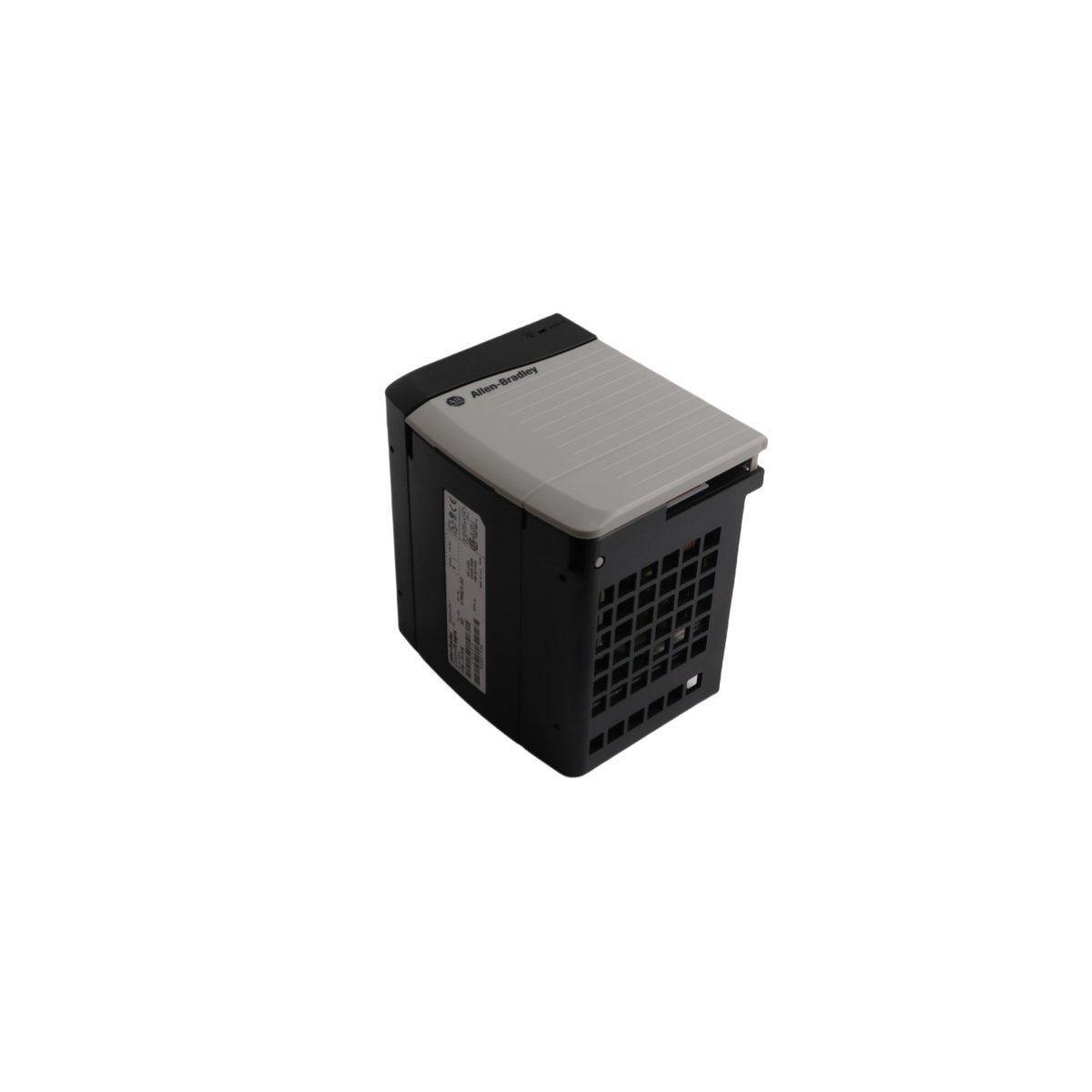

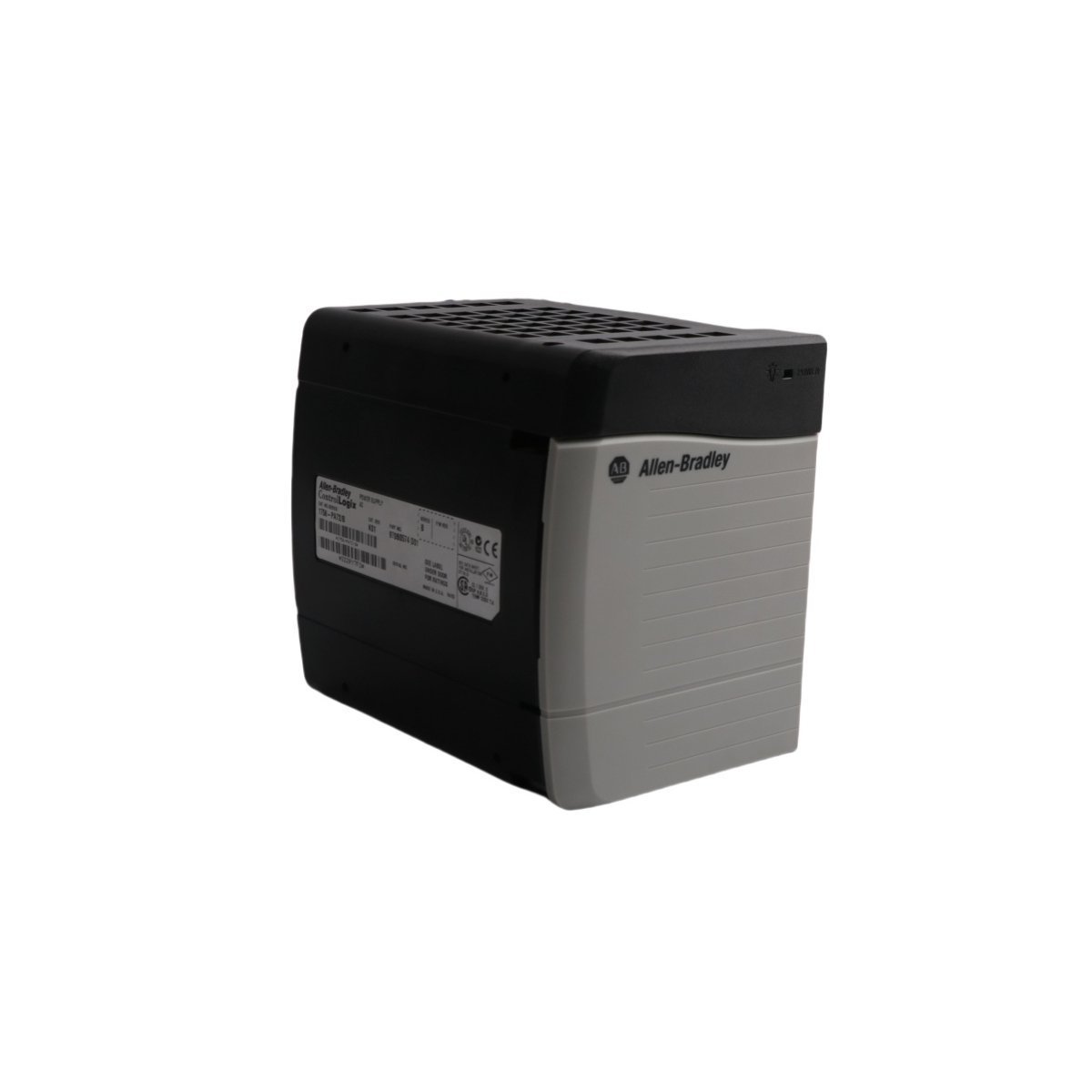

Allen Bradley 1756-PA72 ControlLogix AC Power Supply

The Allen Bradley 1756-PA72 serves as the primary energy source for ControlLogix chassis configurations. It converts standard alternating current into the specific DC voltages required by the backplane. This module ensures that controllers and I/O modules receive stabilized power during operation. Because it mounts directly to the left side of the chassis, it optimizes space.

The unit handles a broad input range from 85V to 265V AC. Consequently, this versatility allows for global deployment without additional transformers. The power supply maintains a total output capacity of 75 Watts. This provides sufficient overhead for high-density I/O configurations and multiple processors.

Operational Performance and Technical Features

Stability remains a core strength of the 1756-PA72 during industrial voltage fluctuations. The module includes a built-in hold-up time feature. This characteristic allows the system to bridge brief power interruptions. Therefore, the controller can execute an orderly shutdown to protect critical process data.

Diagnostic monitoring is straightforward thanks to integrated status indicators. A green LED provides immediate visual confirmation of healthy output levels. Furthermore, the hardware utilizes high-grade components to minimize thermal dissipation. This design choice extends the operational life of the entire ControlLogix assembly.

Industrial Applications and Compliance

Engineers specify the 1756-PA72 for heavy-duty manufacturing and infrastructure projects. It withstands the rigorous demands of automotive, food, and beverage production lines. The module meets UL, CSA, and CE certification requirements for safety. Additionally, it complies with ATEX standards for use in specific hazardous locations.

Installation is efficient due to the modular screw-terminal design. Users can secure the power wiring quickly while ensuring vibration resistance. The open-style enclosure promotes natural convection cooling within the control cabinet. This reliability makes it a standard choice for high-availability automation systems.
