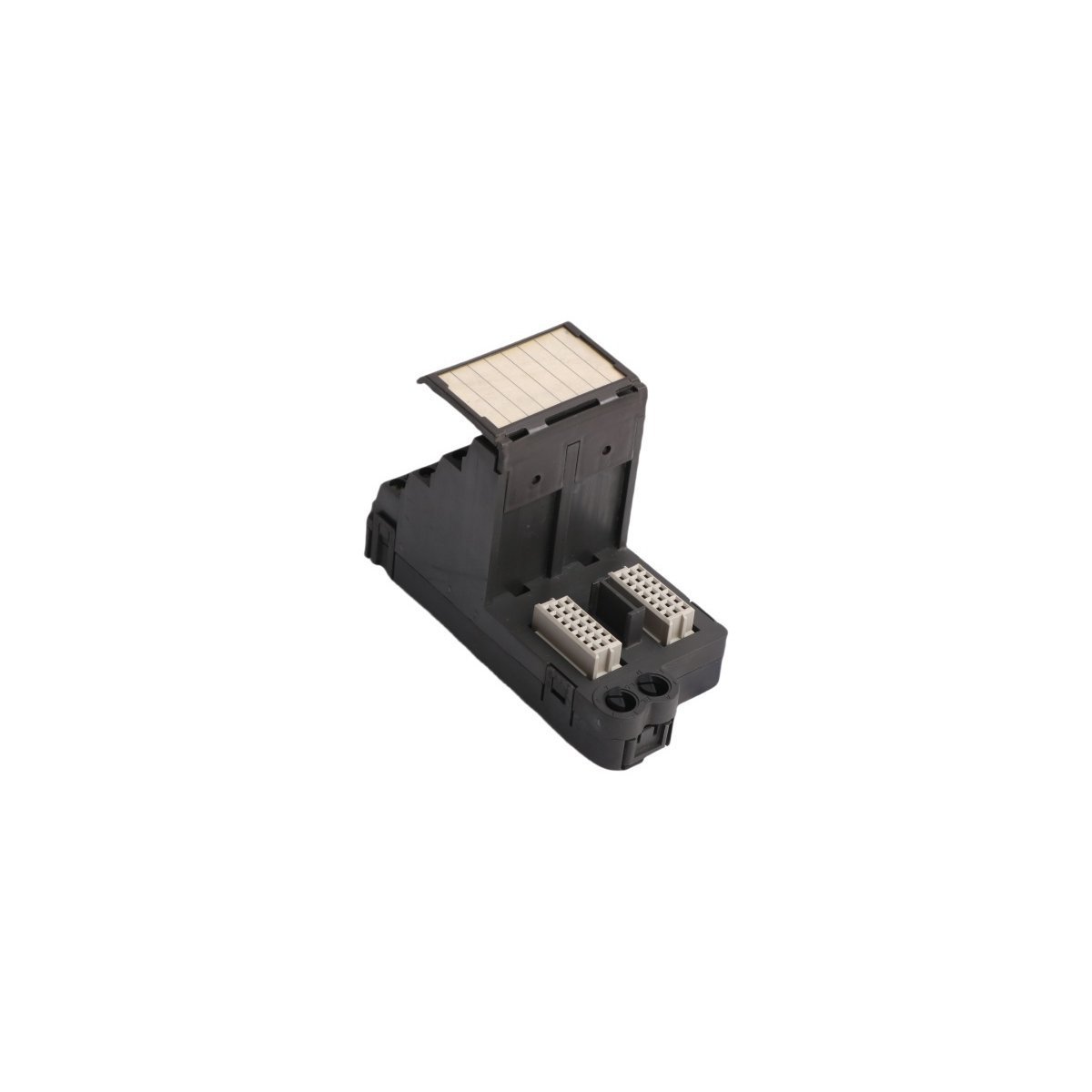

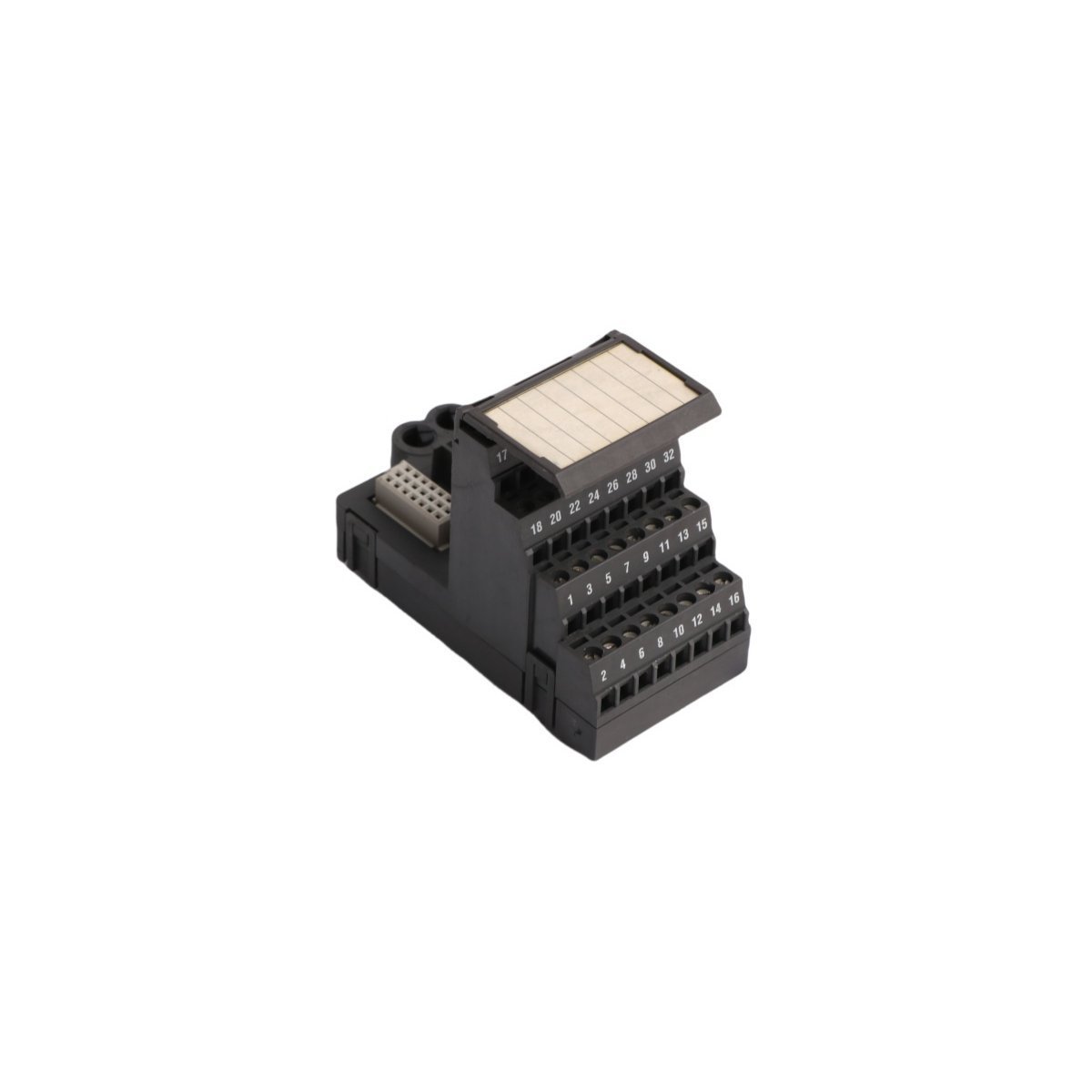

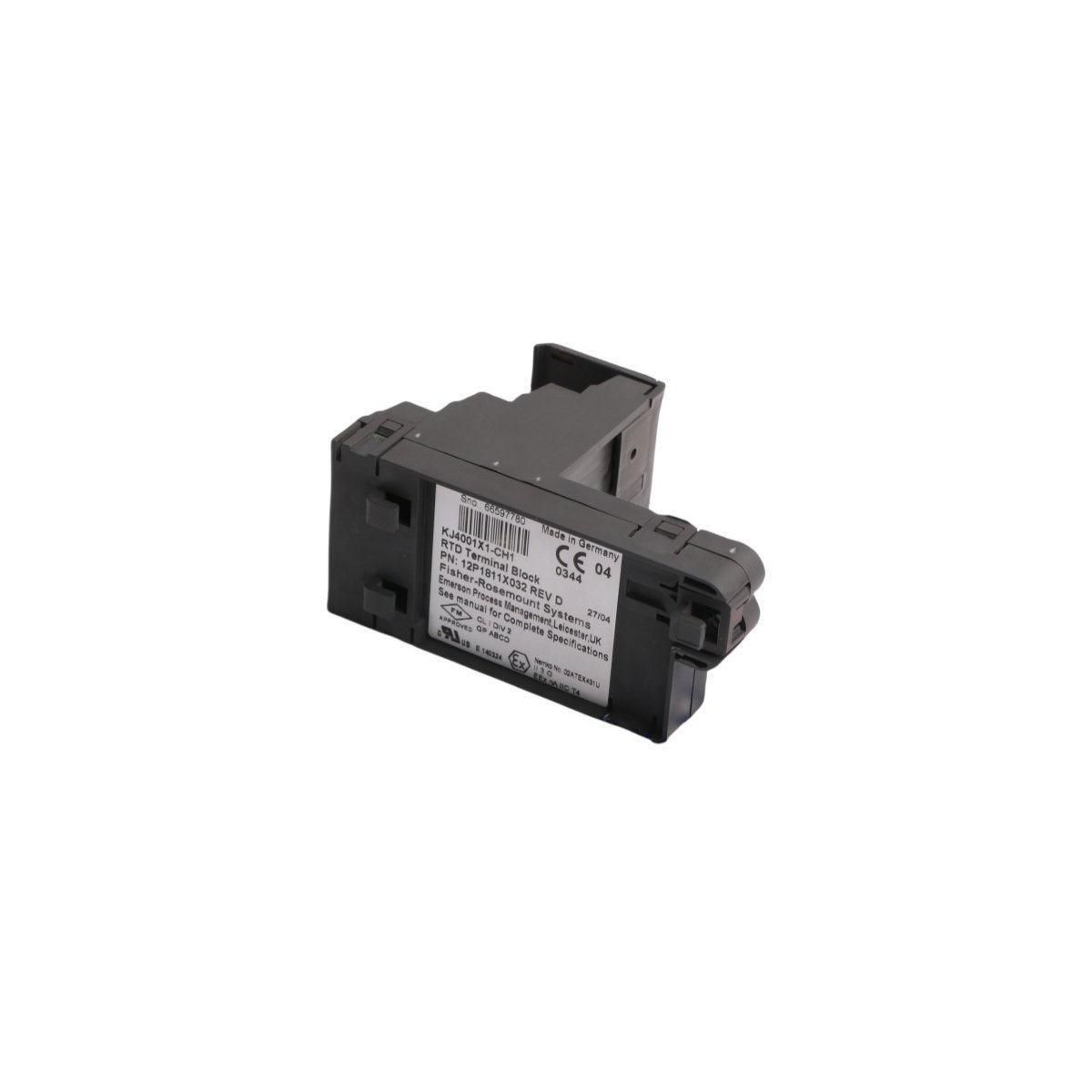

Emerson DeltaV KJ4001X1-CH1 12P1811X032 8-Channel RTD Interface Block

Product Overview

The Emerson KJ4001X1-CH1 12P1811X032 serves as a specialized RTD terminal block within the DeltaV™ M-series I/O subsystem. This component provides the high-precision interface required to connect Resistance Temperature Detectors directly to the Distributed Control System (DCS).

Product Description

The KJ4001X1-CH1 12P1811X032 terminal block facilitates accurate thermal data acquisition by providing a stable termination point for temperature sensors. It supports versatile field wiring, accommodating both 2-wire and 3-wire RTD configurations to eliminate lead-wire resistance errors. Consequently, this module ensures that the DeltaV system receives high-fidelity temperature signals essential for tight process control and safety monitoring.

Engineered for durability, the assembly utilizes premium materials to withstand the rigors of industrial cabinet environments. The unit operates on a standard 24V DC power supply and manages a typical 20mA current capacity per loop. Furthermore, the IP67-rated construction protects the internal connections from dust and moisture ingress, which ensures consistent performance even in unconditioned marshalling areas.

Transitioning to this specific terminal block allows for seamless integration into existing DeltaV M-series architectures. While the manufacturer moved this series to discontinued status in late 2018, it remains a critical spare part for maintaining the reliability of legacy temperature control loops. Its compact 9cm footprint allows engineers to maximize I/O density while ensuring organized and accessible field wiring.

Technical Specifications

• Manufacturer: Emerson
• Model Designation: KJ4001X1-CH1
• Part Number: 12P1811X032
• Product Line: DeltaV™ M-series I/O Subsystem
• Functional Type: RTD Terminal Block
• Sensor Compatibility: 2-wire and 3-wire RTDs
• Operating Voltage: 24V DC
• Current Rating: 20mA
• Ingress Protection: IP67 Rated
• Dimensions: 9 x 6.6 x 4.1 cm
• Weight: 0.1 kg
• Origin: USA

Engineering Advantages

• High Measurement Accuracy: Optimized circuitry minimizes signal noise and thermal drift during temperature acquisition.
• Ruggedized Construction: Industrial-grade housing provides resistance to chemical exposure and mechanical stress.
• Flexible Field Wiring: Support for multiple wiring schemes allows the block to interface with various sensor types without hardware modification.
• DCS Native Integration: Direct compatibility with DeltaV I/O cards ensures rapid configuration and comprehensive diagnostics.

FAQs

• Does this terminal block support 4-wire RTDs?
• The KJ4001X1-CH1 primarily targets 2-wire and 3-wire configurations; however, you should consult the specific DeltaV I/O card manual for 4-wire wiring diagrams.
• Is the KJ4001X1-CH1 suitable for outdoor installation?
• While the block features an IP67 rating, it is typically installed within an industrial enclosure to provide secondary protection from environmental extremes.
• Can this be used with other DCS brands?
• ​This hardware is proprietary to the Emerson DeltaV M-series subsystem and requires a compatible DeltaV I/O controller for operation.
