DS200LPPAG1A GE Fanuc Mark V Legacy Turbine Control Component

Product Overview

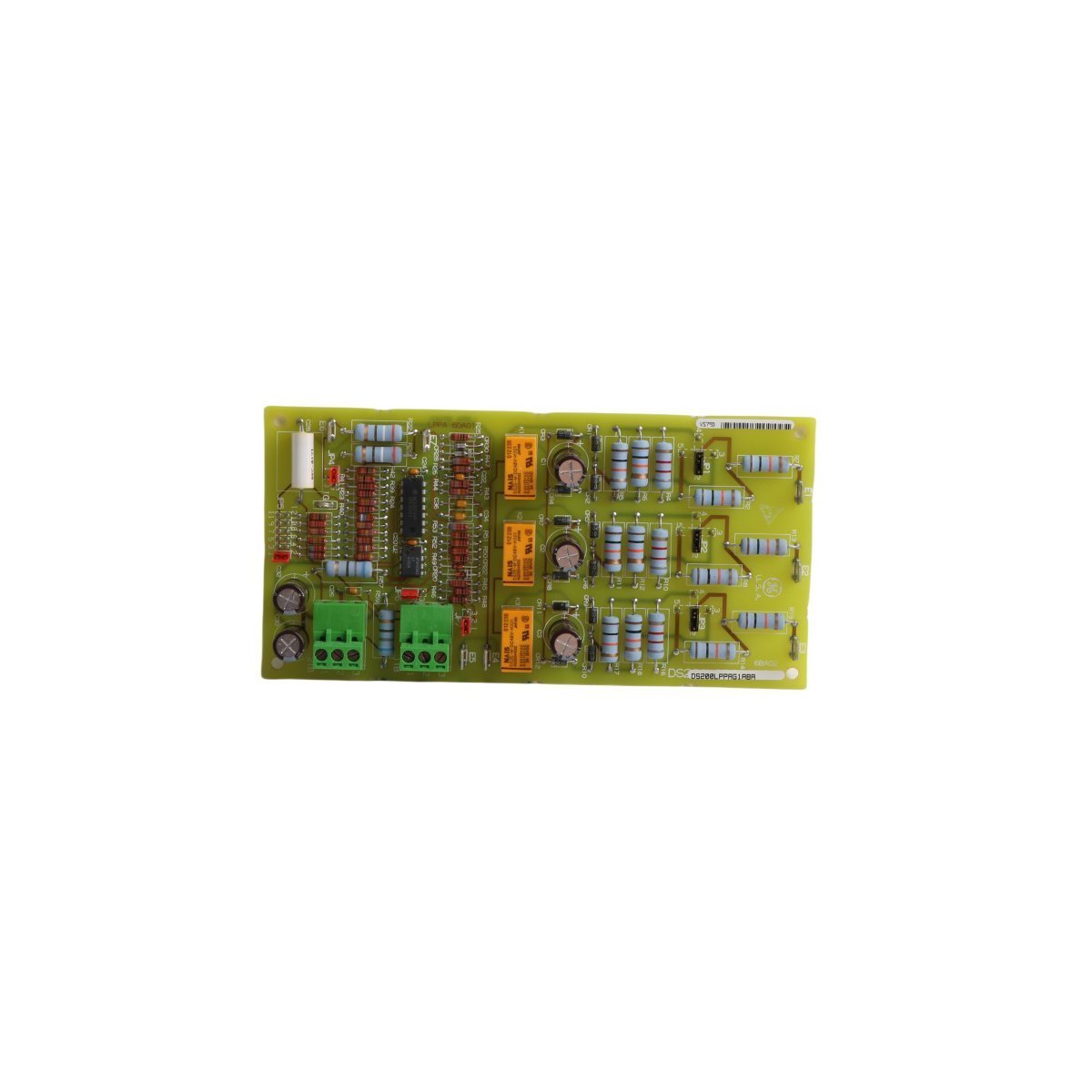

The GE DS200LPPAG1A is a functional revision A Line Protection Card. General Electric engineered this board specifically for the legacy Mark V Speedtronic Turbine Control System series. It delivers vital voltage regulation, overvoltage protection, and signal conditioning for industrial gas, steam, and wind turbine operations.

Technical Specifications

Functional Description

The DS200LPPAG1A serves as a critical defense layer within the Mark V control architecture. It actively suppresses voltage transients and filters line noise to protect downstream microprocessors. Consequently, this card stabilizes incoming power and feedback loops before signals reach primary processor boards.

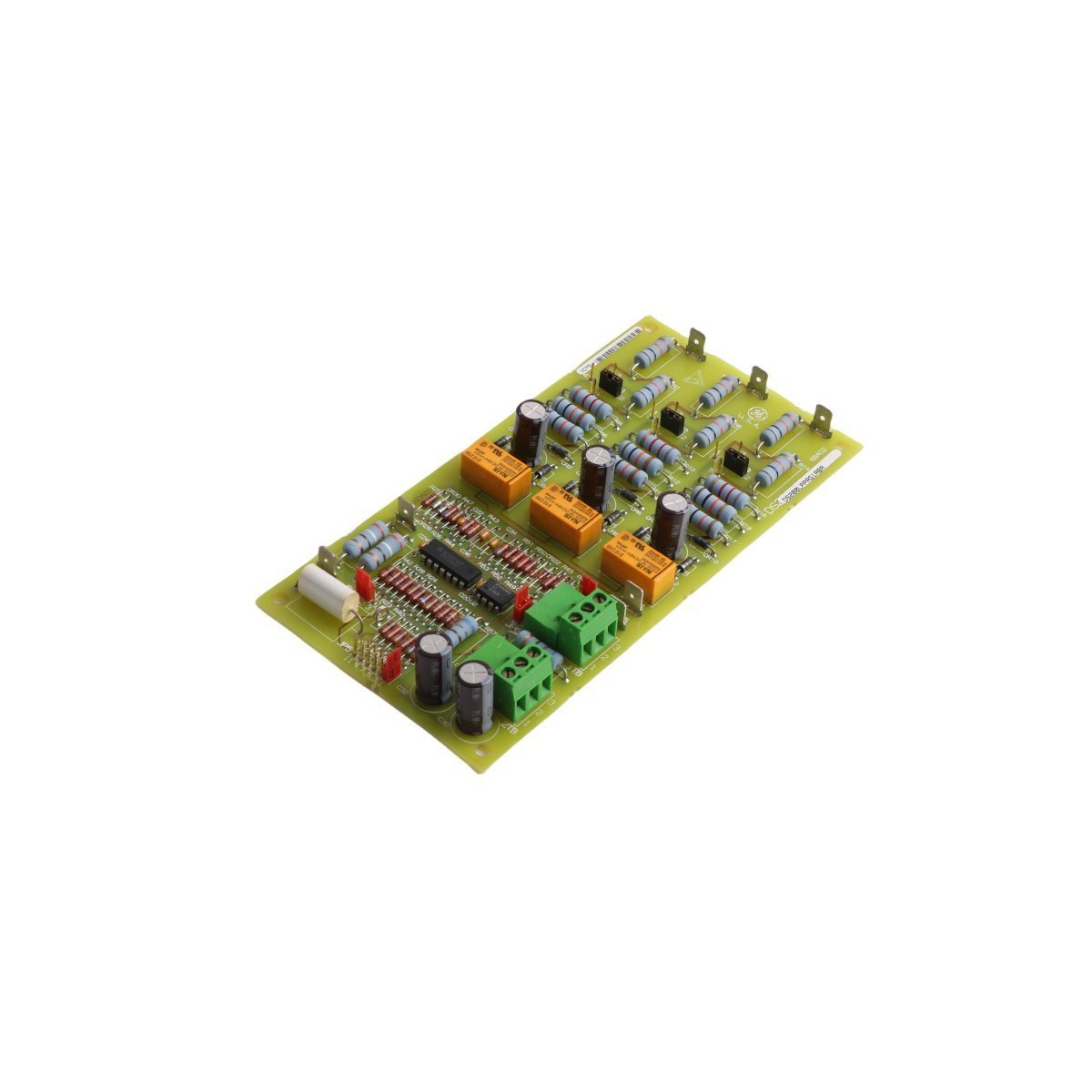

The assembly integrates an array of high-grade capacitors, diodes, and integrated circuits. These components actively clamp electrical surges. Additionally, the printed circuit board features a conformal isolation coating. This specialized layer prevents surface arcing and repels airborne industrial contaminants. Insulated rings line each factory mounting hole to ensure complete electrical isolation from the control cabinet chassis.

Engineers configure hardware parameters locally via seven onboard jumpers labeled JP1 through JP7. Two heavy-duty, three-terminal blocks manage direct field wiring. Meanwhile, integrated test points allow technicians to execute real-time voltage monitoring and troubleshooting without disrupting active field loops.

Installation and Handling Guidelines

This circuit board contains highly static-sensitive components. Therefore, technicians must strictly observe Electrostatic Discharge (ESD) protocols during installation.

First, disconnect all power sources from the turbine control panel. Next, remove the existing card assembly according to original manufacturer specifications. Place the legacy card directly onto a grounded dissipative surface.

Unpack the replacement DS200LPPAG1A inside a static-safe zone using an approved grounding wrist strap. Use a non-conductive blade to open the sealed anti-static packaging. Avoid touching trace paths or surface-mounted components. Secure the new board using the original mounting screws. Finally, verify jumper positioning against system schematics before applying power to the panel.
