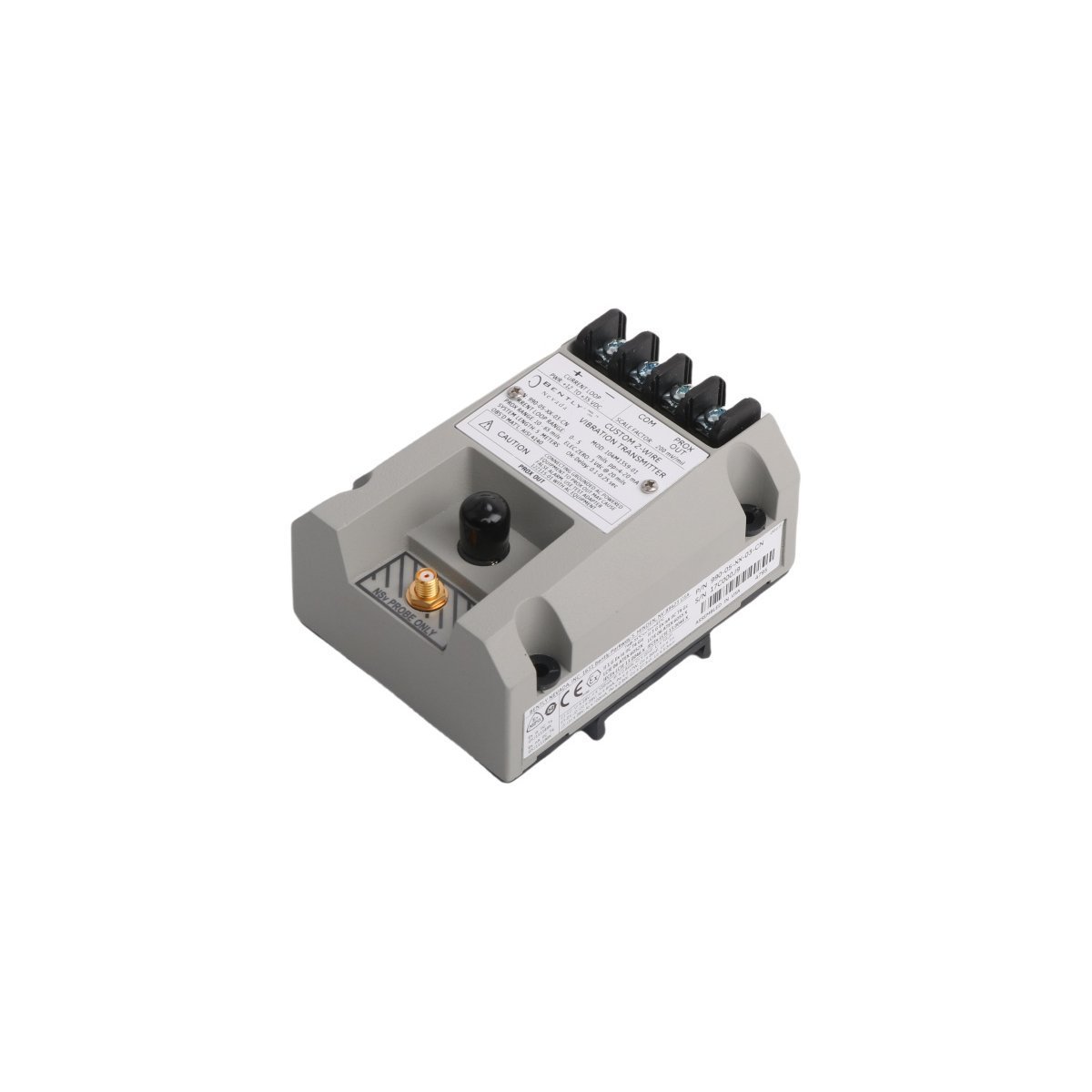

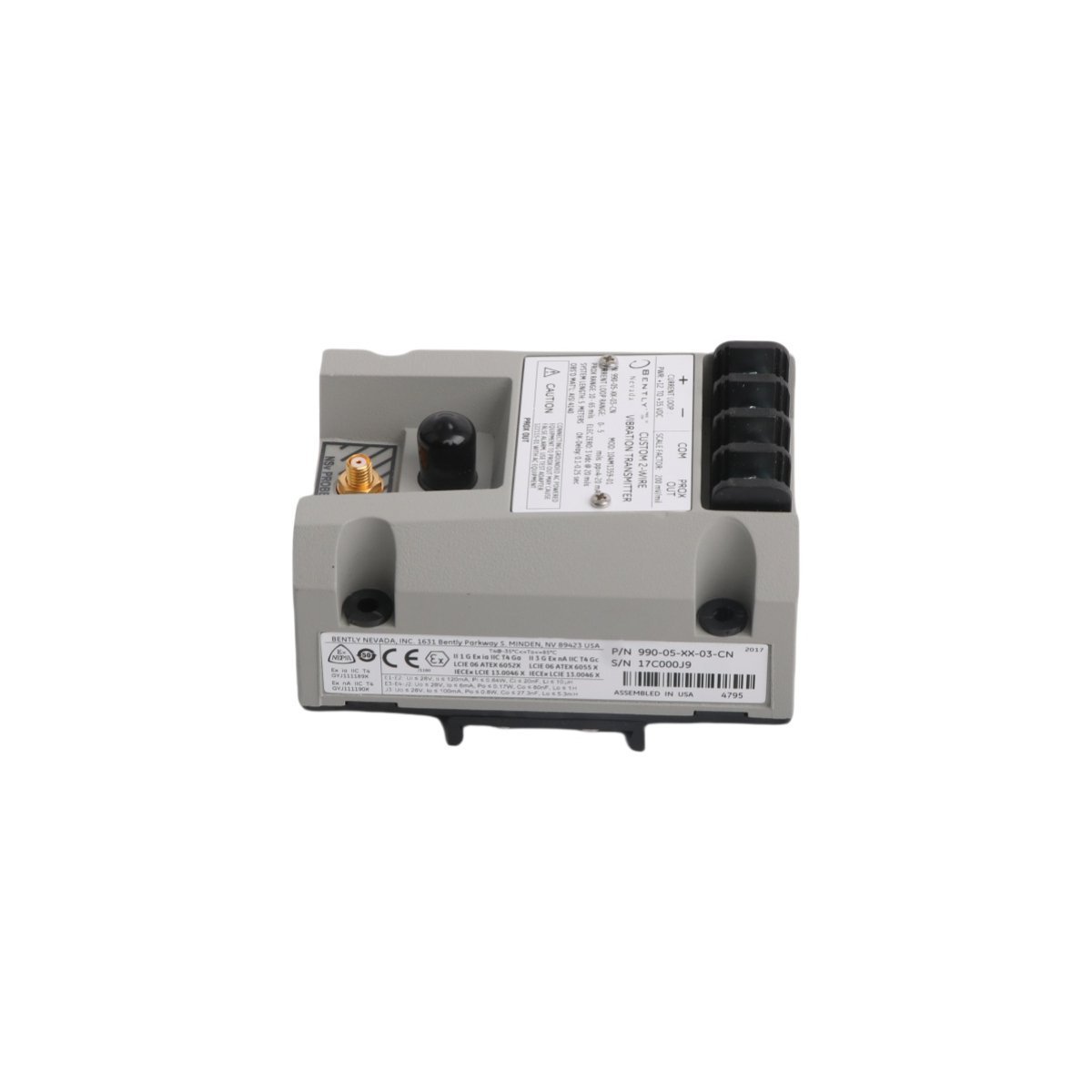

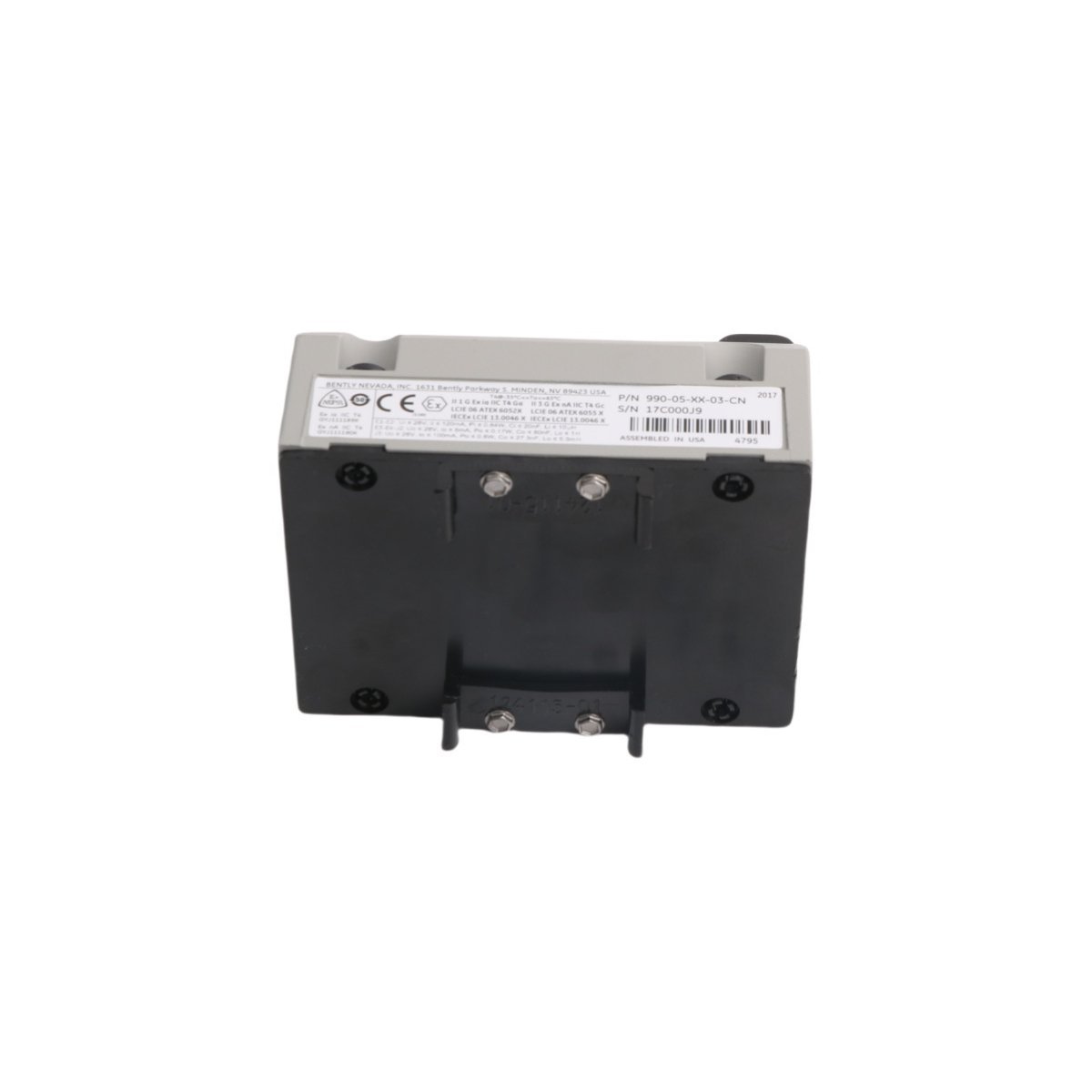

Bently Nevada 990-05-XX-03-CN 104M6732-01 Vibration Transmitter

Technical Specifications

• Brand: Bently Nevada
• Model Number: 990-05-XX-03-CN
• Part Number: 104M6732-01
• Device Type: Vibration Transmitter
• Input Signal: 3300 XL 8mm Proximity Probe & Extension Cable
• Output Signal: 4-20 mA DC (Proportional to vibration)
• Linear Range: 2.0 mm (80 mils)
• Weight: 0.46 kg
• Housing Dimensions: 9.8 x 7.3 x 6.0 cm
• Mounting: 35mm DIN-rail or Bolt-on
• Operating Temperature: -35°C to +70°C
• Certification: Regional CN compliance for hazardous and industrial areas

Enhanced Signal Processing and Diagnostic Interface

Beyond its primary current output, the 990-05-XX-03-CN includes a specialized “Prox Out” buffered signal port. This feature allows maintenance teams to connect portable diagnostic equipment directly to the transmitter for detailed vibration analysis without interrupting the control loop. Such capability is vital for identifying specific mechanical faults like rotor imbalance or bearing degradation during routine inspections. Because the transmitter utilizes advanced filtering, it successfully isolates shaft-related vibration from background noise, ensuring that plant operators receive only the most relevant data for their predictive maintenance programs.

Simplified Installation and Operational Reliability

The 990 Series transmitter streamlines the deployment process by combining the functions of a Proximitor and a signal conditioner into a single compact module. Since it supports 2-wire or 3-wire wiring configurations, it adapts easily to existing facility infrastructure. This flexibility, combined with a high mean time between failures (MTBF), makes the 104M6732-01 a dependable choice for state-owned enterprises and private industrial complexes. By implementing this localized Bently Nevada solution, facilities improve equipment uptime while ensuring alignment with national safety and energy efficiency initiatives.
