990-04-50-01-05 Bently Nevada 4-20 mA Vibration Monitoring Transmitter

Technical Overview

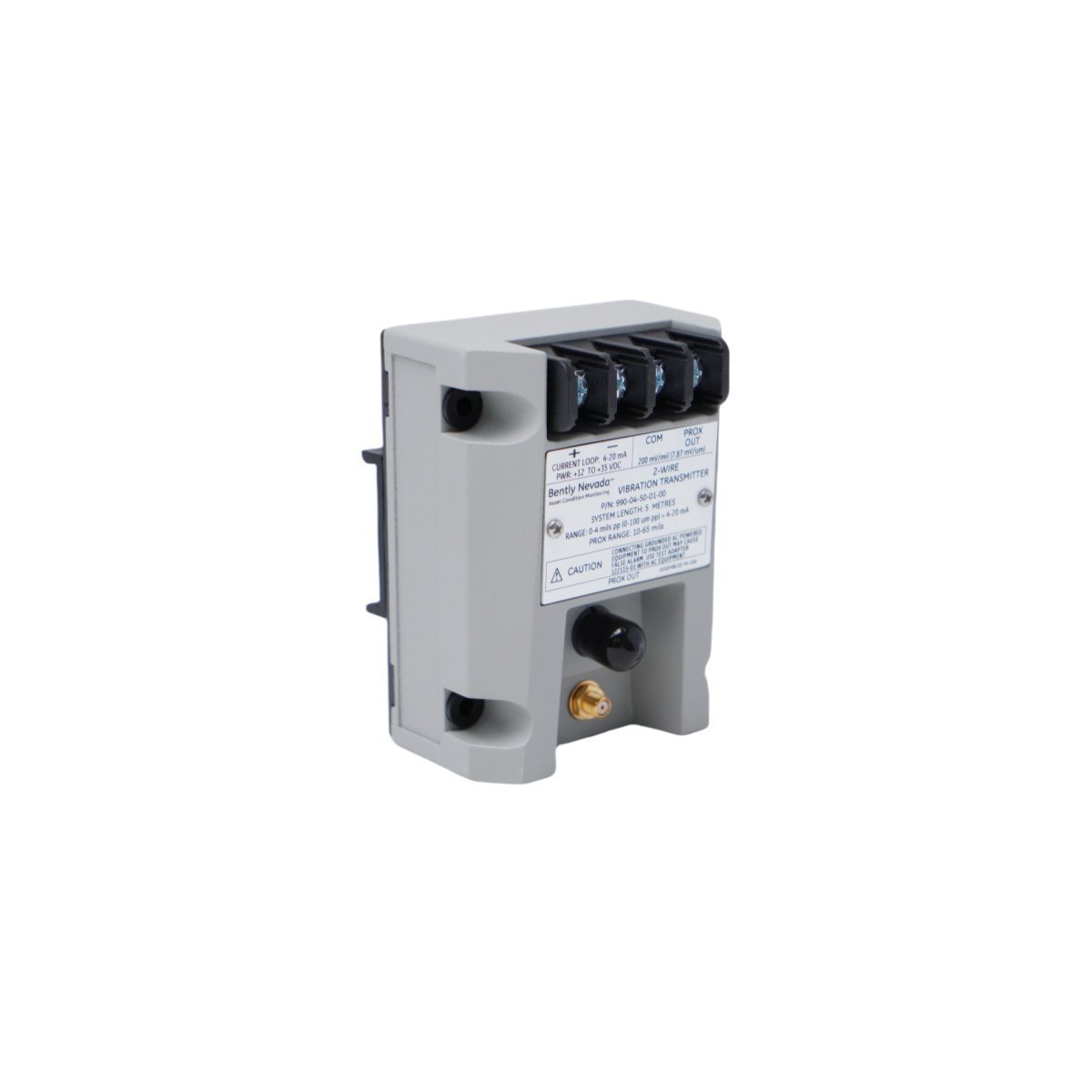

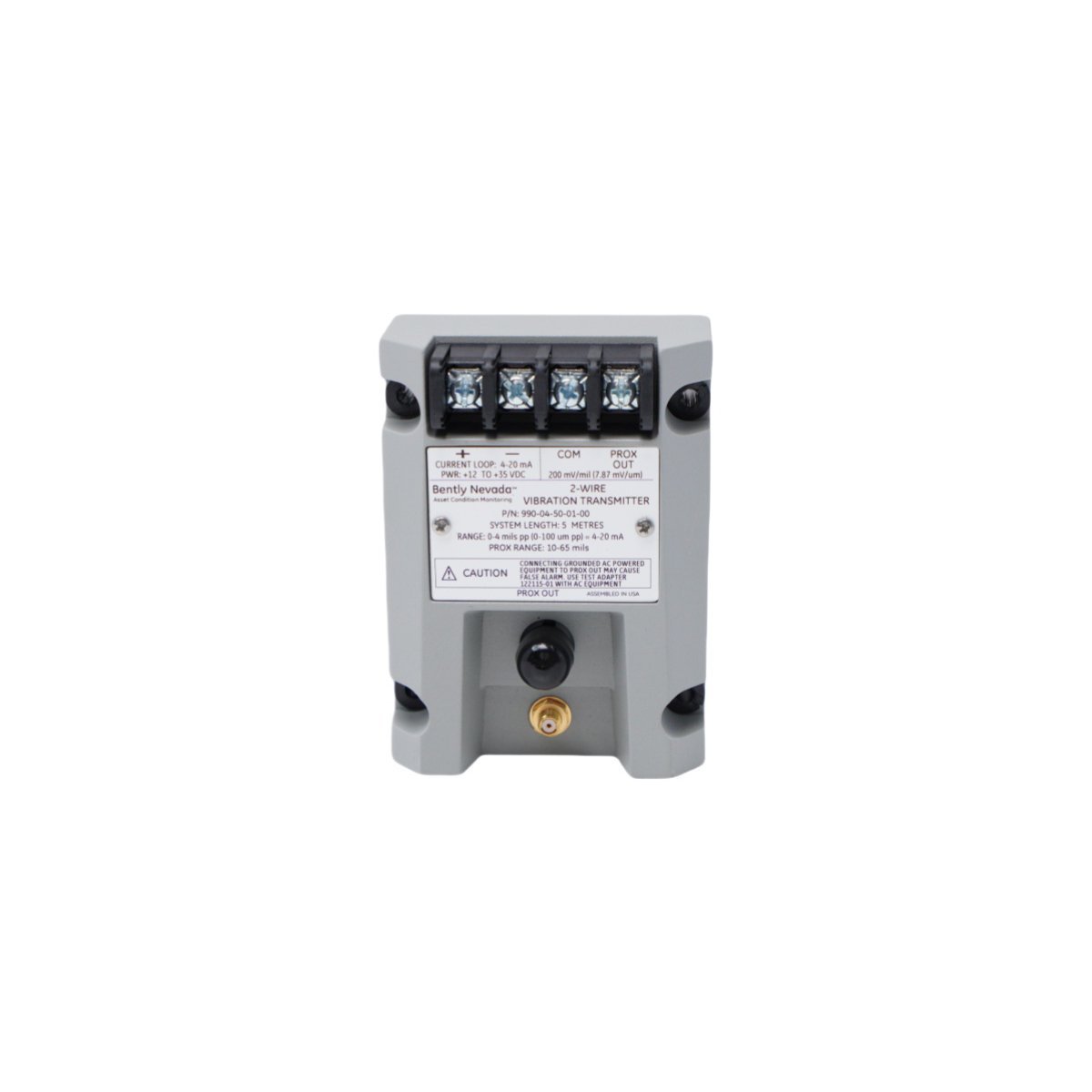

The Bently Nevada 990-04-50-01-05 functions as a cost-effective solution for facilities requiring basic vibration trending without the complexity of a rack-mounted monitoring system. This transmitter converts the signal from a proximity probe into a proportional 4-20 mA output, allowing for direct integration with Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC). Because it operates on a simple two-wire loop-powered configuration, it significantly reduces wiring requirements and installation costs in remote areas of the plant.

Primarily, engineers utilize this transmitter for radial vibration measurements on machines with fluid-film bearings. While it prioritizes steady-state trending, the module includes a BNC “Prox Out” connector that provides a dynamic signal for portable diagnostic tools. This feature allows technicians to perform temporary spectrum analysis or waveform checks during a site walk-through. However, the 990-04-50-01-05 remains a standalone device and does not support the advanced phase data or System 1 integration found in more comprehensive Bently Nevada platforms.

Key Technical Characteristics

• Direct 4-20 mA Interface: The module simplifies data acquisition by providing a industry-standard current loop output that maps directly to the machinery’s vibration level.

• Integrated Sensor Support: It works seamlessly with standard 3300 XL 8mm proximity probes and extension cables, ensuring high-fidelity signal capture at the source.

• Local Diagnostic Port: The non-isolated “Prox Out” coaxial port enables maintenance teams to connect oscilloscopes or vibration analyzers for immediate onsite troubleshooting.

• Built-in Circuit Protection: The device includes a “NOT OK” signal state, which drops the current output below 3.6 mA if the transducer signal is lost or the field wiring fails.

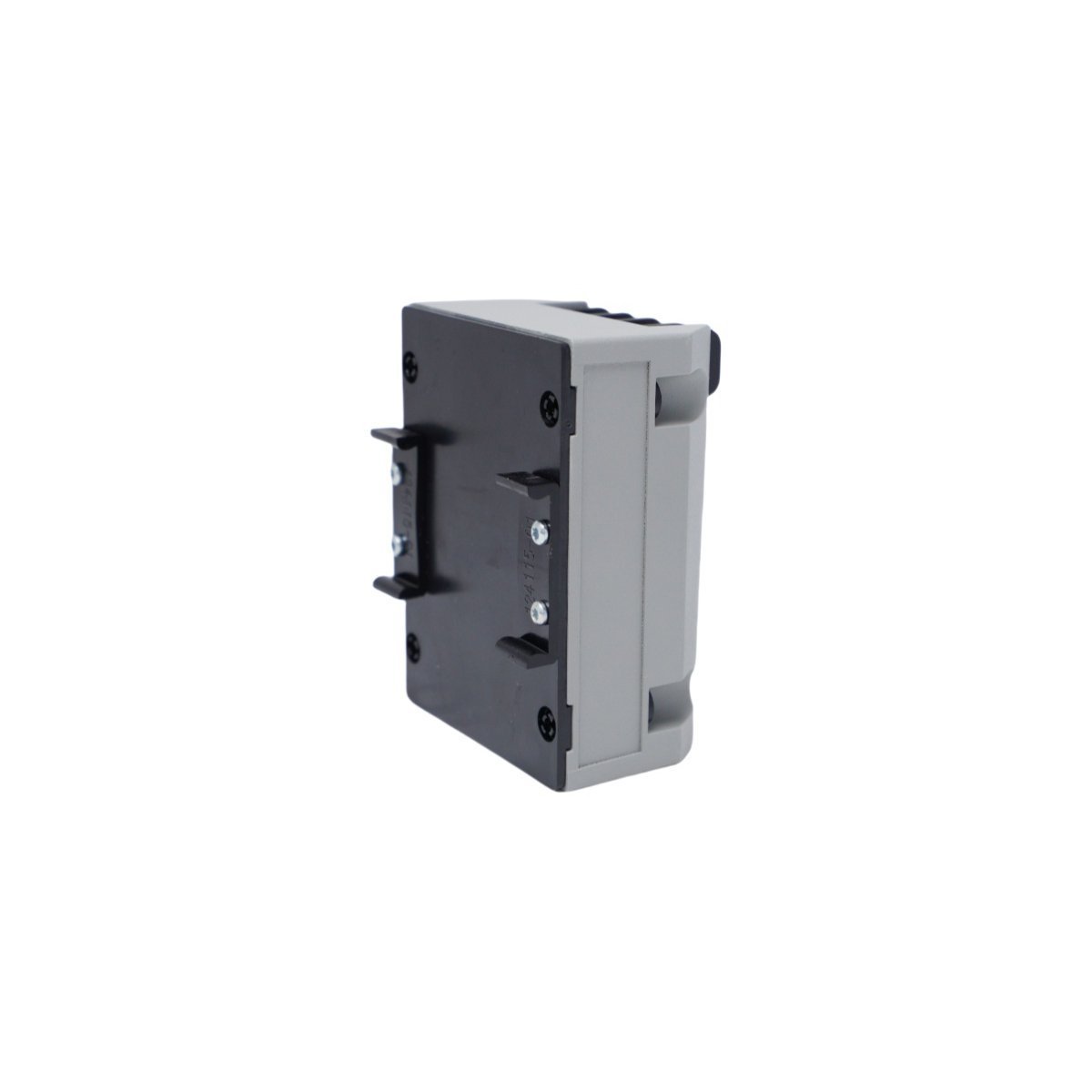

• Ruggedized Form Factor: Designed for DIN-rail mounting, the transmitter features a small footprint that fits easily into local junction boxes or machine-side enclosures.

Technical Specifications
