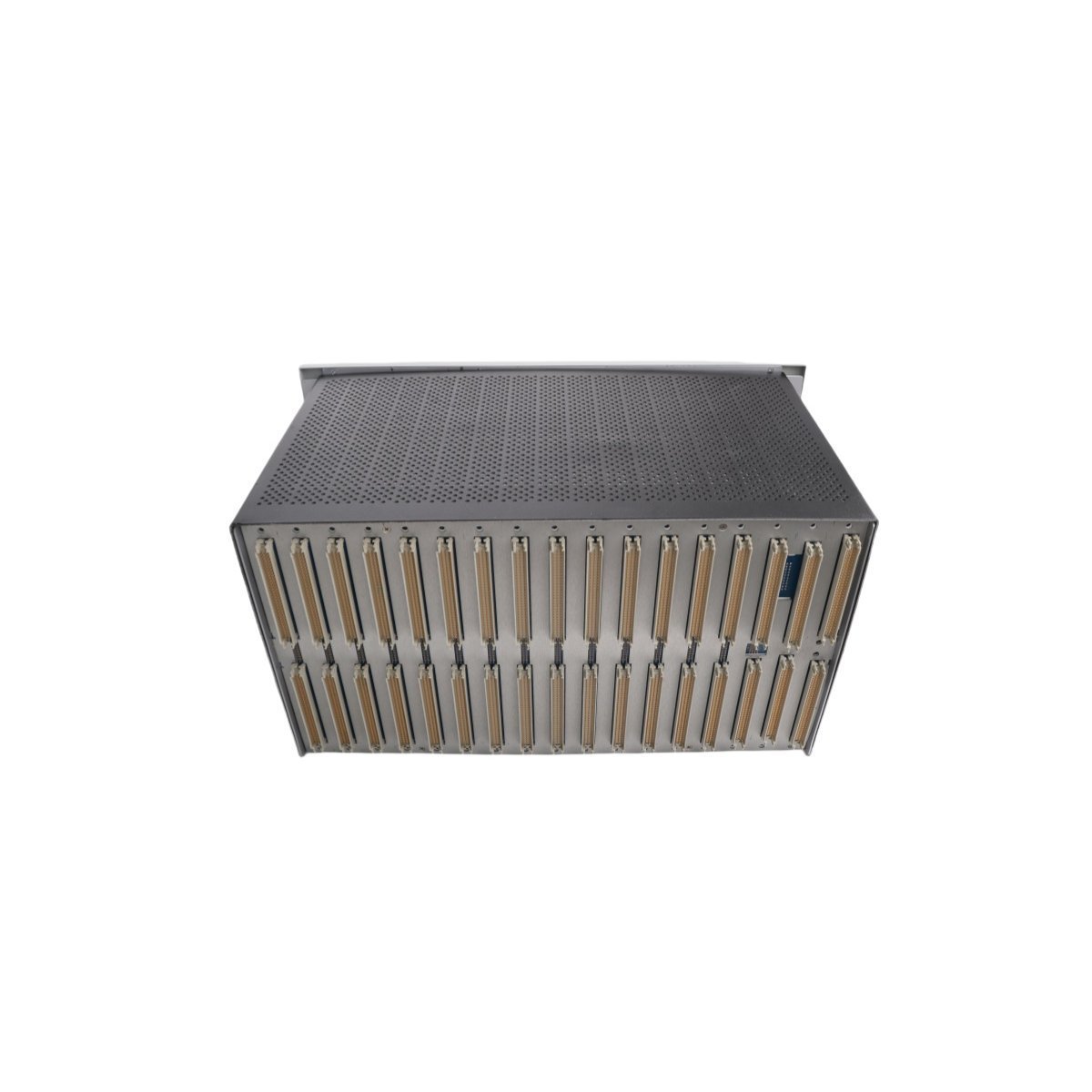

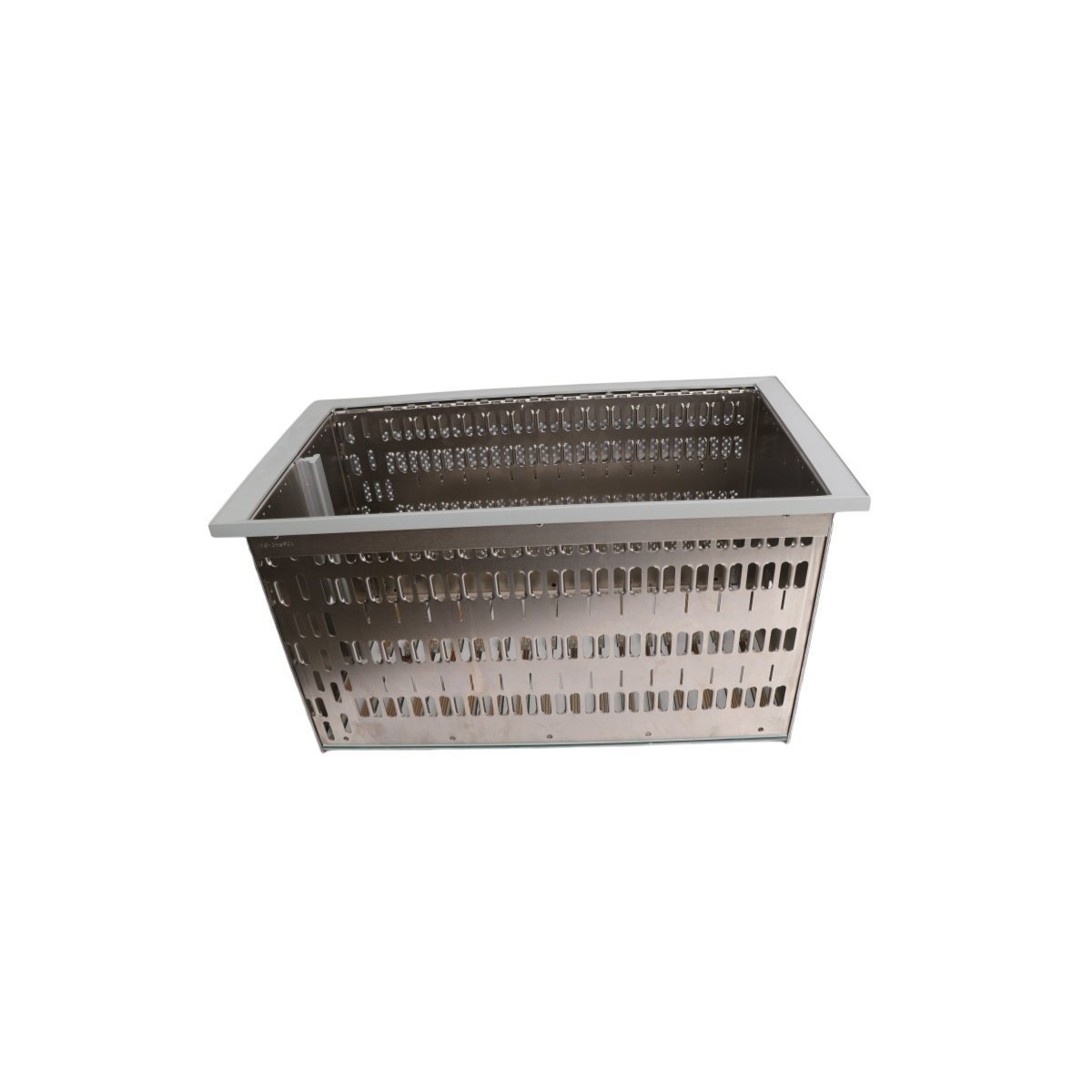

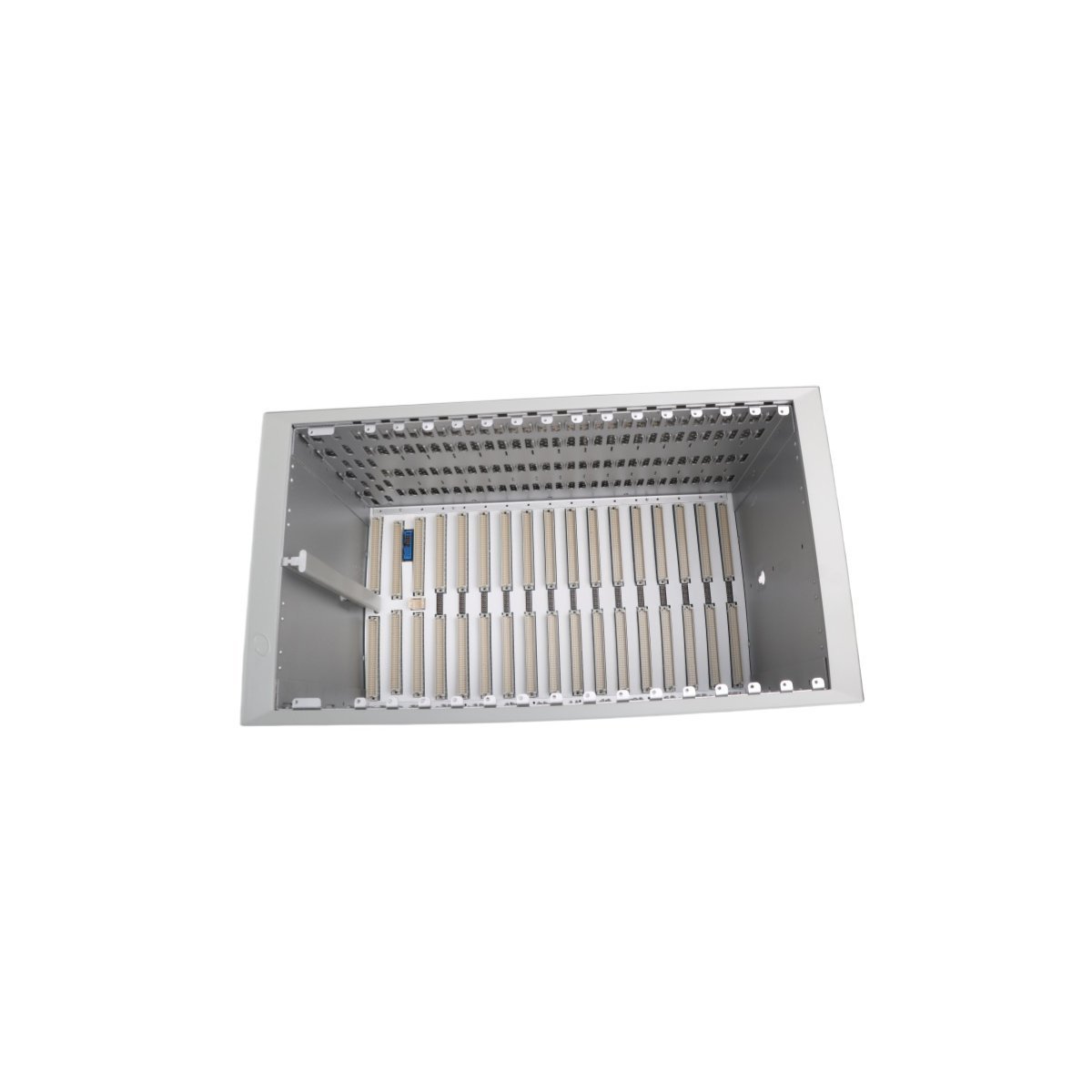

Bently Nevada 3500/05-01-02-00-00-01 System Rack

3500/05-01-02-00-00-01 Product datasheet

3500/05-01-02-00-00-01 Functional Description

The Bently Nevada 3500/05-01-02-00-00-01 System Rackspeed monitoring module operates within the versatile 3500 System rack, which supports 14 module slots in full-size (19-inch EIA) or 7 slots in mini-rack configurations. This flexible mounting solution ensures the Bently Nevada 3500/05-01-02-00-00-01 PDFcan be installed alongside vibration monitors and power supplies, enabling comprehensive machinery protection.

The system offers panel-mount, rack-mount, and bulkhead-mount configurations to accommodate different installation requirements. While the Rack Chassis 3500/05-01-02-00-00-01and other monitoring modules occupy the right-side slots, the left positions are reserved for power supplies and interface modules. This standardized layout simplifies integration of speed monitoring systems in power plants and industrial facilities.

The 3500 rack’s design ensures seamless interaction between the 3500/05-01-02-00-00-01 3500 SYSTEM CHASSIS RACKand other protection modules. The close proximity of components reduces wiring complexity while maintaining signal integrity for critical 0-30,000 RPM speed measurements and overspeed protection functions.

Whether deployed in panel-mounted control rooms or bulkhead-mounted field installations (excluding mini-rack), the Bently Nevada System Rack 3500/05-01-02-00-00-01benefits from the 3500 System’s robust architecture. The rack’s intelligent power distribution guarantees reliable operation of all connected monitoring modules, including this dual-channel speed monitoring solution.
