Bently Nevada 330851-04-000-030-10-01-00 3300 XL 25 mm Proximity Probe

330851-04-000-030-10-01-00Product datasheet

330851-04-000-030-10-01-00 Functional Description

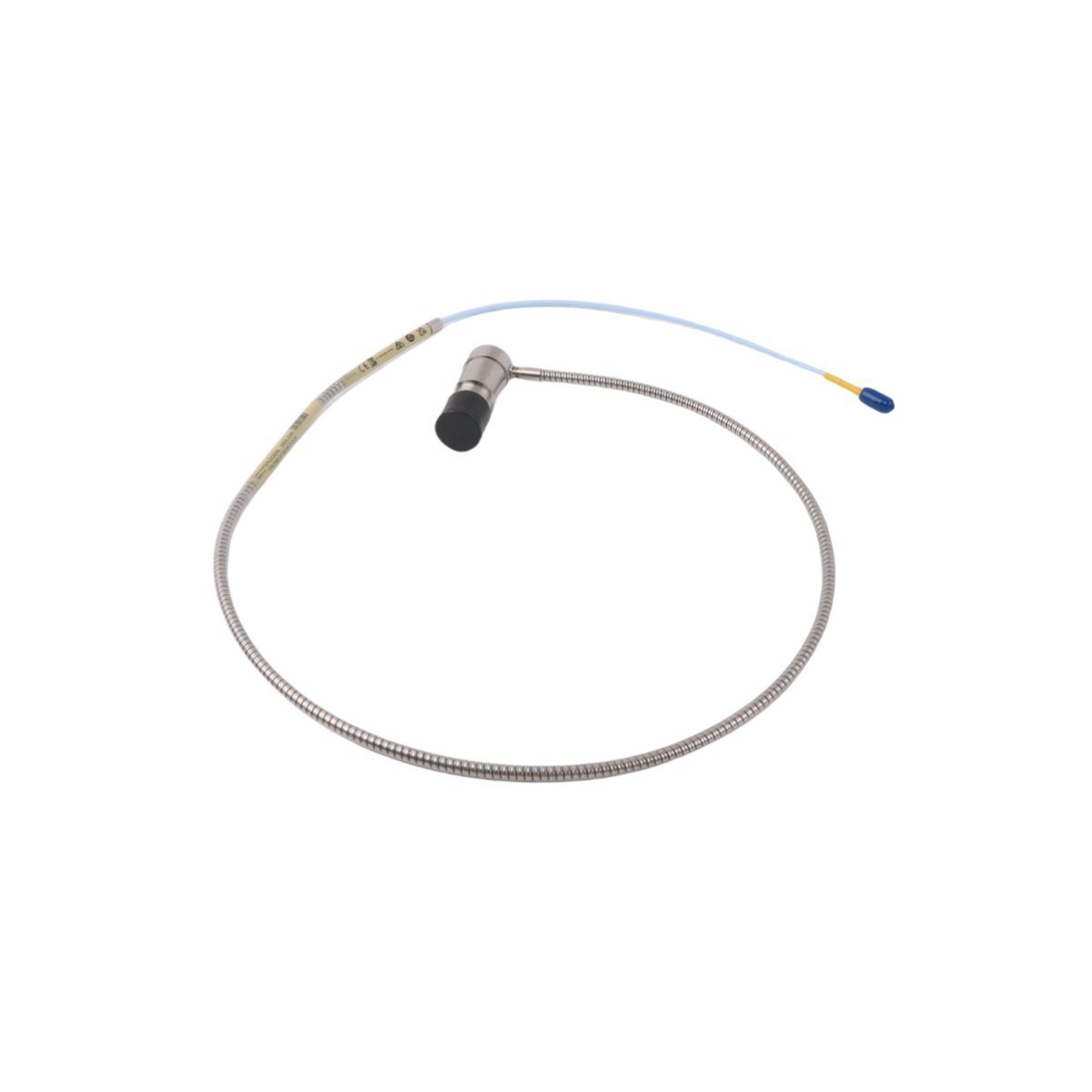

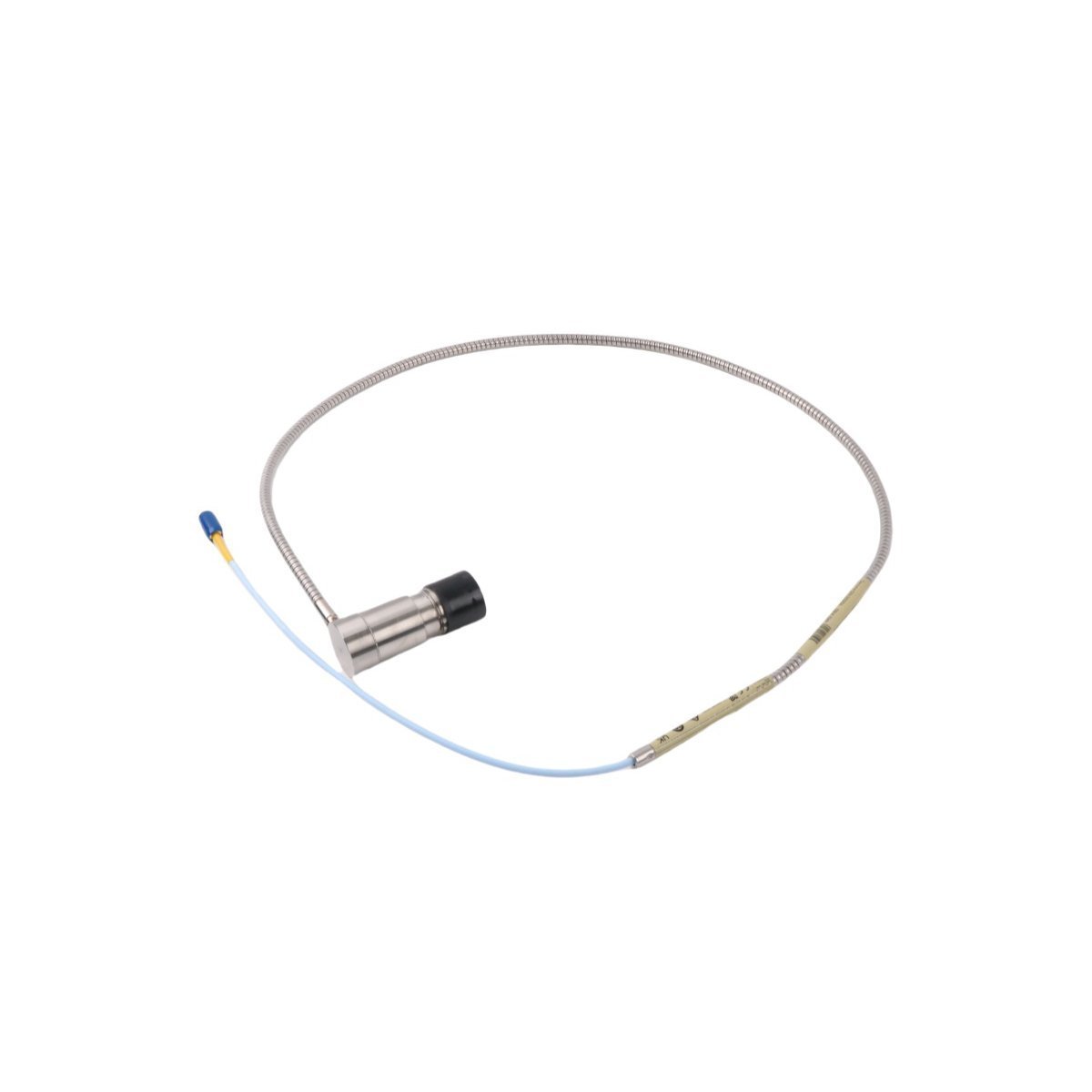

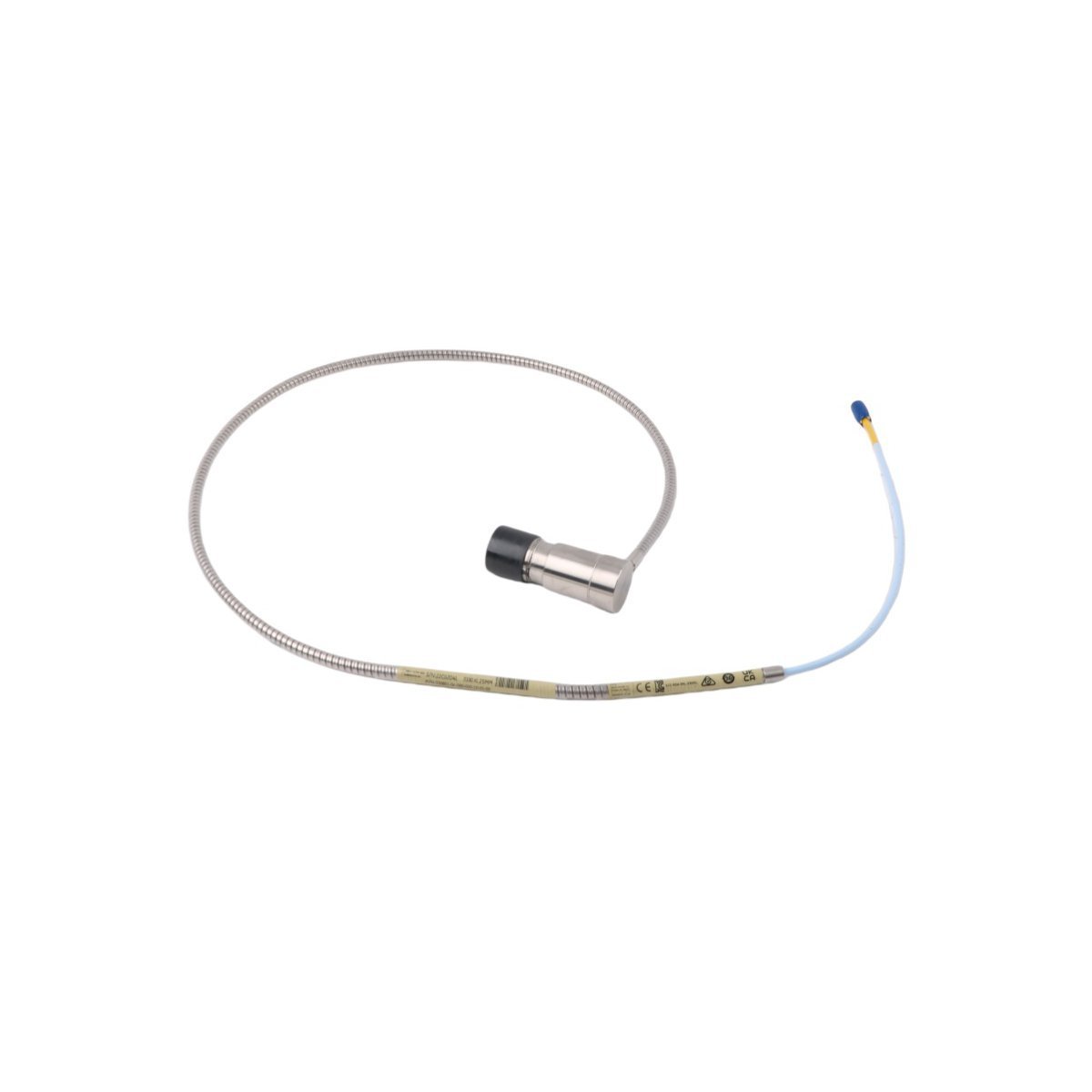

The Bently Nevada 330851-04-000-030-10-01-00 3300 XL 25 mm Proximity Probeis a premium 3300 XL 25 mm Proximity Probe, designed with a smooth 1.06-inch diameter case and convenient side exit, protected by durable SST armor. This configuration features a 1.0-meter (3.3-foot) cable length with a minimum unthreaded length of 30 mm, making it well-suited for diverse industrial installations. Weighing just 0.2 kg, it is manufactured in the USA and ships globally from Xiamen, China.

Engineered for robust operation, the 3300 XL 25 mm Proximity Probe 330851-04-000-030-10-01-00excels in applications where physical durability is critical. Compared to smaller 5 mm probes, its larger 8 mm-style encapsulation delivers greater resistance to mechanical stress, thanks to a thicker molded PPS plastic tip and a stronger probe body. This ensures extended service life, even in environments prone to vibration and impact.

The 330851-04-000-030-10-01-00 Proximity Probesis designed to integrate seamlessly with the advanced 3300 XL Proximitor Sensor, offering electrical and mechanical interchangeability with older systems. Its housing fits the standard 4-hole mounting pattern, simplifying upgrades or replacements without altering existing panel layouts. This flexibility is enhanced by the ability to maintain proper cable bend radius, preserving long-term system integrity.

Additional features of the Industrial Automation module 330851-04-000-030-10-01-00 BENTELY NAVADAinclude default factory calibration to AISI 4140 steel, with other calibration options available upon request. Each unit also comes with silicone tape for installations where connector protectors are not feasible, although it’s not recommended for turbine oil exposure. Altogether, the 330851-04-000-030-10-01-00 BN 3300 XL Proximity Transducer Systemoffers a reliable, rugged solution for precise position and vibration monitoring across critical machinery applications.
