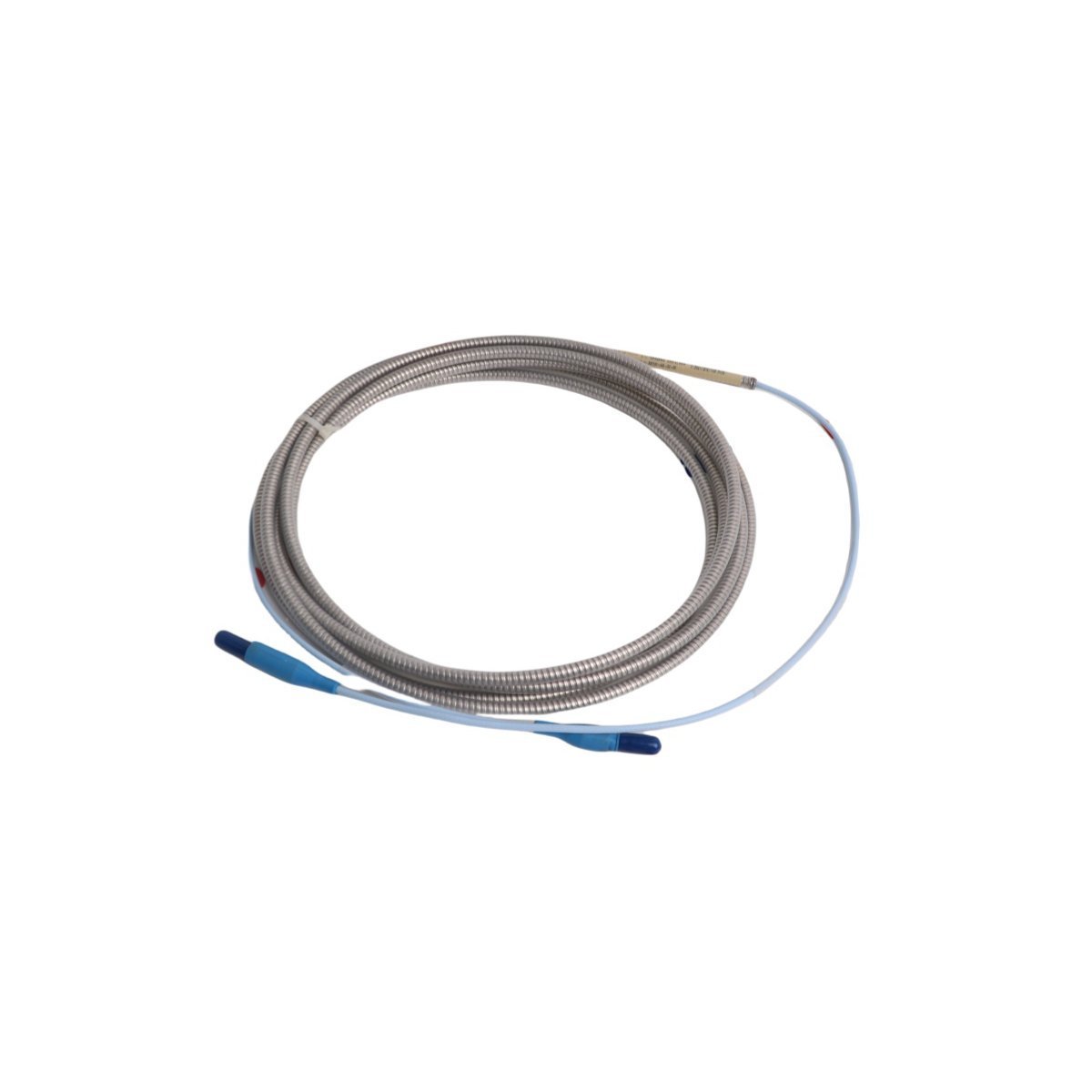

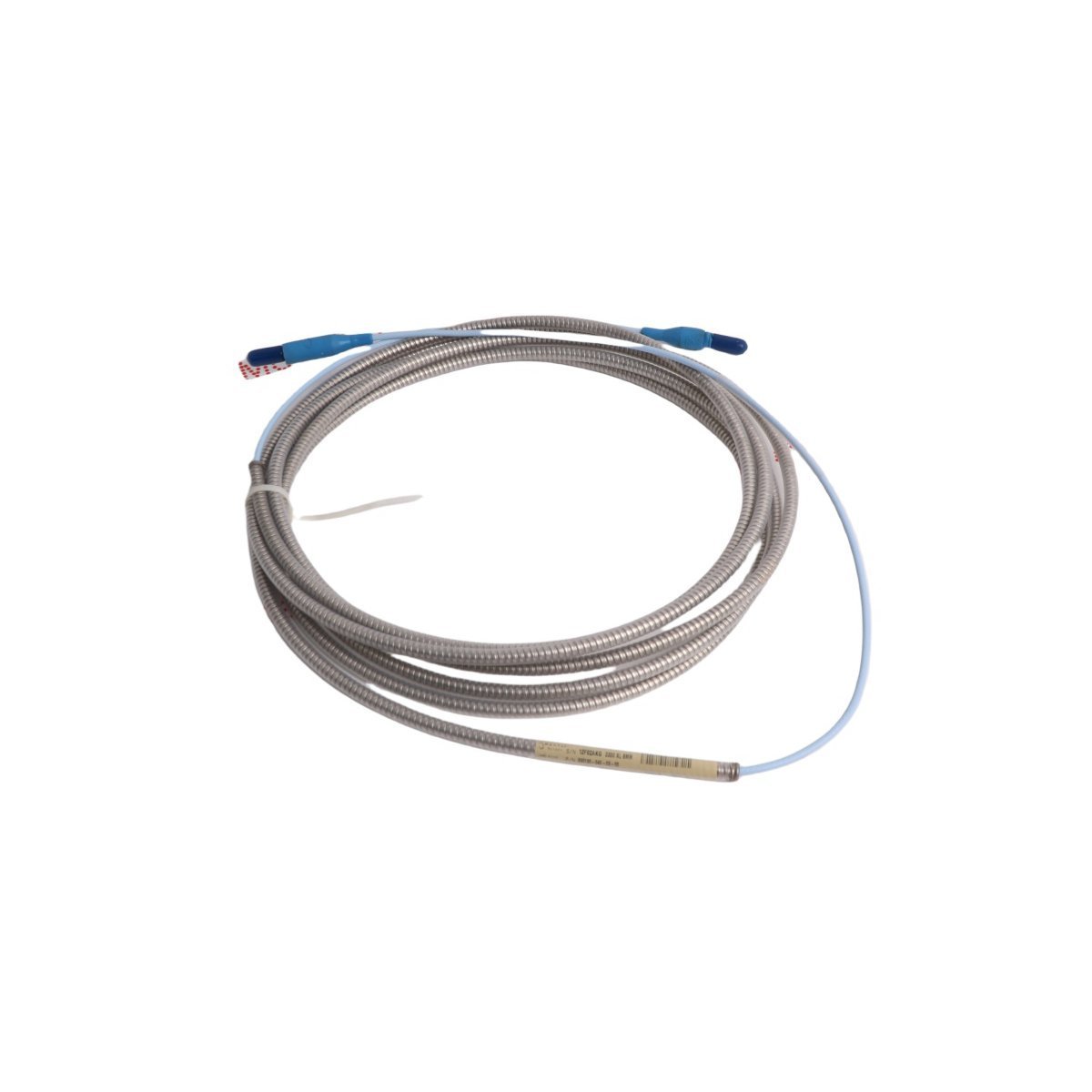

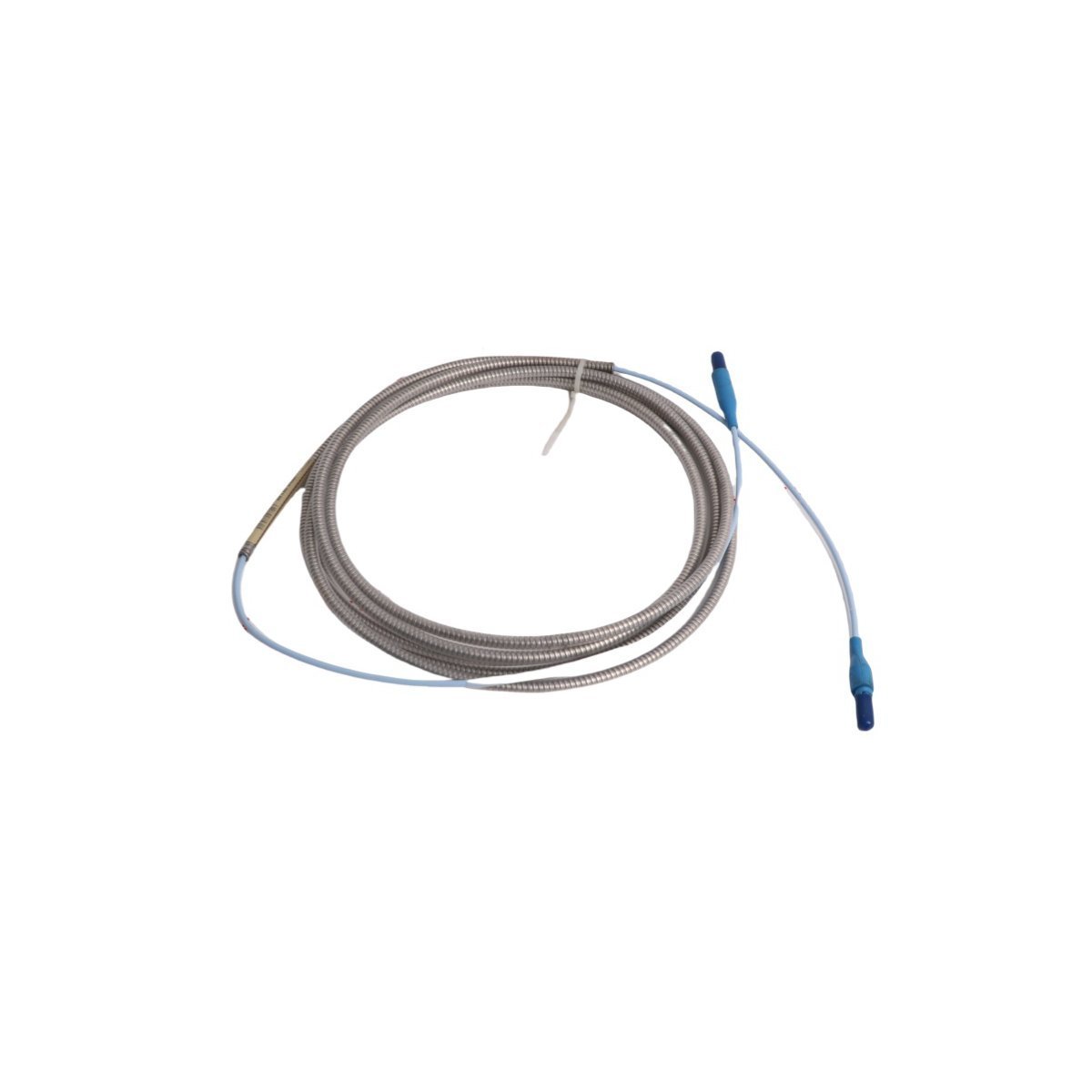

Bently Nevada 330130-045-03-00 3300 XL Standard Extension Cable

Overview

The 330130-045-03-00 (330130-045-03-00) is a high-performance extension cable designed for the Bently Nevada 3300 XL Proximity Transducer System. This cable serves as the critical link between a 3300 XL proximity probe and a 3300 XL Proximitor® Sensor. Engineered for low-loss signal transmission, it ensures that the high-frequency eddy current data remains stable across the specified system length, enabling precise vibration and position monitoring of high-speed rotating shafts.

Detailed Specifications (Parsed Code)

The part number 330130-045-03-00 defines the following cable configuration:

Operational Capabilities

The 330130-045-03-00 features a Gold-plated ClickLoc™ coaxial connector, which provides a moisture-resistant and vibration-proof connection point. The integrated 316 stainless steel armor (-03 option) offers superior protection against mechanical crushing, abrasion, and fluid ingress, making it ideal for installation in internal machine housings or exposed conduit runs. When combined with a 0.5-meter probe, this 4.5-meter cable creates a calibrated 5.0-meter total system length, which is the industry standard for most medium-to-large turbine monitoring applications.

Technical FAQ

Can I use this cable with a non-XL 3300 Proximitor?

Yes. While optimized for the 3300 XL system, the cable is physically and electrically compatible with older 3300 series sensors. However, for maximum linearity and temperature stability, a complete 3300 XL system is recommended.

Is there a specific orientation for the connectors?

The ClickLoc™ connectors are gender-specific. One end features a miniature male coaxial connector to mate with the probe, and the other features a female connector to link to the Proximitor® Sensor.
