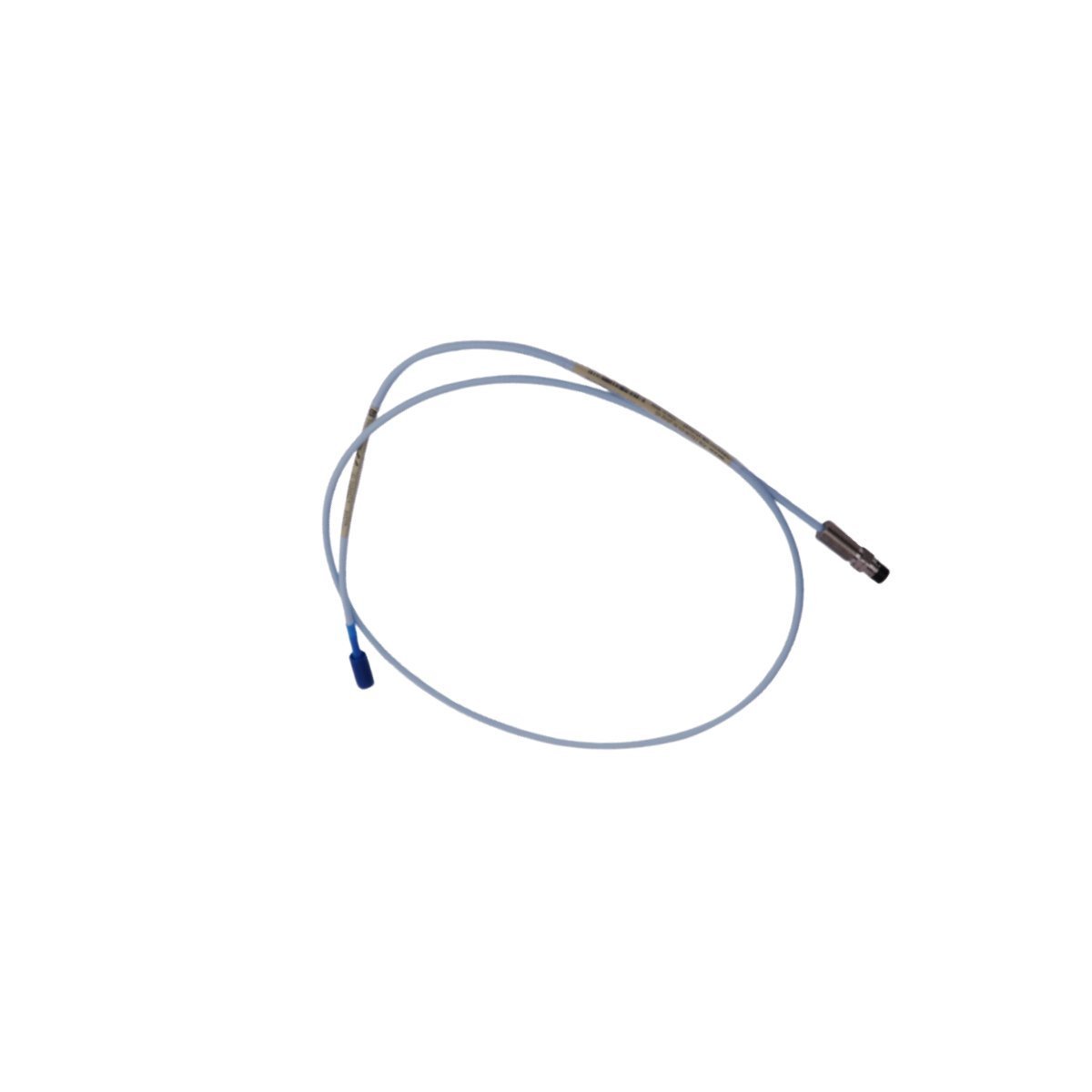

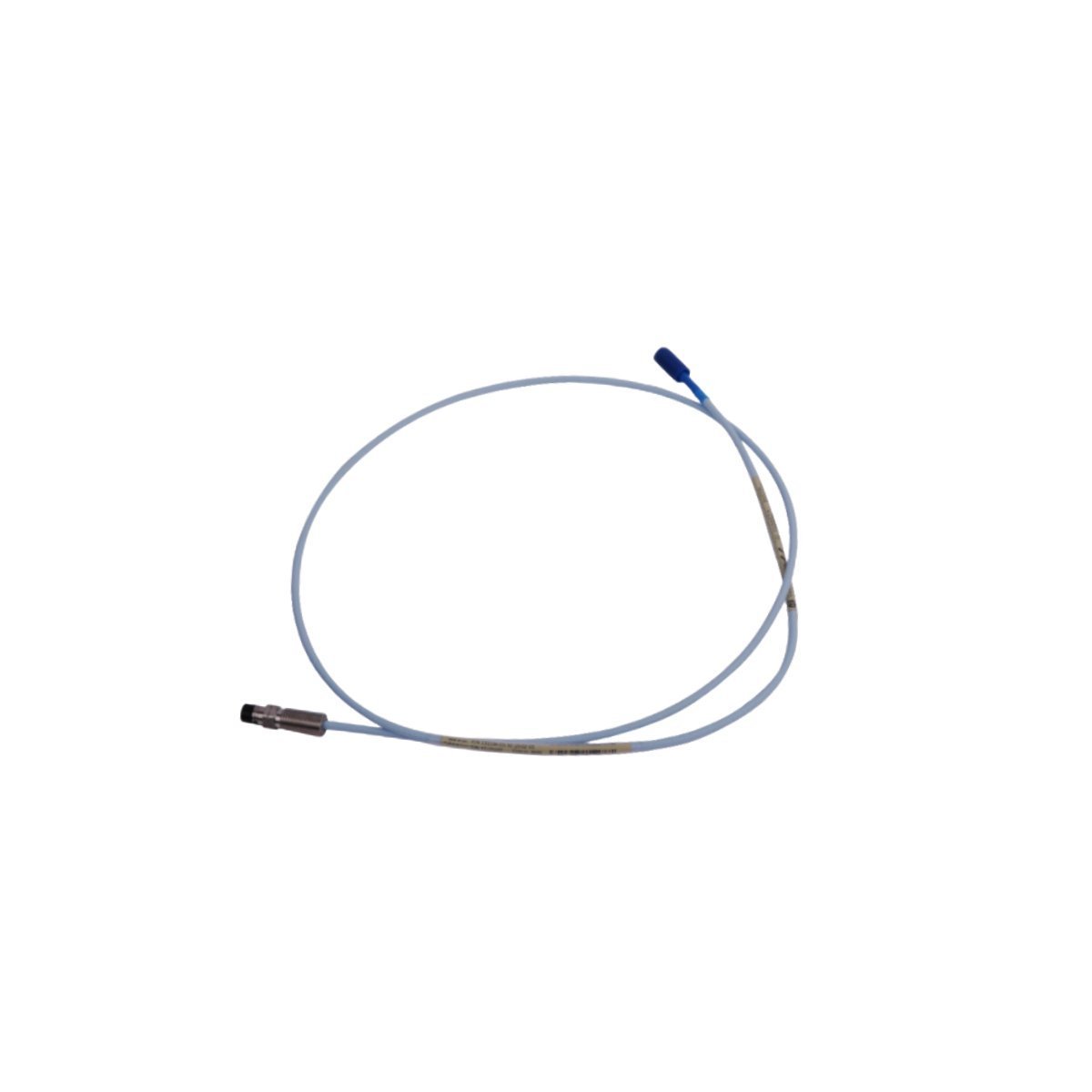

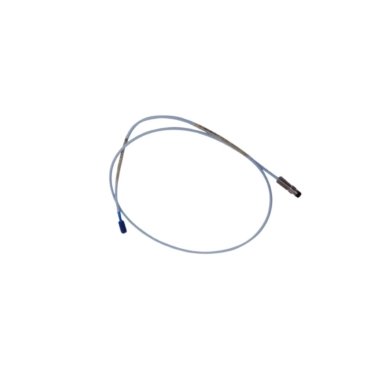

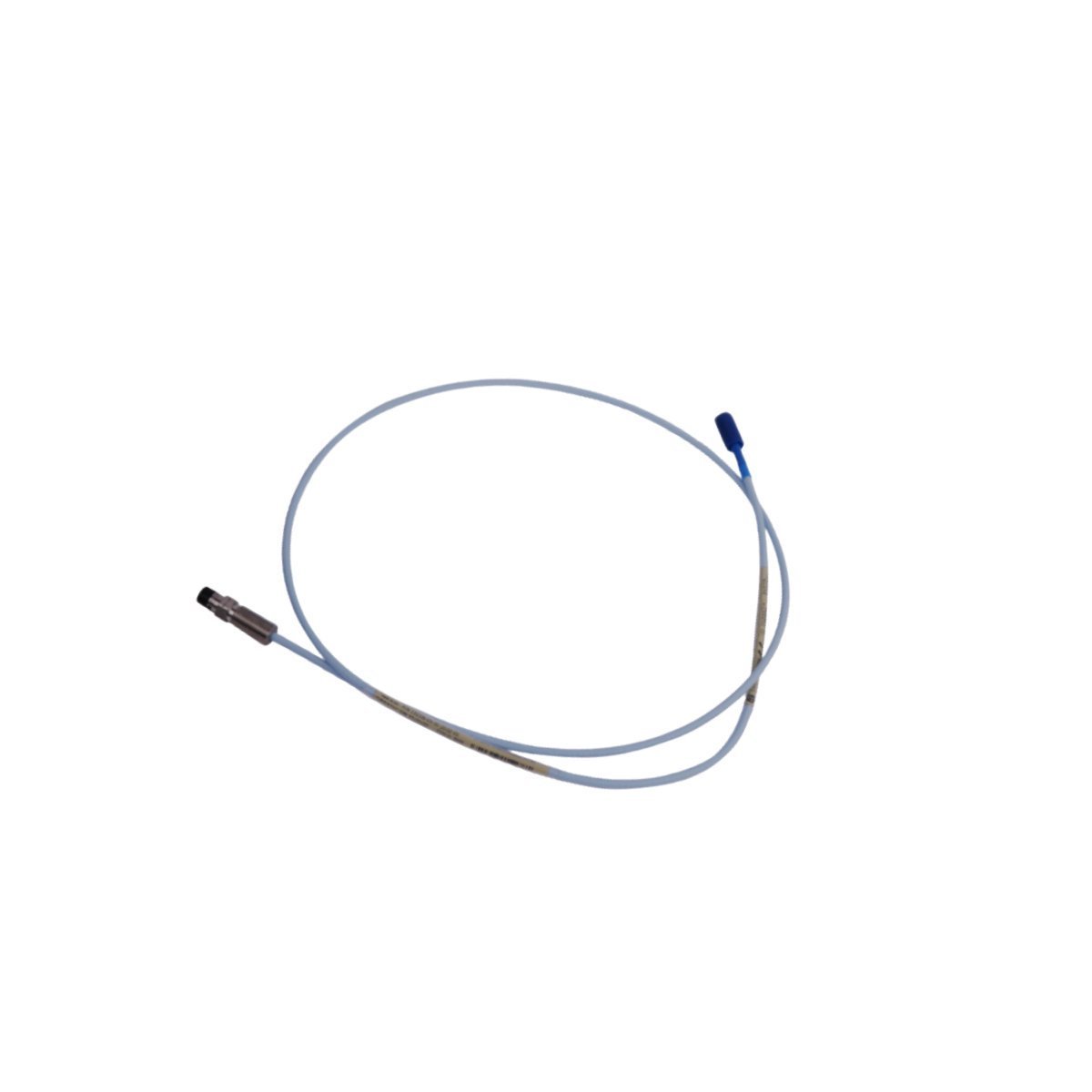

Bently Nevada 330106-05-30-05-02-CN Extension Cable

The Bently Nevada 330106-05-30-05-02-CN is a high-precision extension cable engineered for the 3300 XL 8mm Proximity Transducer System. This component serves as the vital link between the proximity probe and the Proximitor sensor. It ensures accurate transmission of eddy current signals by maintaining a constant impedance. This cable supports the monitoring of radial vibration and axial position. Consequently, it allows maintenance teams to identify mechanical issues such as shaft misalignment and bearing degradation before they lead to failure.

Hardware Configuration

The part number 330106-05-30-05-02-CN specifies the mechanical and electrical properties required for industrial installation. These options provide compatibility with diverse machinery environments:

• Cable Length: 3.0 meters (9.8 feet).
• Armor Option: 304 stainless steel fluid-tight electronic armor.
• Agency Approvals: CN (China Specific Ex-certifications).
• Connector Type: Miniature coaxial ClickLoc connectors with connector protectors.

Signal Stability and Protection

Signal integrity remains a priority in the design of this cable. It features specialized fluoropolymer insulation that resists moisture, chemicals, and industrial lubricants. The addition of the “05” armor option provides a fluid-tight stainless steel sheath. This protective layer prevents mechanical damage and shields the signal from electromagnetic interference (EMI). Moreover, the ClickLoc connectors offer a vibration-proof connection. This prevents accidental disconnections and eliminates the need for specialized torque tools during field installation.

System Integration and Use

This extension cable integrates seamlessly into Bently Nevada 3500 and 3300 series machinery protection systems. It is essential for Turbine Supervisory Instrumentation (TSI) setups. By providing clean real-time data, the cable supports proactive maintenance strategies. This approach significantly reduces unplanned downtime and extends the life of critical rotating equipment. It is particularly effective in high-demand sectors such as power generation, oil and gas, and petrochemical processing.

Technical Specifications Summary

WordPress Product Short Description

The Bently Nevada 330106-05-30-05-02-CN is a 3.0-meter 3300 XL extension cable featuring fluid-tight stainless steel armor and ClickLoc connectors. This rugged cable ensures stable signal transmission for non-contact vibration monitoring in hazardous industrial environments.
