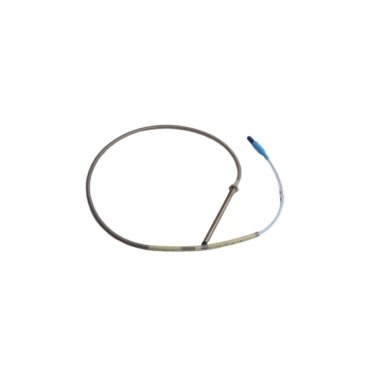

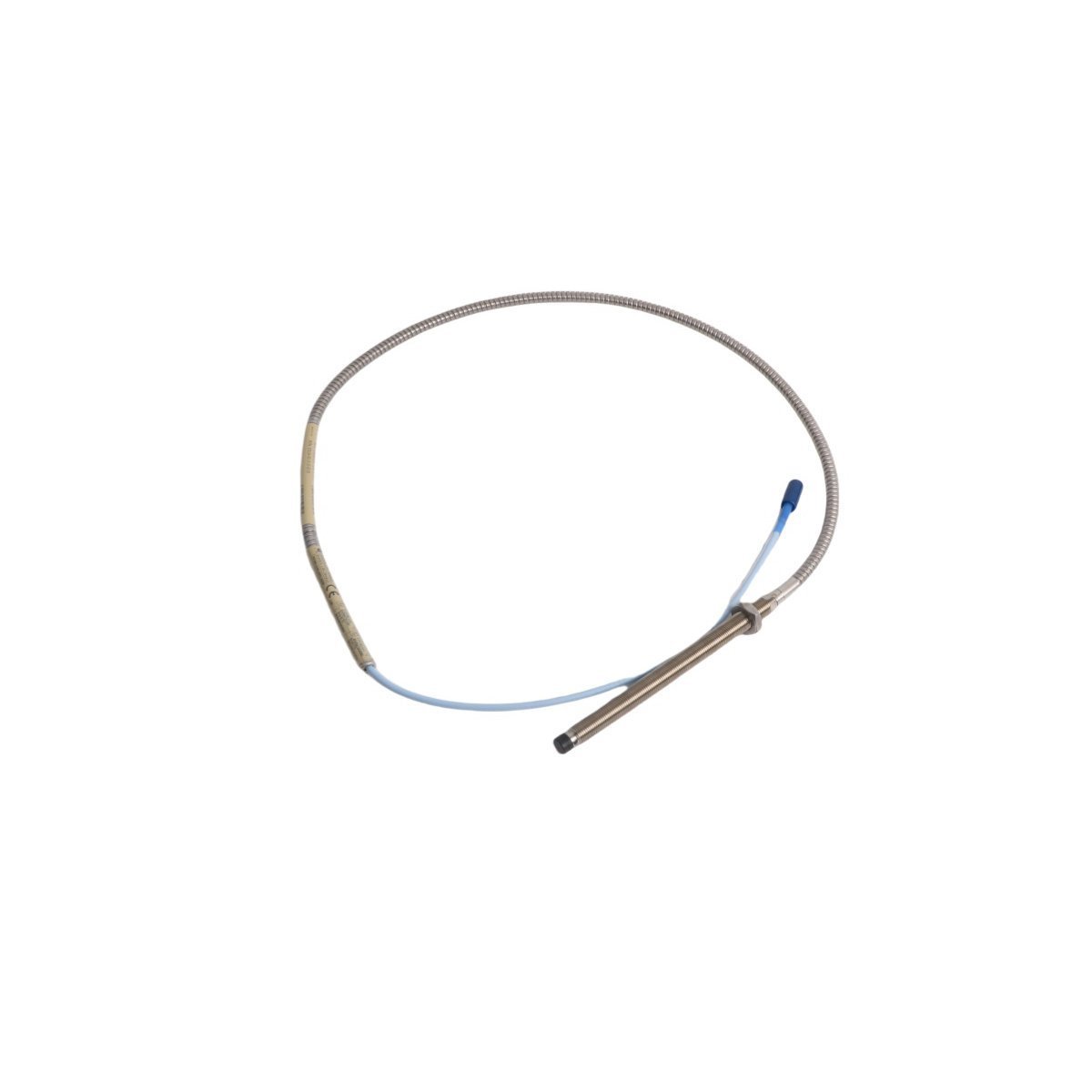

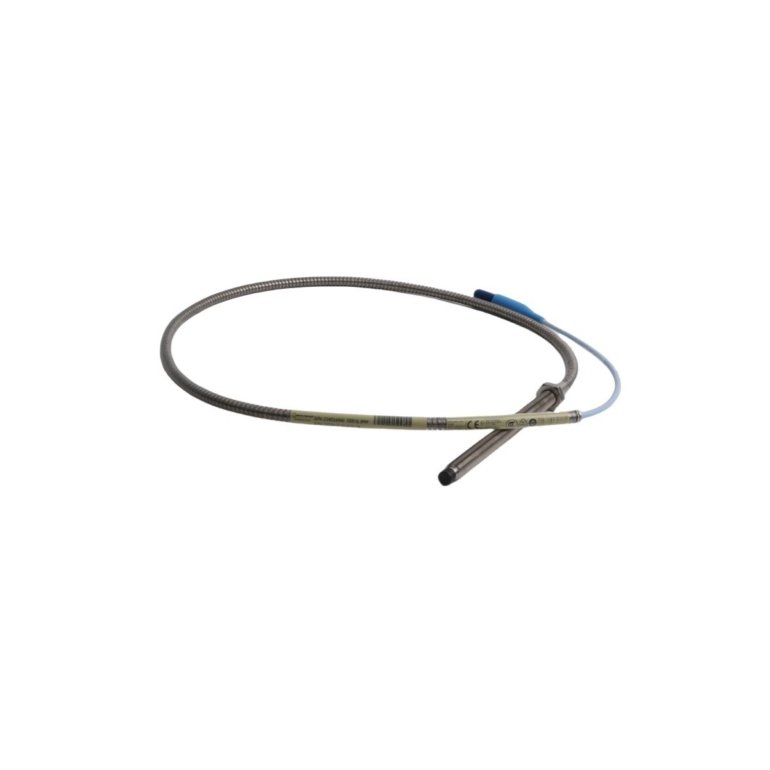

The Bently Nevada 330104-00-13-15-01-00 is a high-accuracy eddy current sensor belonging to the industry-standard 3300 XL 8 mm Proximity Transducer System. This device serves as a fundamental component in Machinery Protection Systems (MPS), providing non-contacting measurement of radial vibration, shaft eccentricity, and axial position. By generating a controlled electromagnetic field, the probe tip detects minute changes in the gap between the sensor and the conductive target material, translating mechanical motion into a precise electrical signal for real-time monitoring.
Technical Configuration Details
| Parameter | Specification |
| Model Series | 3300 XL 8 mm Proximity Probe |
| Thread Type | 3/8-24 UNF-2A Imperial Thread |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 1.3 inches |
| Total Cable Length | 1.5 Meters (4.9 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Agency Approval | CSA, ATEX, IECEx intrinsically safe |
Operational Features and Engineering
- Advanced Linearity: Provides a linear range of 2.0 mm (80 mils), maintaining high accuracy across the full measurement scale.
- Thermal Compensation: Integrated circuitry ensures signal stability across a wide temperature spectrum, reducing drift caused by ambient heat in turbine housings.
- Mechanical Resilience: The probe tip is molded from high-performance polyphenylene sulfide (PPS), offering resistance to chemical corrosion and fluid ingress.
- ClickLoc Connectivity: Features a self-locking, gold-plated connection system that prevents signal loss and eliminates the requirement for safety wiring in high-vibration areas.
