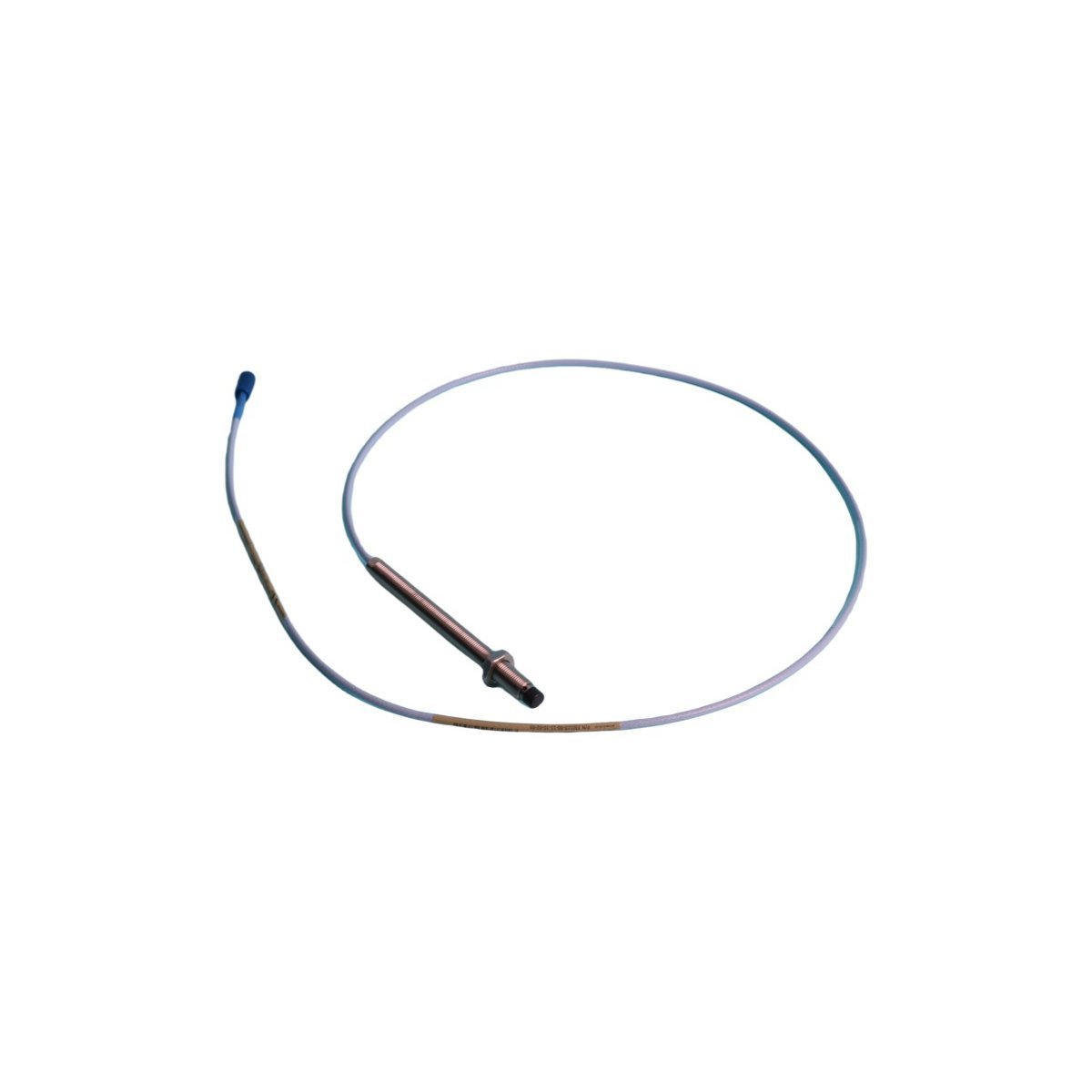

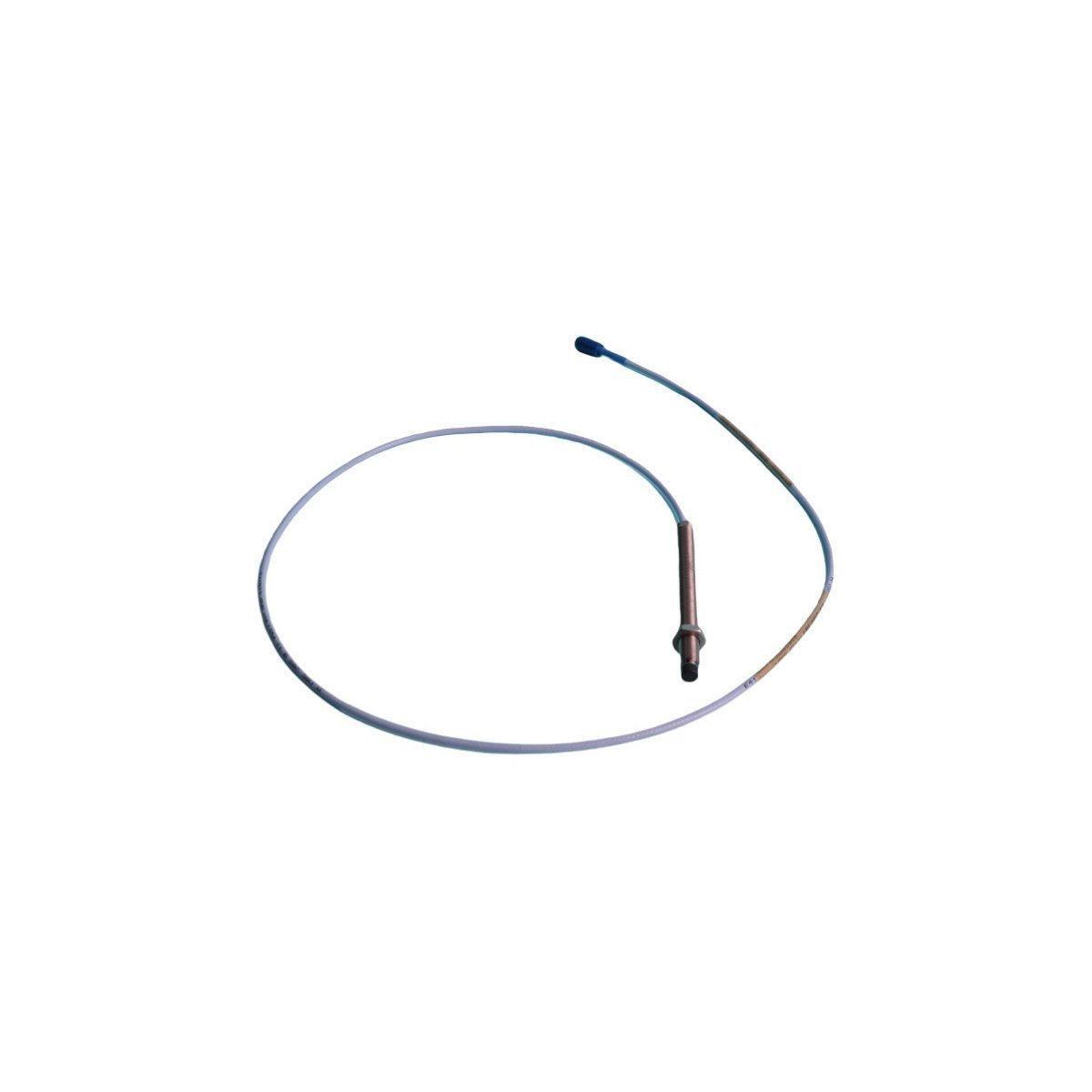

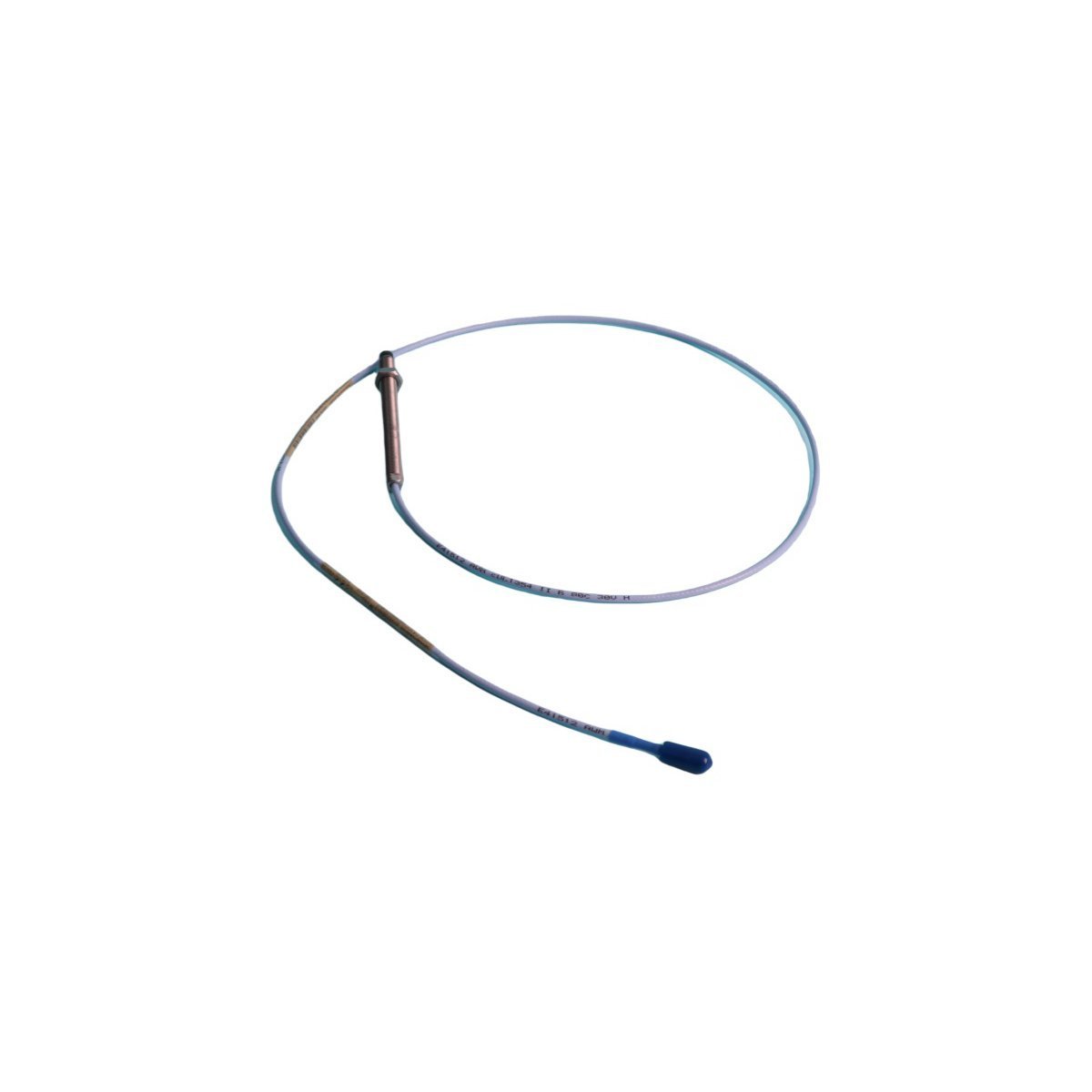

The Bently Nevada 330103-00-11-10-12-00 is a precision-engineered eddy current proximity probe part of the 3300 XL 8 mm series. This sensor is designed for non-contacting displacement measurements in rotating machinery. By detecting the distance between the probe tip and a conductive target (such as a shaft), it facilitates the monitoring of radial vibration, axial thrust, and speed. The 3300 XL system is renowned for its linear range and signal stability, even when subject to significant temperature fluctuations in industrial environments.
Configuration and Build Specifications
| Parameter | Specification Detail |
| Model Number | 330103-00-11-10-12-00 |
| Thread Type | M10 x 1 Metric Thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 110 mm |
| Total Cable Length | 1.0 Meter (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector (gold-plated) |
| Armor Option | Fluid-resistant corrugated stainless steel armor |
| Agency Approvals | Hazardous area certifications (ATEX, IECEx, CSA) |
Application Use Cases
This probe is primarily utilized within Turbine Supervisory Instrumentation (TSI) systems for:
- Gas and Steam Turbines: Continuous shaft vibration and position monitoring.
- Reciprocating Compressors: Piston rod runout and cylinder clearance.
- Hydroelectric Units: Shaft orbit and guide bearing monitoring.
- Industrial Pumps/Motors: Predictive maintenance through early detection of bearing wear.
