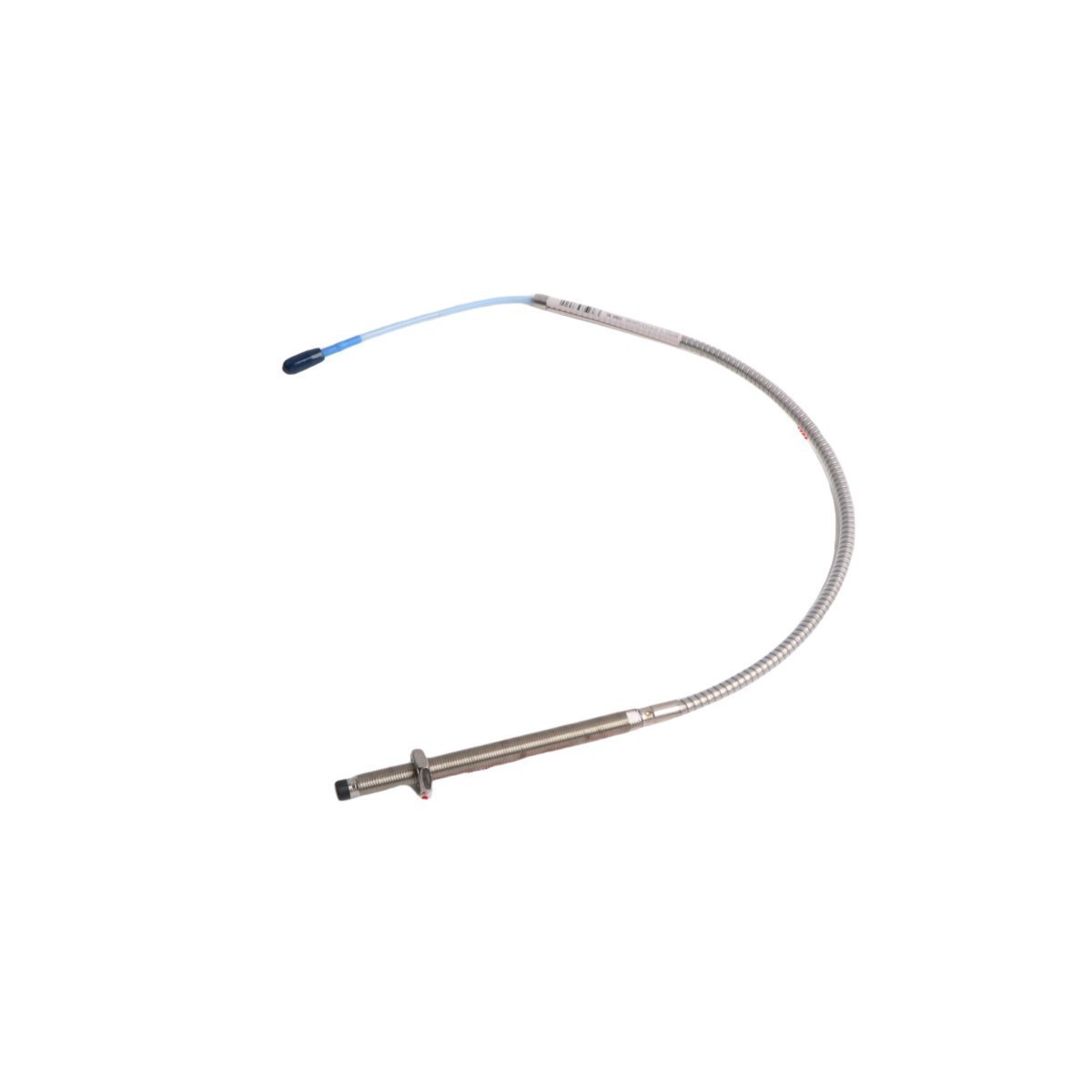

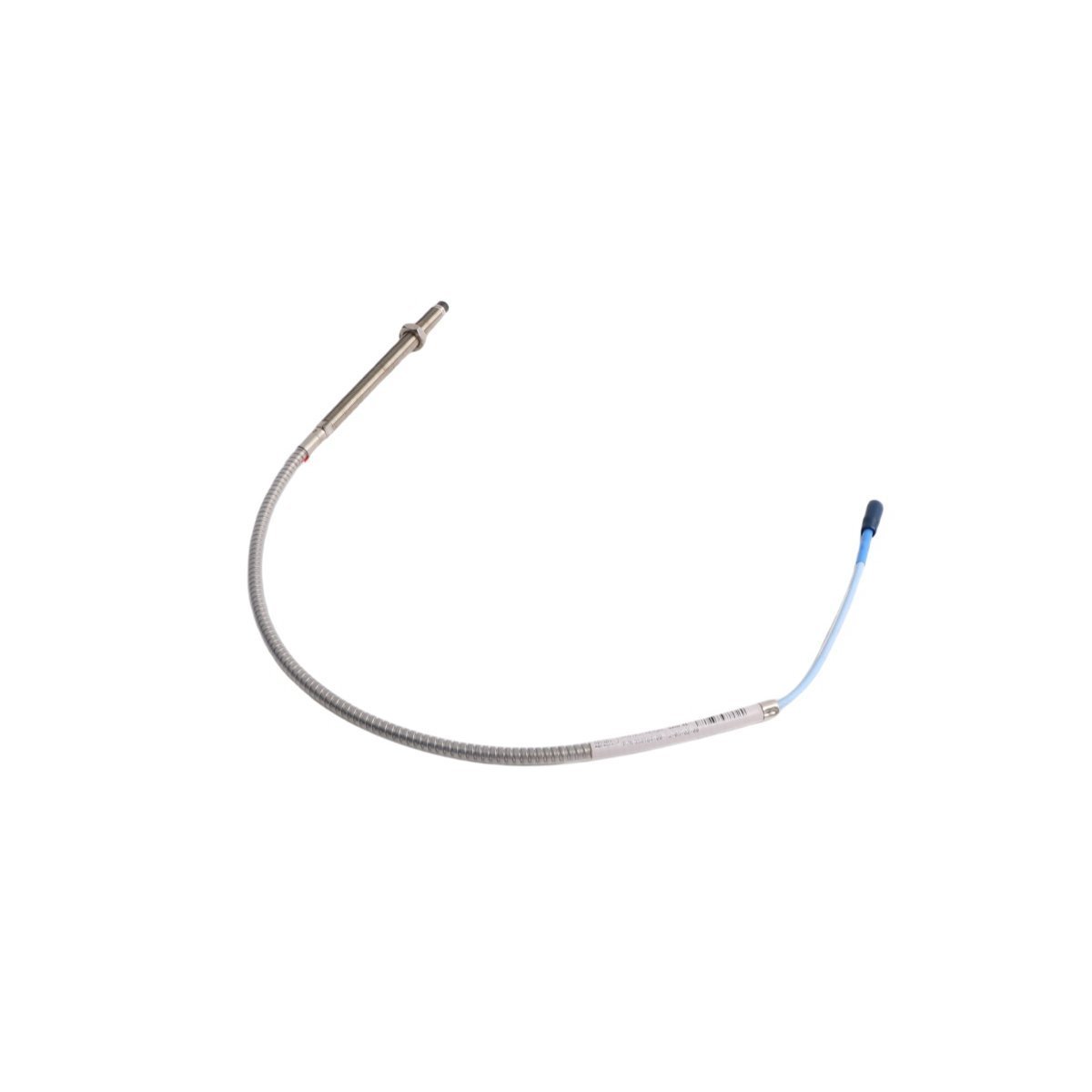

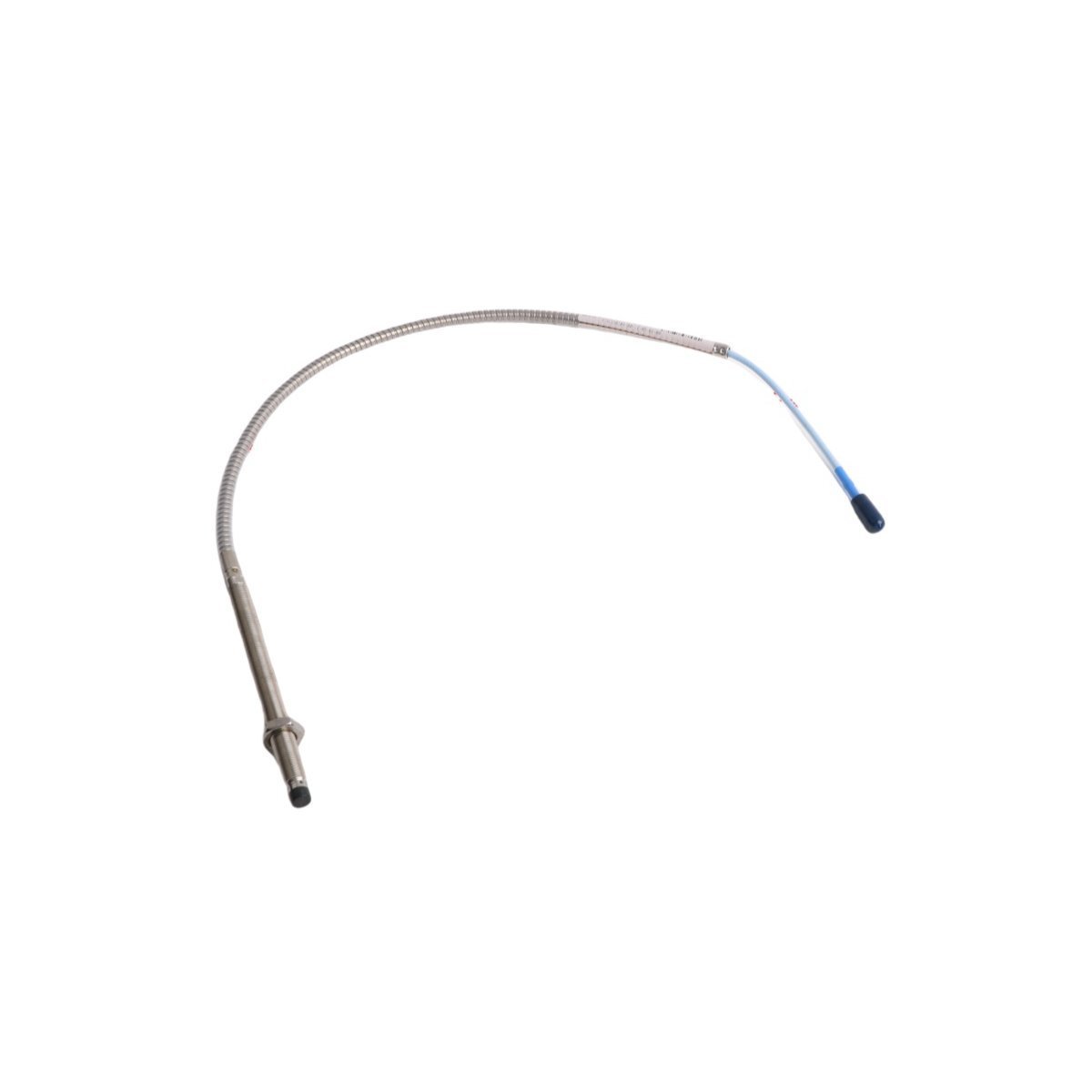

Bently Nevada 330104-00-12-05-02-00 3300 XL Series 8mm Transducer Probe

Product Description

The Bently Nevada 330104-00-12-05-02-00 is a high-performance 3300 XL series 8mm proximity probe engineered for industrial machinery protection systems. This eddy current sensor measures static and dynamic distances between the probe tip and the observed target, delivering critical data for vibration analysis, shaft alignment, and thrust position monitoring.

Technical Specification Matrix

Core Functionality and Applications

This proximity probe functions within a Turbomachinery Instrumentation (TSI) framework to deliver continuous condition monitoring. Operators install these transducers on critical rotating assets such as process compressors, steam turbines, and industrial pumps. By generating a high-frequency electromagnetic field, the sensor tracks microscopic changes in the gap distance. Consequently, the system detects early signs of mechanical wear, unbalance, and misalignment before catastrophic failure occurs.

Advanced Structural Engineering

• Cross-System Backward Compatibility: The physical and electrical profiles integrate seamlessly with legacy 3300 RAM setups. This design choice simplifies control system modernization because technicians can upgrade components without altering existing infrastructure.
• Optimized Side-View Performance: Advanced engineering minimizes cross-talk and side-view interference. As a result, the probe maintains exceptional signal accuracy even when installed near narrow housing walls or adjacent machine parts.
• Enhanced Environmental Resilience: Robust chemically resistant polymers protect the probe tip from corrosive process gasses and lubricating fluids. Therefore, the unit delivers stable performance inside harsh chemical processing environments.
• Secure Signal Mechanical Interlocks: Proprietary TipLoc molding establishes an inseparable bond between the probe head and its casing. Simultaneously, the CableLoc design withstands pulling forces up to 220 N, which prevents accidental separation during routine maintenance.
• Vibration-Resistant Interconnects: Gold-plated brass ClickLoc connectors guarantee a constant electrical path. These specialized couplings resist moisture ingress and will not back out under severe machine vibration.
