The Bently Nevada 330101-00-60-10-02-00 serves as a foundational element in the 3300 XL 8mm Proximity Transducer System. This sensor utilizes eddy current principles to perform high-resolution, non-contact measurements of shaft vibration and position. By providing a voltage output directly proportional to the distance between the probe tip and the target metal surface, the device allows for precise tracking of radial vibration and axial thrust. These measurements remain essential for early fault detection in critical rotating assets such as steam turbines, centrifugal compressors, and large industrial pumps.
Robust Construction for Extreme Environments

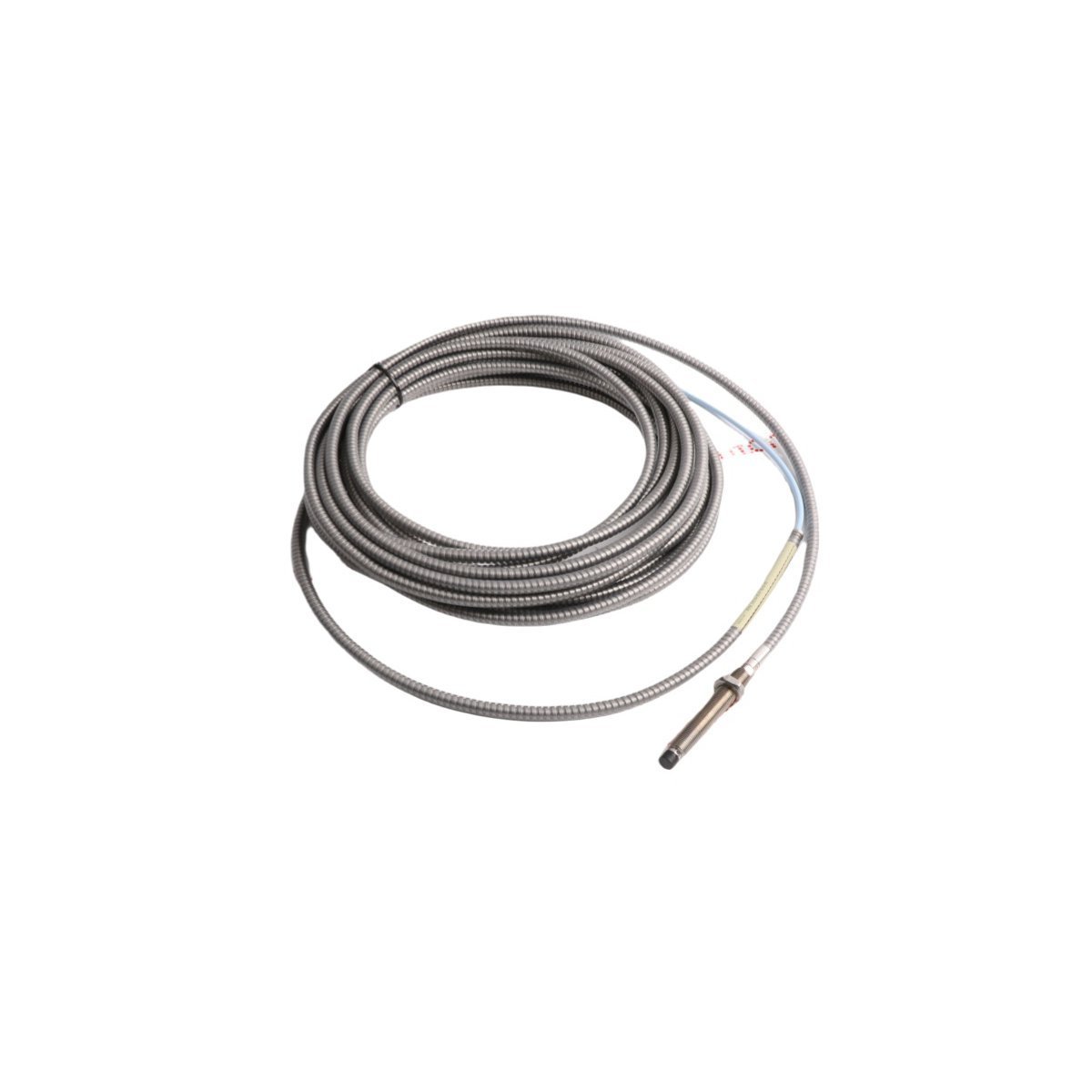

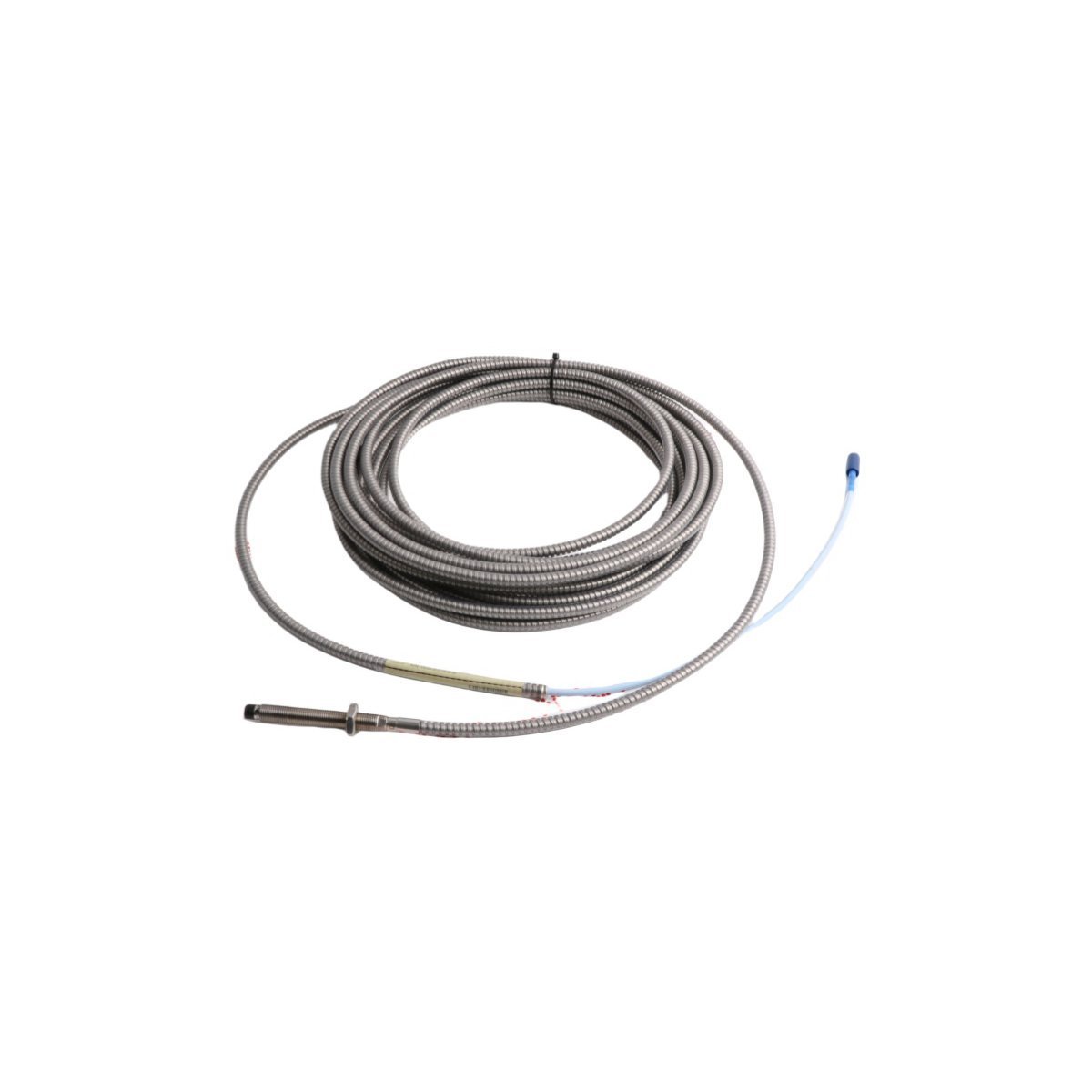

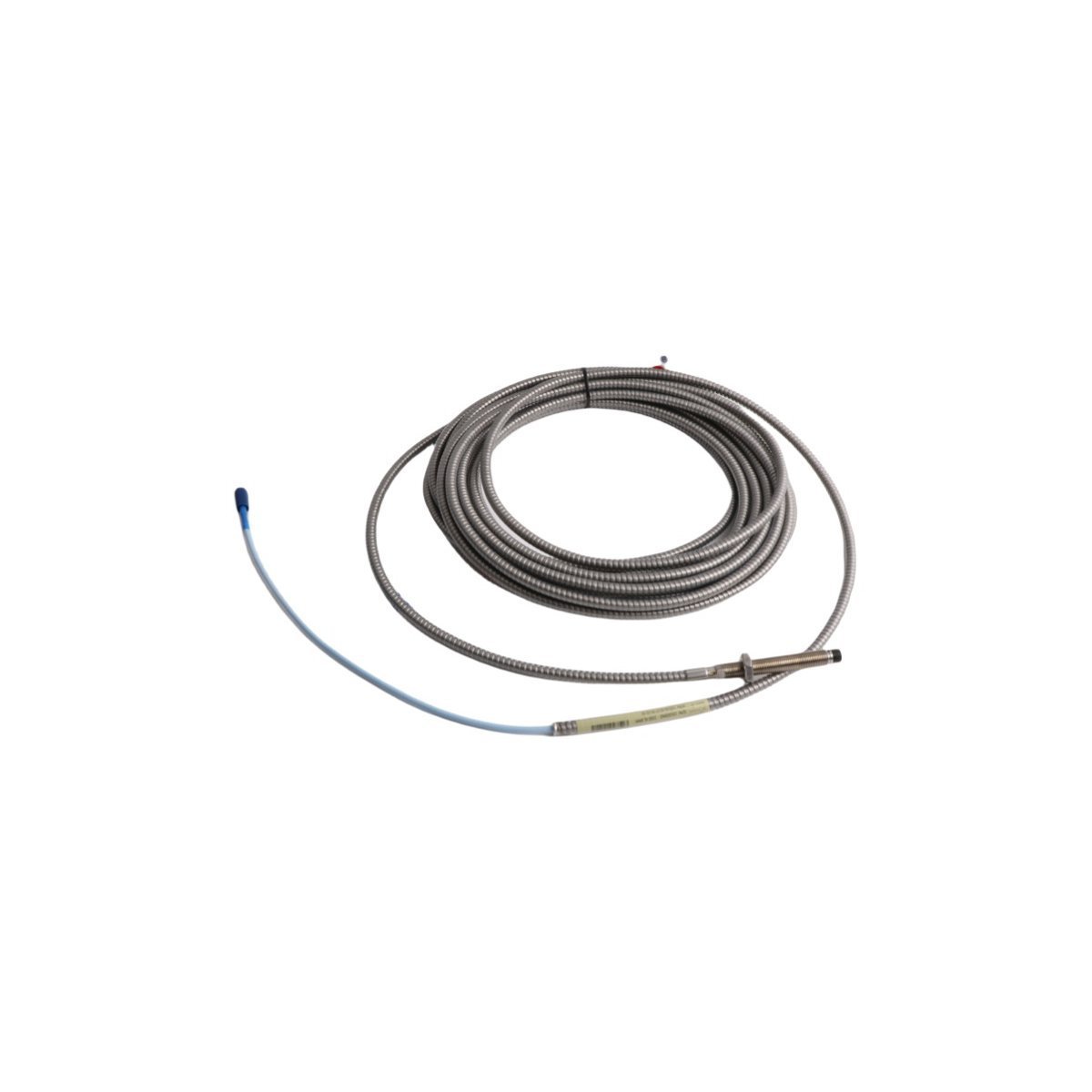

Bently Nevada engineered the 330104-00-07-90-02-00 to withstand the aggressive atmospheres common in oil refineries and power generation plants. The probe tip features advanced polyphenylene sulfide (PPS) to maintain a hermetic seal against moisture, steam, and hydrocarbon lubricants. Additionally, the integrated 3300 XL technology provides significant improvements in thermal stability and linear range consistency compared to legacy proximity systems. The rugged design ensures that signal integrity remains high even when the probe faces high levels of mechanical vibration and electromagnetic interference.
Technical Specifications
- Brand: Bently Nevada
- Model Number: 330104-00-07-90-02-00
- System Type: 3300 XL 8 mm Proximity Transducer
- Thread Type: M10 x 1 Metric Thread
- Unthreaded Length: 0 mm
- Case Length: 70 mm
- Total Length: 9.0 meters (29.5 feet)
- Connector: Miniature coaxial ClickLoc with gold-plated contacts
- Temperature Rating: -51°C to +177°C (-60°F to +351°F)
- Standard Sensitivity: 7.87 V/mm (200 mV/mil)
Integrated Asset Reliability and Performance
Incorporating this proximity probe into a plant-wide monitoring network drastically enhances the effectiveness of predictive maintenance programs. The probe generates the raw data necessary for the 3500 Machinery Protection System to perform automated safety shutdowns, which prevents catastrophic mechanical failures. Because the 3300 XL components are designed for high interoperability, technicians can replace individual probes or cables without the need for extensive system recalibration. This flexibility reduces the mean time to repair (MTTR) and lowers the total cost of ownership for machinery instrumentation.
