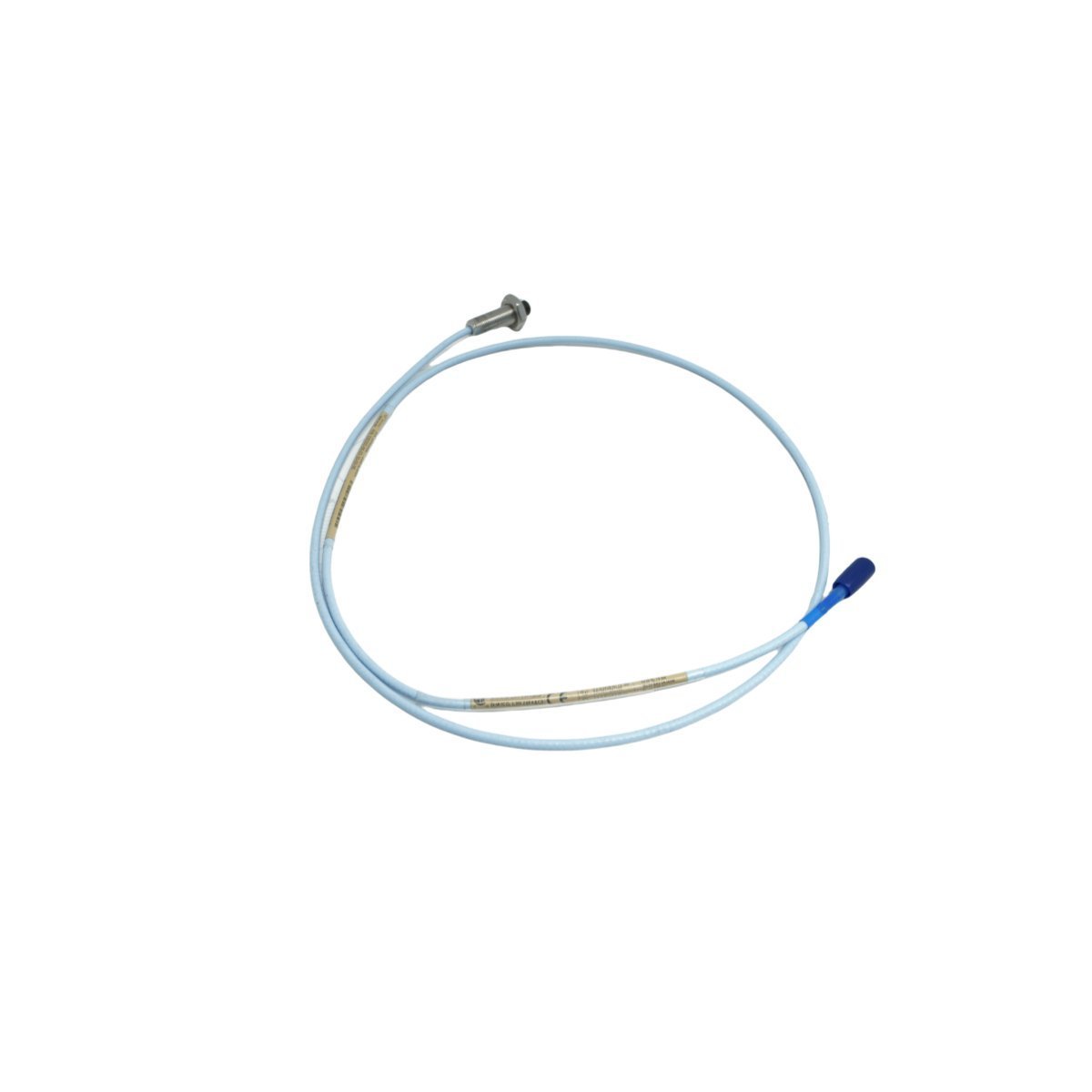

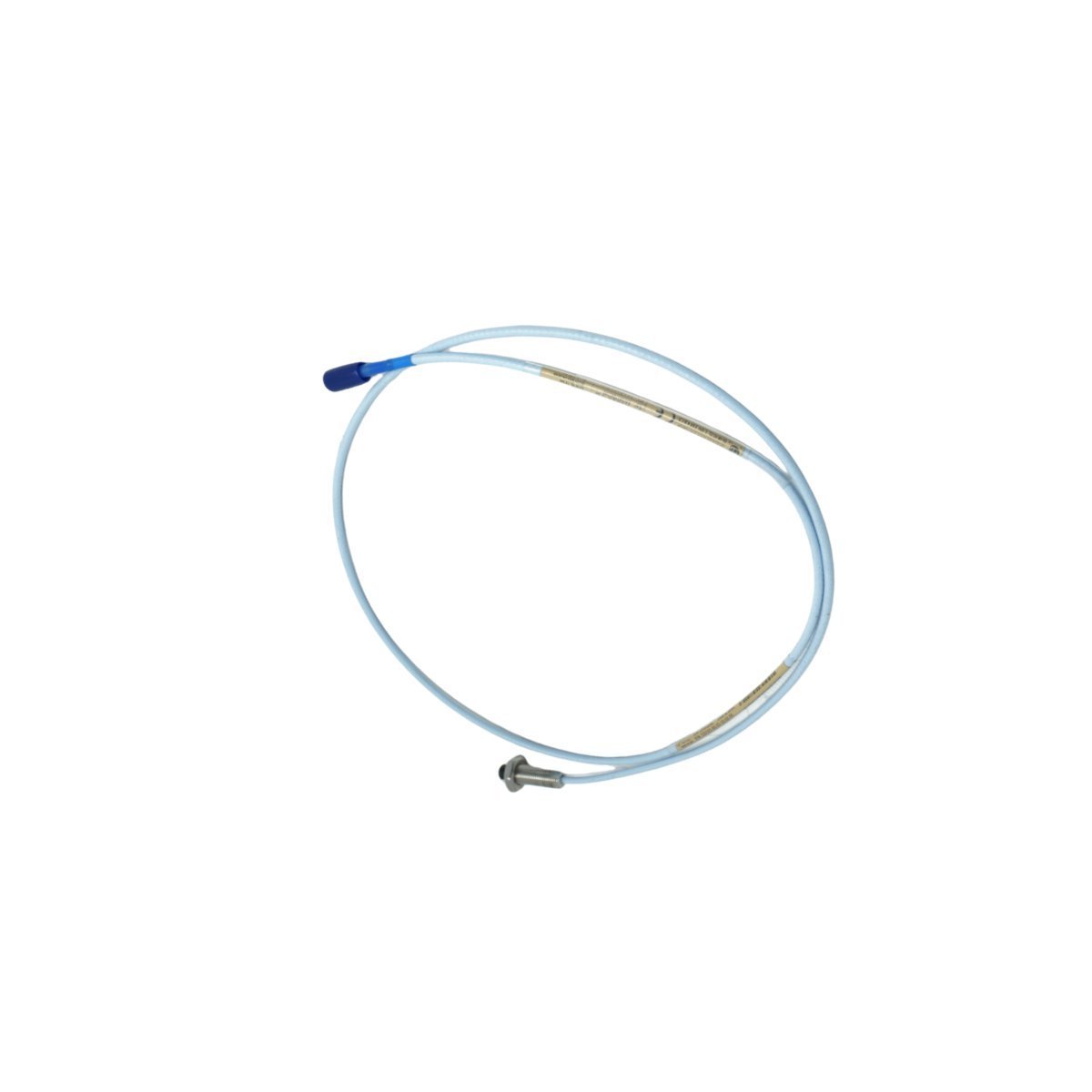

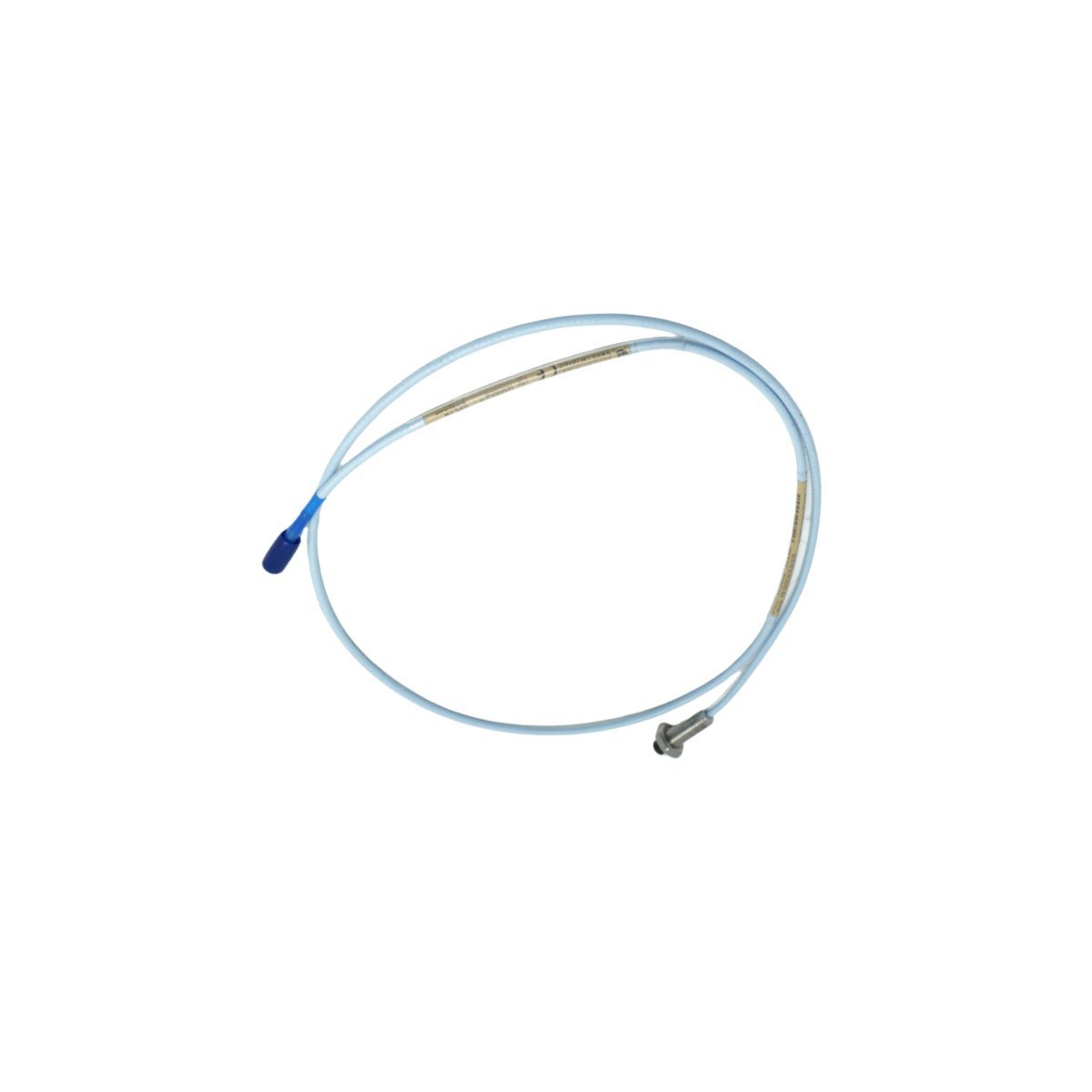

Bently Nevada 330103-00-03-10-02-05 3300 XL Cable

The Bently Nevada 330103-00-03-10-02-05 is a high-accuracy eddy current sensor from the 3300 XL 8mm series. This proximity probe measures the distance between the probe tip and a rotating shaft to provide critical vibration and displacement data. By delivering non-contact measurements, it allows operators to monitor machinery health without physical wear. This specific model features a 3/8-24 UNF threaded body, which ensures a secure fit in standard industrial mounting ports. Consequently, it serves as a primary tool for early mechanical fault detection.

Industrial Applications

The 3300 XL 8mm system integrates seamlessly with Bently Nevada 3500 and 2300 machinery protection racks. Because of its wide frequency response and linear range, it remains the industry standard for various rotating assets. Typical use cases include:

• Radial vibration analysis on fluid-film bearings
• Axial thrust position monitoring for compressors
• Shaft eccentricity measurements for large electric motors
• Phase reference (Keyphasor) signal generation for speed tracking
• Machinery protection in power plants and oil refineries

Technical Specifications Summary

WordPress Product Short Description

The Bently Nevada 330103-00-03-10-02-05 is a 3300 XL 8mm proximity probe featuring a 0.3-inch threaded case and a 0.5-meter cable. It provides precise, non-contact vibration and displacement monitoring for critical rotating assets in demanding industrial environments.
