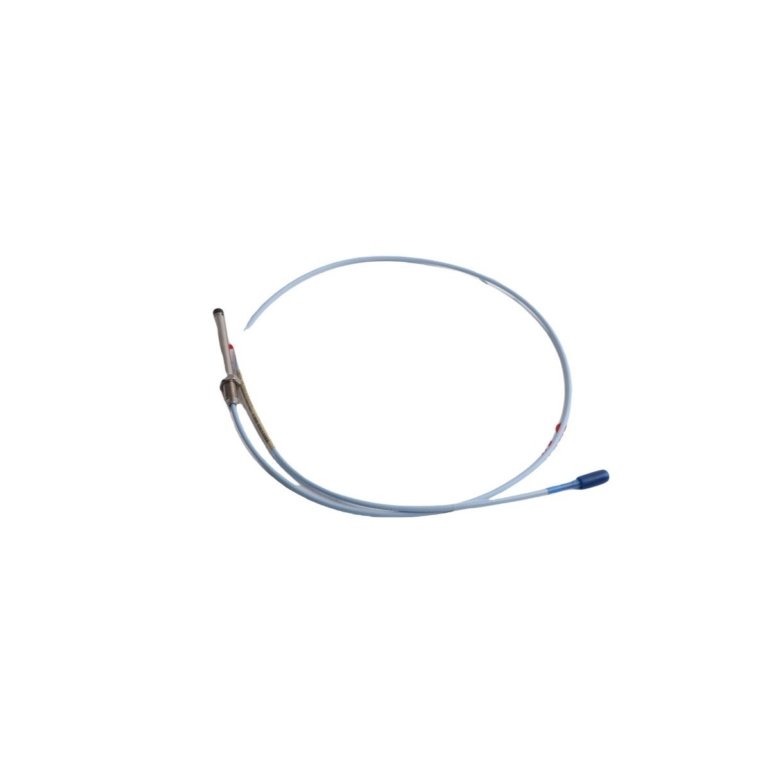

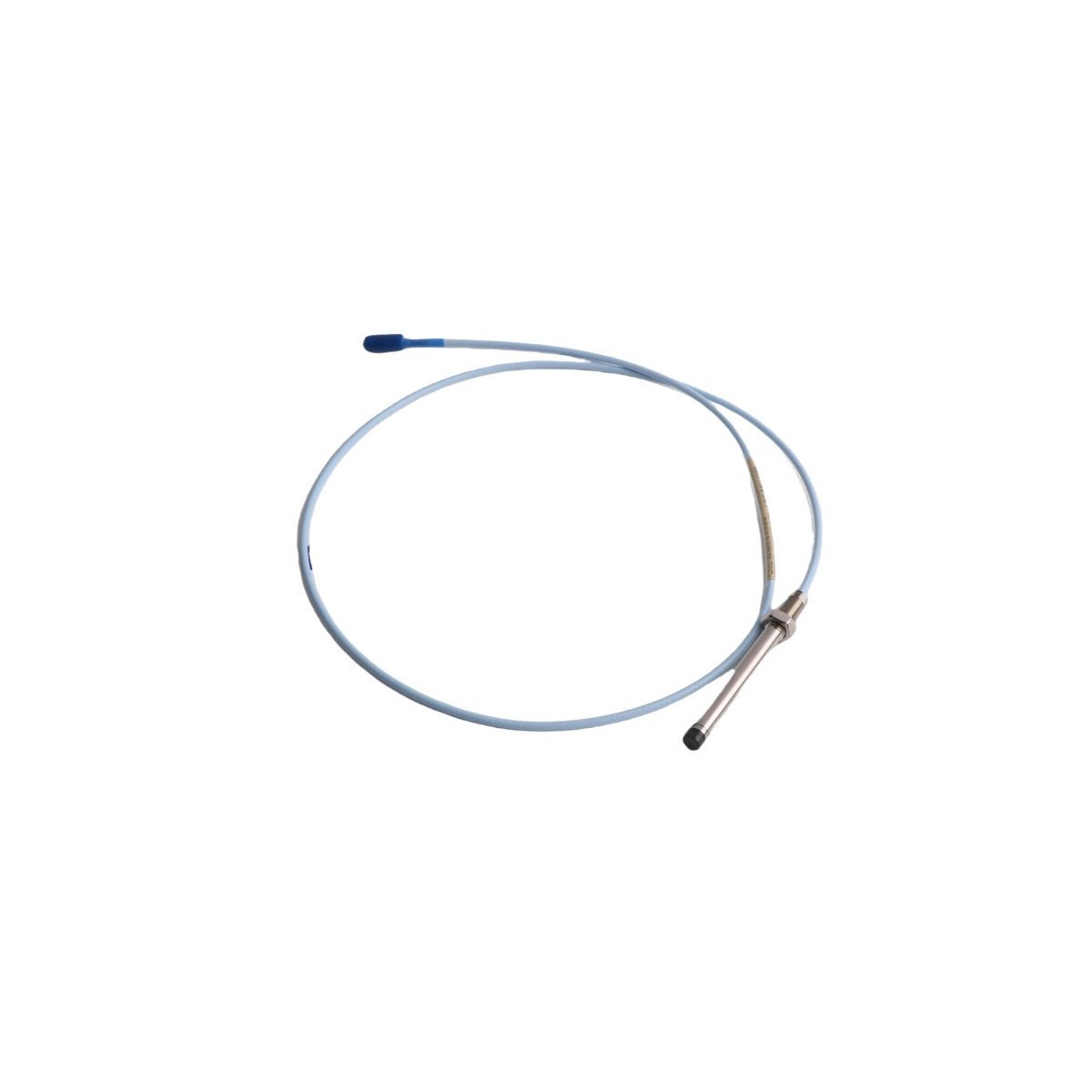

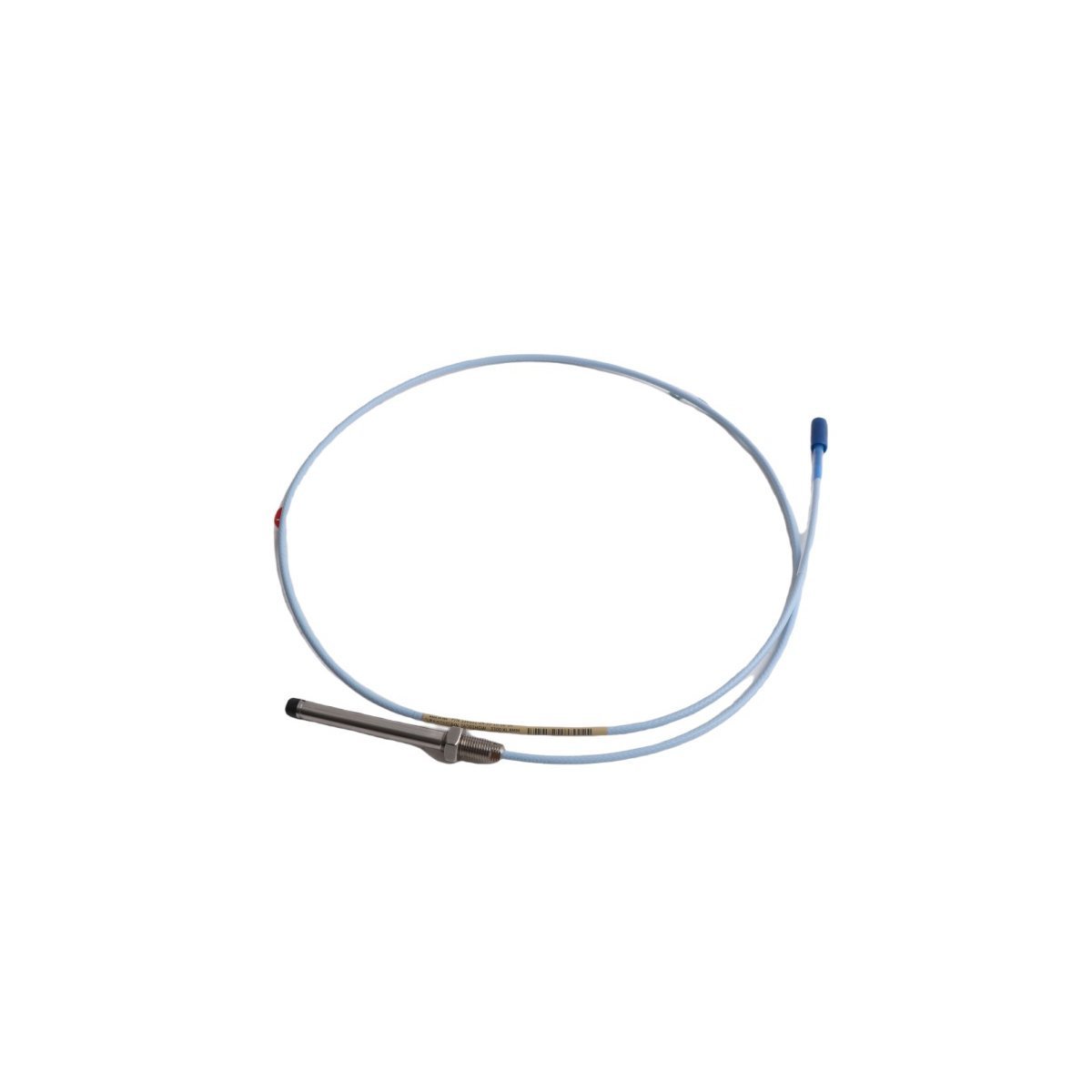

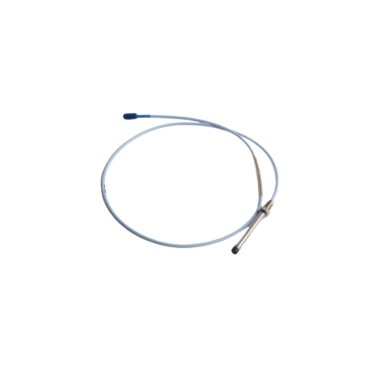

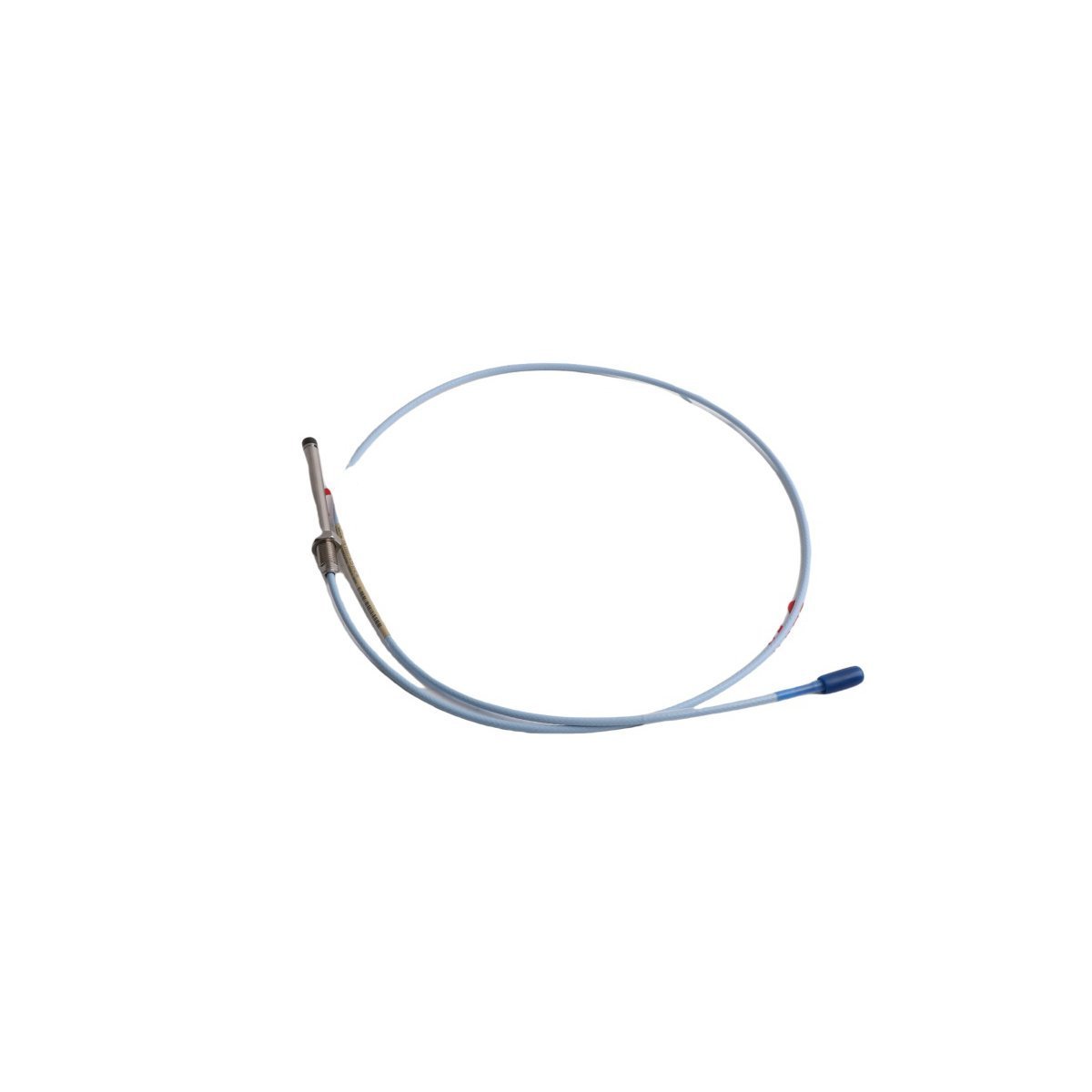

Bently Nevada 330101-24-35-10-02-00 Proximity Transducer

Technical Specifications Summary

The Bently Nevada 330101-24-35-10-02-00 is a high-performance eddy current sensor from the 3300 XL 8mm series. This transducer measures the distance between the probe tip and a target surface to provide real-time vibration and displacement data. Because it operates without physical contact, it eliminates wear and tear while delivering high-resolution insights. This specific model features a 3/8-24 UNF threaded body. It serves as a primary tool for detecting mechanical issues like shaft imbalance or bearing degradation before they lead to failure.

Design Features and Environmental Resilience

Bently Nevada builds this proximity probe to withstand the harshest industrial settings. The 330101-24-35-10-02-00 utilizes a polyphenylene sulfide (PPS) tip, which creates an airtight seal against oil, water, and corrosive chemicals. This model includes a 2.4-inch unthreaded length and a 3.5-inch overall case length. Furthermore, the integrated 1.0-meter cable features a gold-plated ClickLoc miniature coaxial connector. This connection ensures low-resistance signal transmission and resists mechanical vibration. Consequently, the probe maintains exceptional signal stability even in high-temperature environments.

Industrial Applications and Integration

The 3300 XL 8mm system integrates effortlessly with Bently Nevada 3500 and 2300 machinery protection racks. It provides the essential data required for Turbine Supervisory Instrumentation (TSI). Moreover, its wide linear range makes it suitable for various machinery types. Common industrial use cases include:

• Radial vibration monitoring on fluid-film bearings
• Axial thrust position tracking in heavy-duty compressors
• Shaft eccentricity measurements for industrial motors
• Phase reference (Keyphasor) signal generation for speed measurements
• Machinery protection in hydroelectric and steam power plants
