Product Description

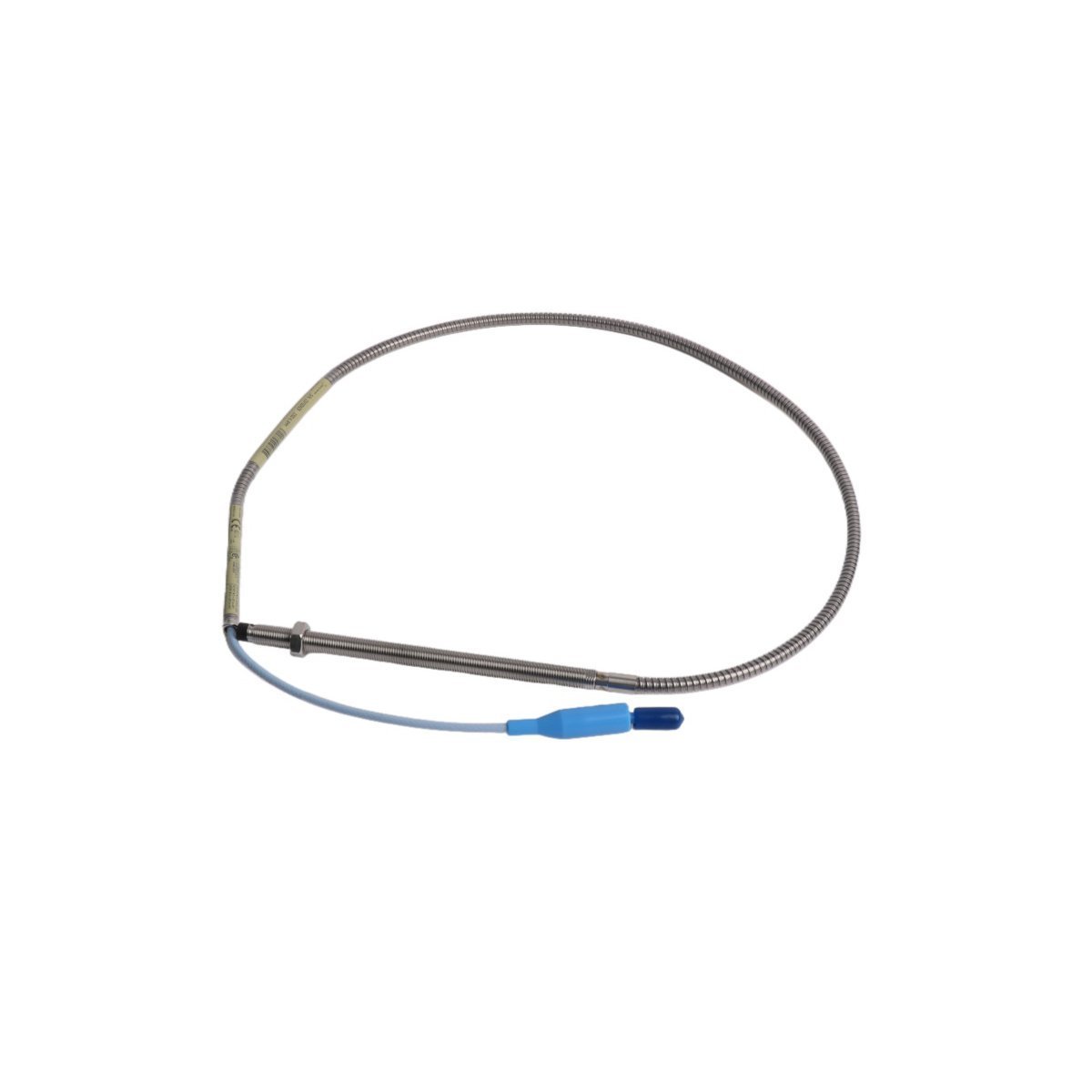

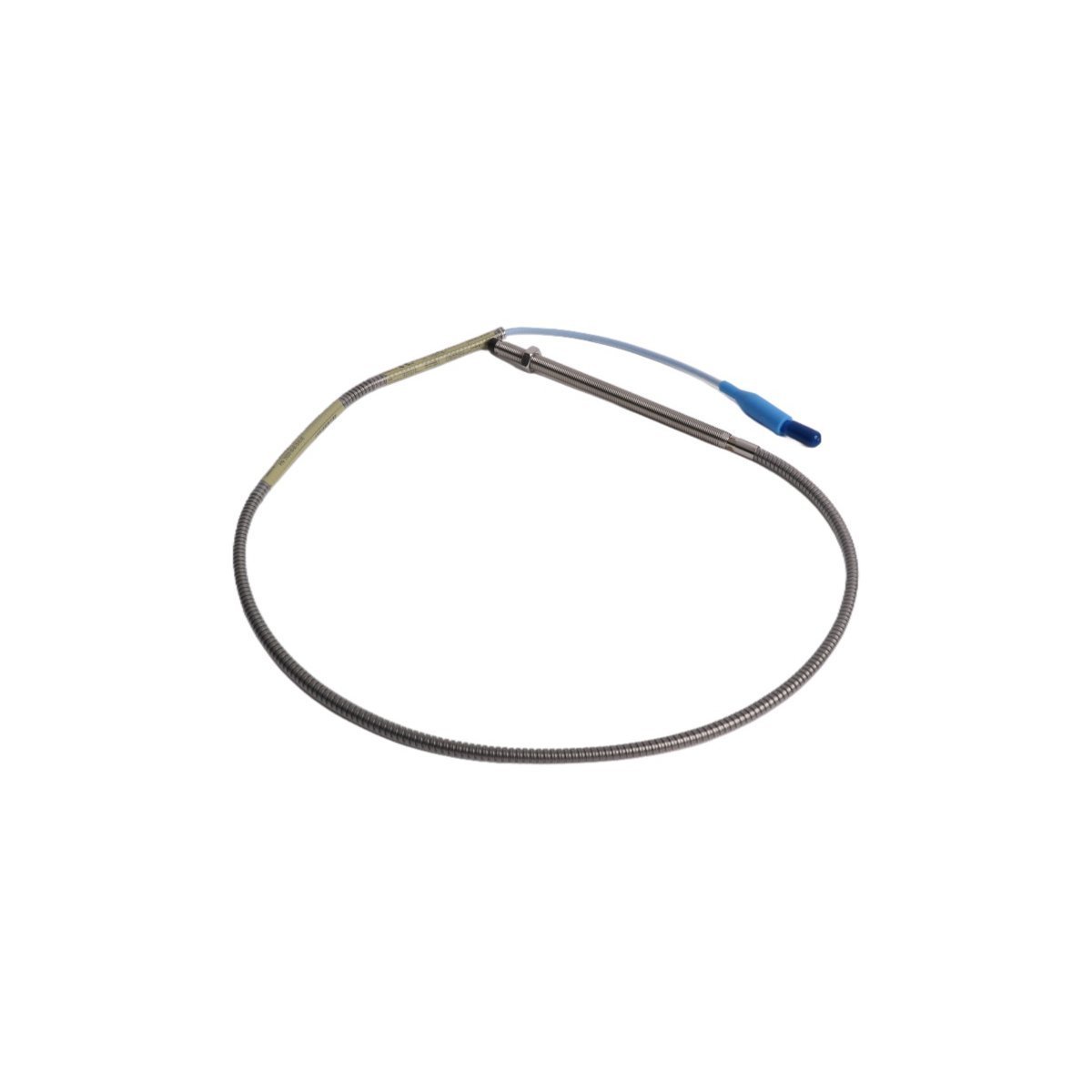

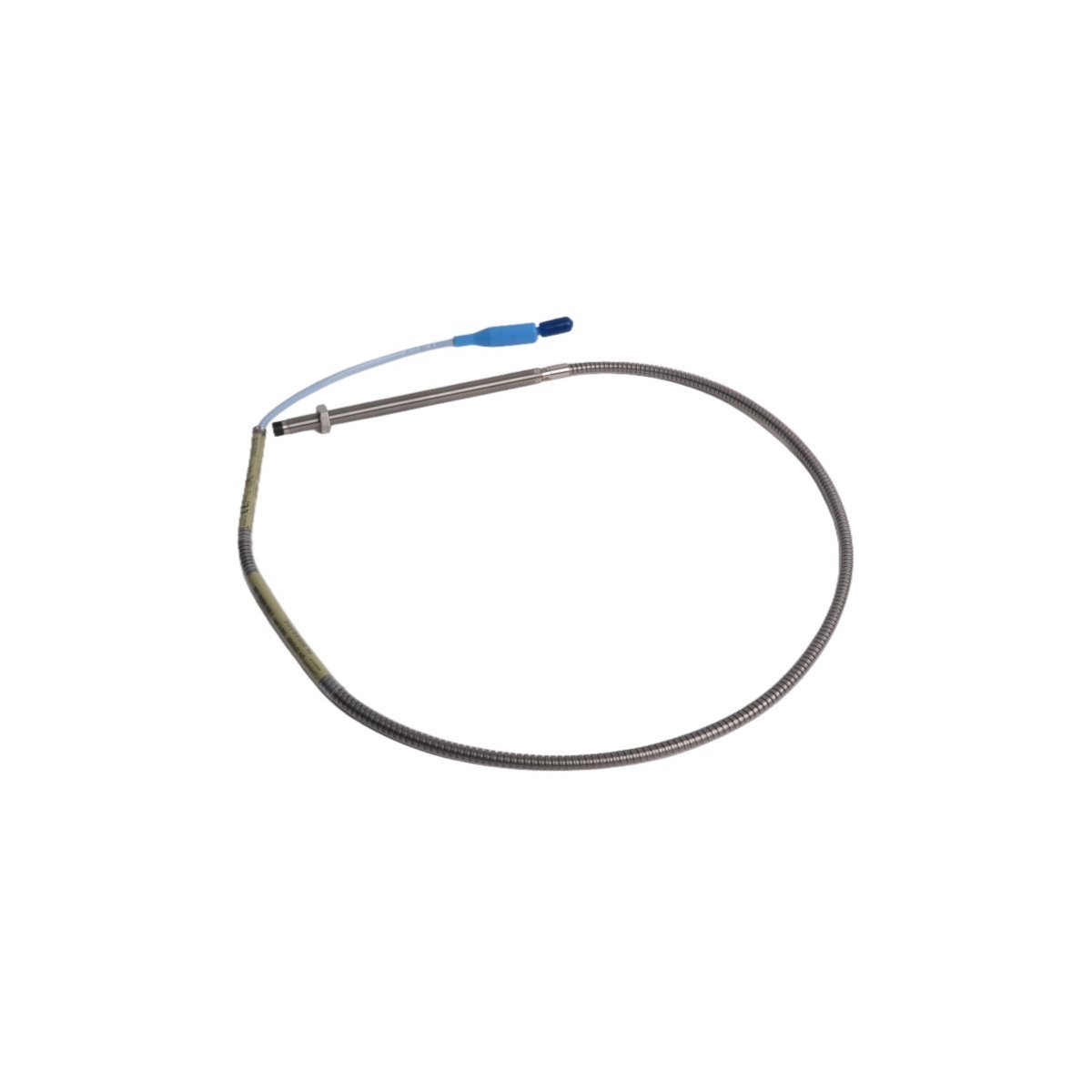

The Bently Nevada 330102-00-68-05-02-05 is a non-contacting displacement transducer. It measures static and dynamic distance between a machine shaft and the probe tip.
Industrial Applications
Industrial facilities integrate this eddy-current sensor into Turbomachinery Instrumentation (TSI) networks. The hardware monitors critical parameters like shaft vibration, axial thrust position, and bearing clearances. Engineers routinely install these proximity probes on high-speed rotating equipment. Common machine applications include steam turbines, centrifugal compressors, heavy-duty pumps, and large industrial motors.
Key Technical Characteristics
Mechanical Construction and Durability
The mechanical design features a standard 8mm tip diameter optimized for common industrial gaps. This specific configuration includes an integrated 3/8-24 UNF threaded casing to simplify rigid mechanical mounting. To withstand harsh environment stresses, a robust armored sheath shields the internal coaxial cable. This protective layering guards the conductor against cutting fluids, sharp metallic debris, and physical abrasion.
Signal Integrity and Noise Isolation
The sensor base incorporates complete electrical isolation. This structural design eliminates the need for auxiliary isolator plates and prevents ground loop interference. Furthermore, advanced shielding provides exceptional radio frequency interference (RFI) and electromagnetic interference (EMI) immunity. Because the design satisfies European CE mark standards, technicians can safely run cables through standard fiberglass enclosures without expensive metal conduits.
System Integration and Footprint
The device operates seamlessly with the standard 3300 XL Proximitor Sensor series. The physical housing supports versatile, high-density cabinet layouts. Users can mount the matching sensor modules using standard DIN-rail setups or traditional flat-panel footprints.
Product Specifications
- Manufacturer: Bently Nevada
- Product Line: 3300 XL Proximity Transducer System
- Model Configuration: 330102-00-68-05-02-05
- Sensor Tip Diameter: 8 mm
- Threading Type: 3/8-24 UNF
- Cable Style: Integrated coaxial armor sheath
- System Target: Turbomachinery Instrumentation (TSI)
- Net Weight: 0.06 kg
- Product Origin: United States (USA)
- Lifecycle Status: Active production model
