Product Description

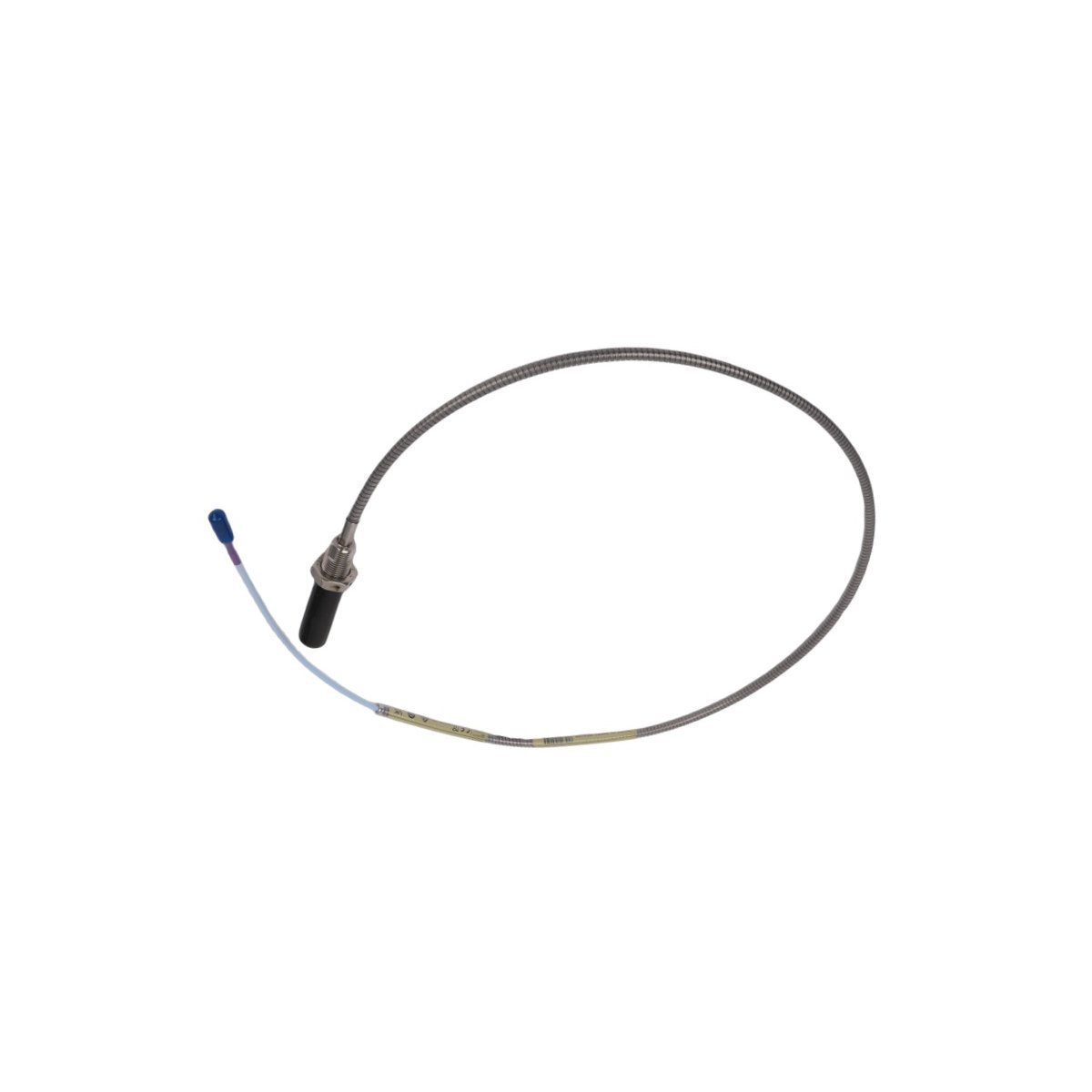

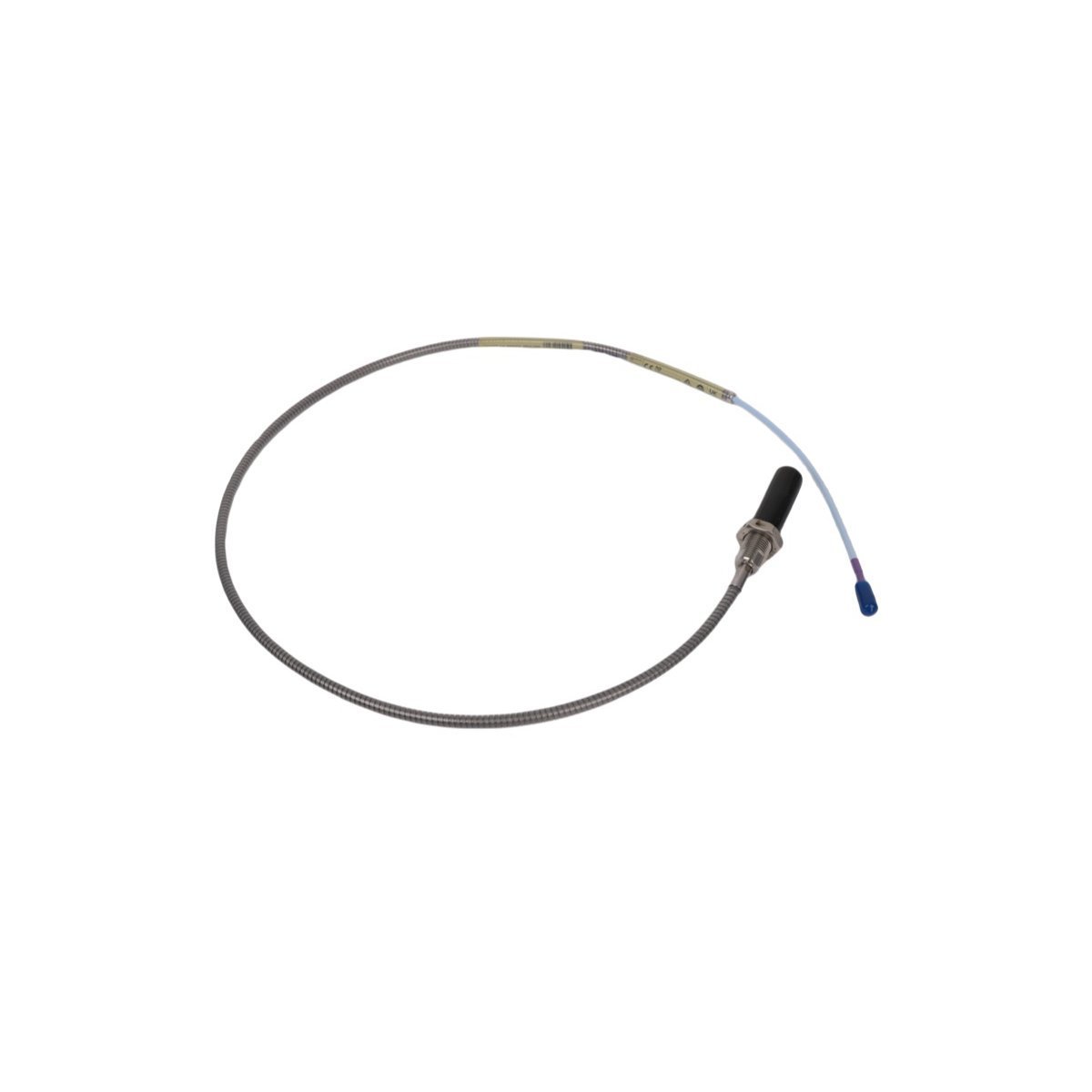

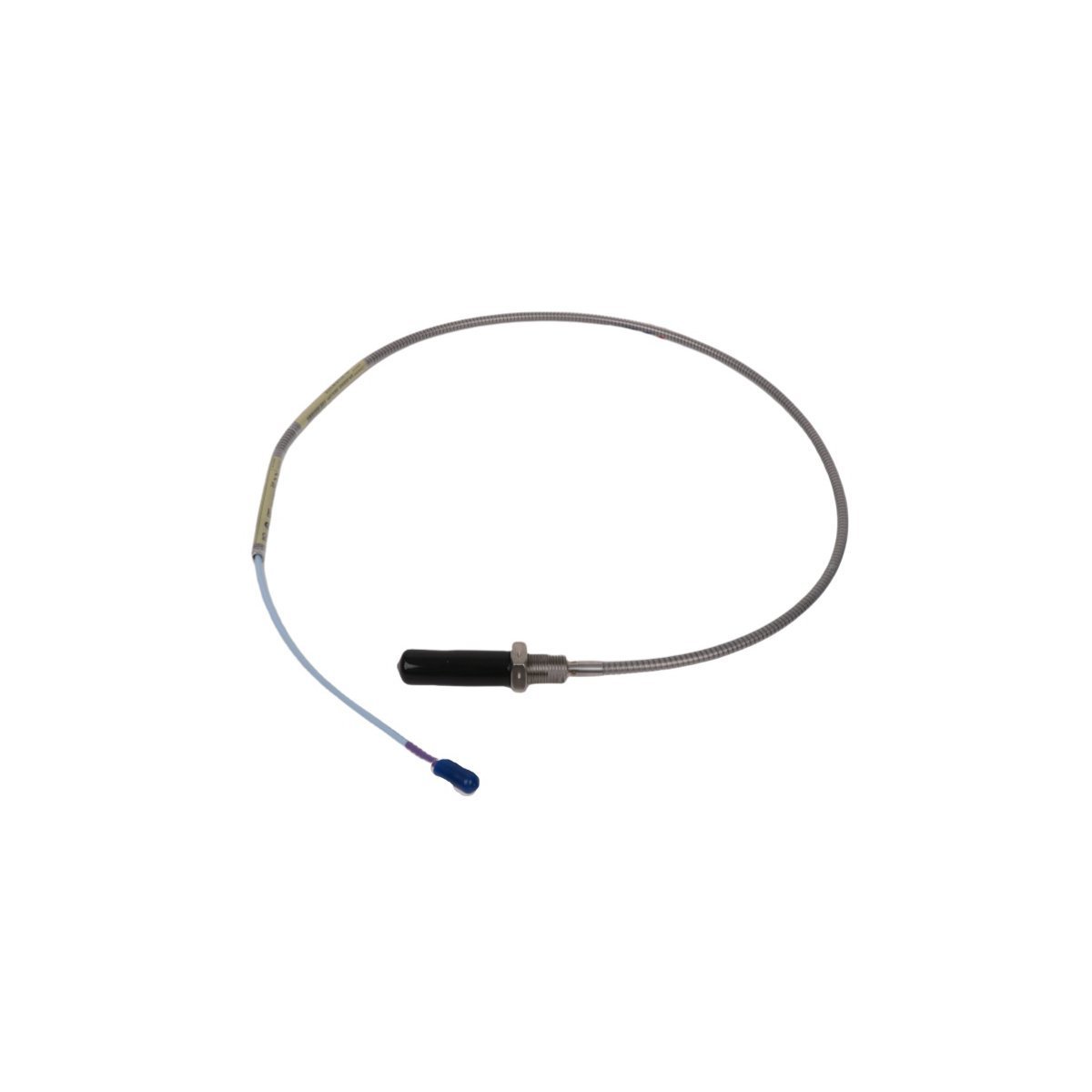

The Bently Nevada 330710-000-050-02-00 is a high-performance, eddy-current non-contact displacement sensor. This 11mm probe measures static and dynamic distance between the probe tip and the observed target.
Industrial Applications
Engineered for critical machinery protection, this proximity probe integrates directly with Turbomachinery Instrumentation (TSI) systems. It monitors fluid-film bearing clearance, shaft vibration, and axial position in large industrial equipment. Operators deploy these sensors on steam turbines, gas turbines, centrifugal compressors, pumps, and electric motors.
Key Technical Characteristics
Mechanical and Physical Parameters
The physical configuration incorporates a rugged 11mm tip diameter that permits a wider linear measurement range than standard 8mm variants. The physical construction includes a 5-meter standard length coaxial cable. This internal cable features robust miniature ClickLoc connectors to simplify field coupling. The outer layer utilizes a heavy-duty armor sheath to protect the delicate coaxial core against physical impacts, cutting fluids, and abrasive debris common to industrial environments.
Electrical Isolation and Signal Integrity
The sensor housing establishes complete electrical isolation from the mounting base, which eliminates ground loop interference without auxiliary isolator plates. Advanced engineering gives the system exceptional radio frequency interference (RFI) and electromagnetic interference (EMI) immunity. Consequently, the hardware complies with stringent European CE mark standards. Technicians can install the unit inside fiberglass enclosures without adding metallic conduits or shielded housings.
Installation and Integration
The device supports dual-mounting topographies, accommodating both standard DIN-rail layouts and traditional flat-panel surfaces. This dual capability allows for dense configurations inside tight instrument cabinets. Additionally, integrated SpringLoc terminal strips facilitate rapid, secure field wiring without requiring specialized termination tools.
Product Specifications
- Manufacturer: Bently Nevada
- Product Line: 3300 XL Proximity Transducer System
- Model Configuration: 330710-000-050-02-00
- Sensor Tip Diameter: 11 mm
- Total Cable Length: 5.0 meters
- Armor Protection: Integrated miniature coaxial armor
- Connector Type: ClickLoc coaxial connector
- Mounting Options: DIN-rail or panel mount
- Wiring Interface: Tool-less SpringLoc terminals
- Net Weight: 0.25 kg
- Package Dimensions: 20.5 cm x 22.5 cm x 3.5 cm
- Lifecycle Status: Active production model
