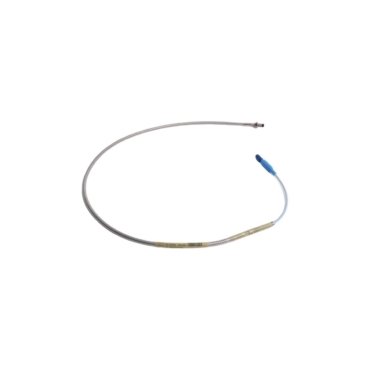

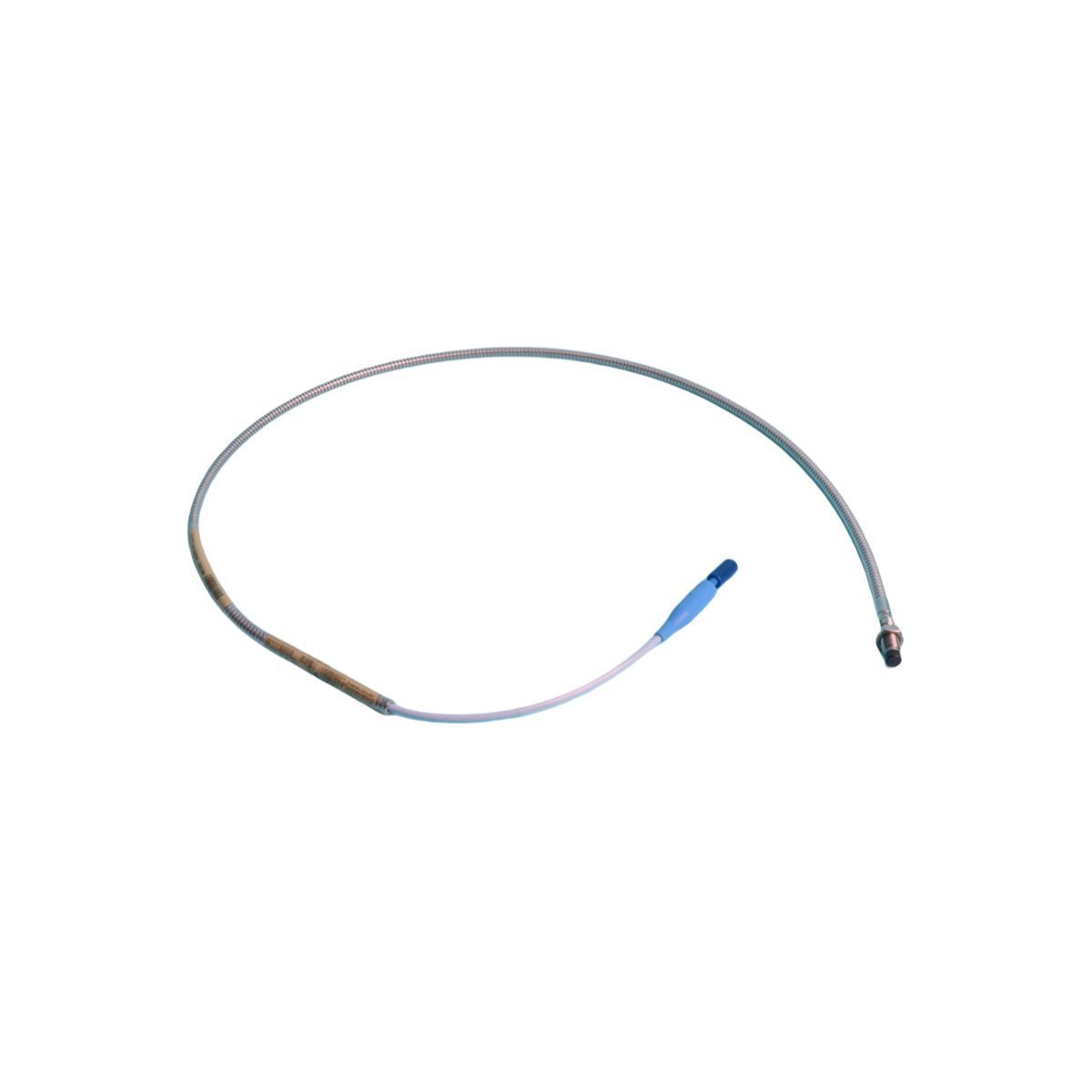

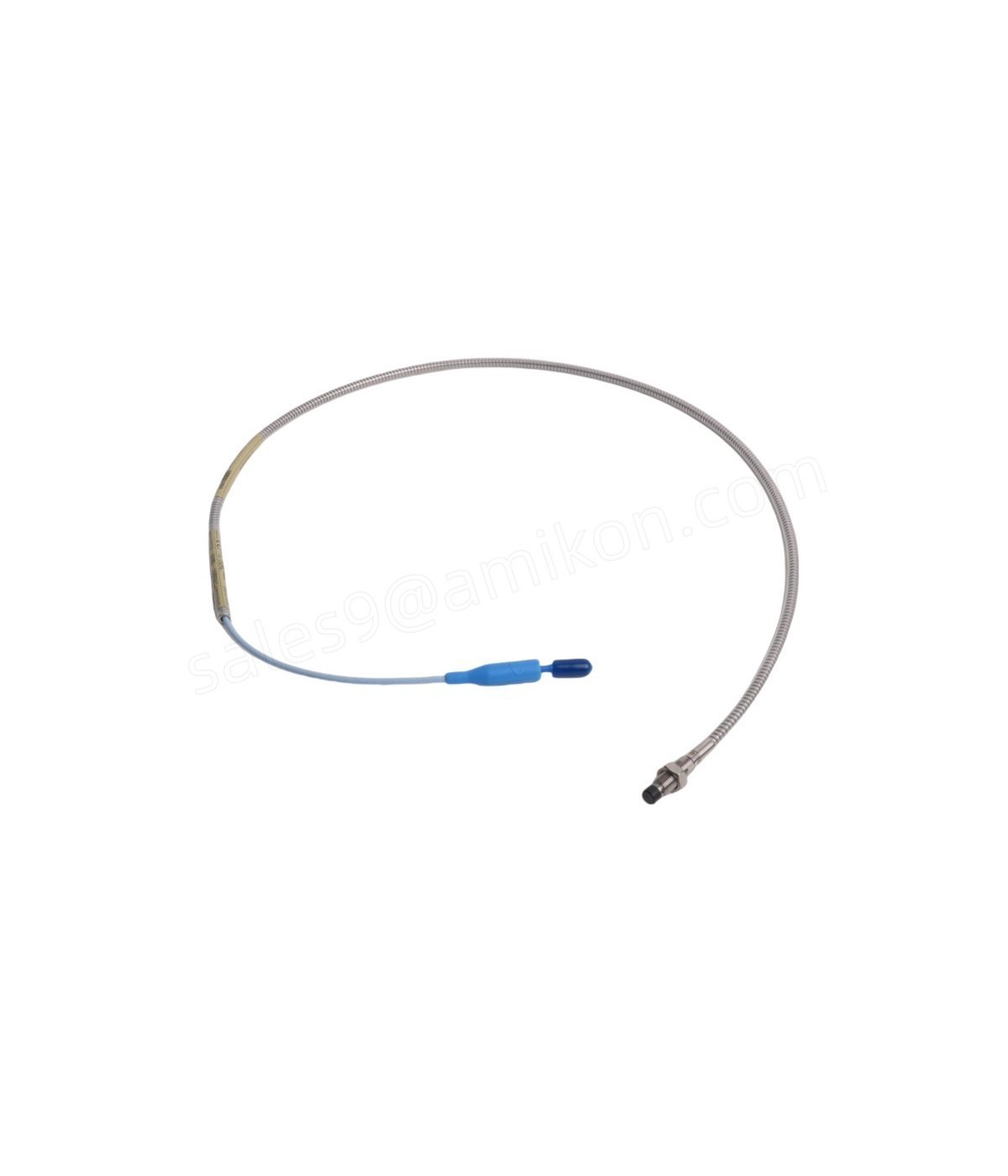

The Bently Nevada 330102-00-10-10-01-05 serves as a high-precision sensor for industrial machinery protection. This 8mm proximity probe measures shaft vibration and axial position without physical contact. It operates within the 3300 XL transducer system to provide a linear voltage output. This signal corresponds directly to the gap between the probe and the target surface. Consequently, maintenance teams can monitor machine health in real-time. This model specifically utilizes M10 x 1 metric threads for secure mechanical mounting.
Enhanced Mechanical Integrity and Sealing
This probe features a 1.0-meter integrated cable protected by stainless steel armor. The armored jacket prevents physical damage from sharp edges or falling debris. Additionally, the patented TipLoc molding process secures the sensor tip to the probe body. This design prevents tip loss in high-pressure or high-flow environments. The CableLoc strain relief further strengthens the assembly against accidental pulling forces. It withstands up to 330 N (75 lbf) of tension without failure.
Technical Performance and Specifications
The 330102 series provides consistent performance across various temperatures and chemical exposures. It maintains a stable linear range for accurate data collection.
- Thread Type: M10 x 1 metric thread
- Unthreaded Length: 0 mm
- Threaded Case Length: 100 mm
- Integrated Cable: 1.0-meter total length
- Armor Option: Stainless steel armor included
- Connector: Gold-plated ClickLoc coaxial connector
- Approvals: CSA, ATEX, and IECEx hazardous area certifications
