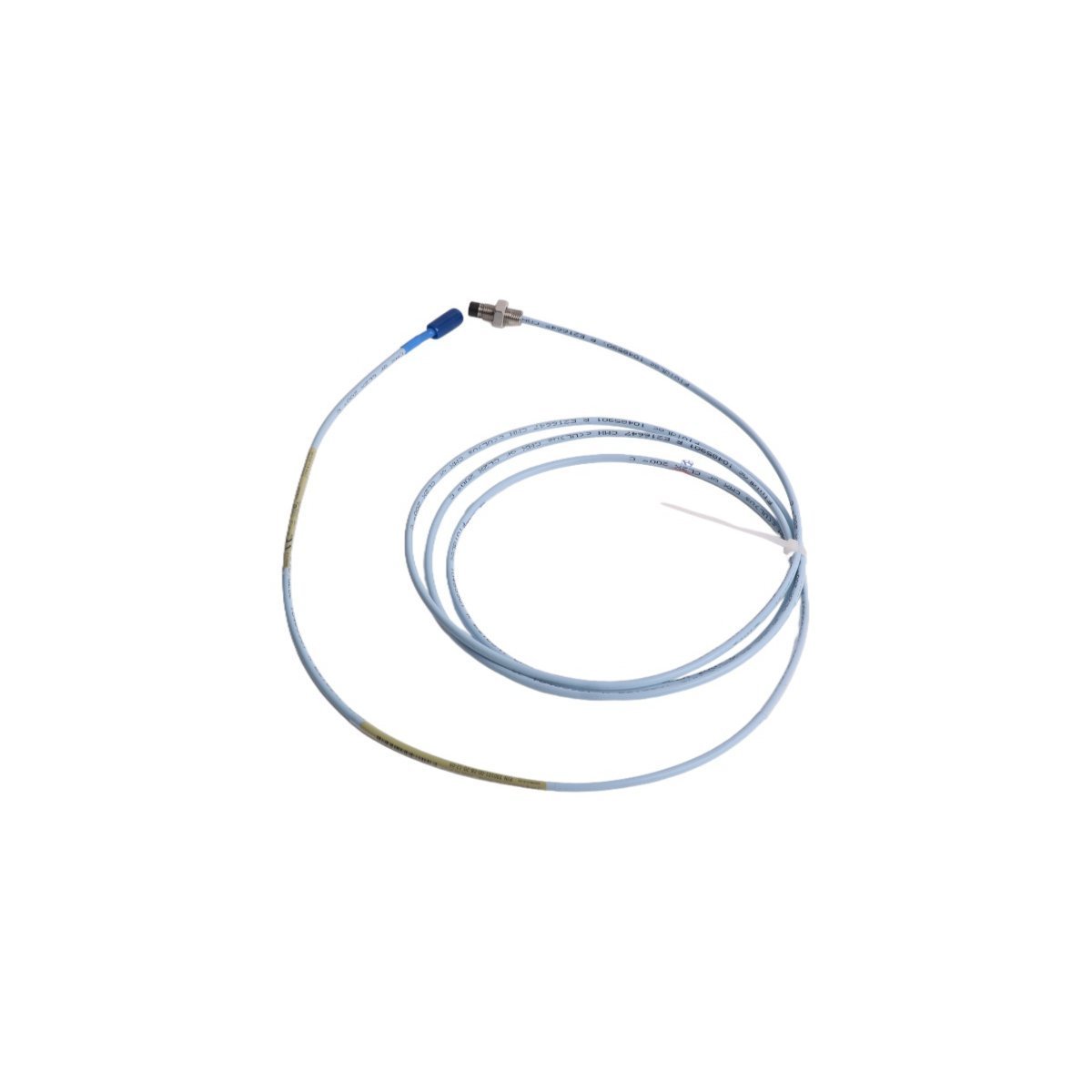

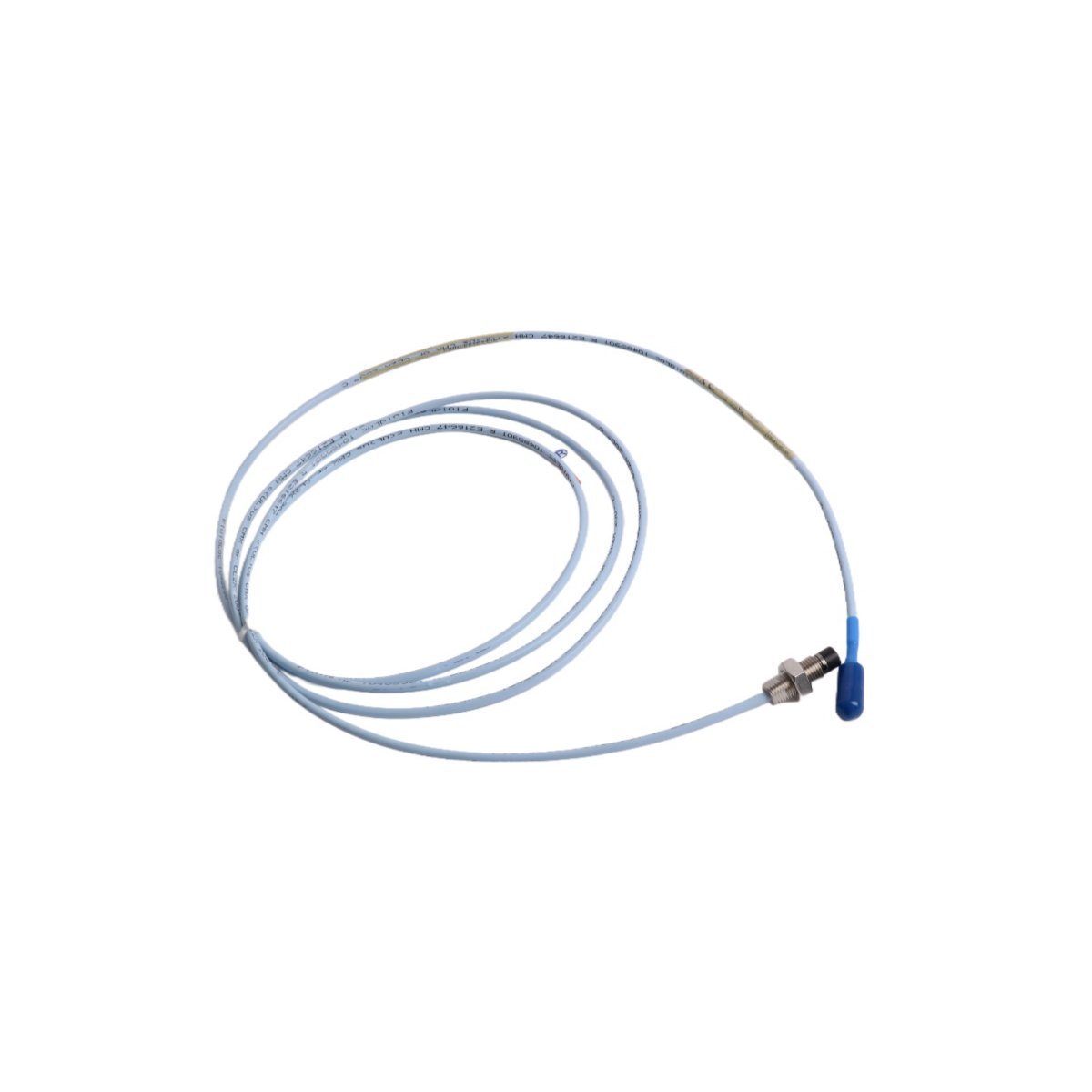

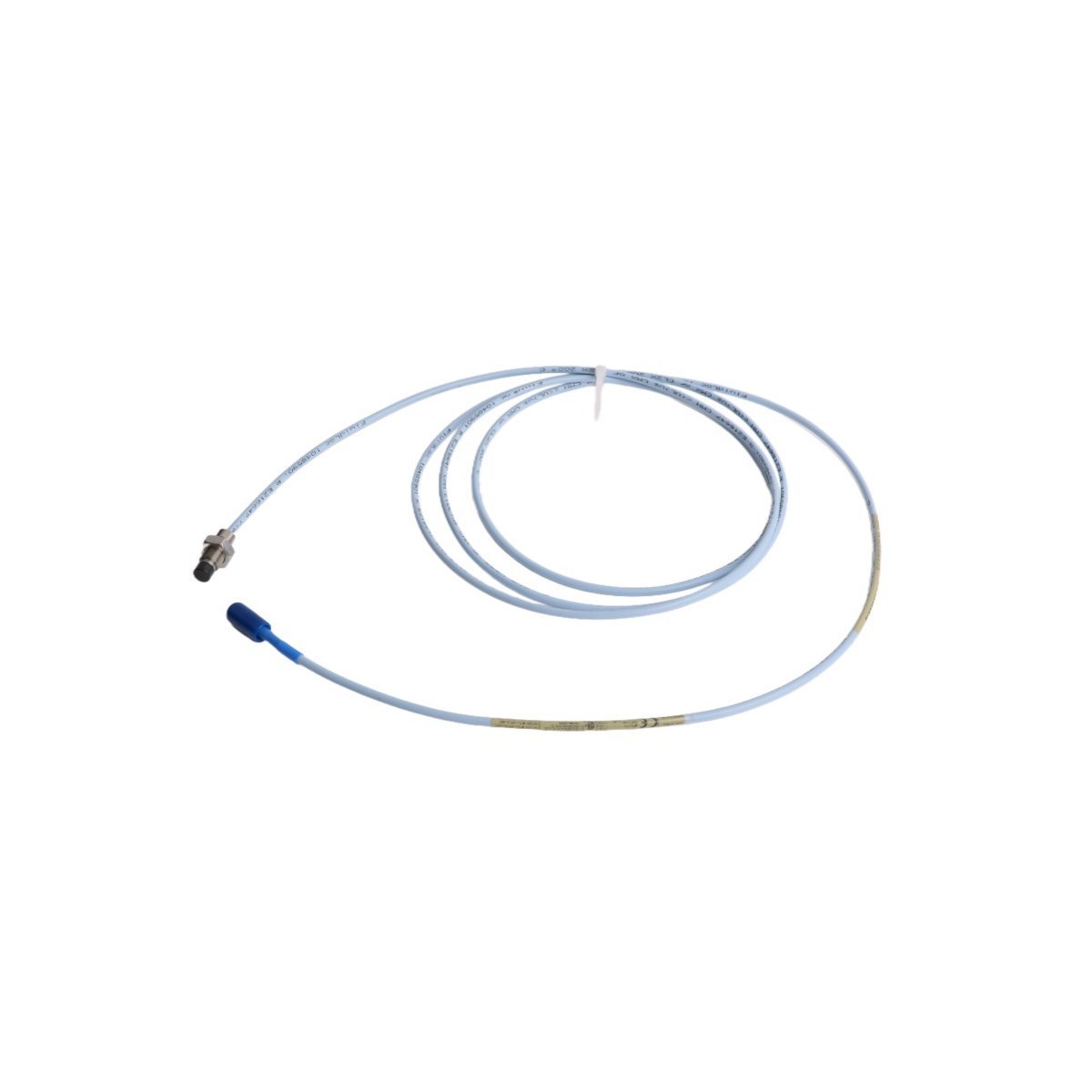

The Bently Nevada 330101-00-25-05-02-05 serves as a core sensor for critical machinery protection. This 8mm proximity probe measures shaft vibration and axial displacement with high precision. It belongs to the 3300 XL transducer series. This series offers the most advanced eddy current sensing technology. The probe provides a linear voltage output proportional to the gap distance. Consequently, operators can monitor rotating asset health in real-time. This specific model utilizes a 3/8-24 UNF thread for standardized mechanical mounting.
Technical Parameters and Design Features
The 330101-00-25-05-02-05 model offers specific dimensions for specialized machinery housings. It maintains full interchangeability with other 3300 XL series components.
- Thread Size: 3/8-24 UNF
- Unthreaded Case Length: 0.0 inches
- Overall Case Length: 2.5 inches
- Total Cable Length: 0.5 meters (1.6 feet)
- Connector: Miniature coaxial ClickLoc with protector
- Hazardous Area Approvals: CSA, ATEX, and IECEx certified
- Compliance: Meets API 670 machinery protection standards
Seamless System Integration and EMI Resistance
This probe provides exceptional resistance to electronic noise and radio frequency interference (RFI). This allows for reliable operation in non-metallic housings without signal degradation. The mounting base provides complete electrical isolation from the machine casing. Therefore, the system eliminates the need for extra isolator plates. The 0.5-meter cable length suits compact mounting applications near the machine bearing. It integrates directly with Bently Nevada 3500 series monitoring racks via extension cables.
