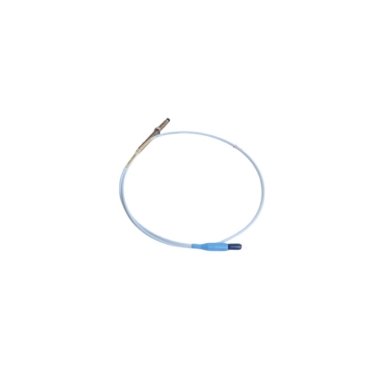

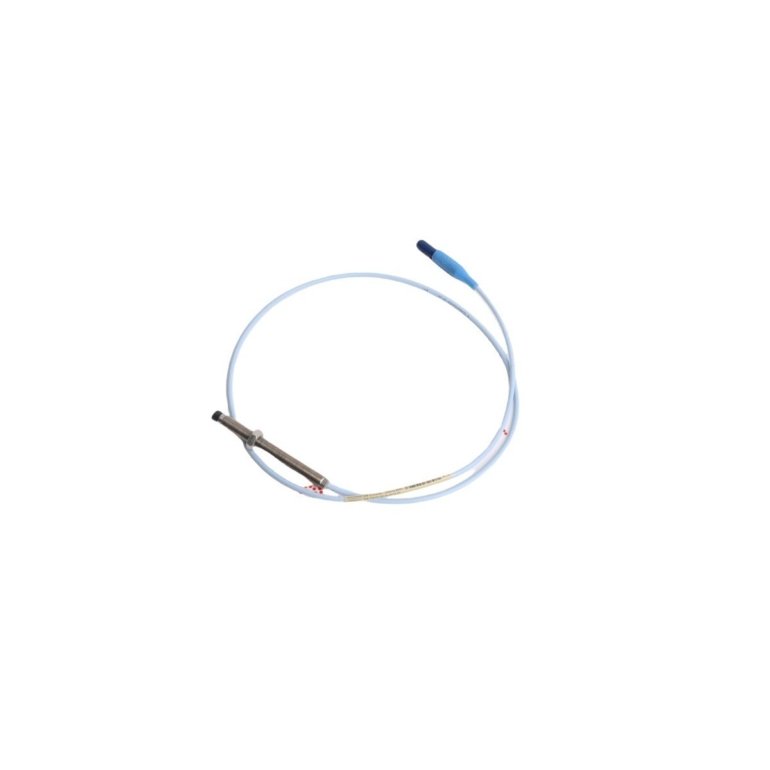

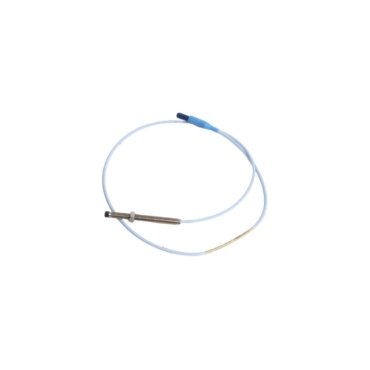

The Bently Nevada 330101-00-36-10-01-00 is a high-performance eddy current sensor belonging to the 3300 XL 8mm Transducer System. Primarily, this probe measures static displacement and dynamic vibration on rotating machinery shafts. It serves as a fundamental component for Machinery Protection Systems (MPS), providing real-time data to prevent catastrophic equipment failure.
Signal Accuracy and Mechanical Protection
Technically, this probe is designed for extreme precision in demanding industrial environments. First, the 8mm tip provides a linear range of 2.0 mm (80 mils), allowing for detailed shaft position monitoring. Additionally, the sensor is constructed with high-grade polyphenylene sulfide (PPS) to resist chemical corrosion. Consequently, the probe maintains signal stability even when exposed to oil, water, or steam within a turbine housing.
Technical Configuration Details
The specific parameters for the 330101-00-36-10-01-00 model include the following:
- Probe Thread Type: 3/8-24 UNF thread
- Unthreaded Length: 0.0 inches
- Overall Case Length: 3.6 inches
- Total Cable Length: 1.0 Meter (3.3 feet)
- Connector Option: Miniature coaxial ClickLoc connector
- Agency Approval: 00 (Standard configuration for non-hazardous or multi-certified areas)
- Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
Industrial Asset Monitoring
Because reliability is paramount in power generation and oil refineries, this probe is built for continuous duty. For instance, it is commonly installed on high-speed centrifugal compressors, steam turbines, and large scale pumps. Furthermore, the probe’s design facilitates easy gap calibration during installation. Thus, maintenance teams can quickly integrate the sensor into existing 3500 series racks for immediate diagnostic feedback.
