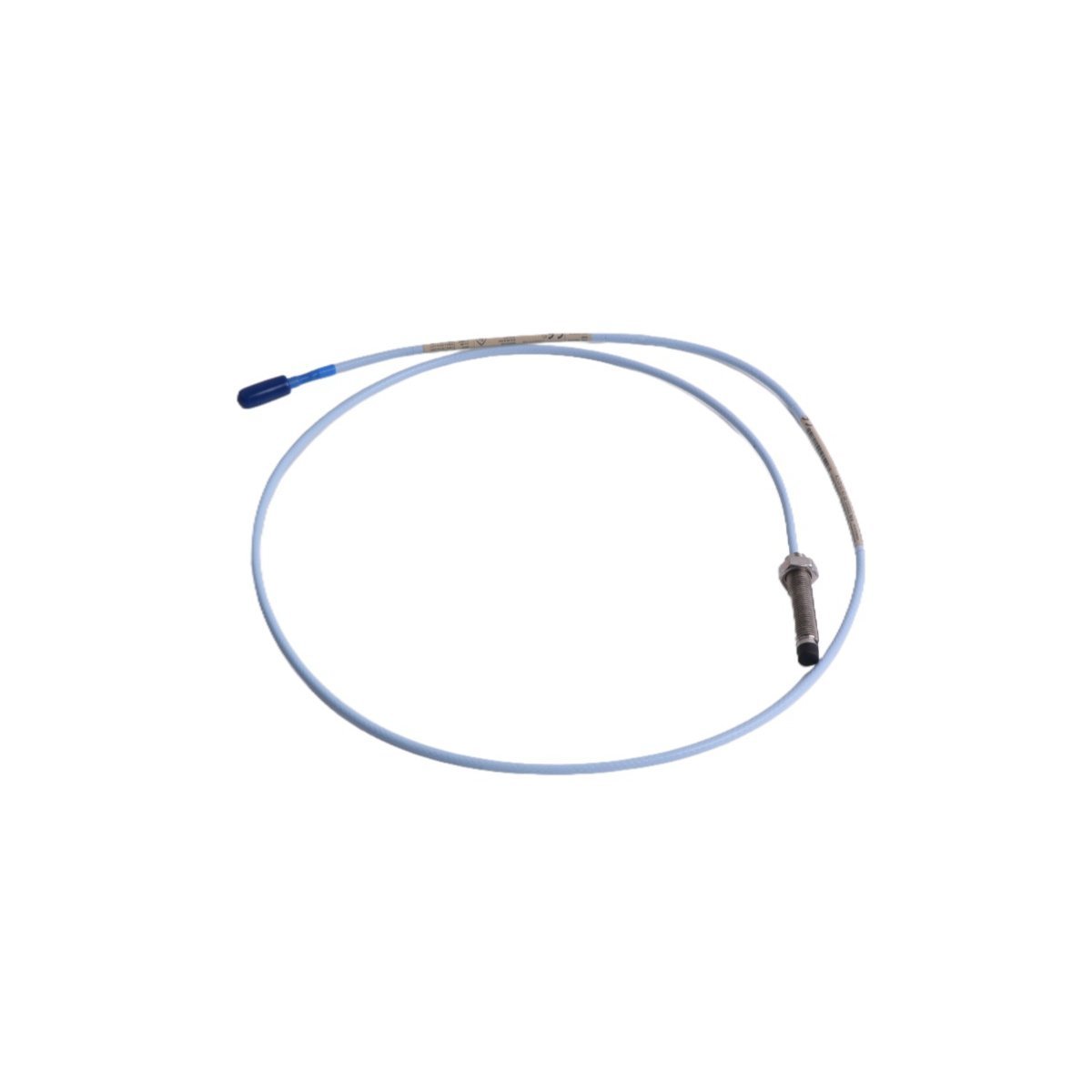

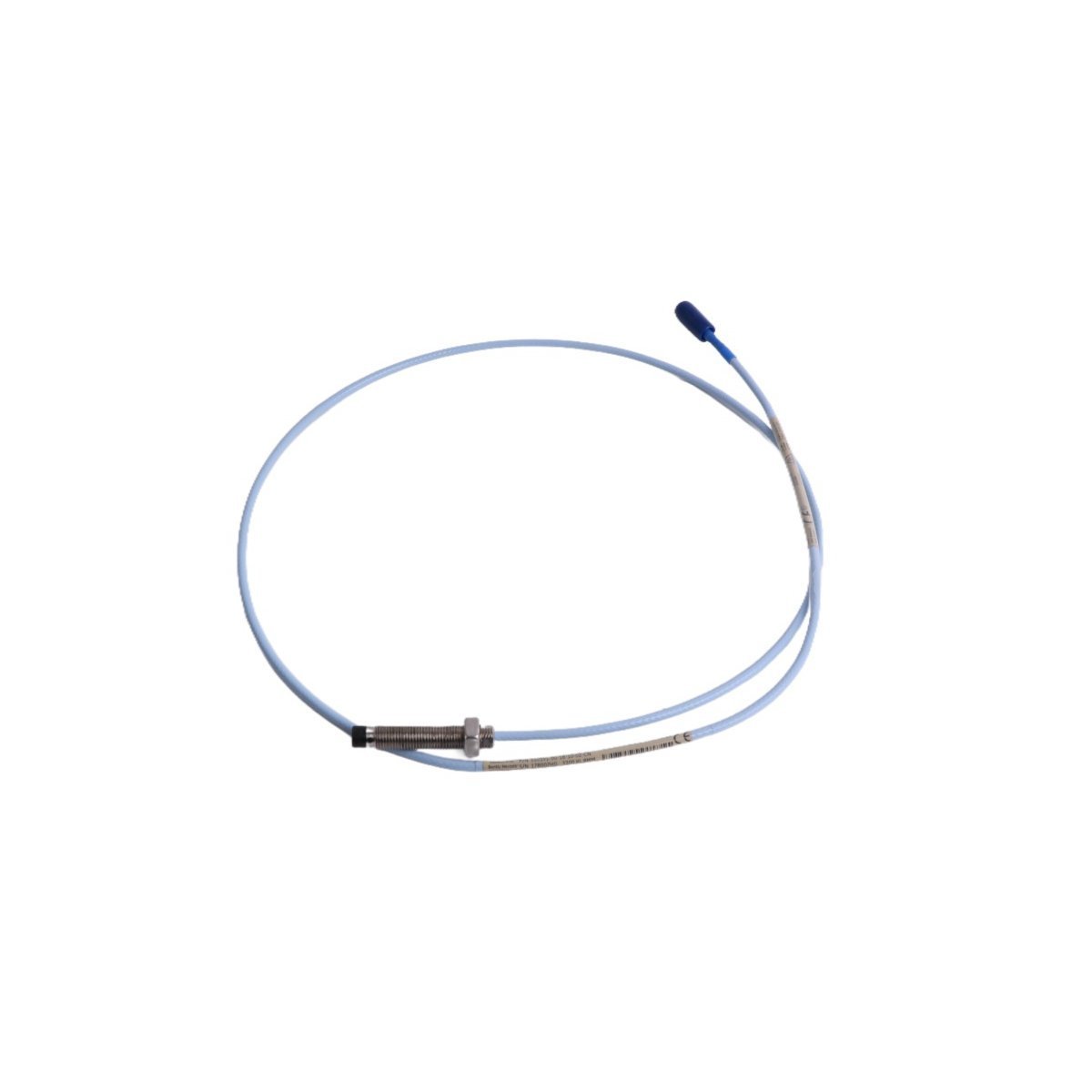

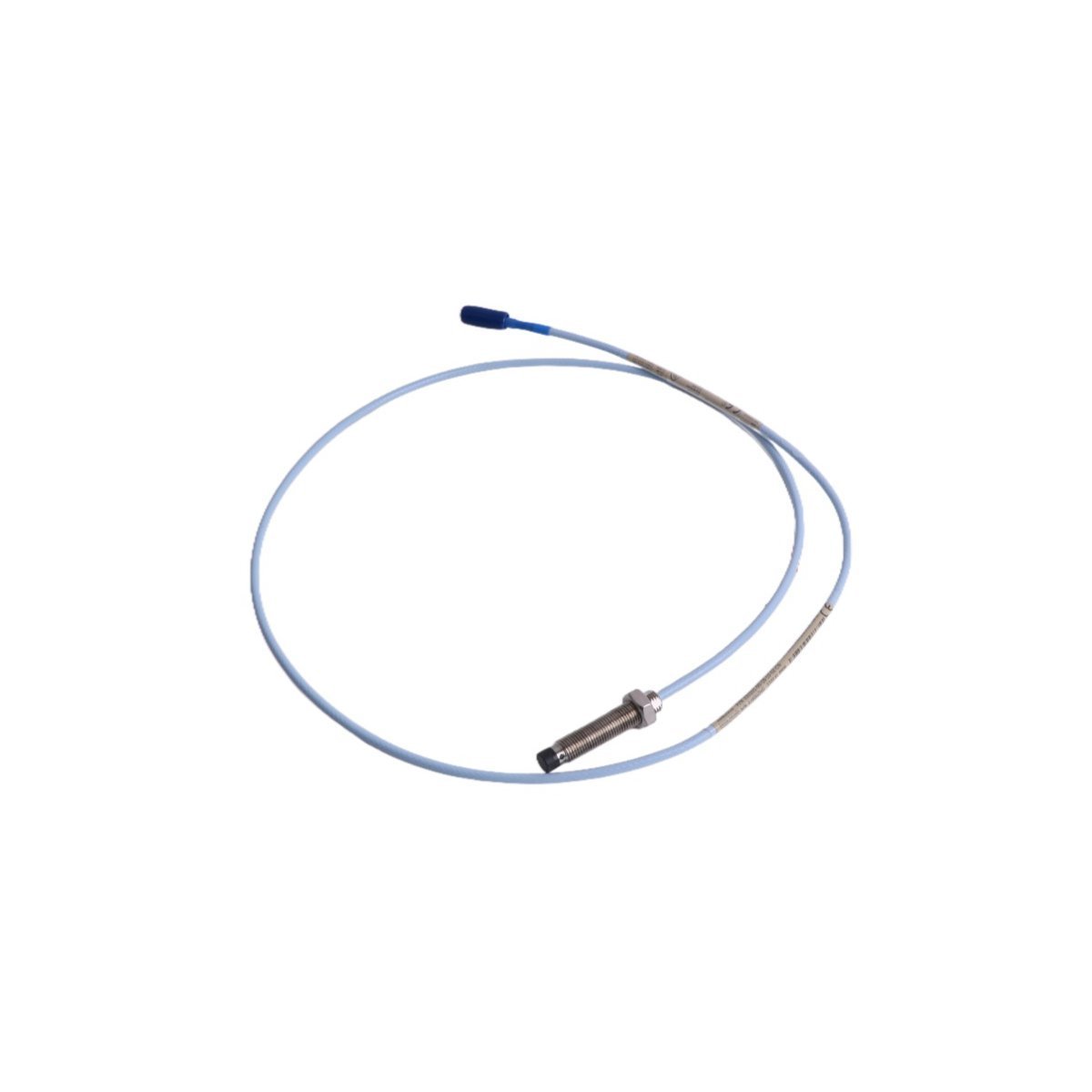

The Bently Nevada 330101-00-18-20-12-05 belongs to the 3300 XL transducer family. This 8mm proximity probe measures shaft vibration and static position. It operates by generating a high-frequency electromagnetic field. The sensor detects distance changes between the probe tip and the target. This non-contact method ensures accurate data without mechanical wear. The system provides a linear voltage output proportional to the gap. This allows for precise monitoring of fluid-film bearing machinery.
Operational Benefits and Design Features
This specific 3300 XL probe offers significant improvements over previous models. It features a patented TipLoc molding process. This design prevents the probe tip from separating from the body. Furthermore, the CableLoc strain relief withstands high pull forces. These mechanical enhancements ensure long-term durability in harsh environments. The probe also utilizes a gold-plated ClickLoc connector. This connector provides a secure connection and resists corrosion. Users can swap components without performing a manual bench calibration.
Technical Configuration Details
The 330101-00-18-20-12-05 model features a 3/8-24 UNF thread housing. It includes specific lengths for the unthreaded and threaded case portions. The integrated cable provides a reliable signal path to the Proximitor sensor.
- Thread Size: 3/8-24 UNF
- Unthreaded Length: 0.0 inches
- Overall Case Length: 1.8 inches
- Total Length: 2.0 meters (6.6 feet)
- Connector Type: Miniature coaxial ClickLoc with connector protector
- Agency Approvals: CSA, ATEX, and IECEx certifications
