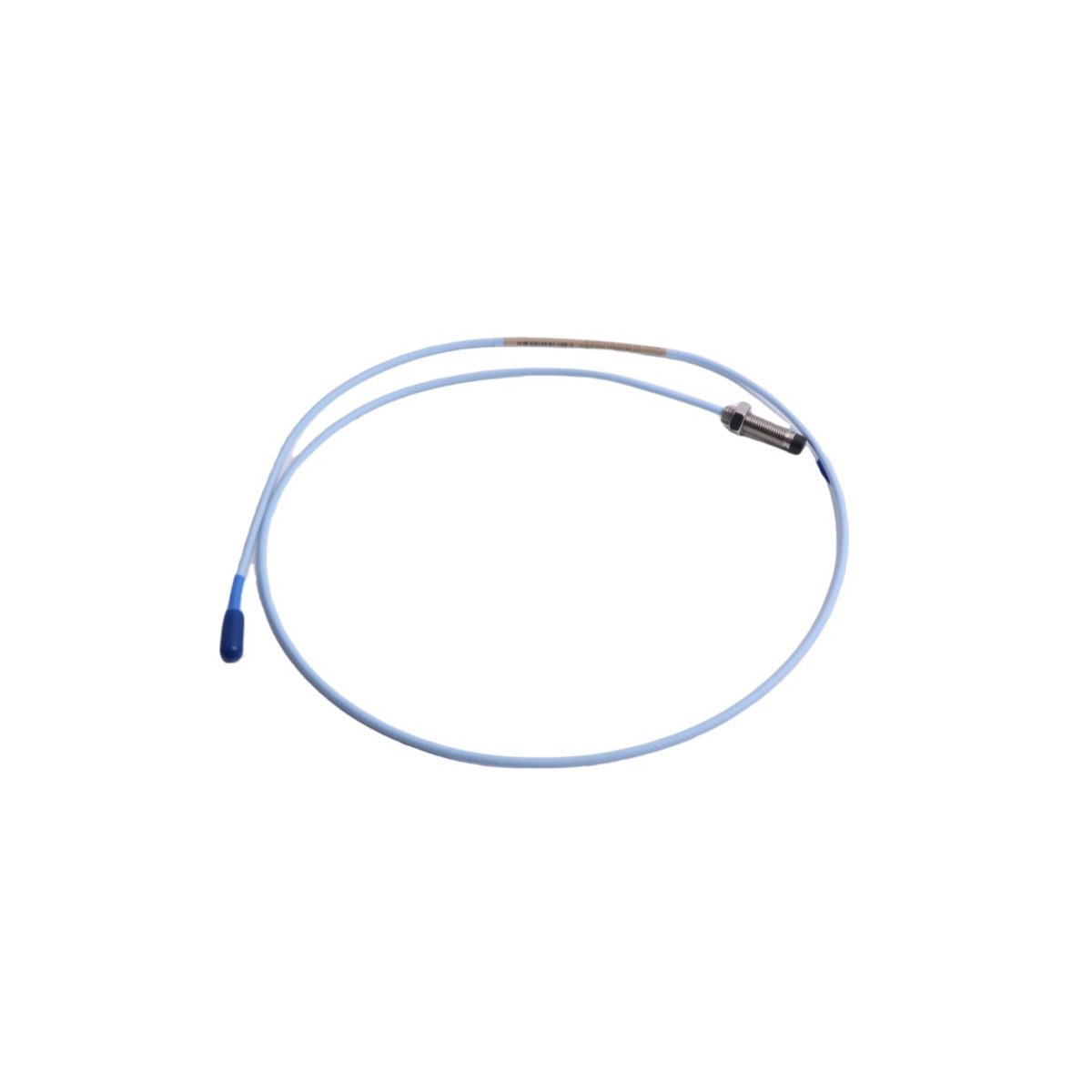

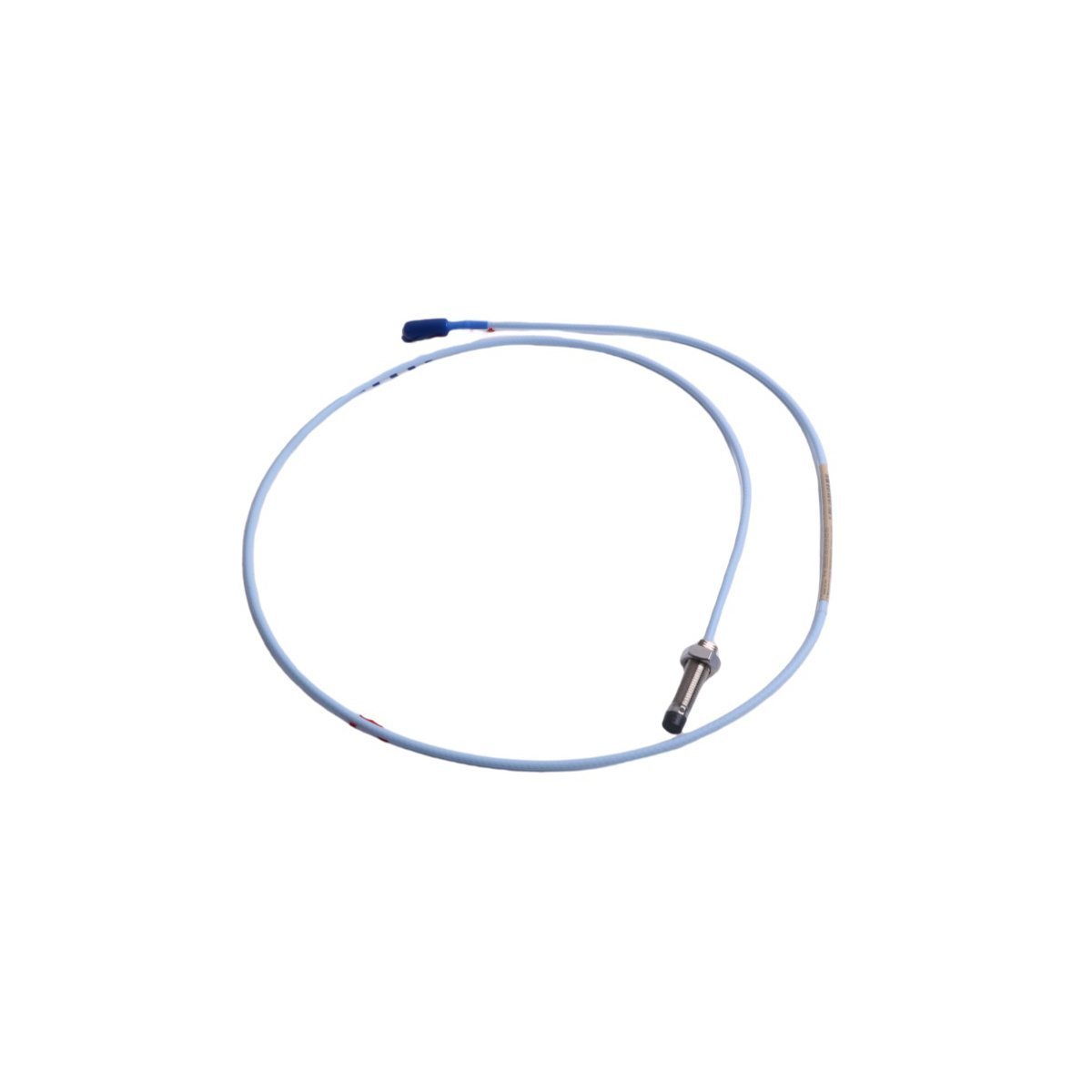

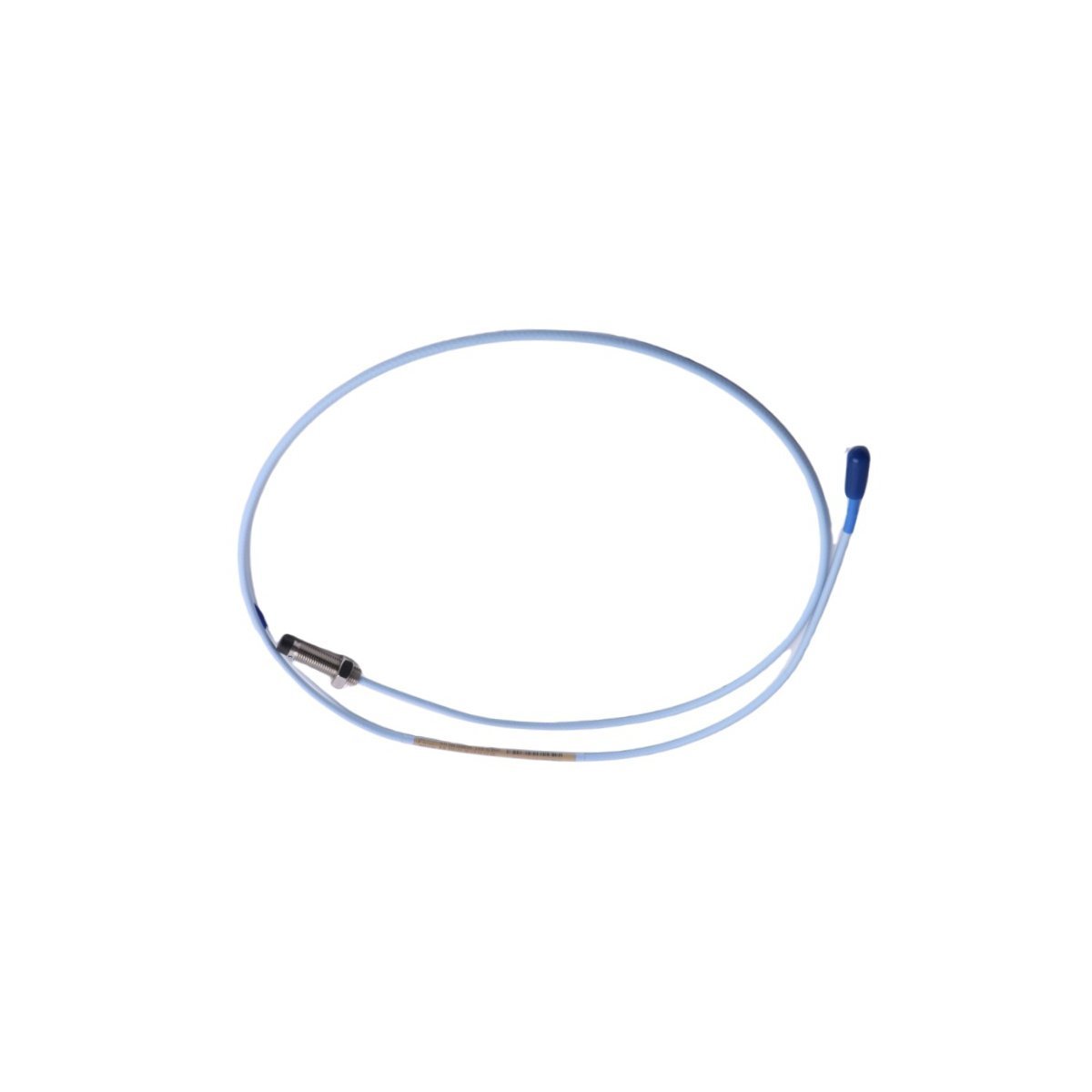

The Bently Nevada 330101-00-13-10-02-00 is a high-performance 8mm proximity sensor. It belongs to the specialized 3300 XL transducer series. This probe measures both static and dynamic distance between the tip and target. It excels in monitoring vibration and shaft position in fluid-film bearing machines. The sensor utilizes eddy current technology for non-contact measurement. This approach prevents mechanical wear and ensures long-term signal stability. The system converts these physical measurements into an accurate voltage output.
Key Technical Specifications
This 3300 XL probe offers full interchangeability without recalibration. It maintains a linear response across the entire measurement range.
- Thread Size: 3/8-24 UNF
- Unthreaded Case Length: 0.0 inches
- Overall Case Length: 1.3 inches
- Total Cable Length: 1.0 meter (3.3 feet)
- Connector Type: Miniature coaxial ClickLoc with protector
- Compliance: API 670 standard for machinery protection
- Certification: CE mark and CSA/ATEX hazardous area approvals
Superior Interference Immunity and Integration
The 330101-00-13-10-02-00 provides excellent resistance to electronic noise. It features high immunity against Radio Frequency Interference (RFI). This allows for installation in non-metallic housings without signal loss. Consequently, users avoid the cost of expensive shielded conduits. The probe base provides complete electrical isolation. This eliminates the requirement for separate isolator plates in most panels. It integrates seamlessly with existing Bently Nevada 3500 series racks. Such compatibility simplifies the upgrade path for legacy monitoring systems.
