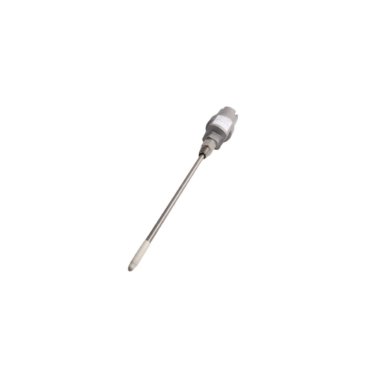

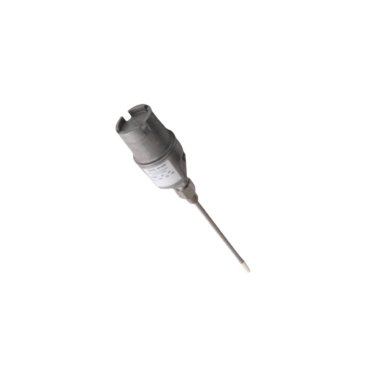

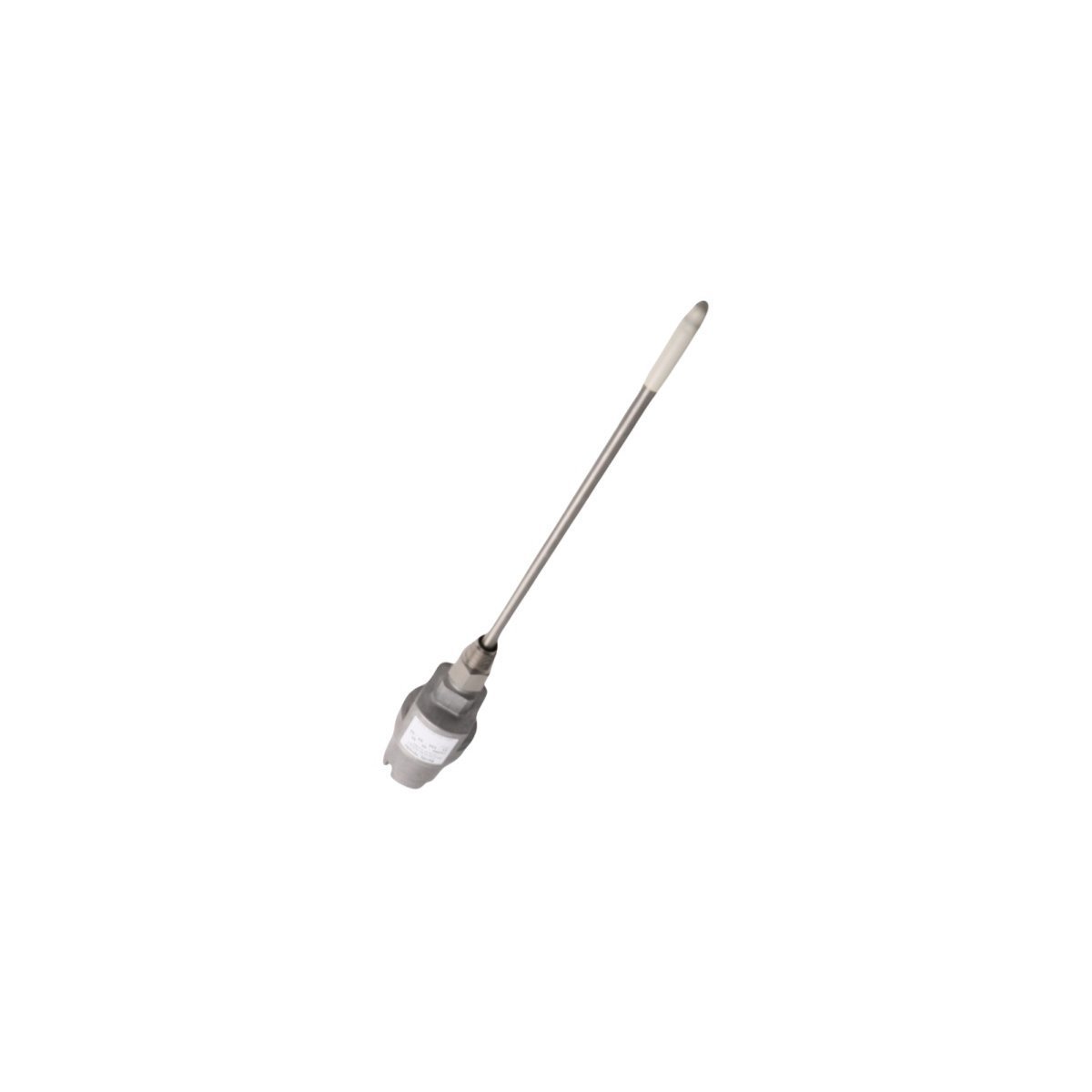

The Bently Nevada 21000-16-05-15-038-04-02 is a specialized aluminum housing assembly engineered for the secure installation and protection of proximity probes. This modular system allows technicians to perform external adjustments or probe replacements while the machinery remains operational. By providing a sealed environment, it shields sensitive vibration sensors from moisture, oil, and debris common in heavy industrial settings. This assembly is a critical component for Turbo-machinery Instrumentation (TSI), facilitating precise monitoring of radial vibration and axial position on rotating equipment.
Key Technical Characteristics
- Construction Material: High-grade Aluminum for corrosion resistance and lightweight durability.
- Sleeve Length: Specifically configured with a 3.8-inch (-038) probe sleeve to accommodate specific machine wall thicknesses.
- Modular Interface: Features an exploded-view design that simplifies cable routing and probe calibration.
- Environmental Protection: Rated for harsh industrial conditions to prevent sensor contamination.
- Lead Compatibility: Designed to house and protect probe leads between 0.5 and 1.0 meters effectively.
- Weight and Portability: The unit weighs 1.08 kg, minimizing the load on bearing housings.
- Physical Dimensions: Standard footprint of 8.5 x 8.5 x 30.5 cm for easy cabinet or enclosure integration.
Industrial Applications
Engineers typically deploy the 21000-16-05-15-038-04-02 in large-scale rotating assets where continuous condition monitoring is vital. This includes steam and gas turbines, centrifugal compressors, and large industrial motors. The housing ensures that the proximity probe maintains a consistent gap with the target shaft, delivering accurate data to the monitoring system. Its ability to withstand high-vibration environments makes it a standard choice for power plants, refineries, and chemical processing facilities.
Maintenance and Installation Advantages
The primary benefit of this assembly is the “externally adjustable” feature. This design eliminates the need for technicians to enter hazardous or cramped internal machinery areas during sensor maintenance. The internal conduit protects the cable from mechanical stress, while the aluminum body acts as an effective heat sink in high-temperature zones. This specific configuration ensures that the 3300 XL 8mm proximity probe series remains stable and correctly aligned throughout its service life.
