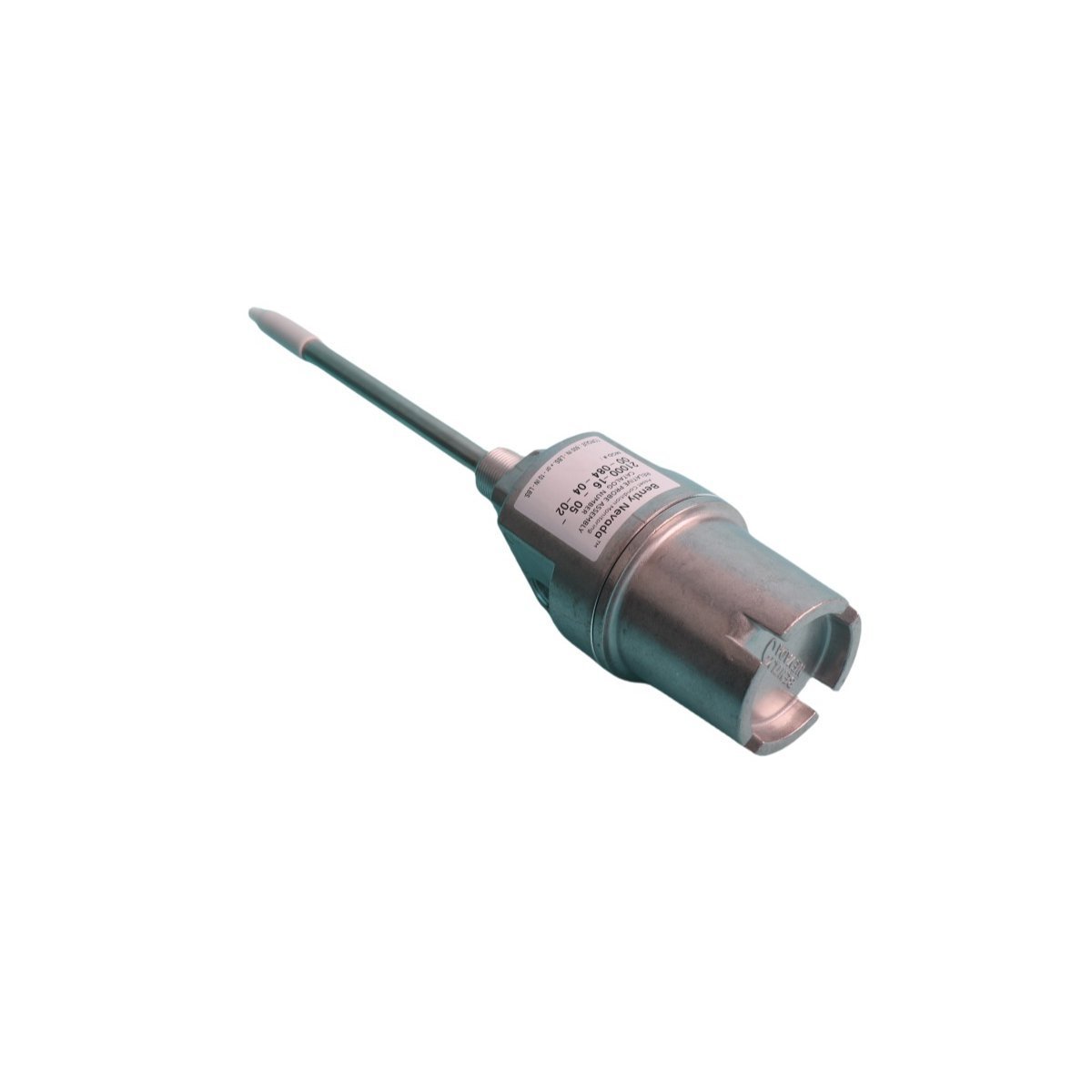

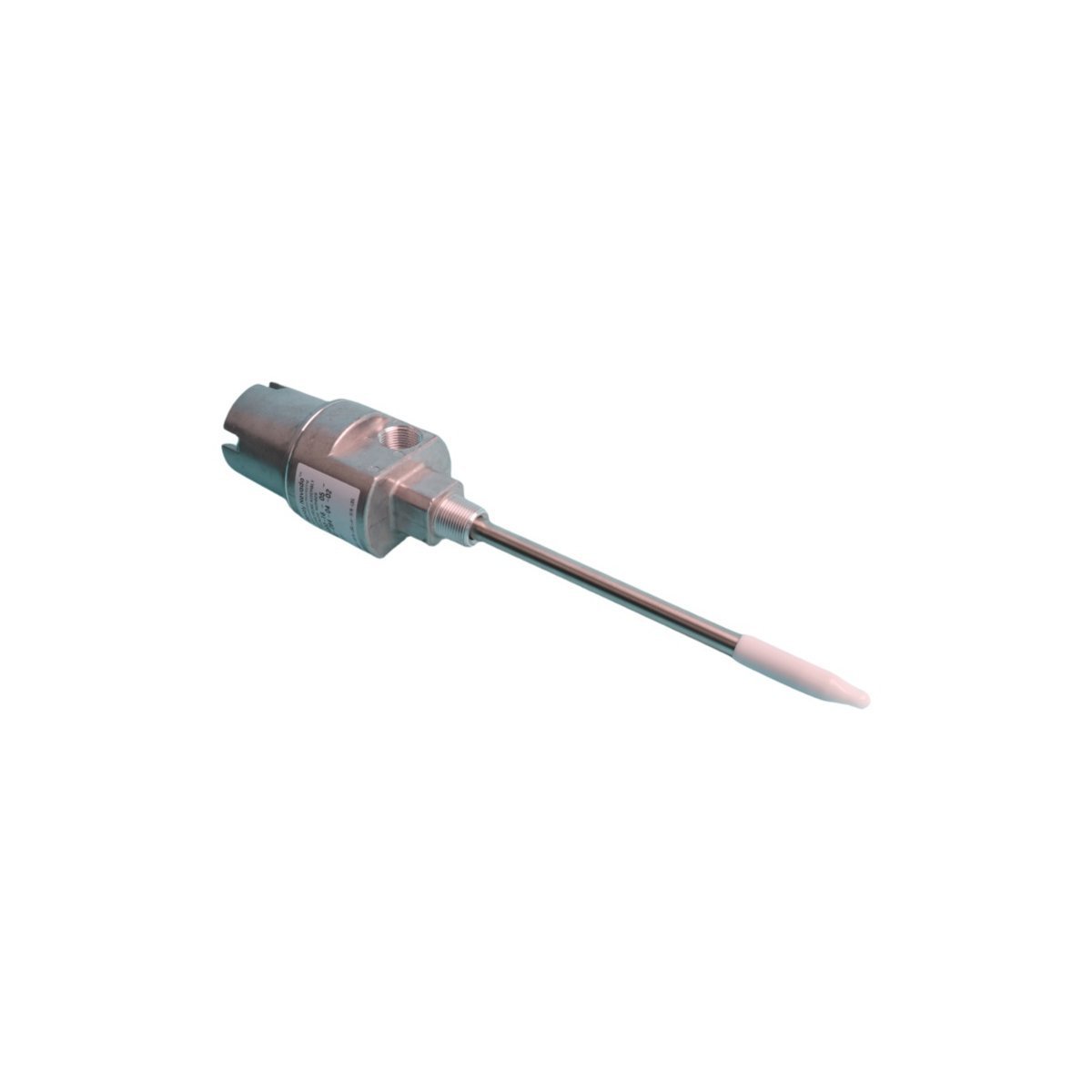

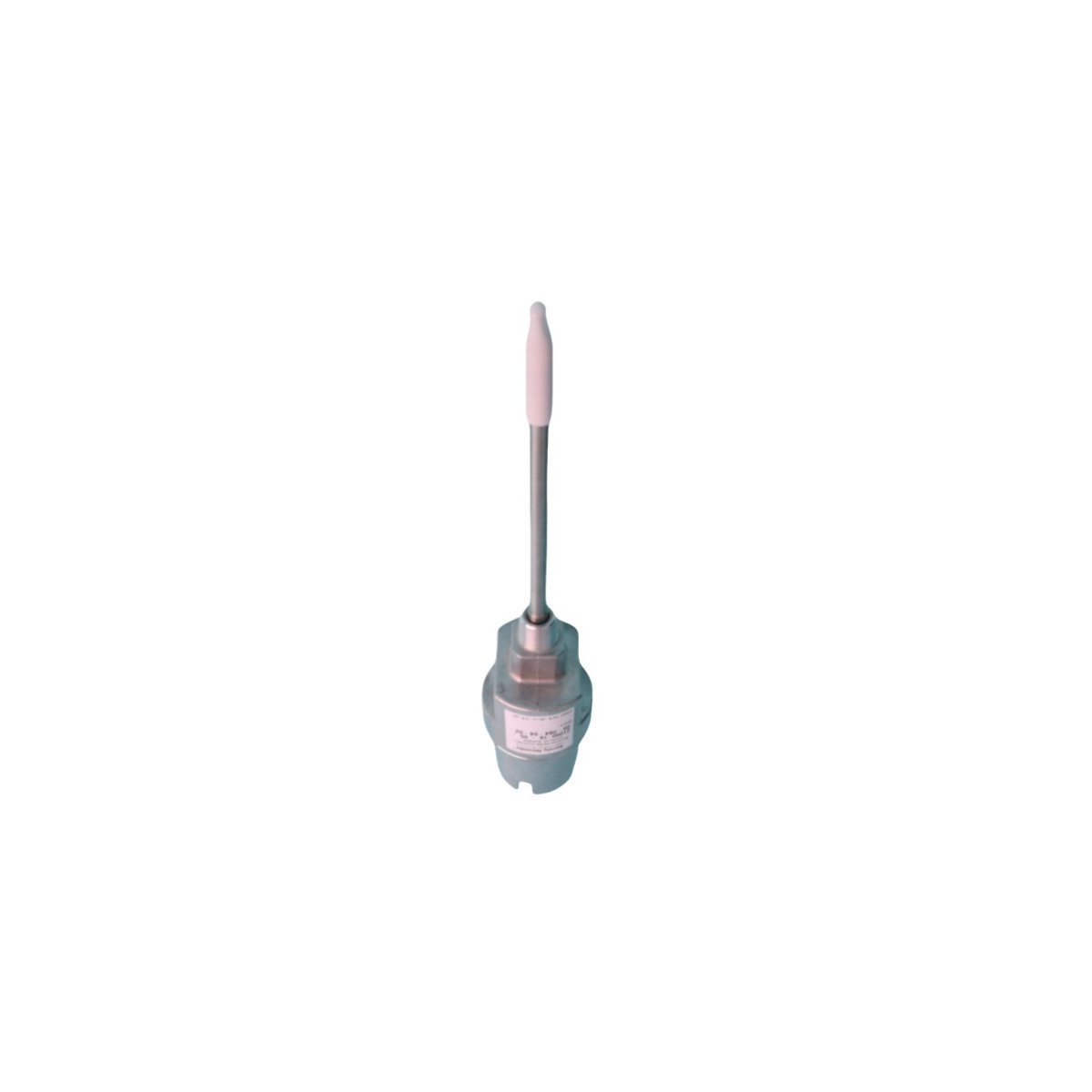

The Bently Nevada 21000-00-00-15-030-04-02 is a robust Aluminum Proximity Probe Housing Assembly designed for critical machinery protection. This assembly provides a secure, environmental enclosure for proximity probes used in Turbo-machinery Instrumentation (TSI). By utilizing this housing, engineers can adjust or replace probes externally without disassembling the machine. The 21000 series specifically excels in monitoring vibration, axial position, and speed in industrial rotating equipment. Its rugged construction ensures long-term durability in high-vibration and corrosive environments typical of power generation and oil and gas facilities.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Model Number: 21000-00-00-15-030-04-02
- Material: Aluminum (standard)
- Housing Type: Exploded view proximity probe enclosure
- Probe Lead Length Compatibility: Optimized for 0.5 to 1.0-meter leads
- Weight: 1.08 kg
- Standard Dimensions: 8.5 x 8.5 x 30.5 cm
- Hazardous Area Ratings: Designed for North American and ATEX/IECEx compliance
- Mounting Thread: Specific to the -030 configuration (3.0 inches)
- Protection Rating: IP66 / NEMA 4X equivalent
Key Features and Configuration
This specific configuration belongs to the widely utilized 21000 Aluminum series. The modular design allows for precise probe positioning relative to the target shaft. Furthermore, the assembly includes a specialized conduit for cable protection. This prevents mechanical damage and interference from external electrical noise. The -15-030-04-02 suffix determines the specific sleeve length and thread options for the installation site. Consequently, this unit offers a tailored fit for various bearing housing thicknesses.
Functional Characteristics
The housing acts as a protective barrier against moisture, oil, and debris. It significantly simplifies the calibration process of proximity sensors. Since the probe is accessible from the exterior, downtime during maintenance is greatly reduced. Additionally, the aluminum body provides excellent thermal dissipation. This feature helps maintain sensor accuracy during fluctuating machine temperatures. The assembly also supports a wide range of Bently Nevada 3300 XL 8mm proximity probes.
