Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact 600 HMI

Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact HMI

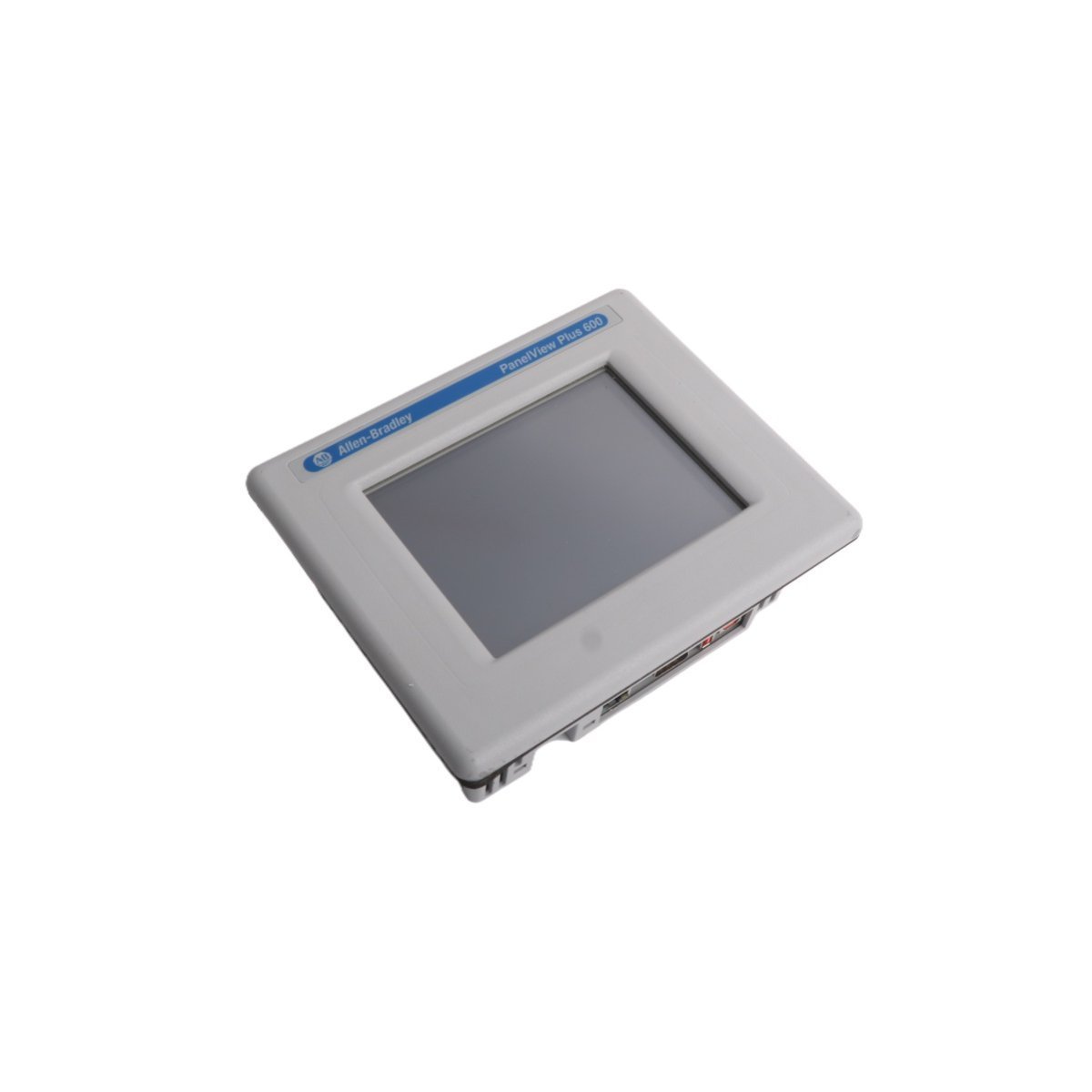

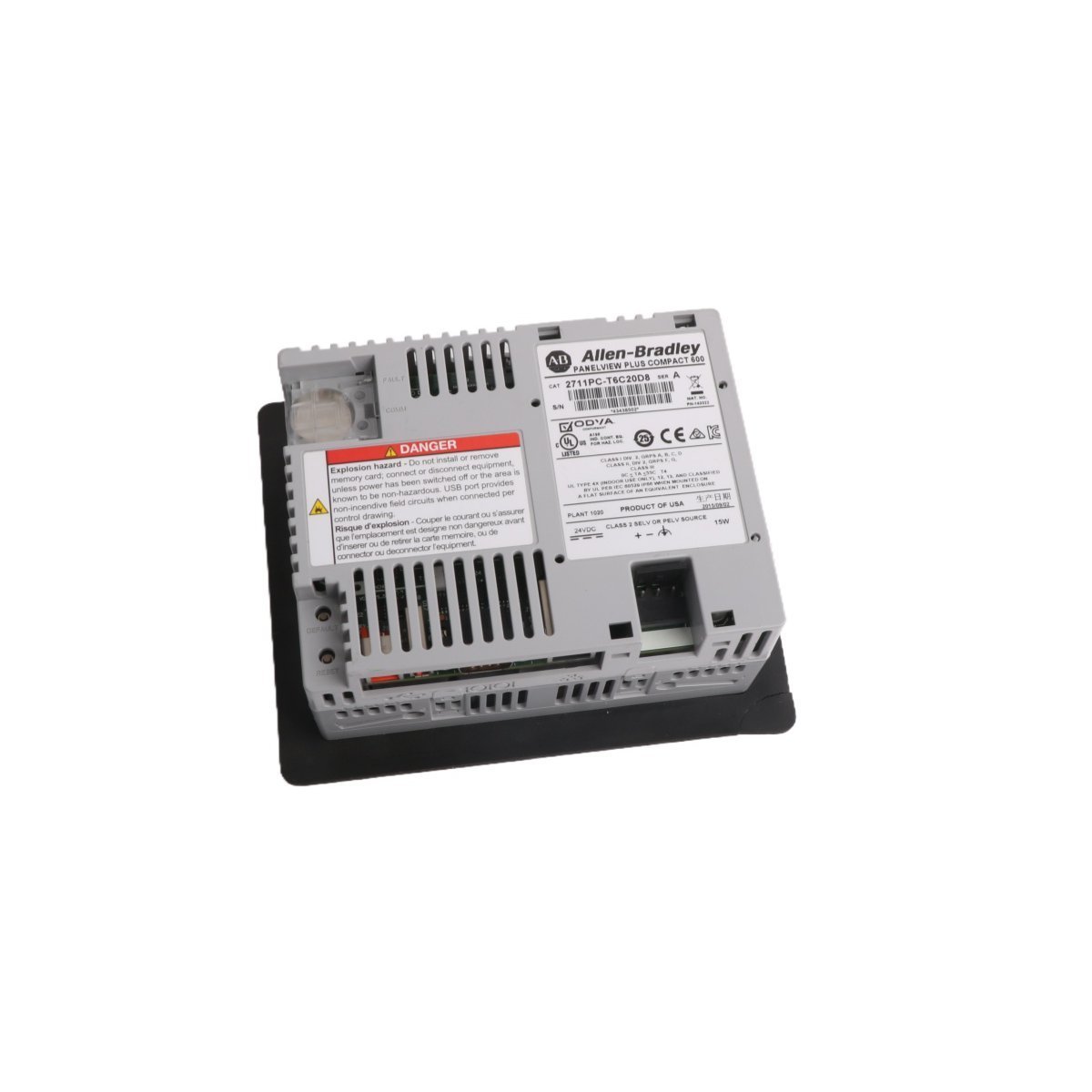

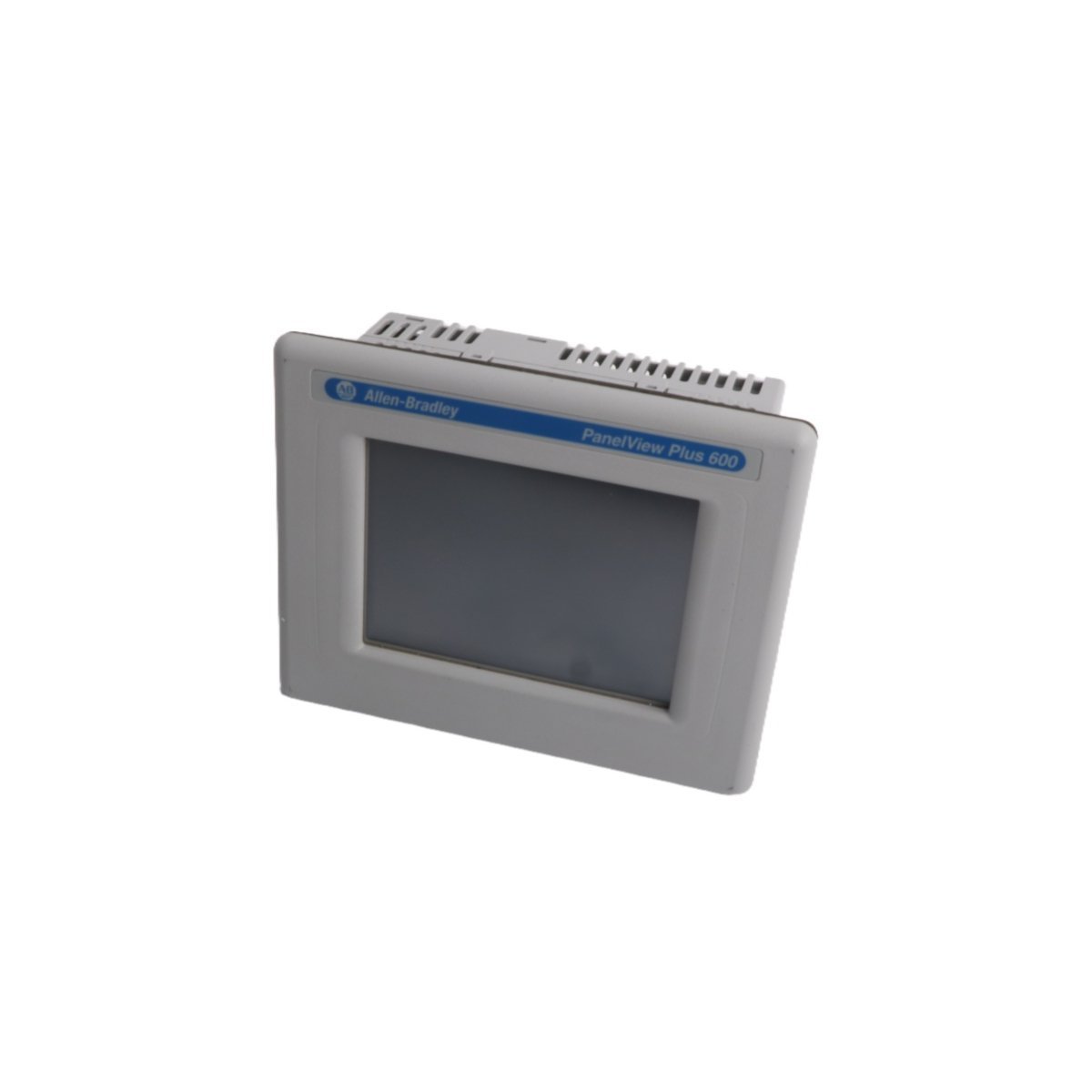

The Allen-Bradley 2711PC-T6C20D8 operates as a high-performance Human-Machine Interface (HMI) within the PanelView Plus 6 Compact 600 series. This terminal streamlines machine-level visualization by providing operators with a responsive resistive touchscreen and a vivid color display for real-time monitoring and control.

Technical Specifications

The following table summarizes the primary hardware and environmental parameters for the 2711PC-T6C20D8 terminal.

Industrial Visualization and Control Logic

The Allen-Bradley 2711PC-T6C20D8 provides a centralized platform for managing localized automation tasks. By utilizing a 5.7-inch TFT display, this unit renders complex vector graphics with high clarity, which helps operators identify process status at a glance. The terminal supports up to 25 separate display screens and manages 200 alarm messages, effectively handling the requirements of small-to-medium manufacturing cells.

Furthermore, the integration of 256MB of internal memory ensures that the HMI maintains rapid screen transitions and data logging capabilities. Because it supports 18-bit color, the terminal distinguishes between various process states with high-contrast visual cues, reducing the likelihood of operator error during critical production phases.

Connectivity and Durability Features

Communication flexibility remains a core strength of the 2711PC-T6C20D8 architecture. The unit includes built-in Ethernet and RS-232 serial ports, allowing it to interface directly with SLC 500, MicroLogix, and ControlLogix PLC systems. Additionally, the inclusion of USB ports enables the connection of external peripherals such as keyboards or mice, which simplifies on-site configuration and data entry.

In terms of environmental resilience, this HMI excels in harsh industrial conditions. The resistive touchscreen withstands up to 1 million actuations, while the NEMA and IP-rated housing protects internal electronics from dust and liquid ingress. To prevent data loss during power fluctuations, the terminal utilizes a battery-backed real-time clock, ensuring all time-stamped alarm data remains accurate for up to four years. Facility managers frequently deploy this model in packaging, material handling, and food processing applications due to its compact footprint and robust processing speed.
