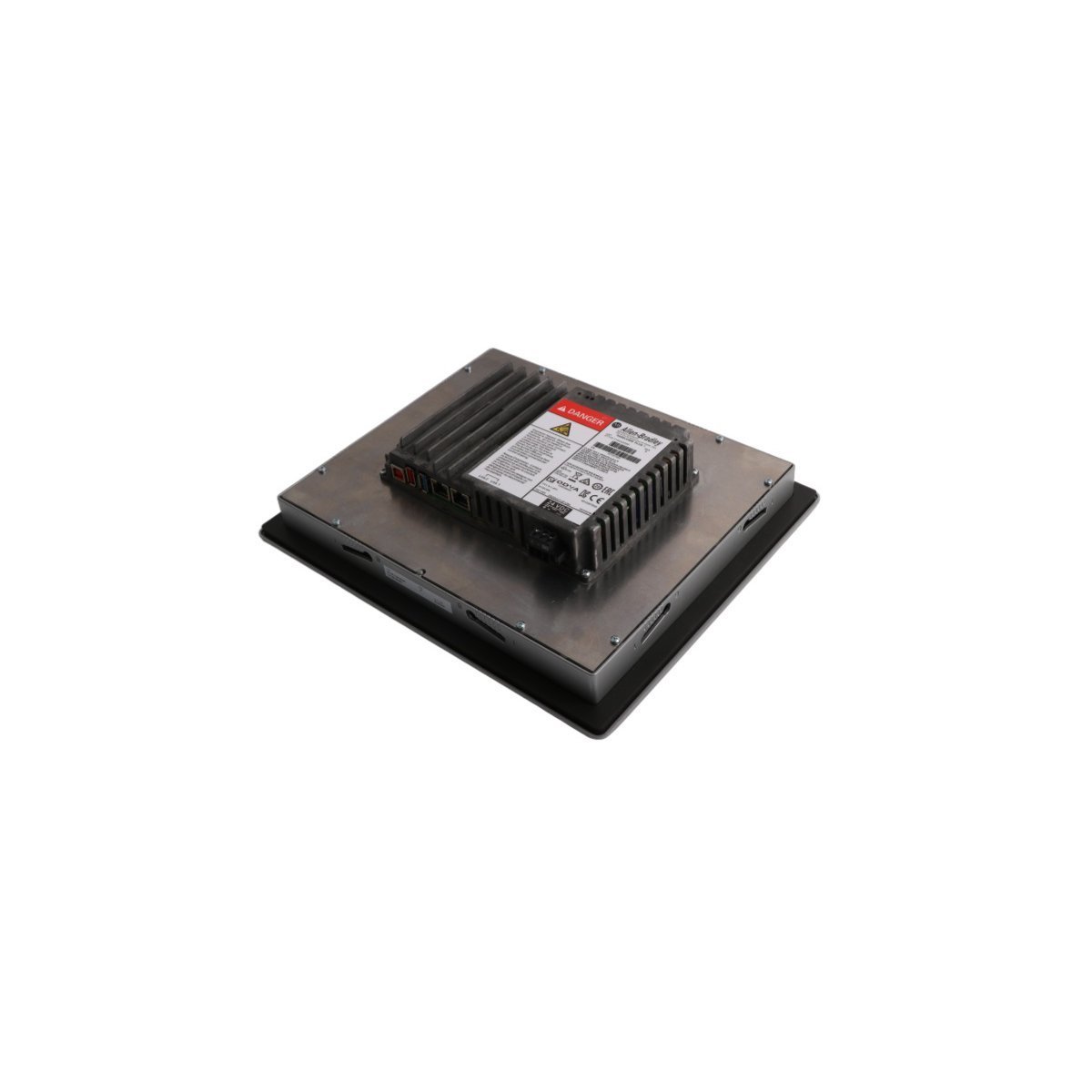

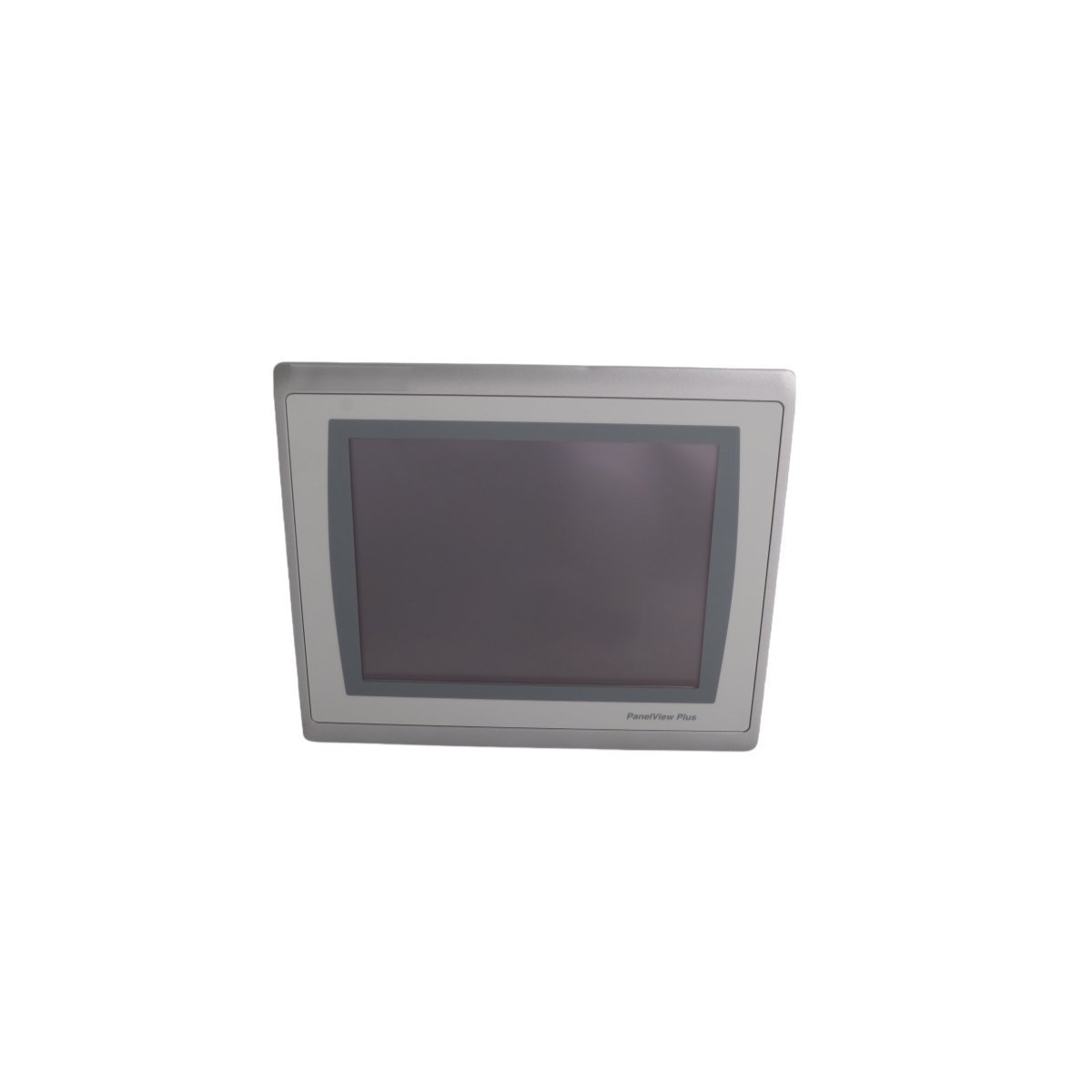

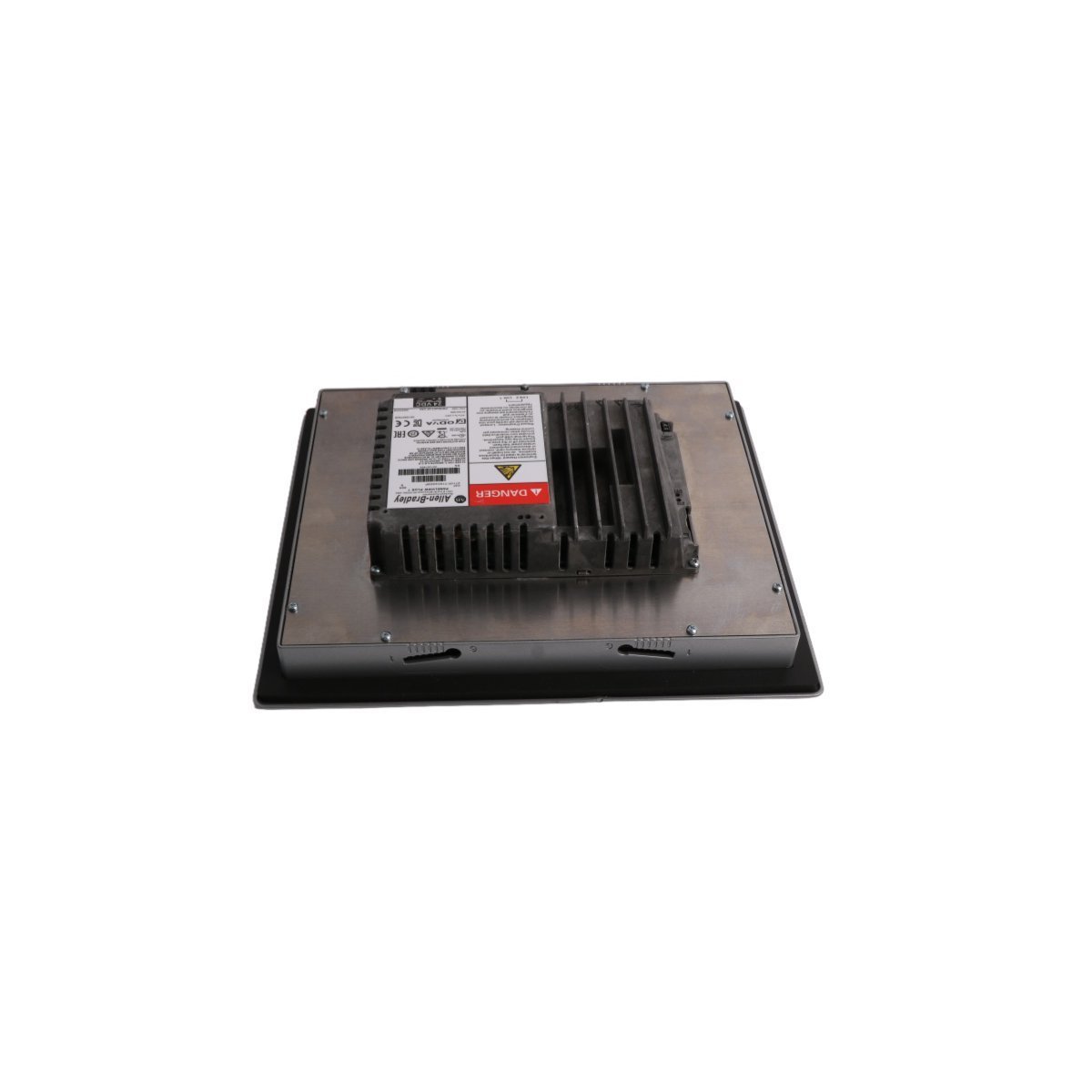

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 HMI Color Terminal

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Standard Color Terminal

The Allen-Bradley 2711P-T10C22D9P, also cataloged as the 2711P-T10C22D9P PanelView Plus 7 Standard Color Terminal, executes visualization tasks and process data interaction within Ethernet-based industrial control networks.

Hardware Specifications

Ethernet Network Deterministic Protocols

The terminal integrates dual Ethernet ports to facilitate Device Level Ring (DLR) topology. Consequently, the hardware maintains deterministic communication across control platforms. Furthermore, the unit performs high-speed data exchange with integrated controllers. This process minimizes packet latency via hardware-based ring management. Finally, the terminal supports standard industrial Ethernet protocols, which allows seamless integration into existing plant architectures without specialized gateway hardware.

Frequently Asked Questions (FAQ)

Q: Can the user replace the backlight in the field?

A: No. The LED backlight integrates into the display assembly. Therefore, the technician must replace the entire display unit if the backlight exceeds its rated service life.

Q: What restrictions apply to the use of the USB ports?

A: The USB interfaces support localized peripheral connectivity, such as keyboards or external storage devices. However, these ports do not support high-current loads; consequently, operators must avoid using them for permanent power supply to external field devices.

Q: How does the system process firmware updates?

A: Firmware resides in the internal non-volatile memory. Operators perform updates via the Ethernet connection or the designated SD card slot using the manufacturer-provided configuration software.

Field Installation Guidelines

First, ensure the panel cutout matches the specified dimensions to maintain the NEMA/IP rating of the enclosure. Next, tighten all mounting clips evenly to provide uniform pressure against the gasket. This action prevents moisture ingress in humid environments. Furthermore, the 24 VDC power supply must meet SELV/PELV safety standards. Operators should use twisted-pair shielded cabling for Ethernet connections to minimize electromagnetic interference. Finally, ground the chassis according to local electrical codes by utilizing a low-impedance path to the common plant ground bus.
