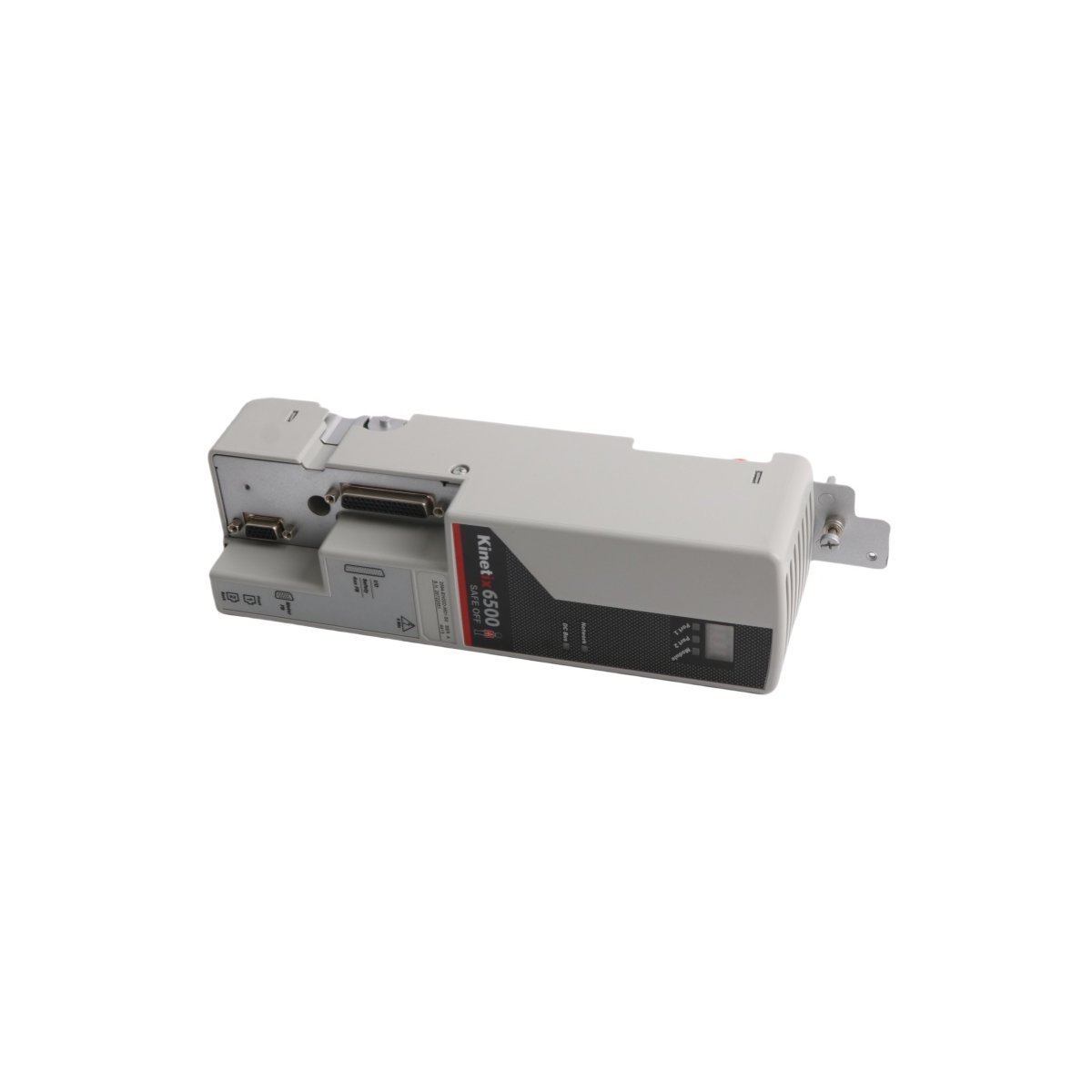

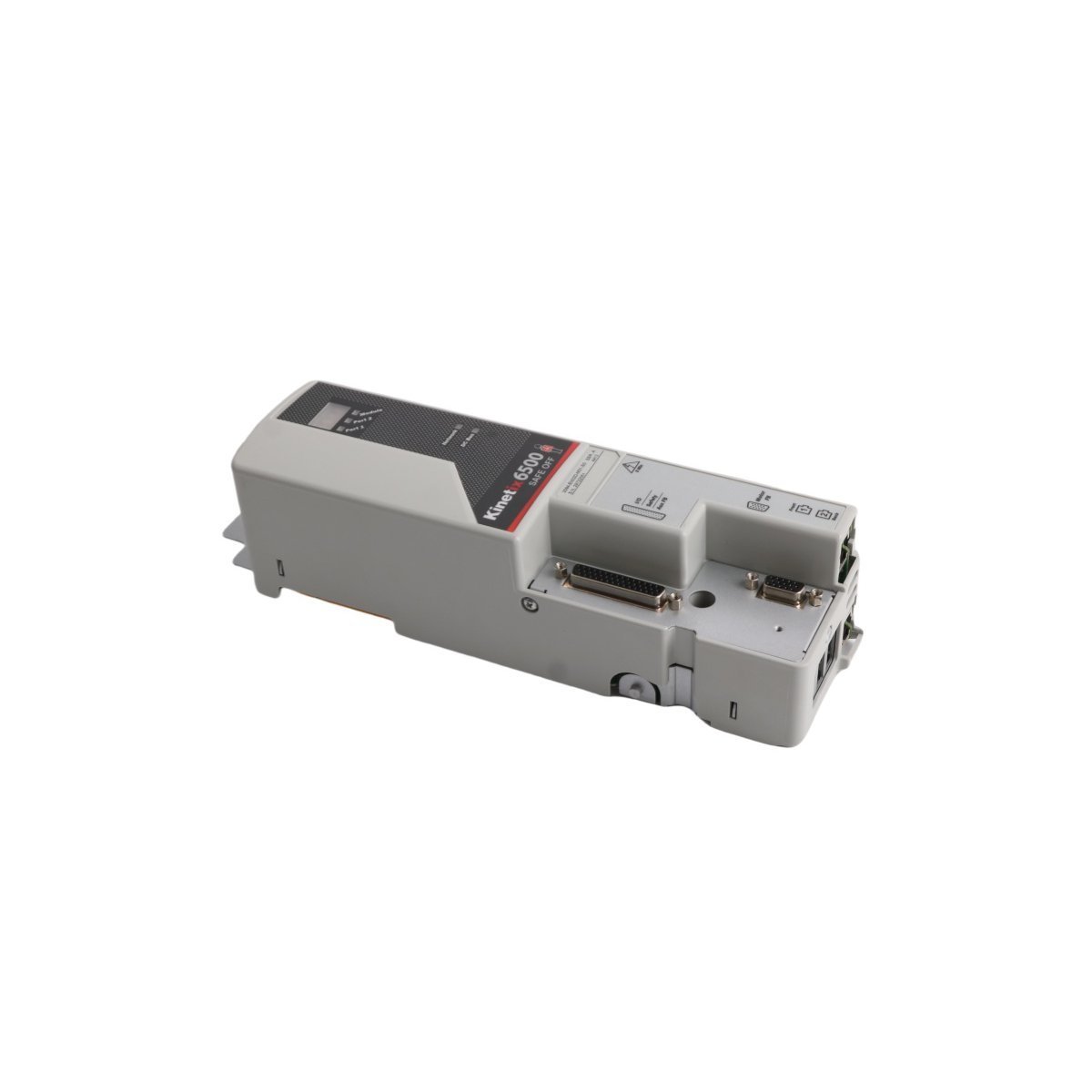

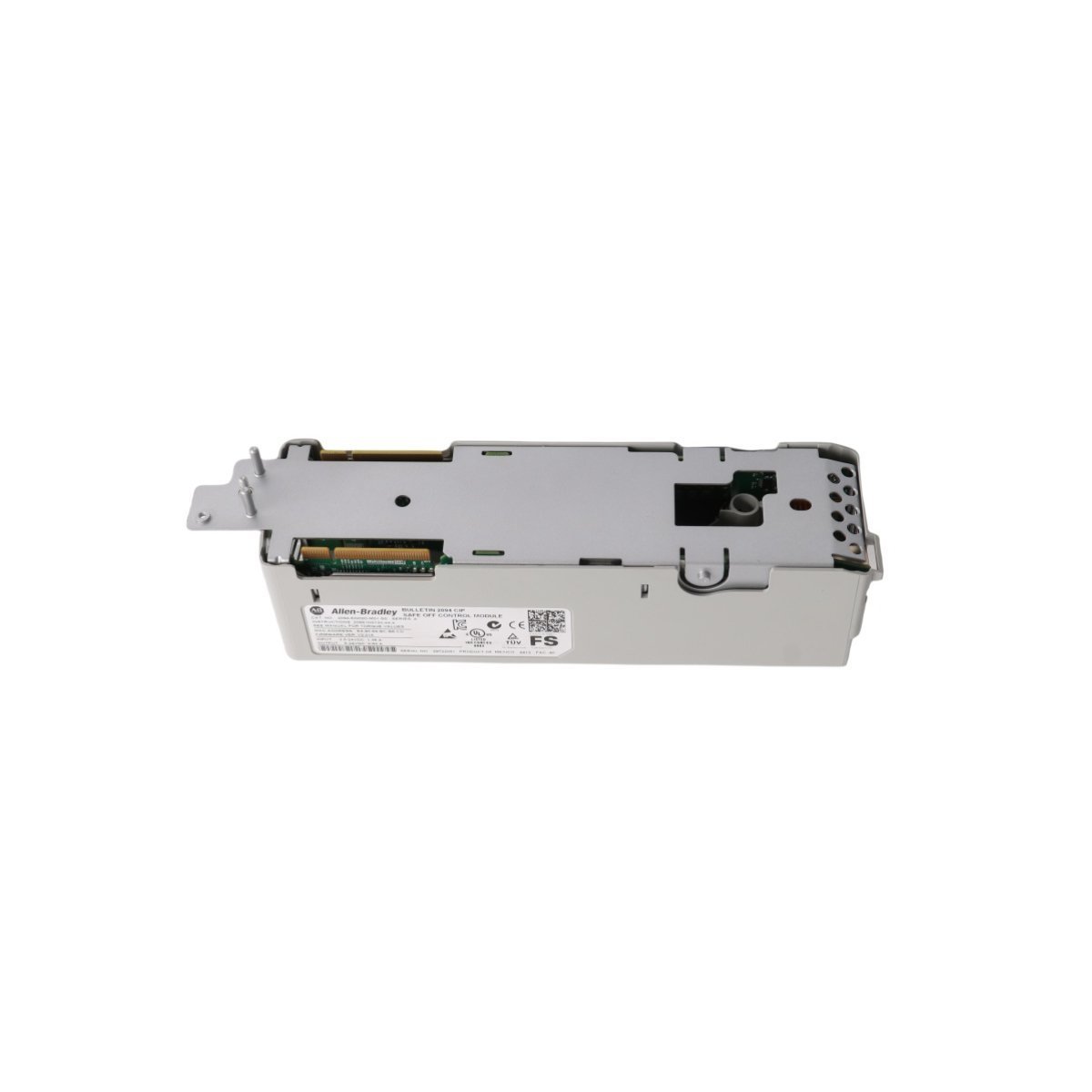

Allen-Bradley 2094-EN02D-M01-S0 EtherNet/IP Network Servo Drive Safety Control Module

Brief Product Description

The Allen-Bradley 2094-EN02D-M01-S0 is a dual-port EtherNet/IP motion control module for Kinetix 6500 servo drives. It provides advanced Safe Torque-Off and Safe Speed Monitor functionality on a single platform.

Product Overview

The 2094-EN02D-M01-S0 control module drives high-performance multi-axis servo systems within the Allen-Bradley Kinetix 6500 product family. This unit handles advanced safety operations alongside standard motion logic by embedding both Safe Torque-Off and Safe Speed Monitor technologies. Consequently, engineers can execute machine maintenance safely without completely disconnecting power from the drive chassis.

The device connects directly to automated machinery using integrated dual EtherNet/IP ports. It utilizes Common Industrial Protocol (CIP) Motion and CIP Sync to synchronize multi-axis drive behavior perfectly across the plant network. This setup eliminates heavy dedicated safety wiring because it transmits safety instructions and real-time positioning feedback through a single network cable. The module slides securely onto Kinetix power rails where it pairs with Integrated Axis Modules or standard Axis Modules.

Key Technical Characteristics

Safety Ratings and Electrical Specifications

• Integrated Safety Functions: Safe Torque-Off (STO) and Safe Speed Monitoring
• Safety Compliance Levels: SIL CL3, Performance Level e (PL e), Category 4
• Input Operating Voltage Range: 2.5 to 24 Volts DC
• Module Output Rating: 5 to 24 Volts DC at 0.60 Amperes max
• Control Network Protocol: EtherNet/IP utilizing CIP Safety and CIP Motion
• Hardware Architecture: Dual-port Ethernet supporting Device Level Ring (DLR) topologies

Physical Attributes and Connectivity

• Net Device Weight: 0.60 kilograms
• Physical Dimensions: 7.0 x 27.3 x 7.0 centimeters
• Feedback Interfaces: Dedicated IOD and MF connectors for auxiliary I/O and encoders
• Diagnostics Display: Multiple LED status indicators for network status, module health, and DC bus activity
• Installation Method: Direct plug-in mounting onto a Kinetix 2094 power rail assembly

Environmental and Stress Tolerances

• Ambient Operational Temperature: 0 to 50 degrees Celsius
• Non-Operational Storage Temperature: -40 to 70 degrees Celsius
• Permissible Relative Humidity: 5 to 95 percent non-condensing
• Maximum Vibration Resistance: Operational up to 500 Hertz
• Country of Origin: United States

Industrial Applications

Automated production plants specify the 2094-EN02D-M01-S0 control module to protect complex, fast-moving robotic and positioning applications. It excels in high-speed packaging machinery, automotive assembly lines, and printing presses where personnel must interact closely with operational zones. By replacing traditional hardware-based safety components with network-based safety controls, this module streamlines hardware costs while maximizing machine uptime.
