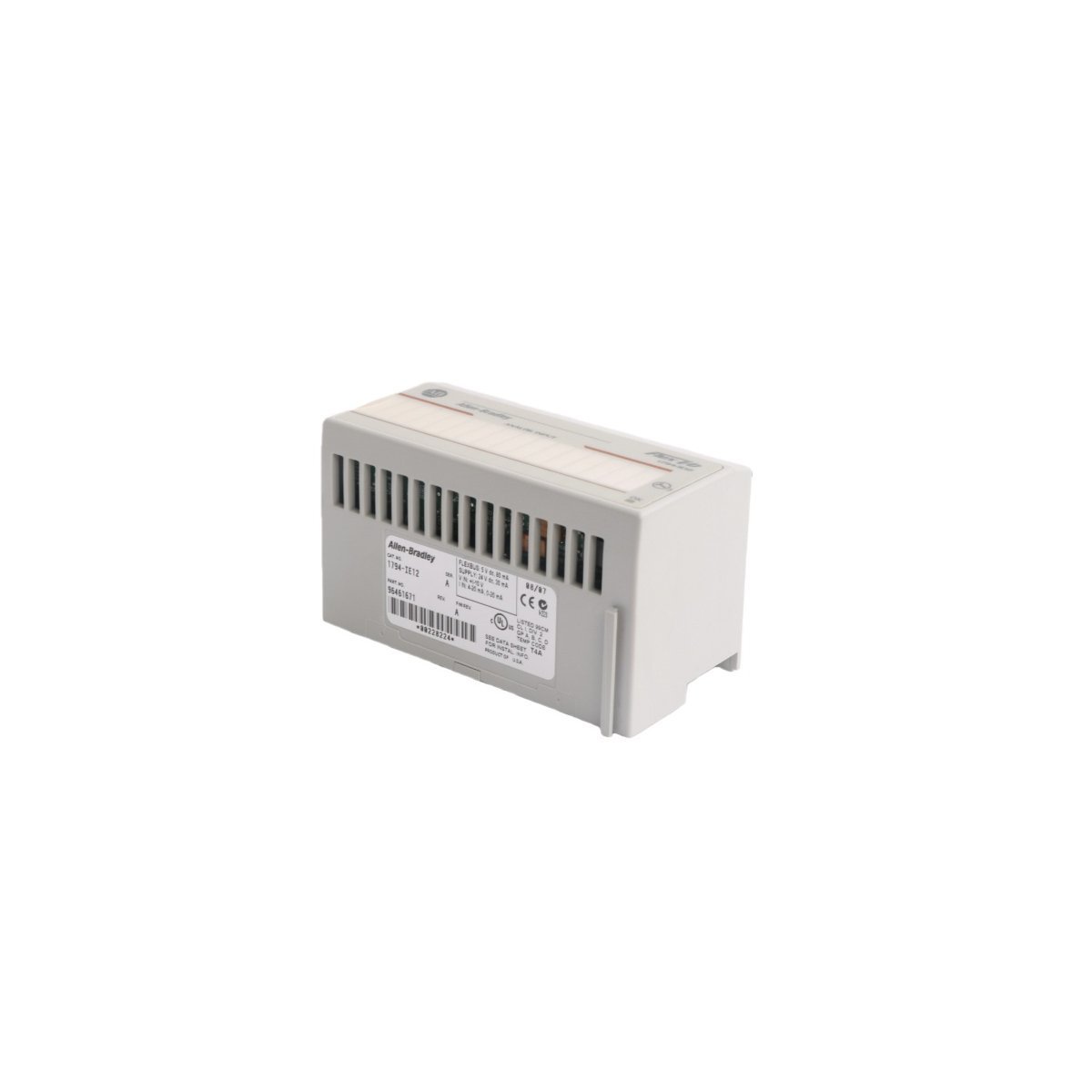

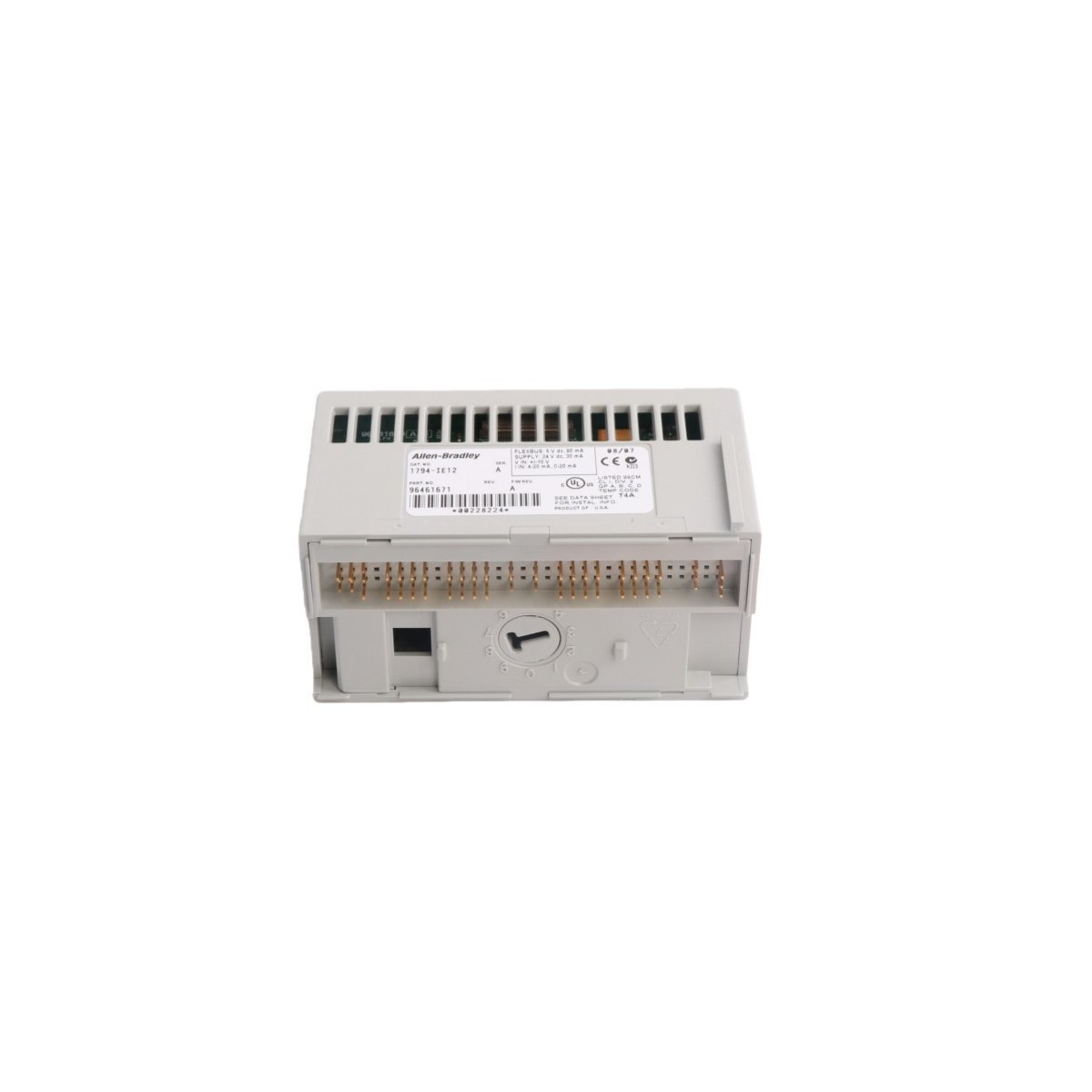

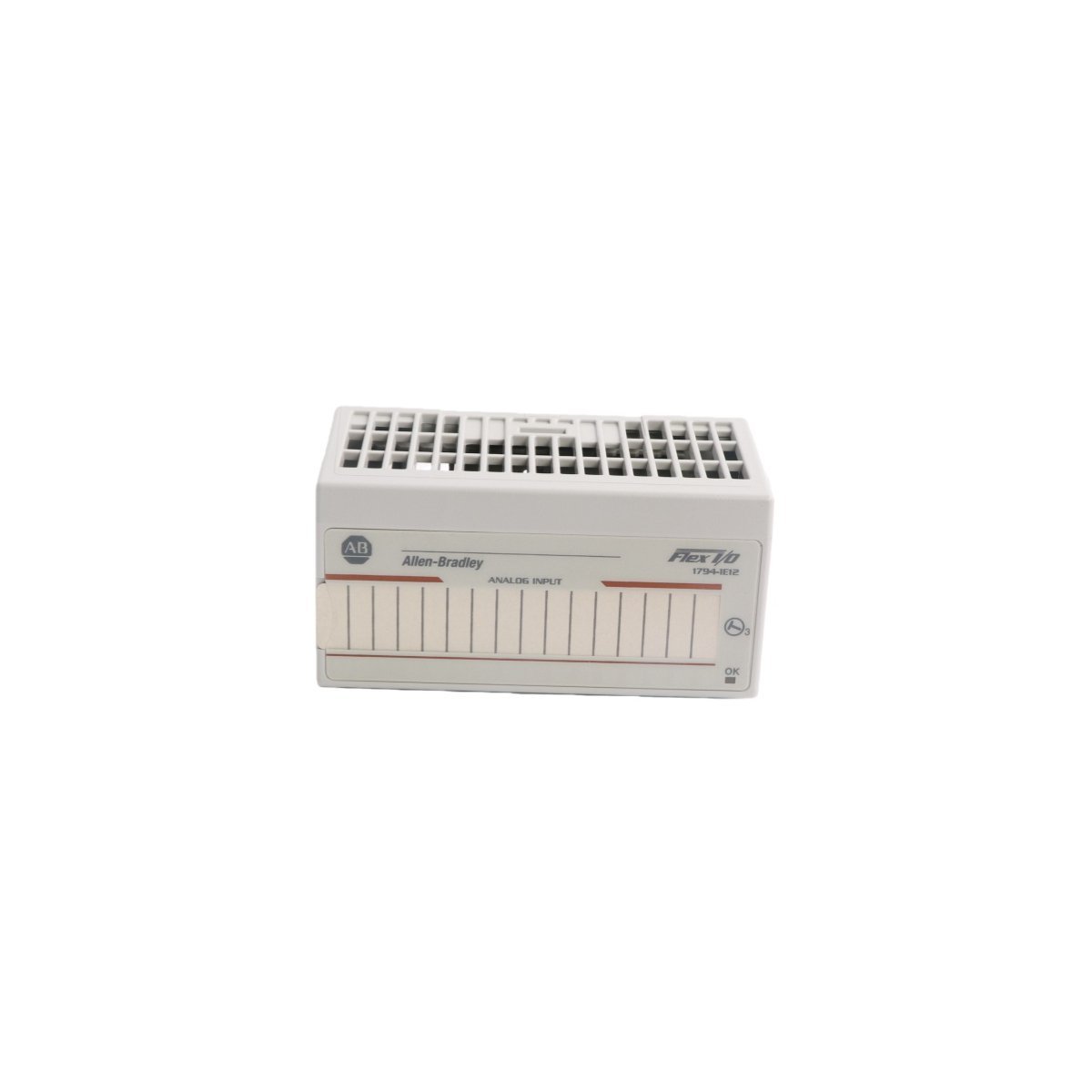

The Allen-Bradley 1794-IE12 serves as a high-density analog interface for the modular FLEX I/O system. This module features twelve independent channels within a single compact housing. It accurately captures data from various field transmitters and process sensors. Furthermore, the unit supports multiple input ranges including ±10V DC and 4–20mA current loops. This versatility allows engineers to standardize on one module for diverse monitoring needs.
Consequently, the 1794-IE12 optimizes cabinet space in distributed control architectures. It utilizes a successive approximation conversion method to ensure high data integrity. The module integrates seamlessly into any Rockwell Automation environment via standard communication adapters. Therefore, it remains a preferred choice for modernizing legacy industrial systems.
Primary Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1794-IE12
- Product Line: FLEX I/O
- Input Channels: 12 Single-Ended Analog Inputs
- Signal Ranges: 0–20mA, 4–20mA, ±10V DC
- Resolution: 16-bit (320 μV/count or 0.641 μA/count)
- Measurement Accuracy: 0.1% Full Scale at 25°C
- External Power: 24V DC (10.5–31.2V DC range)
- Conversion Rate: 8.0 ms for all 12 channels
- Physical Size: 3.5 x 13.0 x 14.5 cm
- Operating Temperature: -20°C to +60°C
Advanced Signal Processing and Performance
The 1794-IE12 utilizes advanced filtering and conversion technology for precise measurement. It offers a standard 16-bit resolution to detect the smallest process changes. Additionally, the optional Quick Step mode reduces overall response times significantly. This feature proves vital for high-speed machine monitoring and critical safety loops.
Moreover, the module includes robust protection against continuous input overloads up to 30V. It maintains steady operation during extreme mechanical stress. The unit withstands vibrations of 5g and operational shocks up to 30g. As a result, the 1794-IE12 performs reliably in heavy industrial zones.
