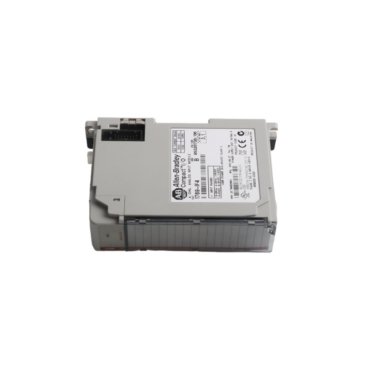

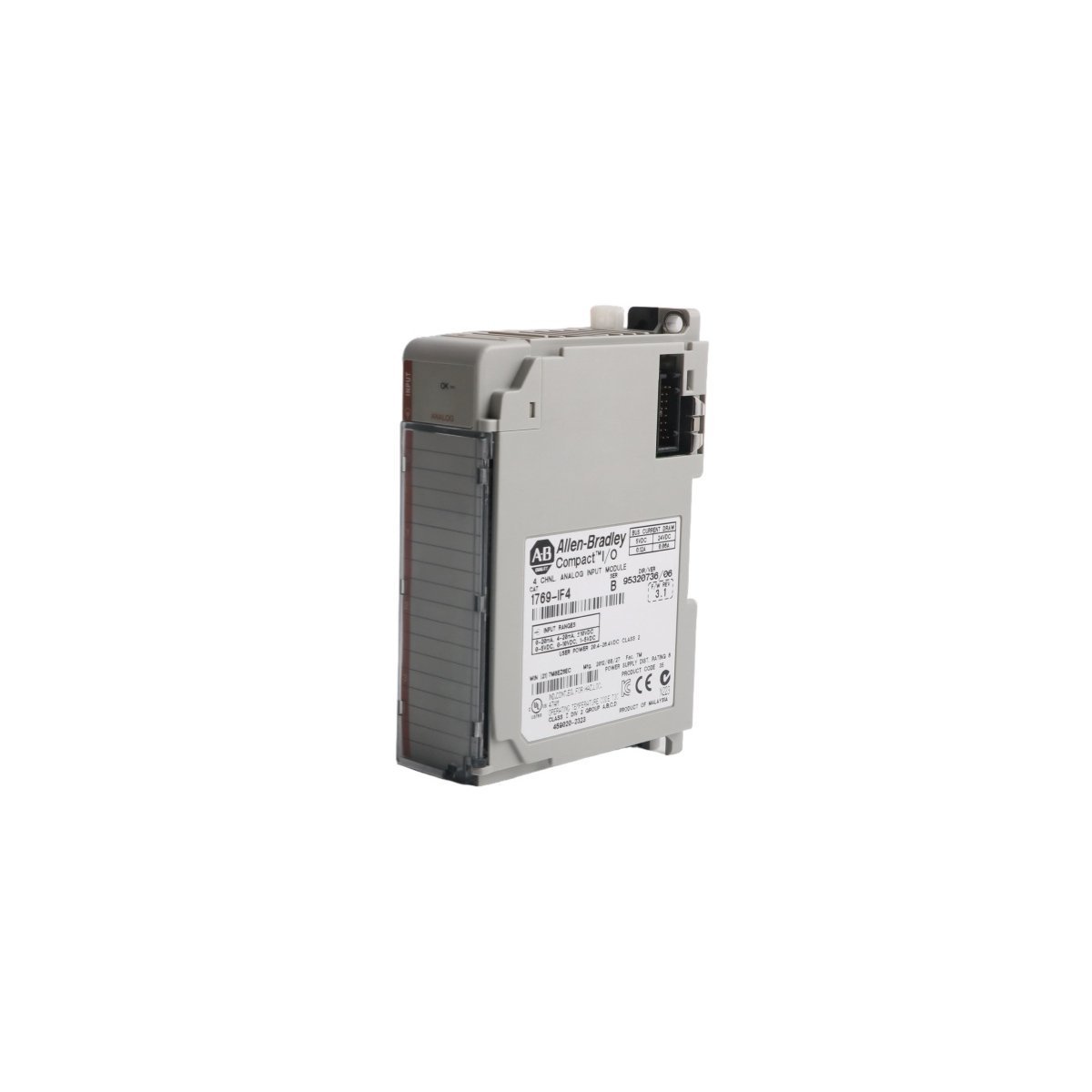

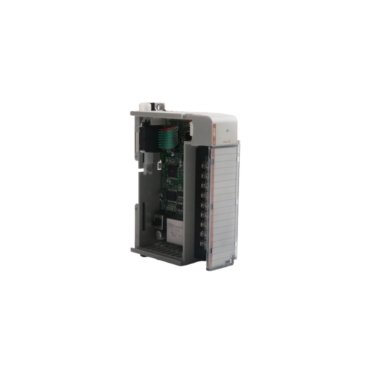

The Allen-Bradley 1769-IF4 serves as a versatile analog input expansion for CompactLogix and MicroLogix 1500 systems. This module features four differential or single-ended channels for precise data collection. It converts analog field signals into digital data with 14-bit resolution. Consequently, engineers can monitor critical process variables like pressure, flow, and temperature with high accuracy. The unit provides seamless integration into standard 1769 Compact I/O architectures.
Versatile Input Ranges and Configuration
This hardware supports a broad spectrum of signal types for various industrial applications. Users can configure each channel for current ranges including 0-20 mA and 4-20 mA. Additionally, the module accepts voltage inputs such as 0-10V DC, 1-5V DC, and ±10V DC. This flexibility allows the 1769-IF4 to interface with diverse sensors and transmitters. Advanced onboard logic also provides open-circuit detection and configurable process alarms for system safety.
Technical Performance and Environmental Specifications
- Input Resolution: 14 bits (unipolar or bipolar)
- Full Scale Current Ranges: 0 to 20 mA, 4 to 20 mA
- Full Scale Voltage Ranges: ±10V, 0 to 10V, 0 to 5V, 1 to 5V
- Common Mode Rejection: >60 dB at 50/60 Hz
- Power Supply: External 24V DC required for transmitters
- Operational Temperature: 0°C to 60°C (32°F to 140°F)
- Shock and Vibration: 30g operating shock and 5g vibration
- Wiring Size: 22 to 14 AWG solid or 22 to 16 AWG stranded copper
Industrial Reliability and Installation
The 1769-IF4 module utilizes a compact design to minimize panel space requirements. It supports both DIN rail and panel mounting for flexible enclosure layouts. Moreover, the module features high noise immunity to ensure signal integrity in electrically noisy environments. Front-facing LED indicators provide immediate status updates for module health and channel activity. This reliable construction ensures long-term performance in demanding factory floor conditions.
