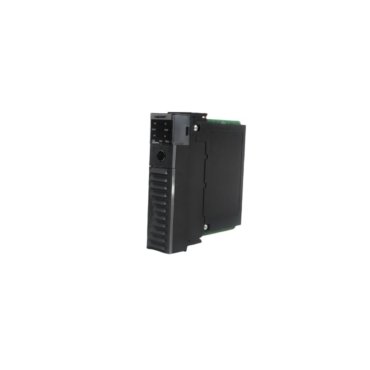

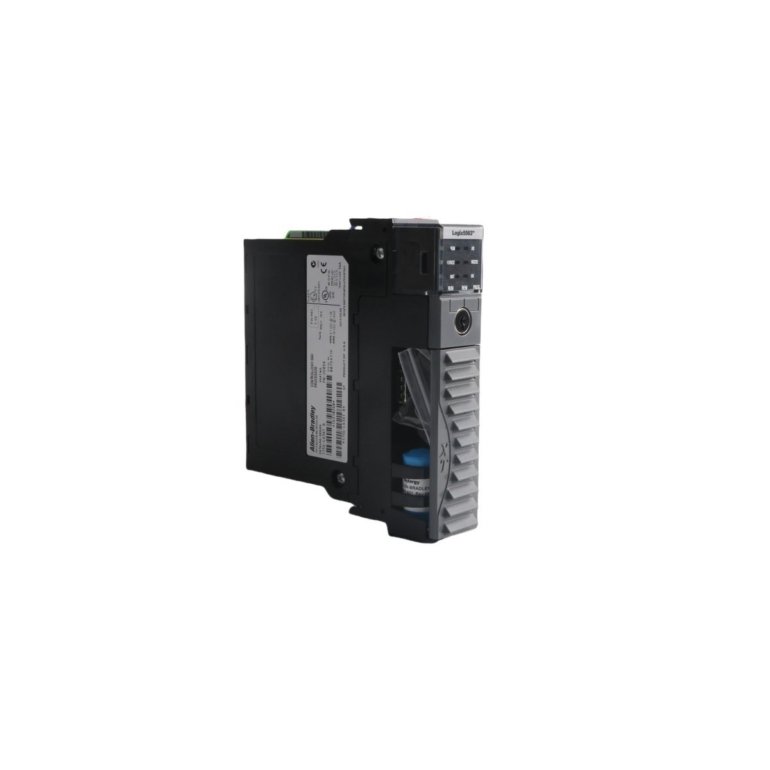

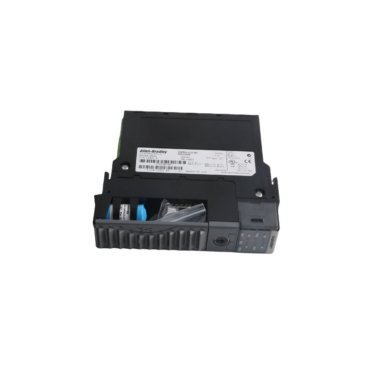

Allen-Bradley 1756-L63XT ControlLogix-XT Logix5563 Processor

The Allen-Bradley 1756-L63XT serves as a high-performance processor for extreme industrial settings. This “Extended Temperature” (XT) model handles severe thermal fluctuations without compromising system stability. It operates reliably in temperatures ranging from -25°C to 70°C. Furthermore, the specialized coating protects internal circuitry from corrosive atmospheric elements. This makes the controller ideal for oil, gas, and outdoor utility applications.

Memory and Data Capacity

This Logix5563 unit features 8 MB of user memory for complex program execution. Additionally, it provides 478 KB of dedicated I/O memory for rapid data handling. Users can expand non-volatile storage using industrial-grade CompactFlash cards. These cards provide extra security for firmware and project data during power loss. The processor manages up to 128,000 digital I/O points effectively.

Technical Specifications

The table below highlights the primary electrical and environmental ratings for the 1756-L63XT.

Networking and System Scalability

The 1756-L63XT supports broad connectivity through standard ControlLogix communication bridges. It integrates seamlessly with EtherNet/IP, ControlNet, and DeviceNet industrial networks. The processor also manages 32 concurrent tasks for multitasking control architectures. Each task can support multiple programs for granular process organization. High-speed backplane communication ensures minimal latency between the processor and I/O modules.

Installation and Compatibility

This module installs into any standard or XT ControlLogix chassis. However, using 1756-A7LXT or 1756-A5XT chassis maximizes environmental protection. The unit requires 5.1V DC power from the chassis backplane for operation. It occupies a single slot, allowing for redundant controller configurations. Proper grounding and ventilation maintain the long-term integrity of the hardware.
