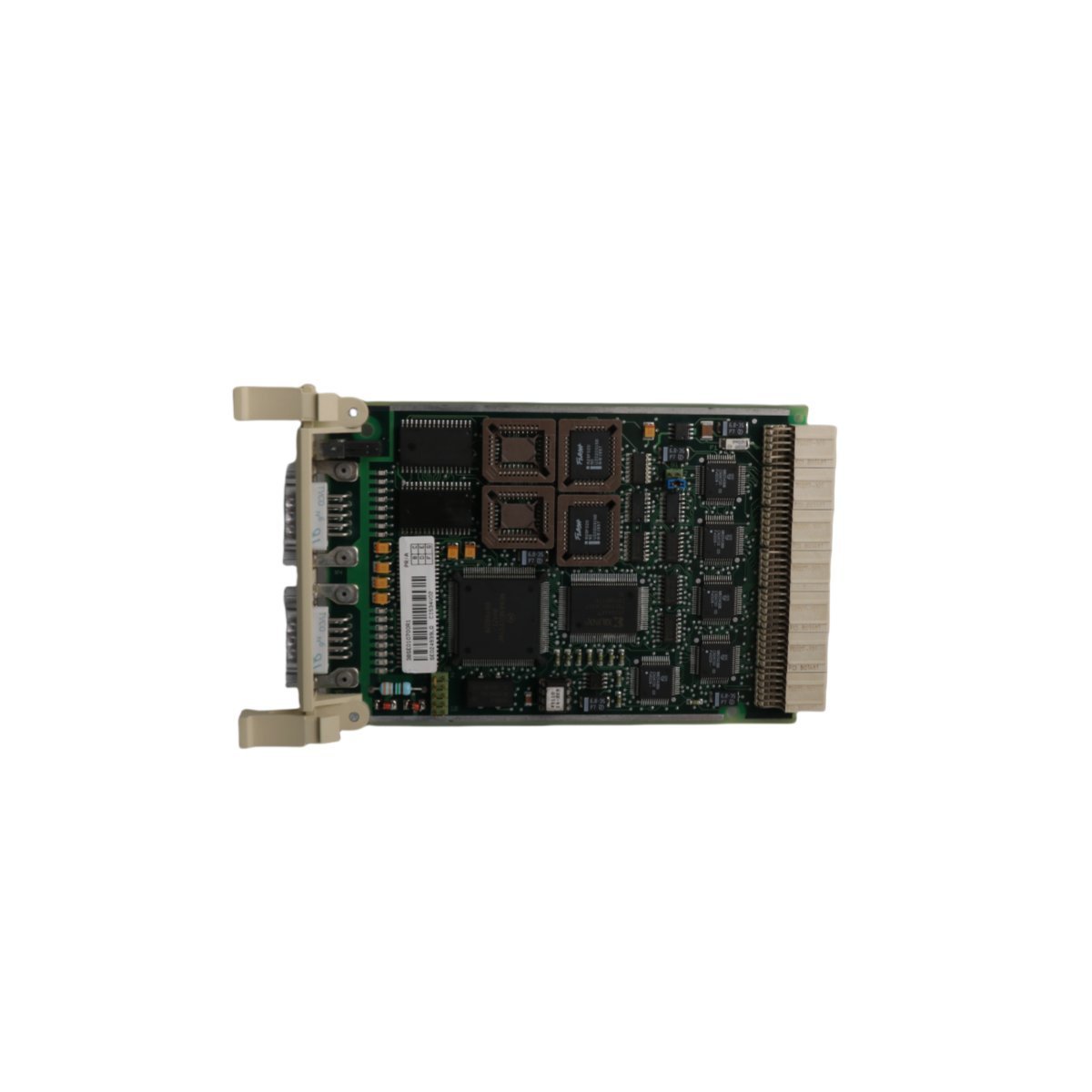

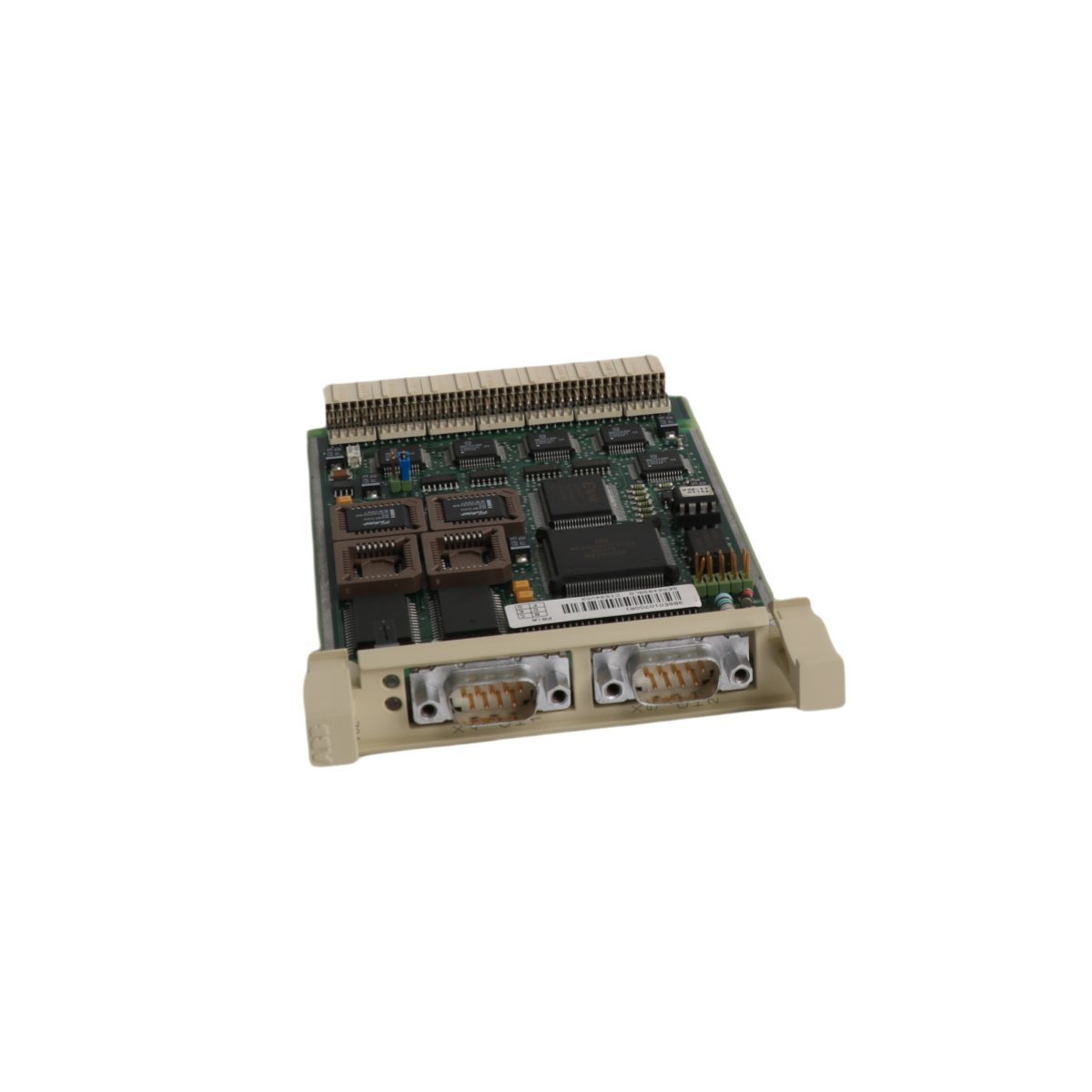

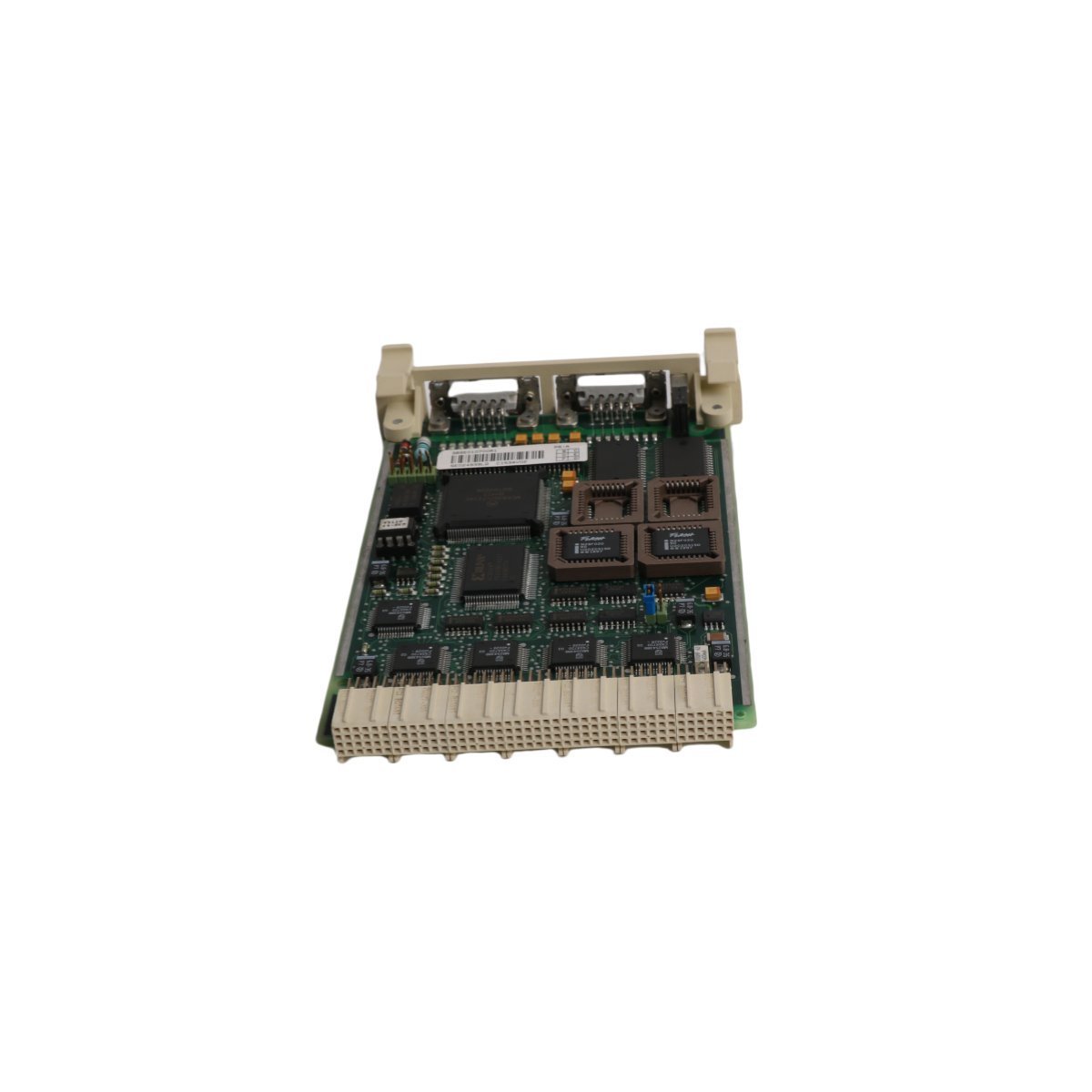

ABB MODBUS Communication Interface CI534V02 3BSE010700R1 Submodule

Brief Product Description

The ABB CI534V02 3BSE010700R1 is an industrial MODBUS communication submodule designed for AC500 series control systems. This interface card establishes secure, high-speed serial links to optimize peripheral data exchange.

Product Description

The CI534V02 3BSE010700R1 submodule acts as a dedicated MODBUS communication gateway within ABB distributed control architectures. By managing critical data protocols, the device ensures precise transmission between central processors and field instrumentation. Engineers select this module to bridge network gaps and maintain consistent data throughput in distributed topologies.

Industrial facilities utilize this hardware to execute rapid monitoring sequences across automated networks. Consequently, the control architecture achieves superior operational synchronicity and minimal network lag. The integrated diagnostic tools monitor the communication lines continuously, which helps field technicians isolate transmission faults immediately.

Key Technical Characteristics

• Protocol Integration: Provides native support for standard MODBUS communication protocols to ensure multi-vendor device interoperability.
• System Alignment: Integrates directly with ABB AC500 controllers and diverse DCS configurations.
• Data Reliability: Hardware-level signal processing maintains stable link conditions during intense electromagnetic interference.
• Compact Footprint: Low-profile module dimensions allow efficient slot utilization inside congested control cabinets.
• Diagnostic Tools: Smart status tracking delivers real-time health updates directly to the master controller.

Technical Specifications
