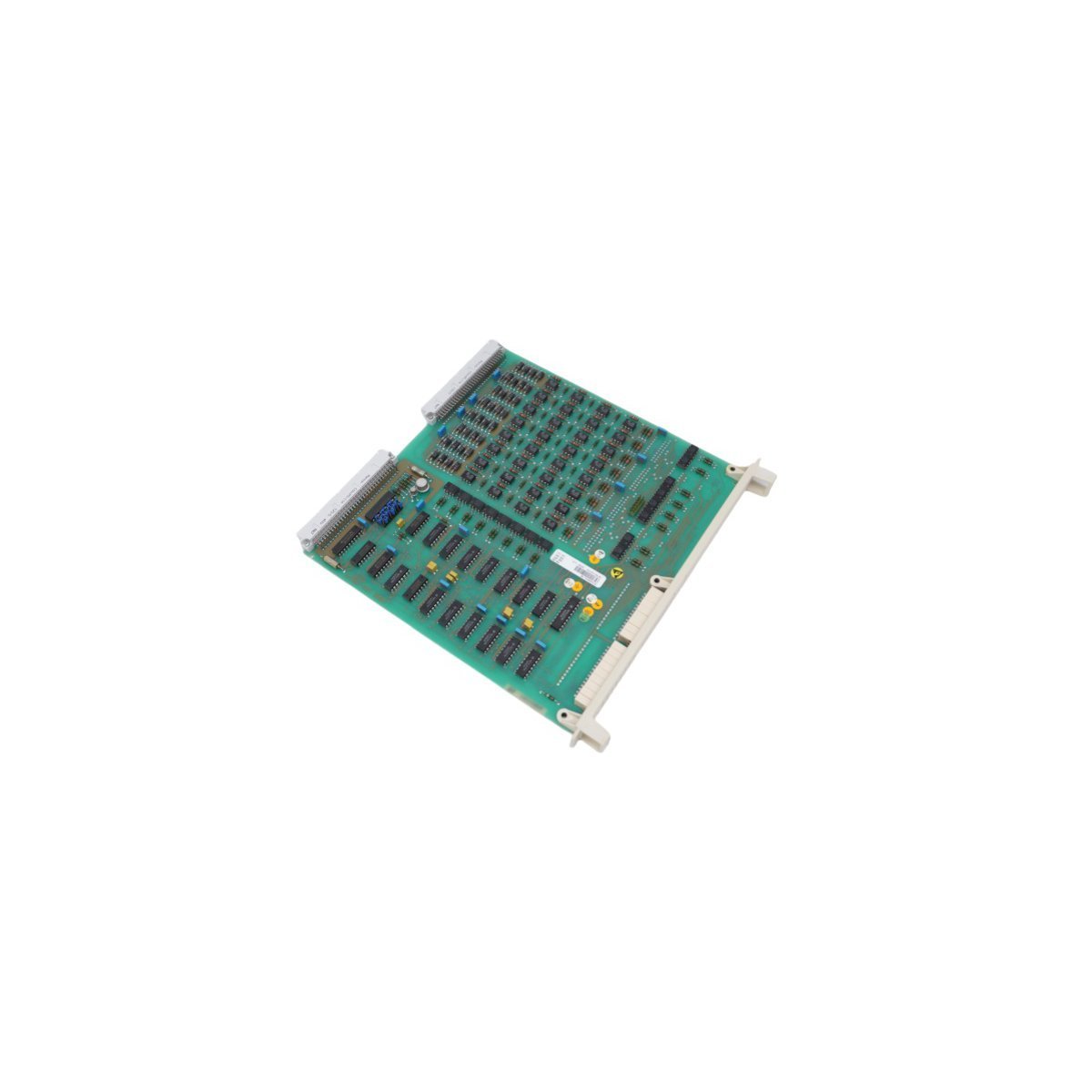

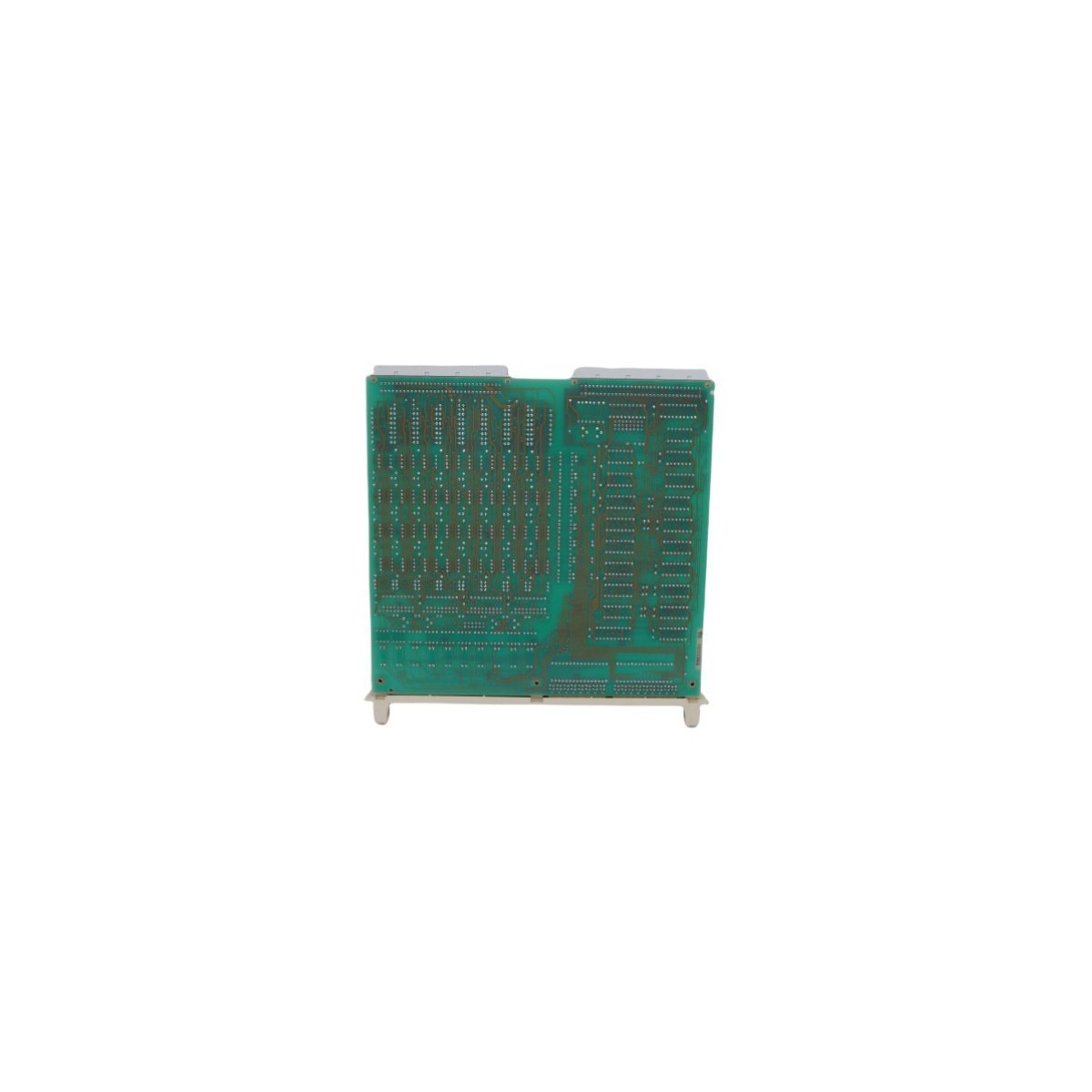

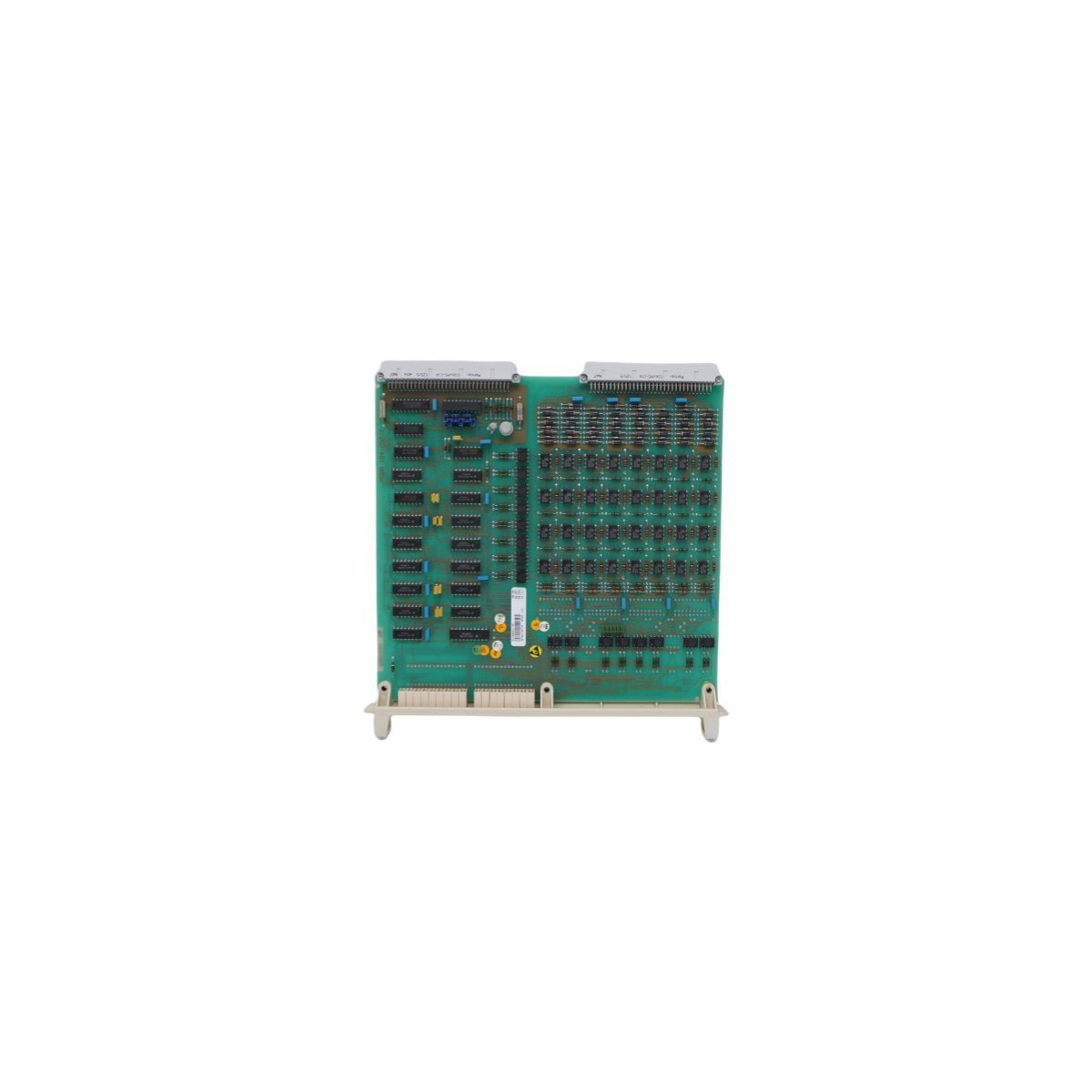

ABB DSDO115 57160001-NF Digital Output Unit 32 Ch

The ABB DSDO115 serves as a high-density control interface for the S100 I/O system. This module manages 32 independent digital output channels to drive field actuators and indicators. It converts internal processor commands into high-speed switching signals for industrial equipment. Furthermore, the unit features advanced circuitry to minimize signal latency across all points. This ensures precise synchronization for time-critical automation tasks. The DSDO115 maintains stable operation within Distributed Control Systems (DCS) for consistent process execution. Consequently, this module provides the necessary scalability for complex manufacturing facilities.

Technical Specifications

Key Technical Characteristics

• High-density 32-channel architecture reduces the total number of required hardware modules.
• Integrated diagnostic LEDs provide immediate visual status for each output channel.
• The module utilizes low-noise electronic components to prevent interference with sensitive logic circuits.
• Onboard protection circuits safeguard the unit against current surges from field-side loads.
• Modbus RTU compatibility allows for seamless integration with a variety of automation software suites.
• The Sweden-engineered design provides exceptional durability in high-vibration industrial zones.
• Hot-swap functionality enables rapid maintenance without shutting down the entire I/O rack.
• Galvanic isolation protects the internal system bus from external electrical faults.
