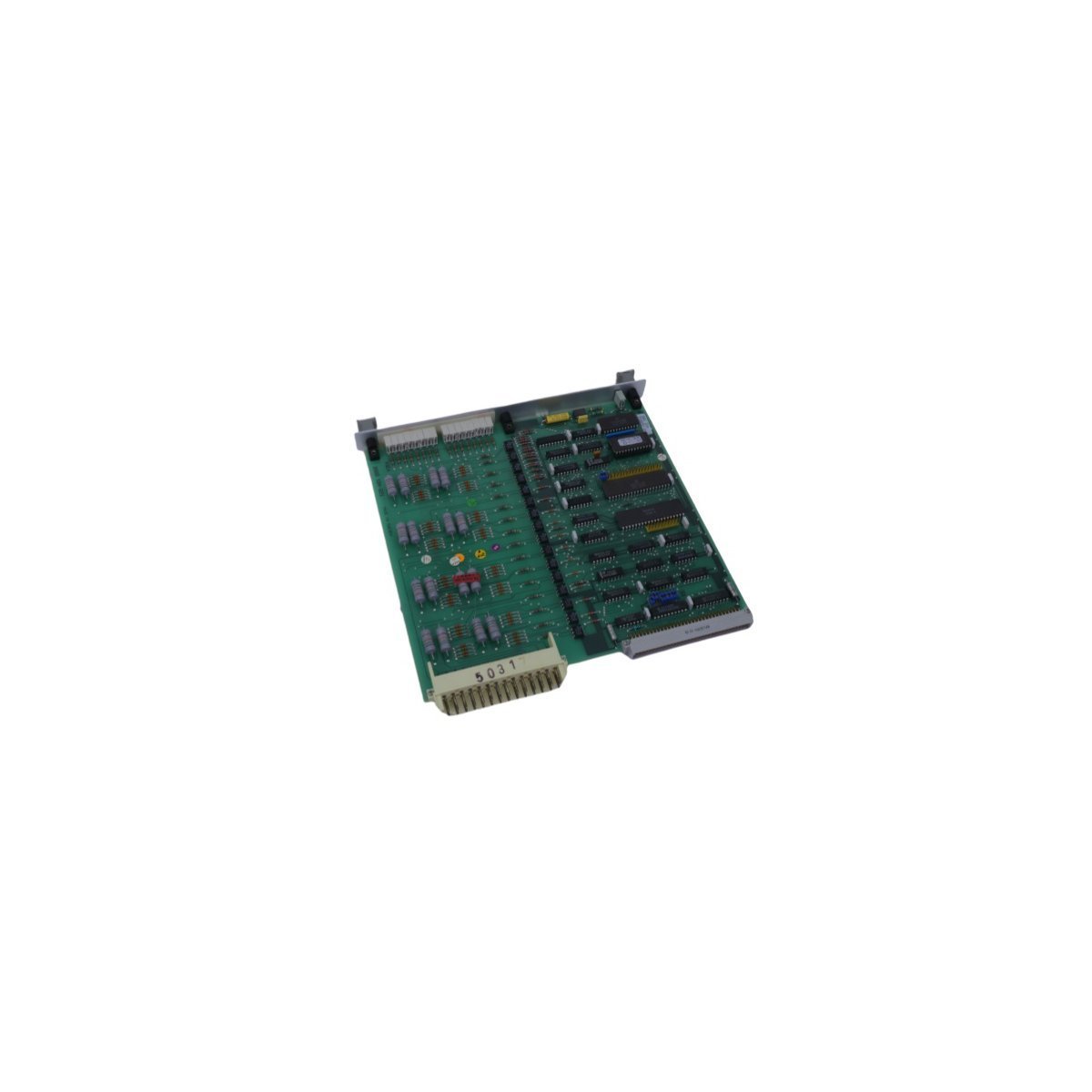

The ABB DSDI131, identified by part number 57160001-GV, is a high-density digital input component engineered for the S100 I/O system. This module is designed to interface field-level discrete signals with ABB Distributed Control Systems (DCS), providing a reliable gateway for monitoring switch states, sensor contacts, and other binary process variables. With its 32-channel architecture, the DSDI131 optimizes rack space while maintaining high signal integrity in complex industrial automation environments.
Core Specifications
| Parameter | Specification |
| Manufacturer | ABB |
| Series | S100 I/O |
| Model Number | DSDI131 |
| Order Number | 57160001-GV |
| Input Channels | 32 Digital Inputs |
| Nominal Voltage | 24V DC |
| Power Consumption | Typically < 2W |
| Onboard Memory | 16KB EEPROM |
| Operating Temperature | -25°C to +60°C |
| Physical Dimensions | 20mm x 248mm x 244mm |
| Weight | 0.46 kg |
| Origin | Sweden |
Industrial Applications
- Centralized monitoring for power plant switchgear.
- Discrete signal processing in chemical and petrochemical facilities.
- Status tracking for large-scale manufacturing and assembly lines.
- Integrated DCS networks requiring high-density binary input management.
