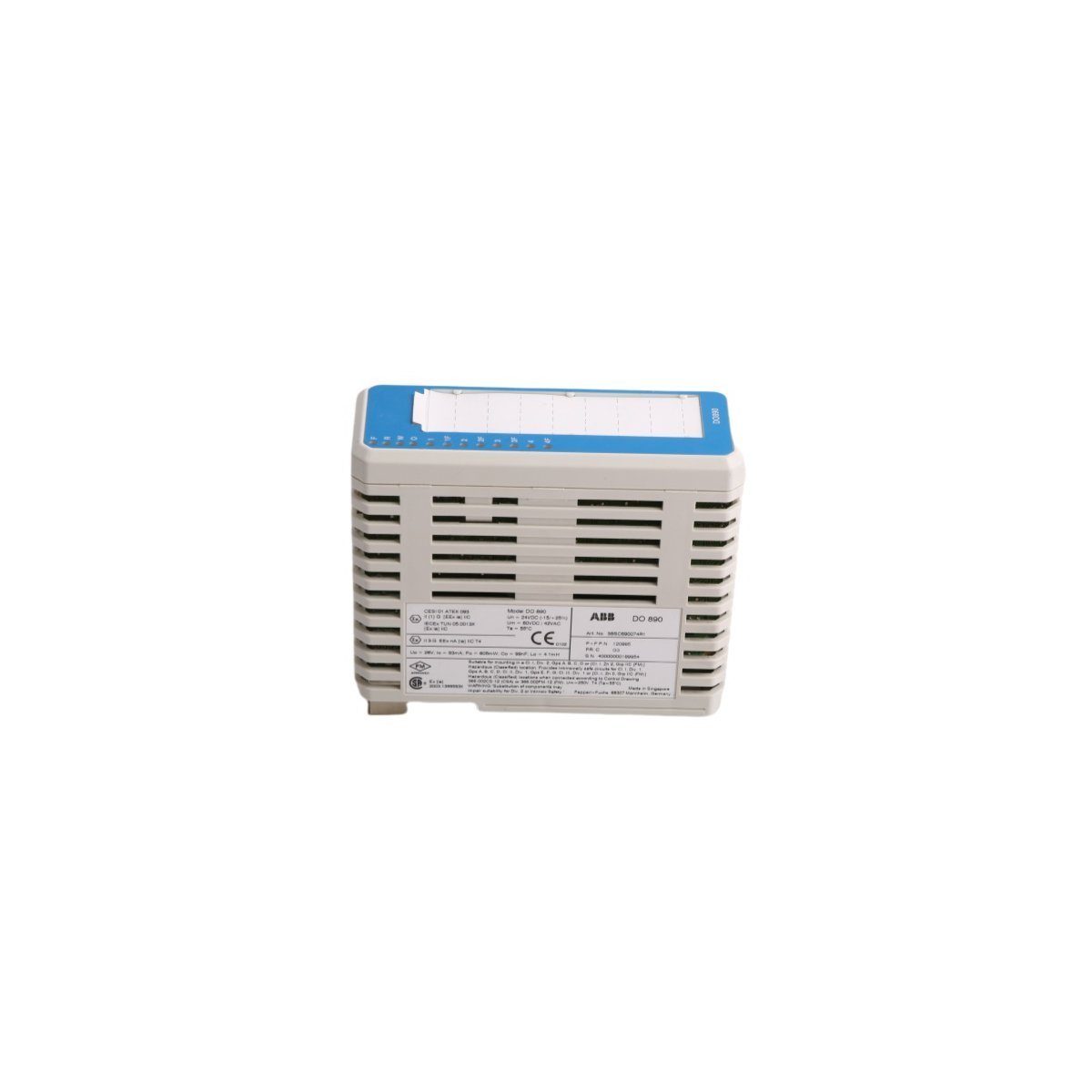

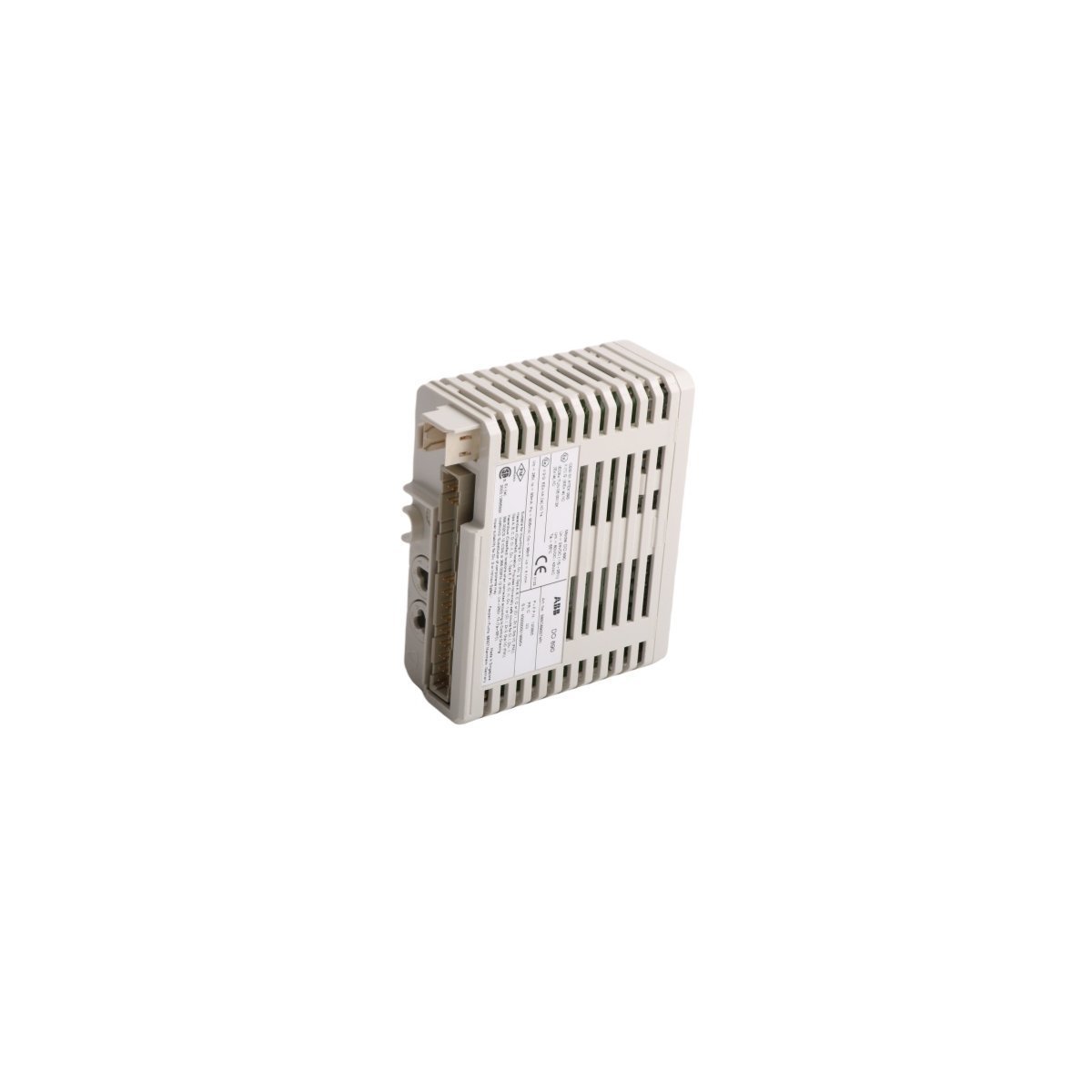

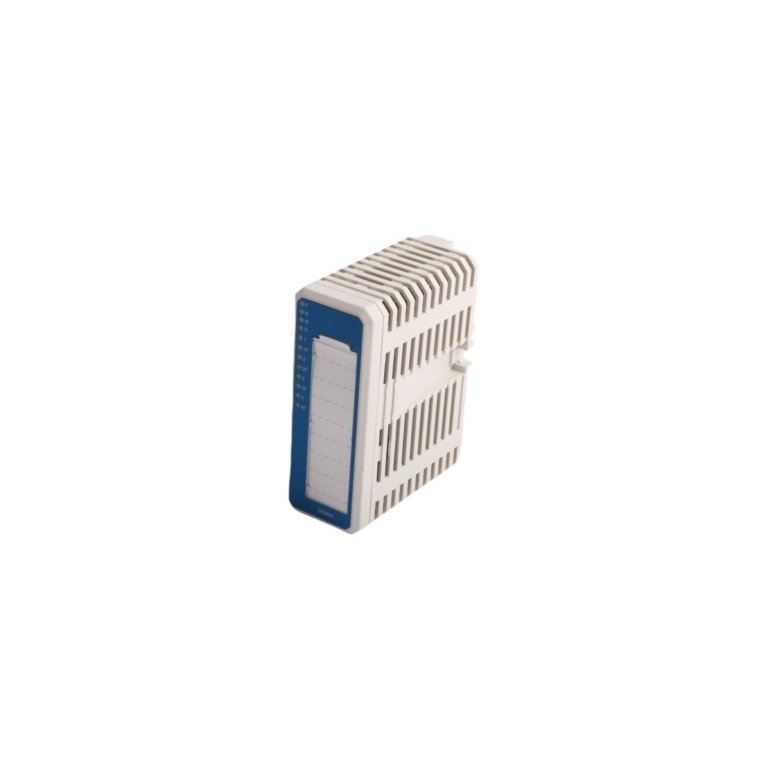

The ABB DO890 (3BSC690074R1) serves as a critical interface for hazardous area automation within the S800 I/O system. This 4-channel module provides intrinsically safe digital outputs to drive field devices directly. It effectively controls solenoids, acoustic alarms, and indicator lamps in explosive atmospheres. By integrating an Intrinsic Safety (IS) interface, the module eliminates the need for external barriers. Consequently, this design reduces cabinet footprint and simplifies overall system architecture.
Safety and Operational Features
Each of the four channels features robust galvanic isolation to ensure maximum signal protection. The module includes advanced short-circuit and open-loop detection for enhanced safety monitoring. Furthermore, the DO890 supports hot-swapping to maintain system uptime during maintenance. Its high-speed logic processing handles complex sequencing and time-critical switching tasks with ease. These integrated safety mechanisms protect both the personnel and the control infrastructure in volatile environments.
Industrial Applications
Manufacturers primarily deploy the DO890 in the oil, gas, and chemical processing industries. It also excels in pharmaceutical production where combustible dust or gases are present. The module operates reliably in temperatures from -25°C up to +60°C. Its rugged construction withstands the harsh conditions typical of offshore platforms and refineries. Additionally, the unit integrates seamlessly with ABB 800xA and other compatible DCS platforms.
Key Technical Specifications
- Brand: ABB
- Model Designation: DO890
- Order Reference: 3BSC690074R1
- Product Line: S800 I/O System
- Output Type: 4-Channel Digital (Intrinsically Safe)
- Manufacturing Origin: Sweden
- Weight: 0.24 kg
- Physical Dimensions: 4.5 x 10.5 x 12 cm
- System Category: Distributed Control System (DCS)
