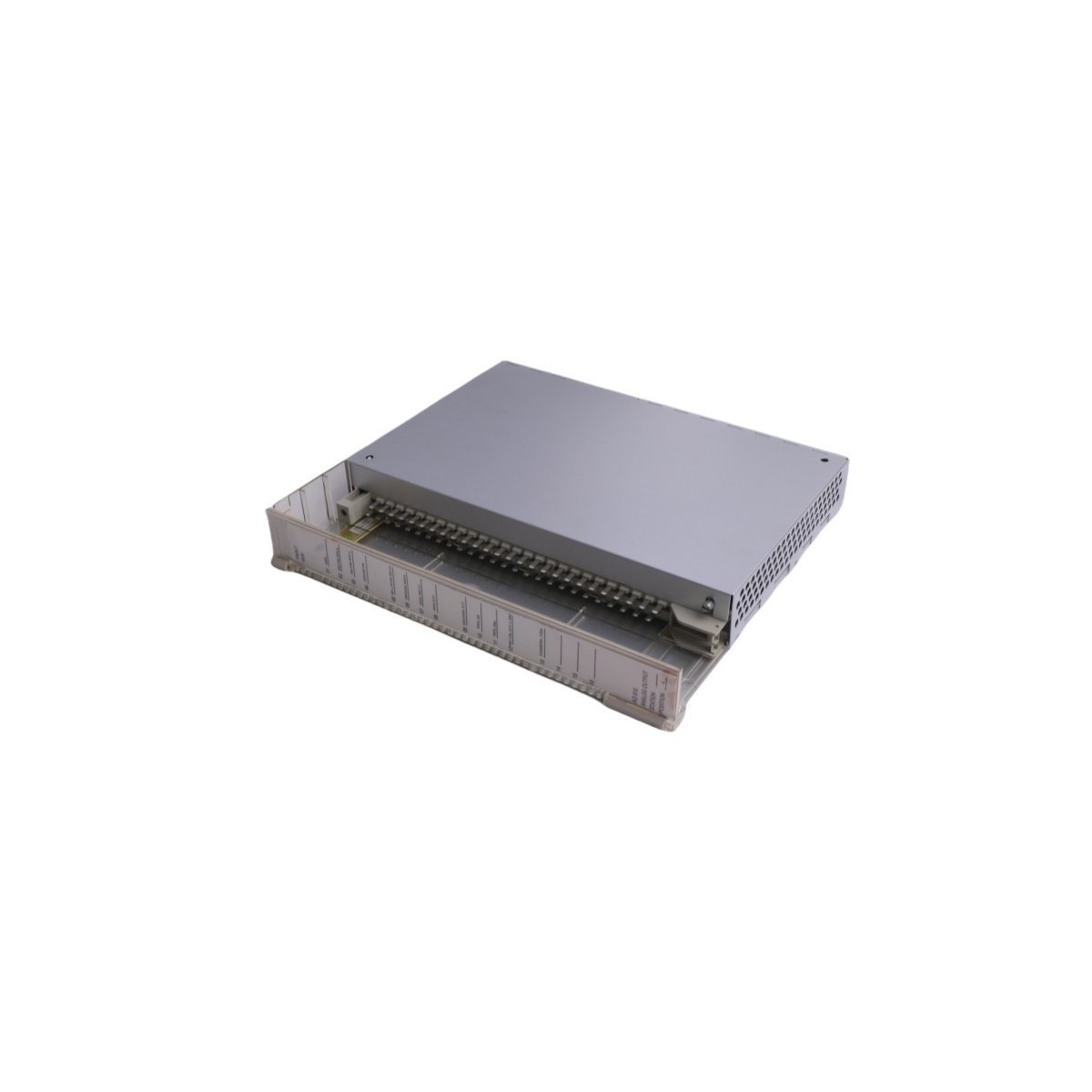

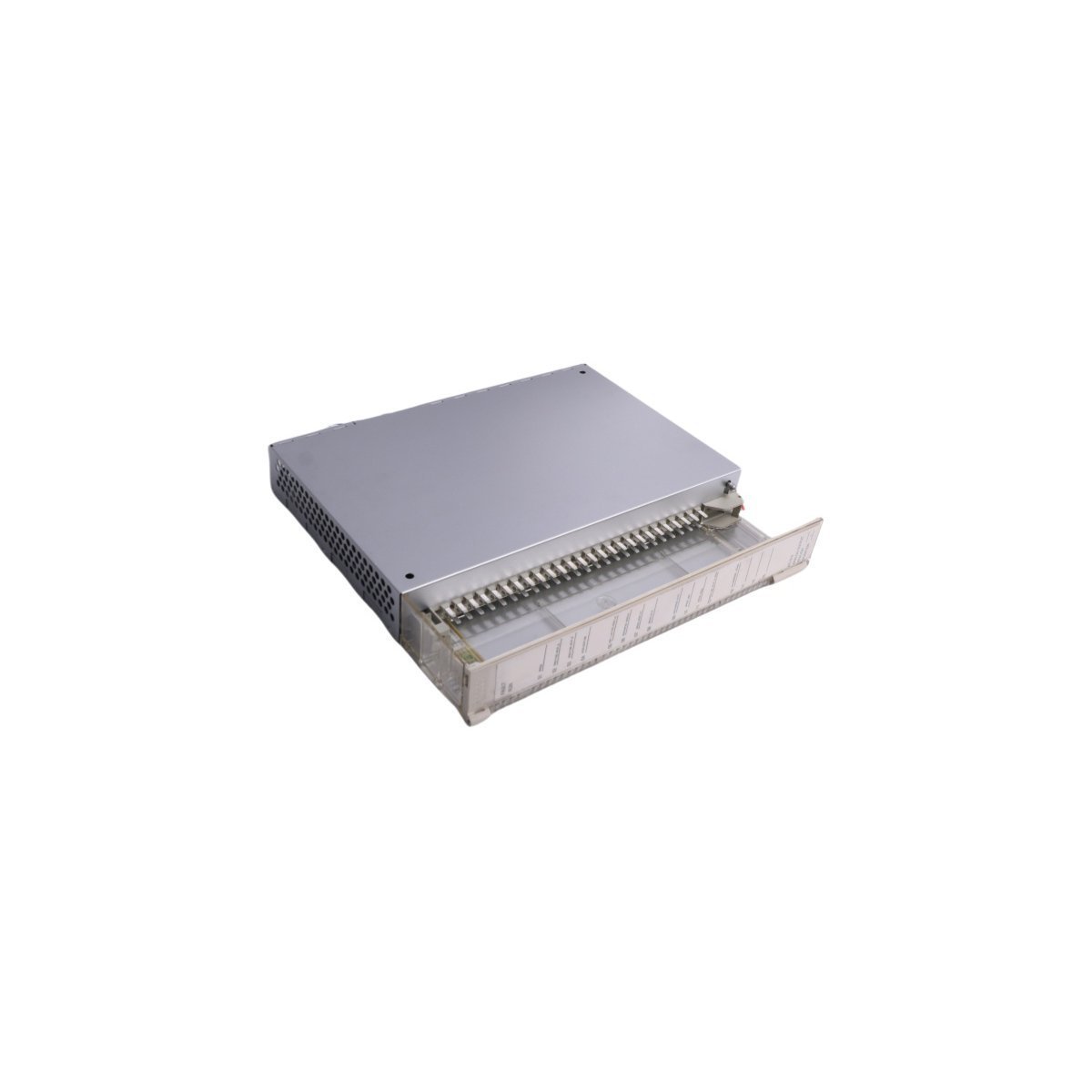

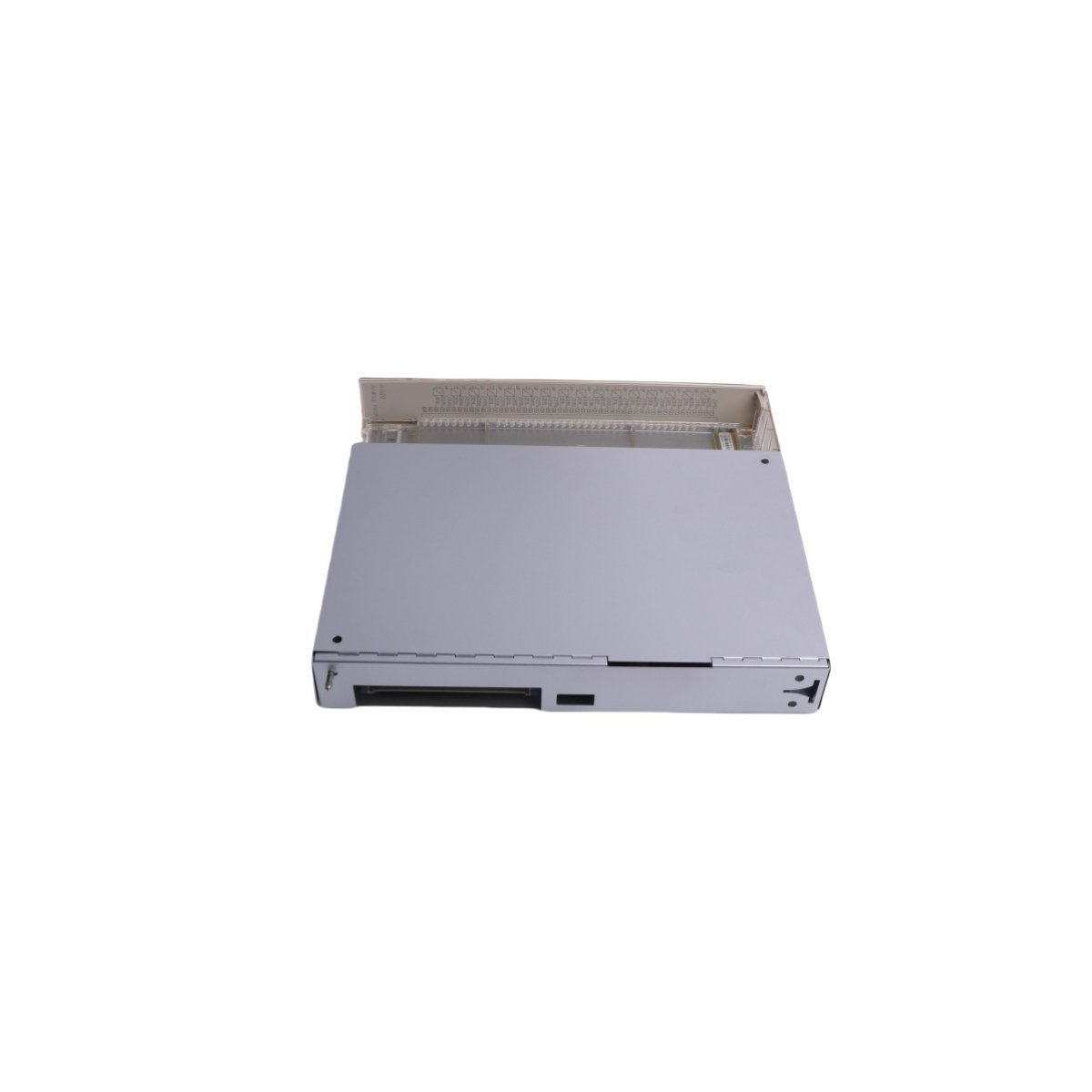

The ABB AO610, identified by part number 3BHT300008R1, is a high-density analog output module designed for the S600 I/O system within ABB’s Distributed Control System (DCS) architecture. This module serves as a critical interface for translating digital control logic into precise analog signals required by field-level equipment. Featuring 16 independent channels, the AO610 provides the granularity and accuracy necessary for complex process regulation, ensuring that setpoint commands reach actuators and controllers with minimal signal degradation.
Core Technical Specifications
| Attribute | Specification |
| Manufacturer | ABB |
| Product Family | S600 I/O System |
| Model Number | AO610 |
| Order Number | 3BHT300008R1 |
| Module Type | 16-Channel Analog Output |
| Output Signal Ranges | 0 to 20 mA, 4 to 20 mA, 0 to 10 V |
| Resolution | 0.01% of full span |
| Unit Weight | 1.44 kg |
| Physical Dimensions | 4cm x 26.5cm x 27cm |
| Operating Temperature | -25°C to +60°C |
| Manufacturing Origin | Sweden |
Industrial Applications
- Process Manufacturing: Controlling variable speed drives (VSDs), frequency converters, and motorized positioning units.
- Fluid Management: Precise modulation of proportional valves and actuators in chemical and water treatment facilities.
- Energy Production: Managing fuel flow regulators and damper positions in power plant boiler systems.
- Pulp and Paper: Regulating tension controls and automated chemical dosing pumps in continuous production lines.
