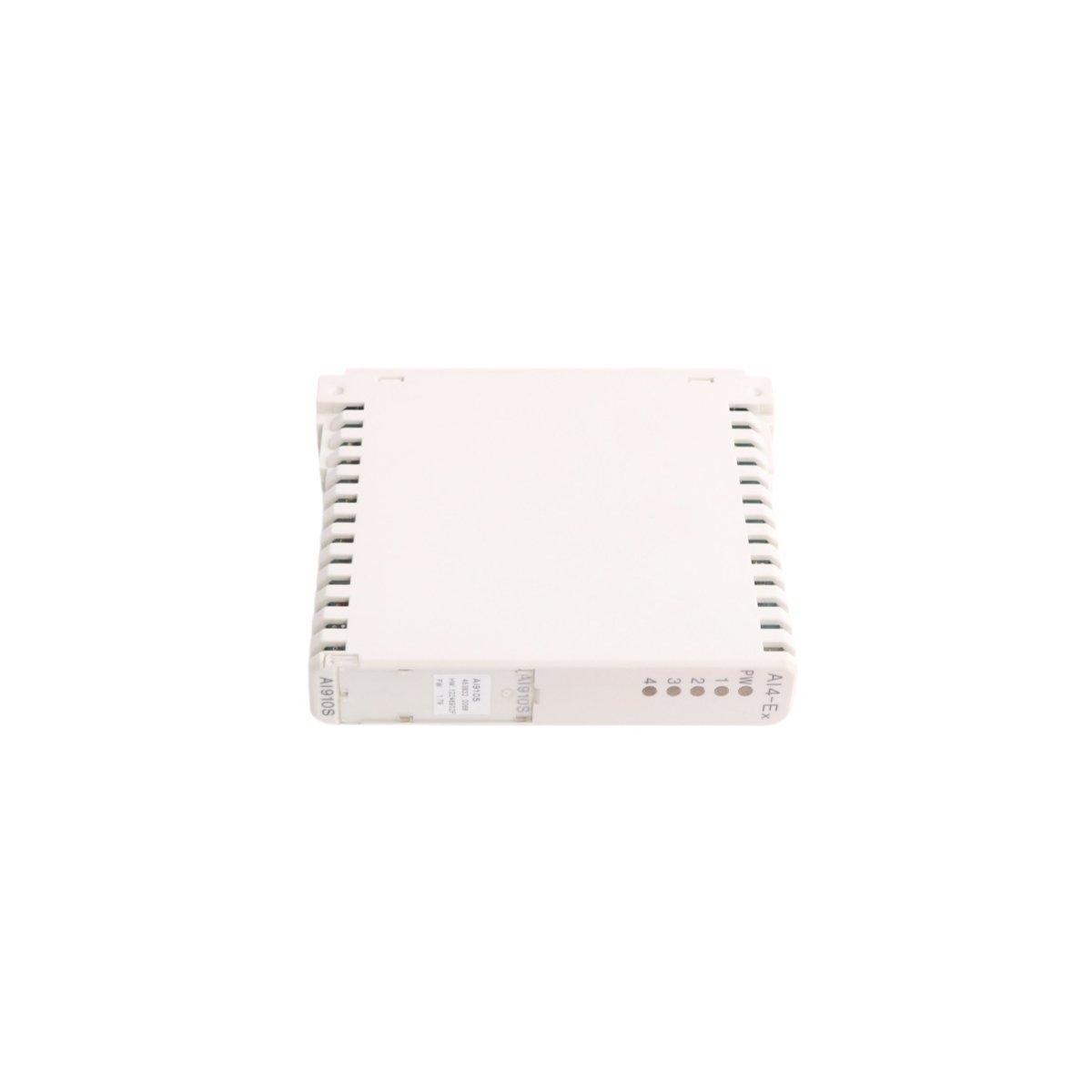

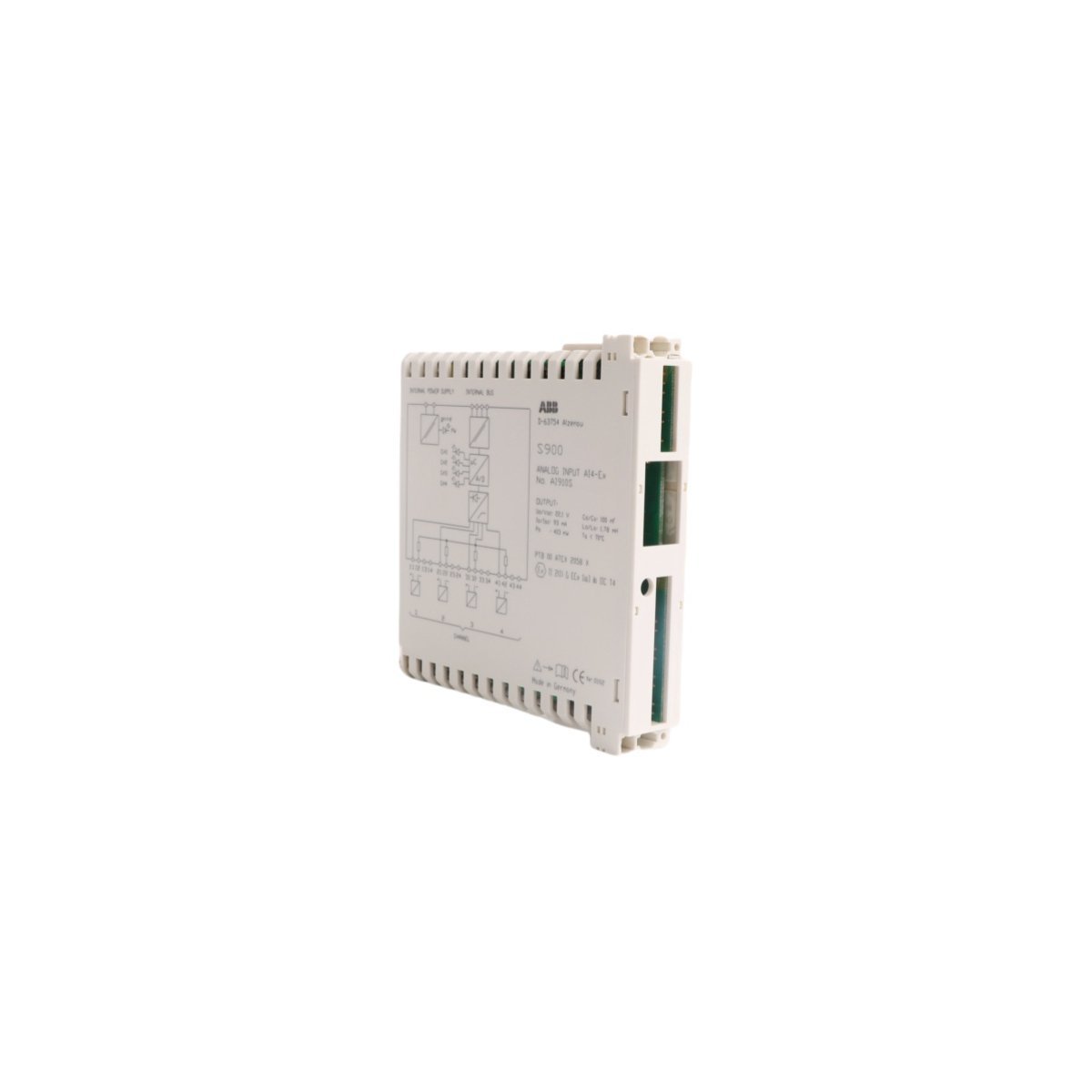

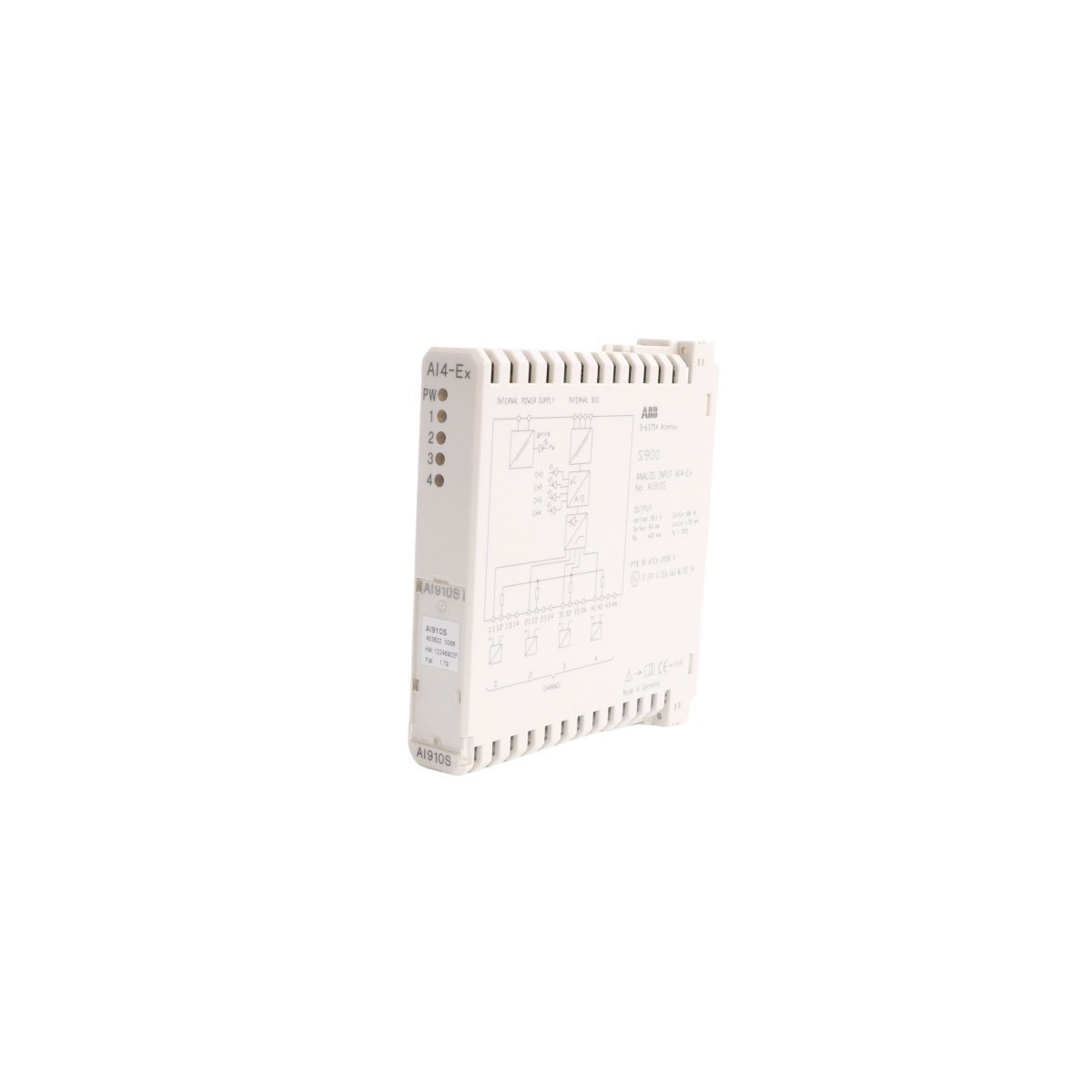

ABB AI910S 3KDE175511L9100 Analog Input AI4-Ex

The ABB AI910S serves as a specialized intrinsic safety interface for the S900 Remote I/O system. This module precisely monitors four analog signals from hazardous areas. It converts standard industrial currents into digital data for the process station. Furthermore, the unit provides complete galvanic isolation between field devices and the control network. This architecture prevents electrical faults from compromising the entire DCS. Consequently, users achieve reliable data acquisition in explosive atmospheres.

Hardware Specifications

Key Technical Characteristics

• Four independent channels support high-precision signal processing for 4-20mA transmitters.
• The intrinsically safe design permits direct connection to sensors in Zone 1 or Zone 2.
• A hot-swappable interface allows module replacement without interrupting the remaining system power.
• The compact 20mm width optimizes rail space within high-density control cabinets.
• Integrated short-circuit and open-loop detection provides immediate hardware diagnostics.
• Robust internal components ensure stability across fluctuating industrial temperatures.
• Corrosion-resistant housing protects the circuitry in chemically aggressive environments.
• The module supports various fieldbus protocols through the S900 terminal unit interface.
