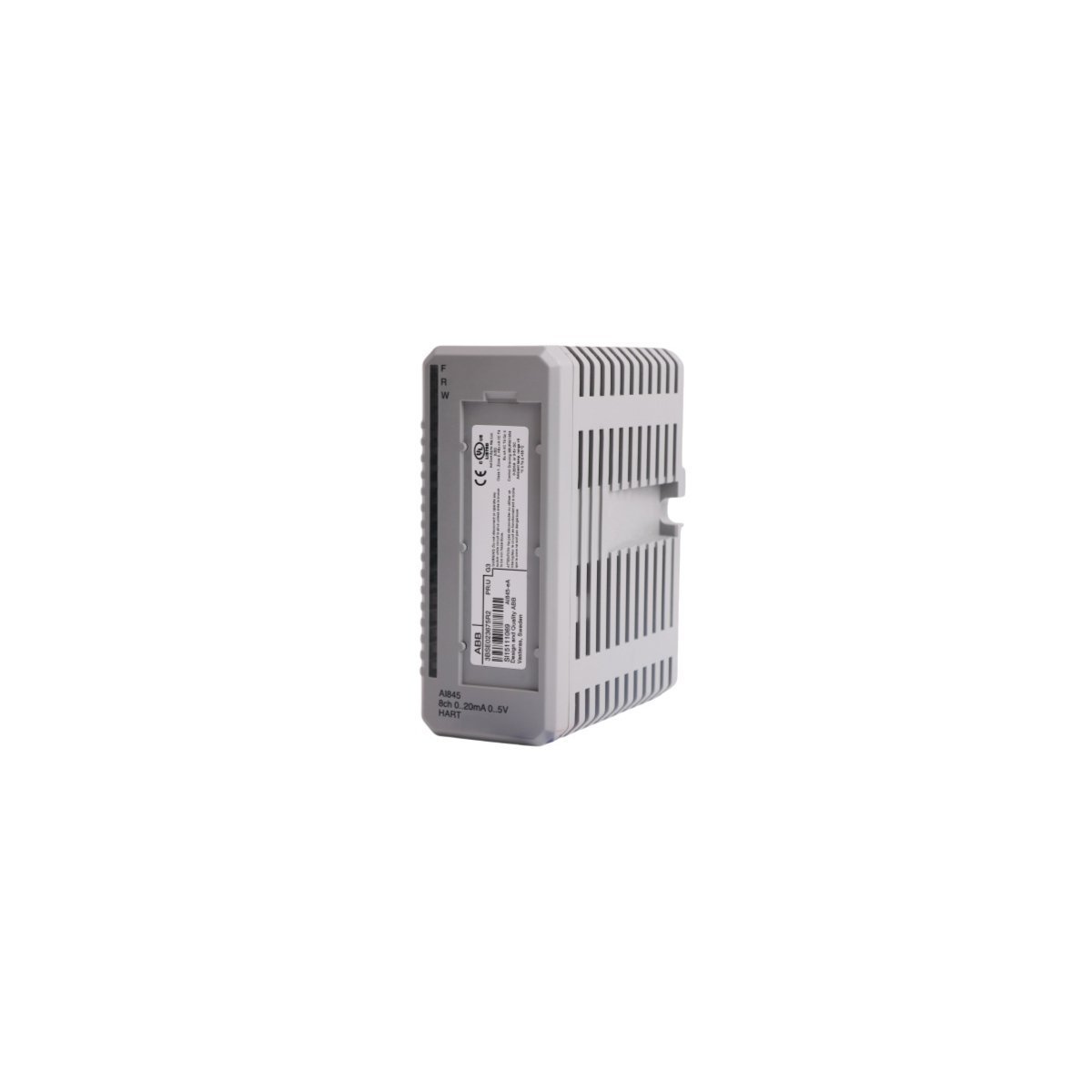

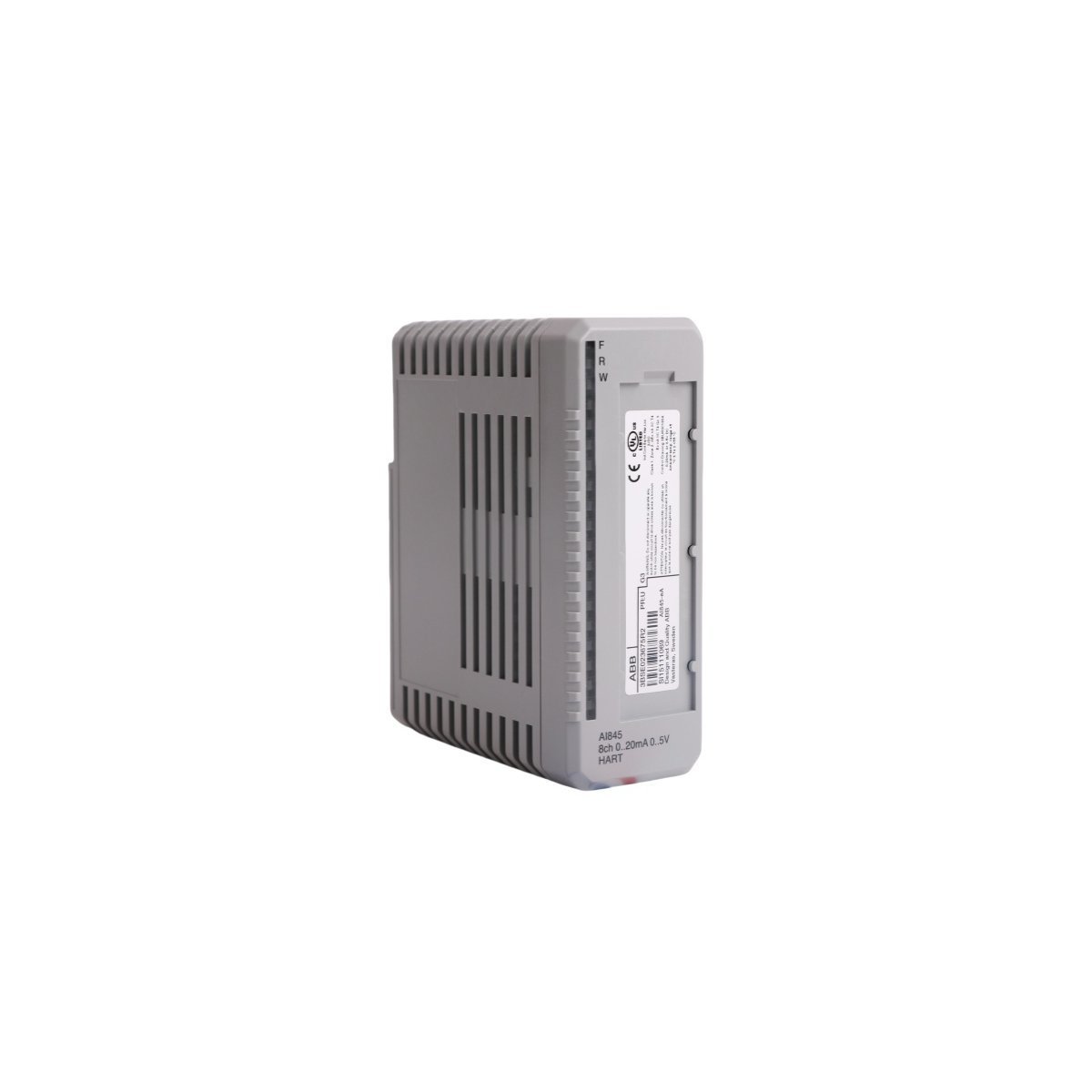

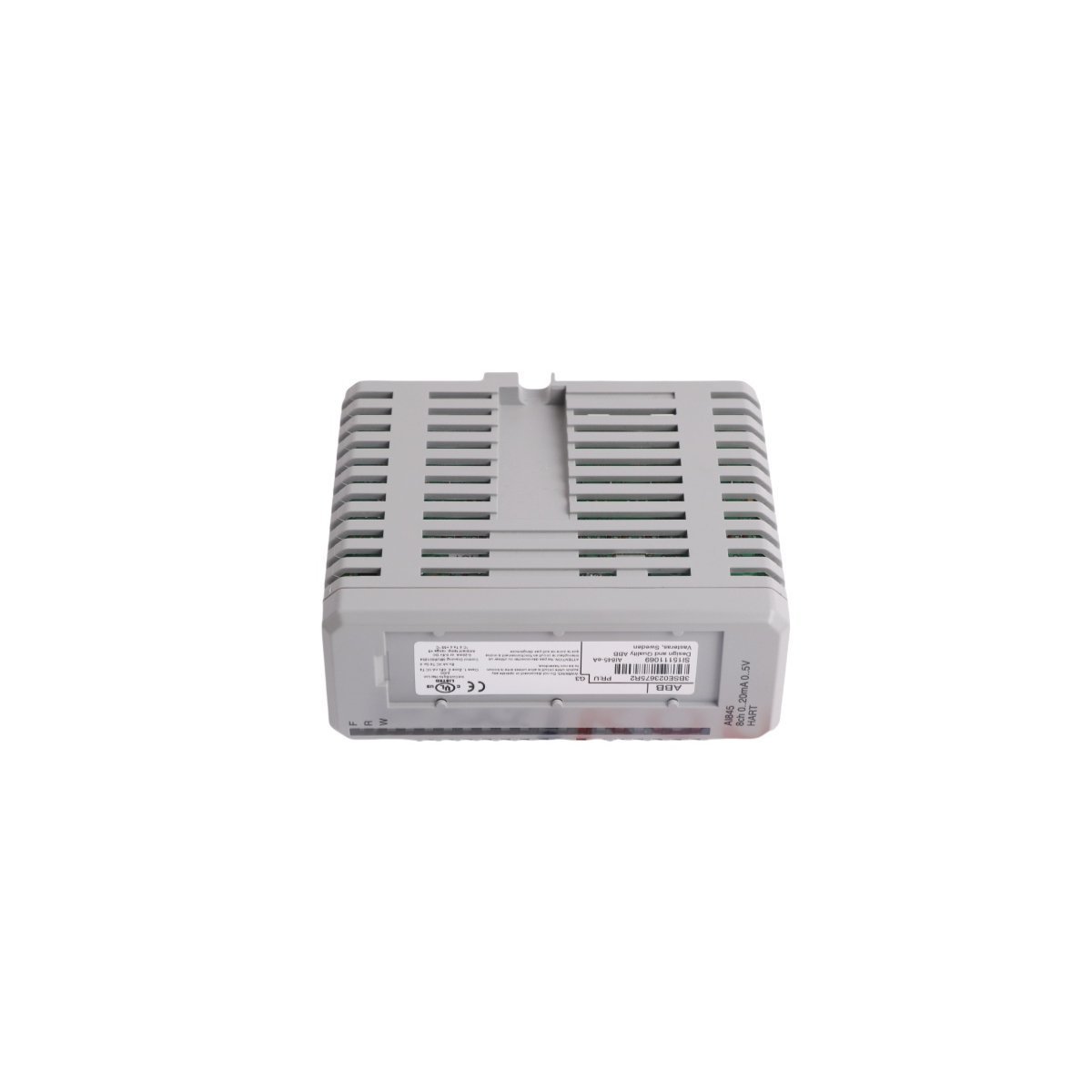

ABB AI845-EA 3BSE023675R2 Analog Input S/R HART 8 channels

The ABB AI845-EA serves as a high-integrity analog interface for the S800 I/O system. This module features eight independent channels designed for sophisticated data acquisition. It supports both standard current signals and integrated HART communication for smart field devices. Because the unit provides redundant capability, it ensures maximum uptime for critical industrial processes. The internal logic handles signal filtration to eliminate electrical noise from the input data. Consequently, operators receive highly accurate readings for flow, pressure, and temperature monitoring.

The 3BSE023675R2 model utilizes advanced analog-to-digital conversion technology for real-time responsiveness. This speed allows the AC 800M controller to execute control loops with minimal latency. Furthermore, the module allows for individual channel configuration to meet diverse application requirements. This flexibility simplifies the integration of various sensor types into a unified DCS network.

Industrial Reliability and Diagnostic Features

Safety and durability define the architectural design of the AI845-EA module. The hardware includes comprehensive self-diagnostics to detect internal circuit failures or sensor wiring issues. If a fault occurs, the module immediately notifies the central control system. Moreover, the robust casing protects sensitive electronics from typical factory contaminants. Although compact, the unit maintains high galvanic isolation between channels and system logic. This isolation prevents field-side surges from damaging the primary automation backplane.

The Sweden-manufactured 3BSE023675R2 board fits seamlessly into high-density electrical cabinets. Its efficient power management reduces heat generation within the enclosure. This cooling efficiency extends the service life of the module and surrounding components. Additionally, the unit supports hot-swap functionality for rapid maintenance without process interruption. By implementing the AI845-EA, facilities achieve a stable and scalable foundation for modern process automation.

Application and System Compatibility

The AI845-EA excels in energy, chemical, and water treatment sectors. It provides the necessary precision for managing complex chemical reactions and power distribution. Furthermore, the module integrates natively with the ABB Ability System 800xA environment. This compatibility ensures a streamlined engineering process for system integrators and plant managers.

Technical Specifications and Hardware Profile
