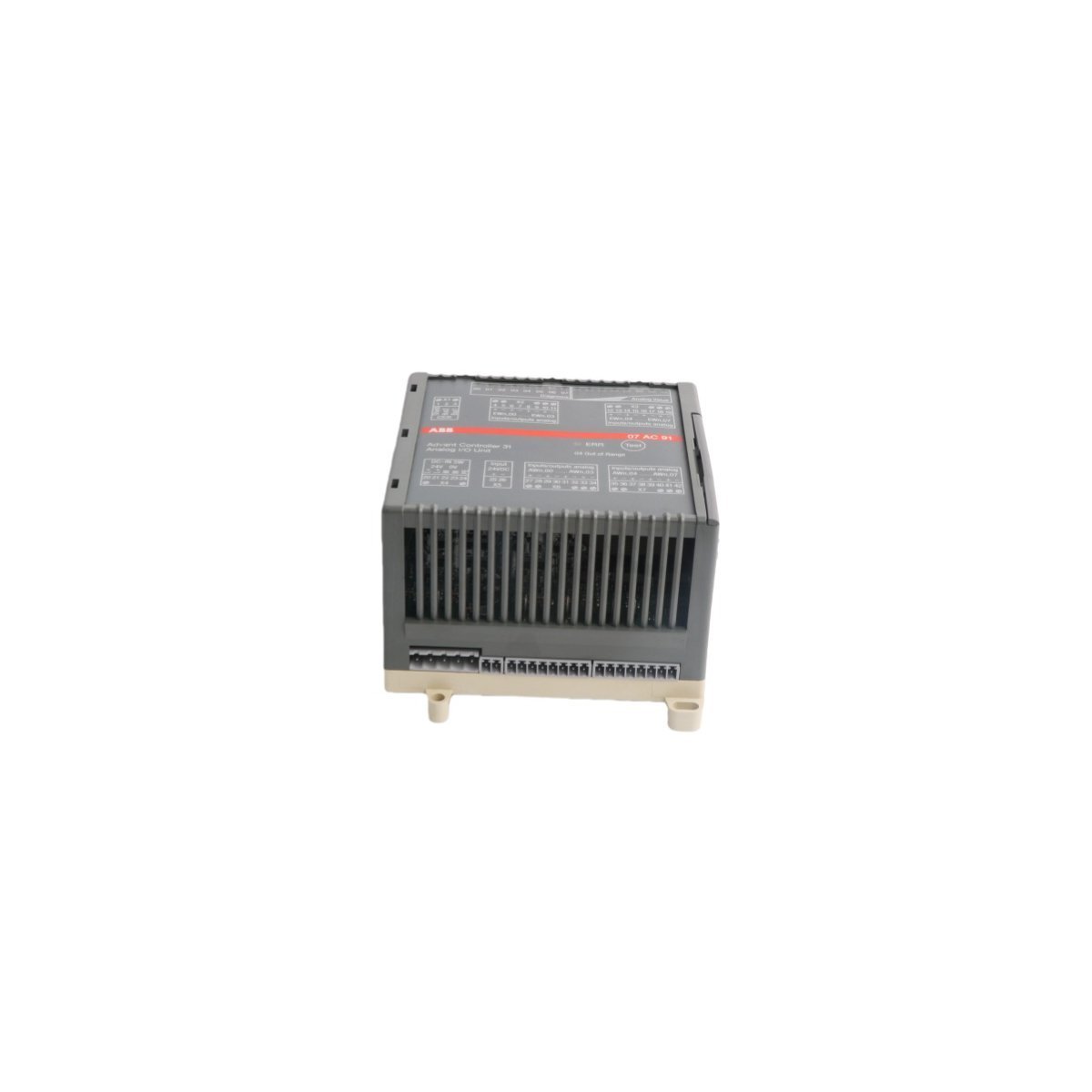

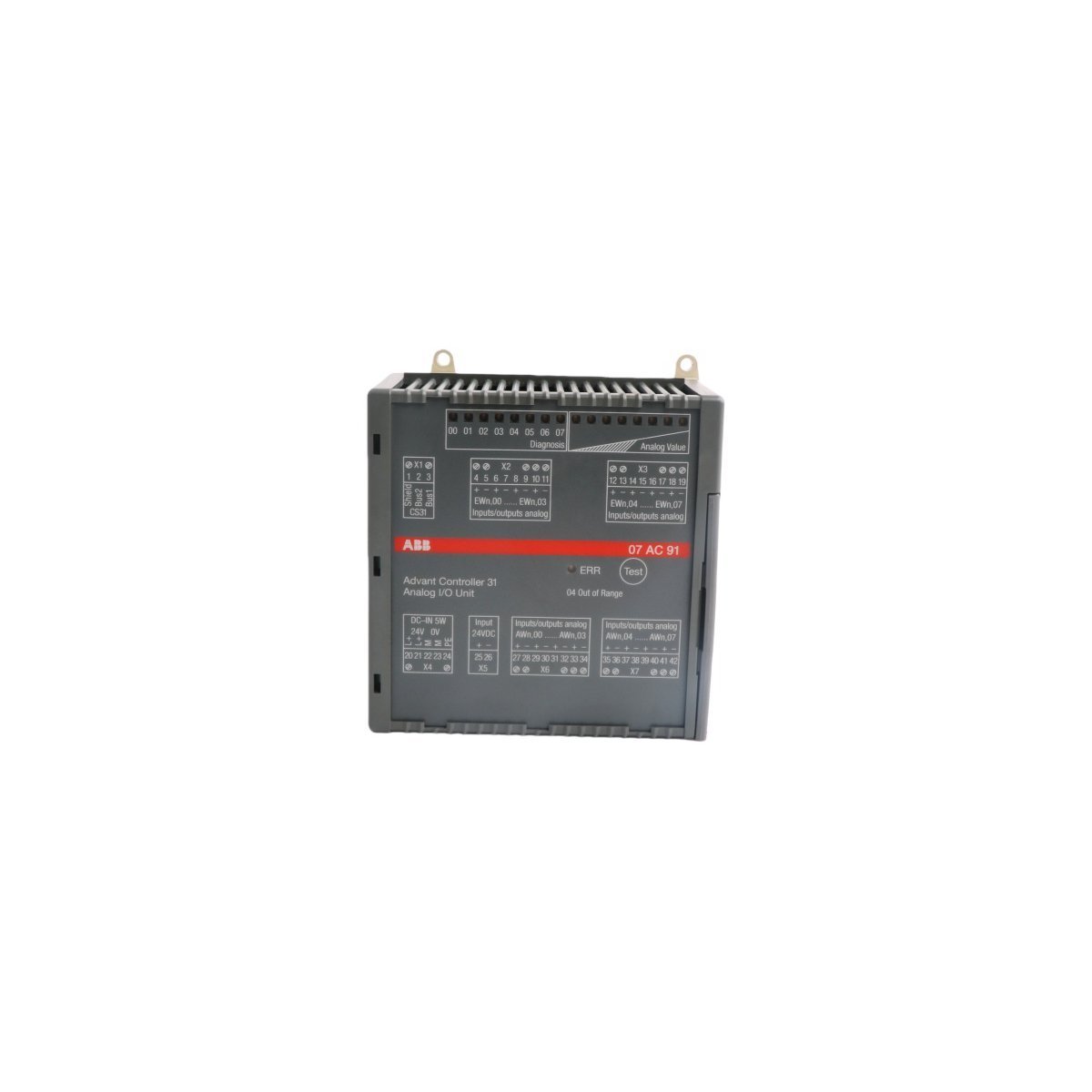

The ABB 07AC91 GJR5252300R0101 acts as a remote analog interface for the Advant Controller 31 series. It connects directly to the CS31 system bus to facilitate distributed data acquisition. This module manages critical signals between field sensors and the central processing unit.
Flexible Operating Modes
The hardware supports two distinct operating modes to meet specific process requirements. Users can select 12-bit resolution for eight inputs and eight outputs. Alternatively, the module offers 8-bit resolution across all sixteen channels.
This configuration occurs via internal DIL switches. Consequently, technicians can customize signal precision based on the connected hardware. The module supports both standard voltage and current signals for broad compatibility.
Enhanced System Protection
The 07AC91 module features robust electrical isolation between the bus and analog circuits. This design prevents ground loops and protects the controller from field-side surges. It ensures high signal integrity within electrically noisy industrial zones.
Furthermore, integrated diagnostics continuously track the module health. Clear status indicators help maintenance teams identify faults quickly. This proactive monitoring reduces unplanned system downtime significantly.
Technical Specifications
| Attribute | Specification |
| Brand | ABB |
| Model Number | 07AC91 |
| Order Code | GJR5252300R0101 |
| System | Advant Controller 31 (AC31) |
| Bus Type | CS31 System Bus |
| Analog Channels | 16 Configurable Channels |
| Operating Voltage | 24 V DC |
| Origin | Sweden |
| Weight | 1.22 kg |
