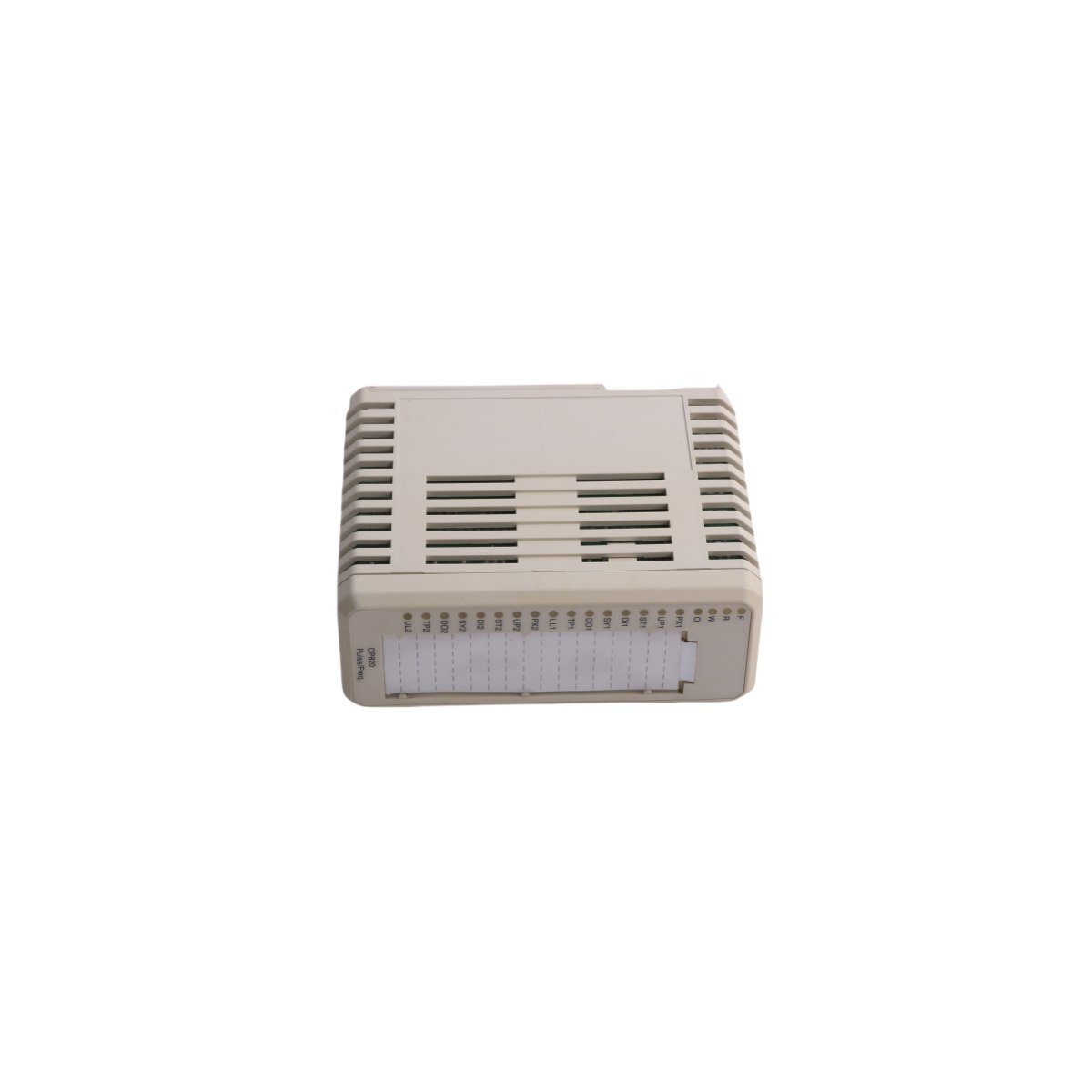

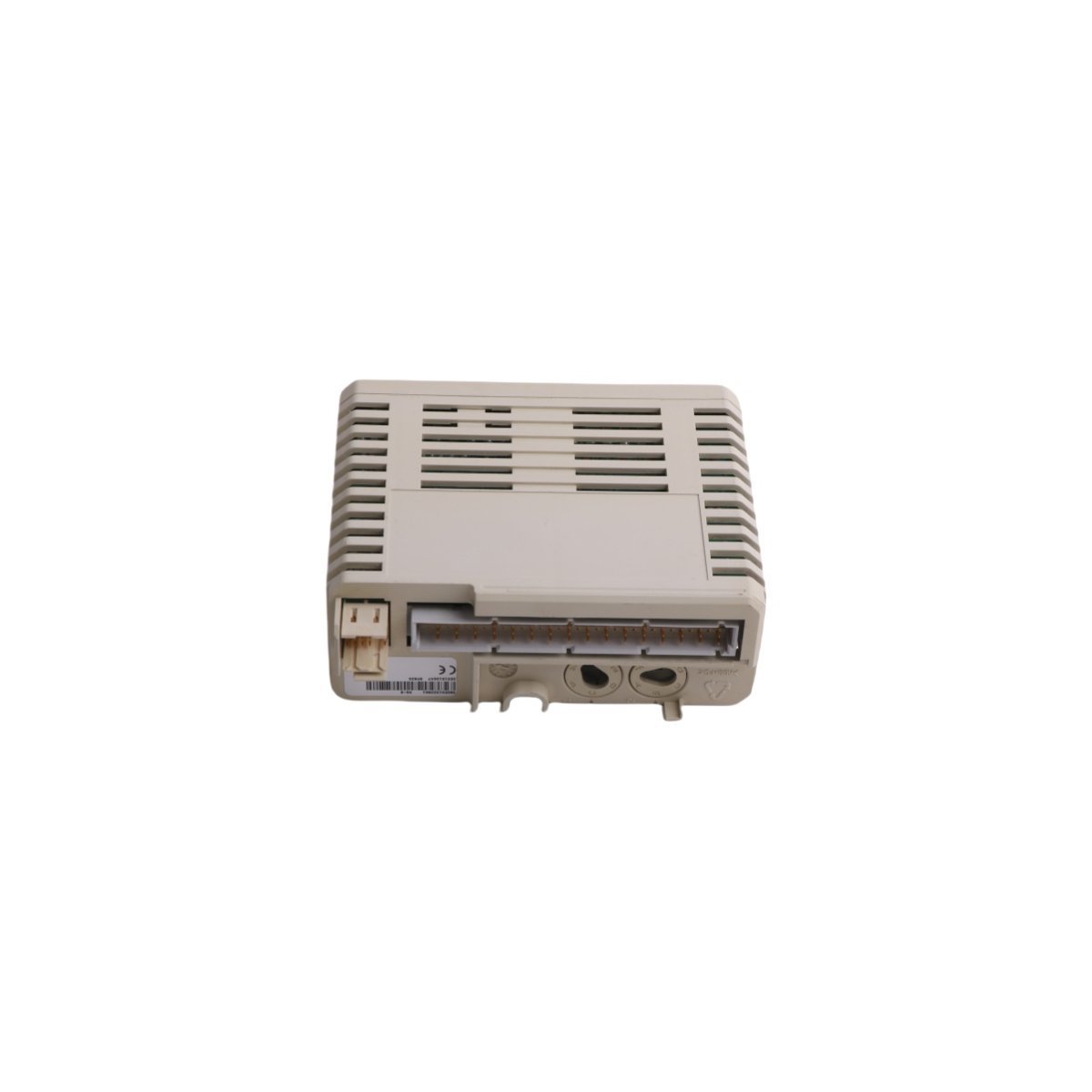

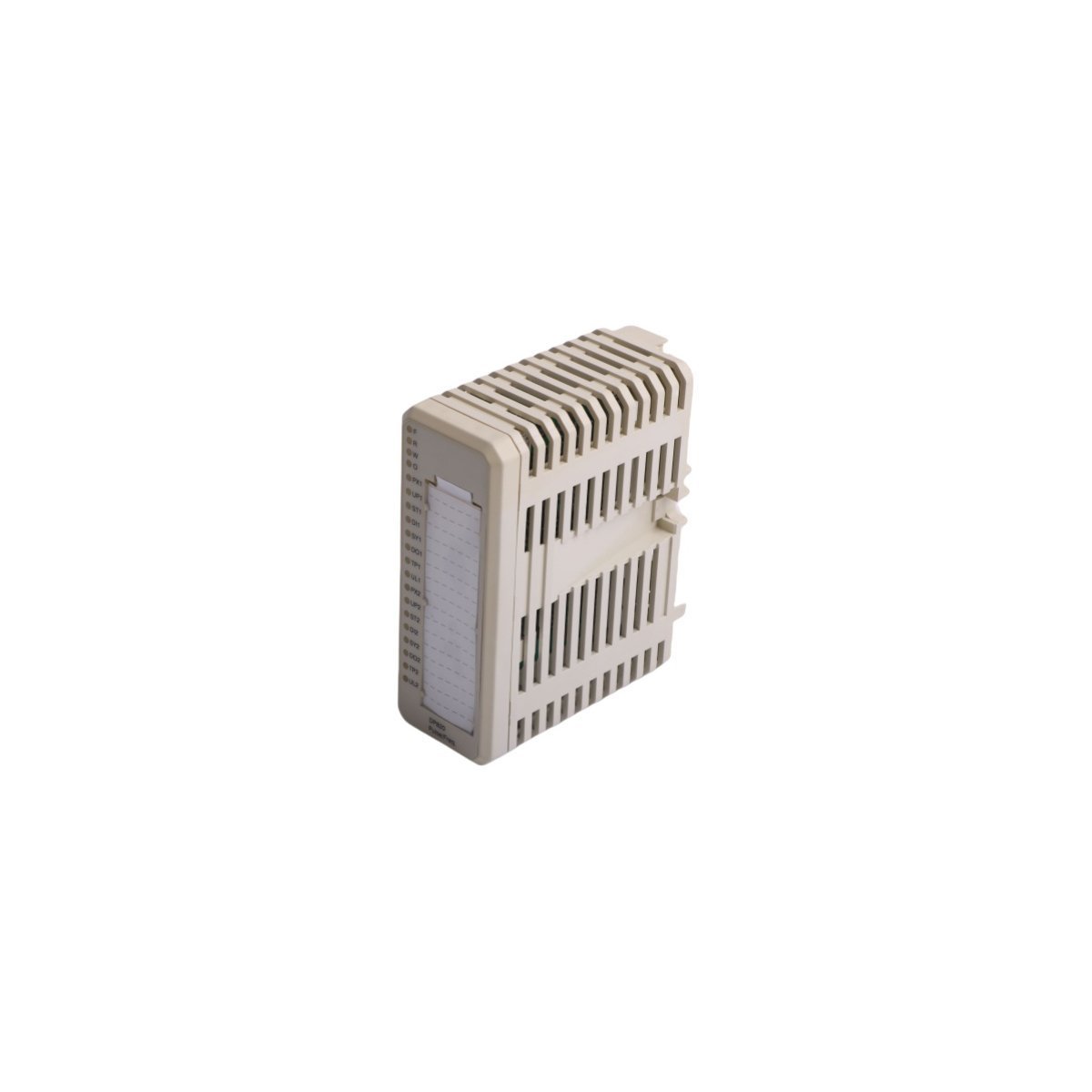

3BSE013228R1 ABB DP820 Dual Channel Pulse Counting Interface

Product Overview

The ABB DP820 3BSE013228R1 is a specialized pulse counter module within the S800 I/O family, designed to provide high-speed frequency measurement and position sensing. This module integrates seamlessly into Distributed Control Systems (DCS) to deliver precise accumulation and timing data from incremental encoders and pulse transducers.

Product Features and Technical Functions

The DP820 module excels at capturing high-frequency signals that standard digital inputs cannot process reliably. By utilizing the RS-422 interface, it maintains superior signal integrity even in electrically noisy industrial environments.

• Advanced Signal Acquisition: The module features two independent channels capable of processing pulse trains for frequency, position, and speed measurements.
• RS-422 Differential Signaling: Because it utilizes RS-422 standard inputs, the board effectively cancels out common-mode interference, extending the reliable cable distance from field sensors.
• Flexible Operational Modes: It supports various counting modes, including bi-directional counting and frequency measurement, which allows for versatile application in motion control.
• Real-time Integration: The hardware performs local preprocessing of counting data, which subsequently reduces the processing load on the central controller.
• Industrial Grade Construction: Engineered in Sweden, this compact unit withstands mechanical vibration and thermal fluctuations typical of process automation sites.

Technical Specifications

Application Fields

Industrial facilities deploy the DP820 across various sectors where high-speed rotational or linear tracking is critical. Primary applications include:

• Turbine speed monitoring in power generation plants.
• Flow meter pulse integration for chemical and oil refineries.
• Position tracking for cranes and heavy material handling equipment.
• Speed control for conveyor systems in large-scale manufacturing.
