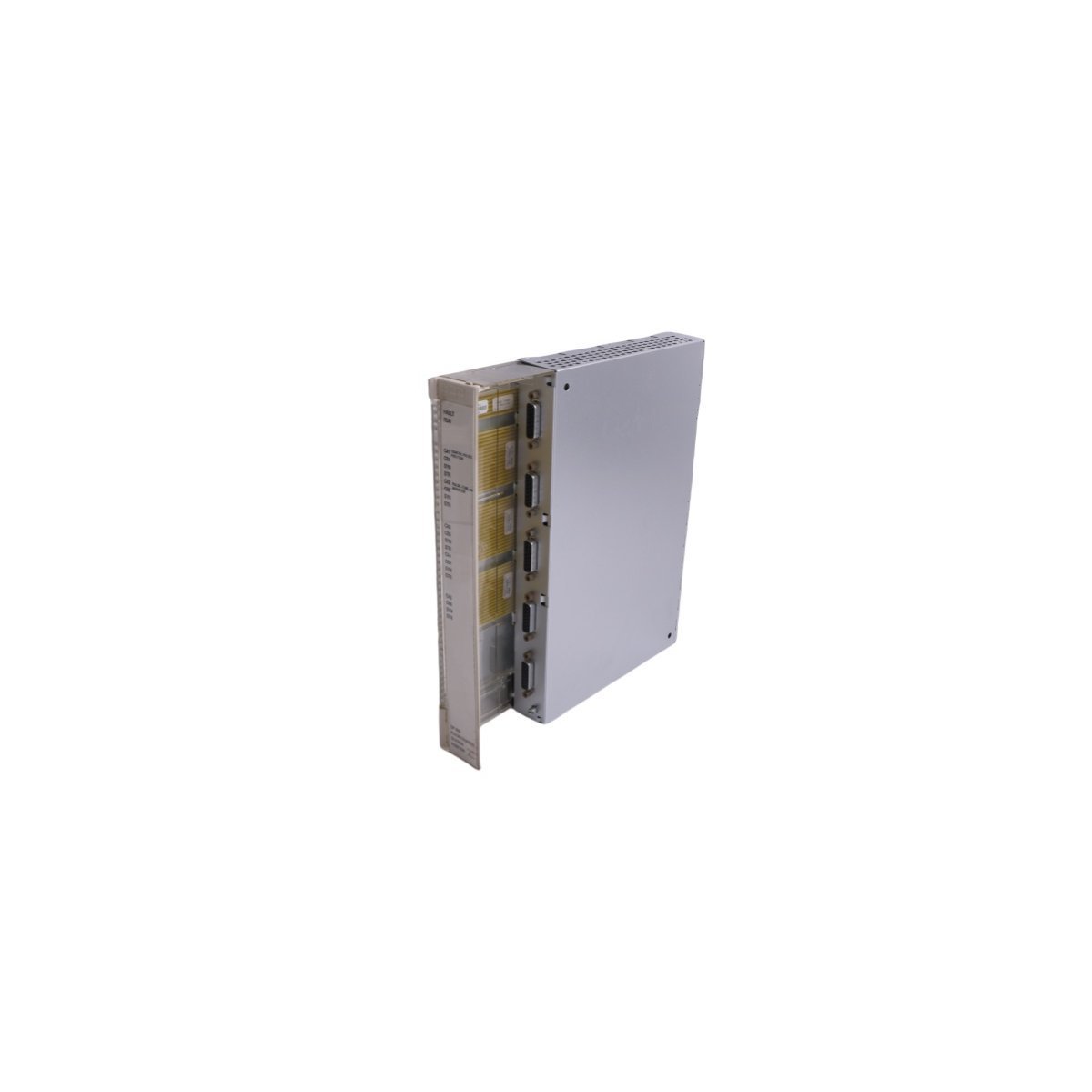

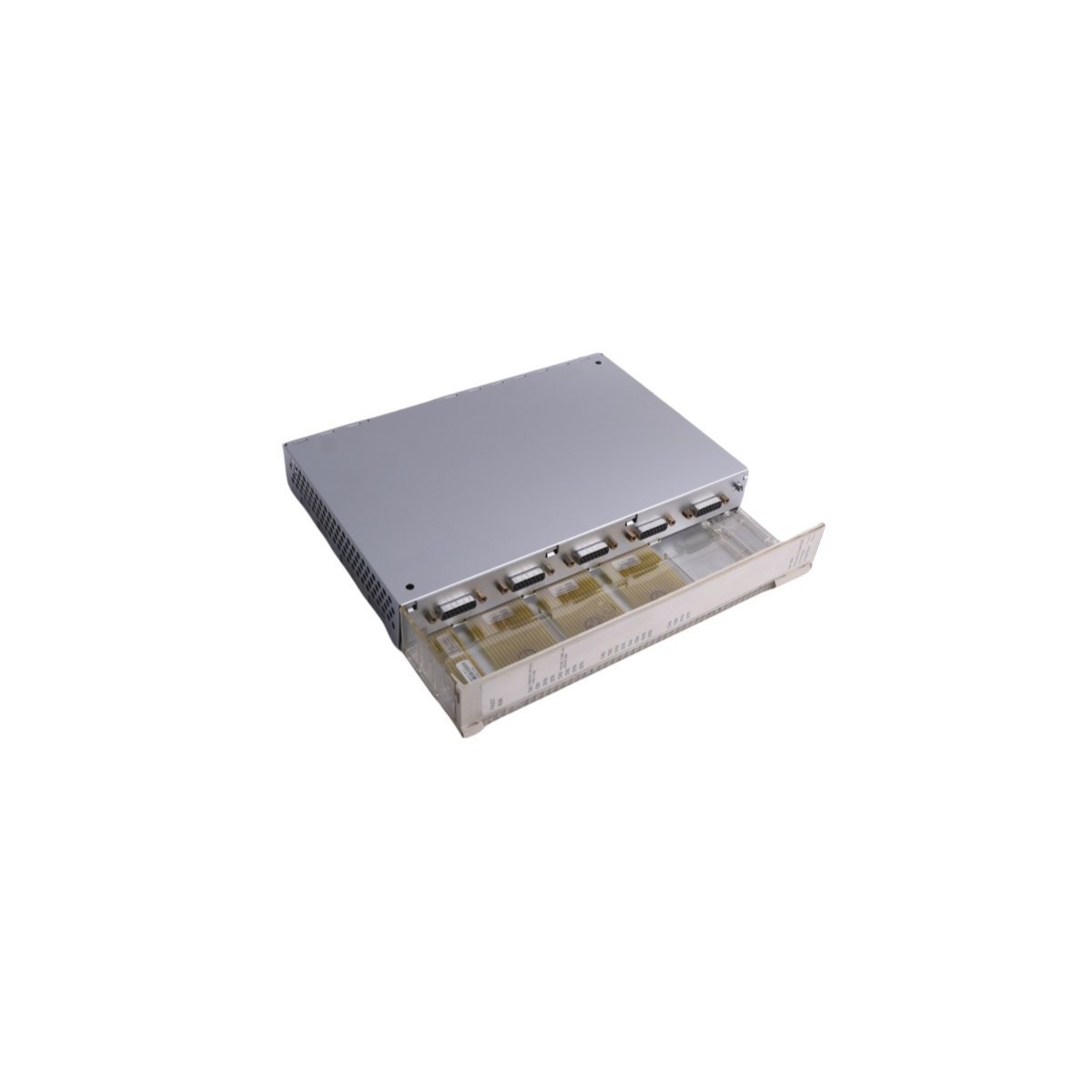

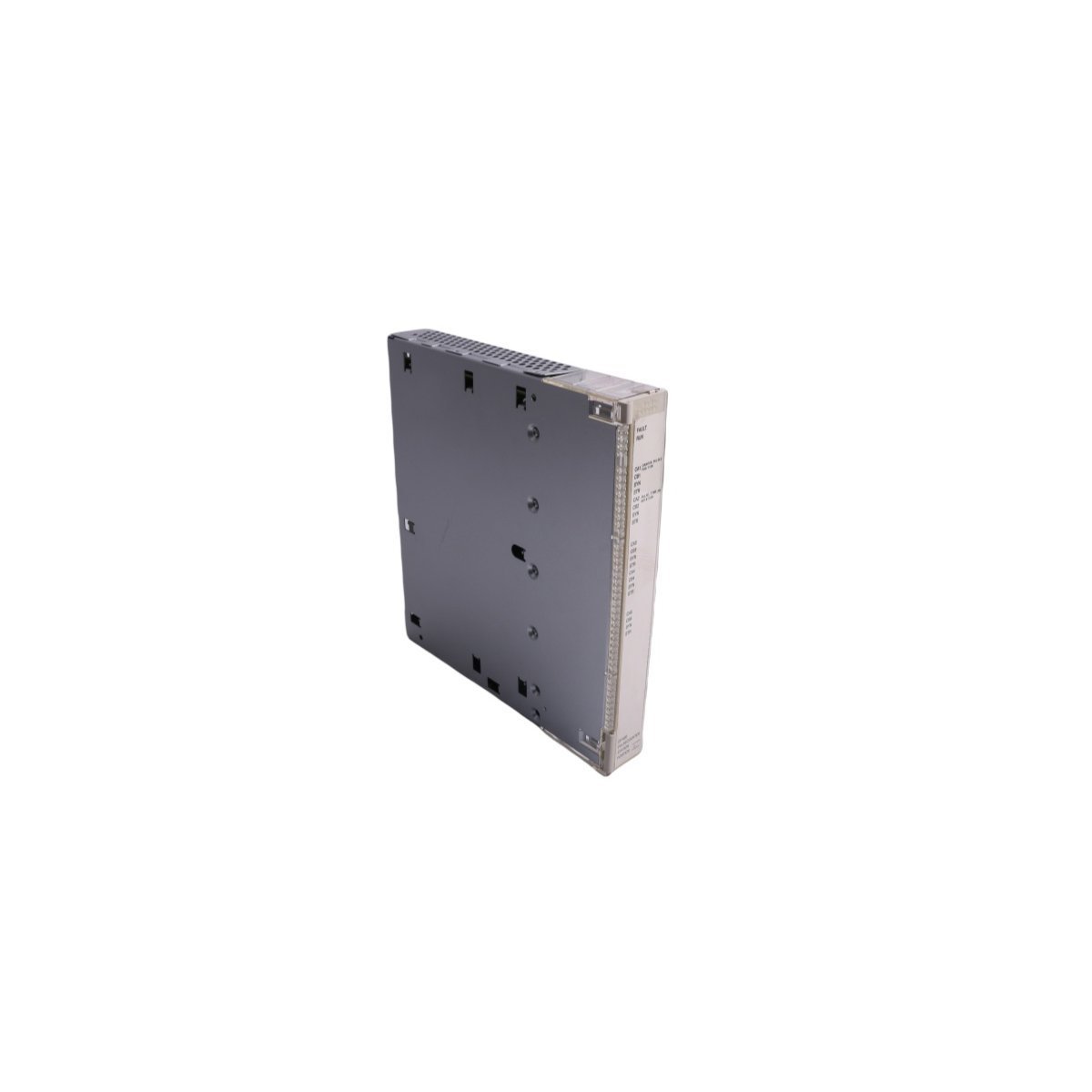

3BHT300016R1 DP620 ABB High Speed Counter DCS Board

Technical Overview

The ABB DP620 3BHT300016R1 functions as a high-performance pulse counter module within the native S800 I/O family. This hardware interfaces directly with Distributed Control Systems to process rapid digital input signals from industrial field devices.

Consequently, the module converts external pulse trains into actionable velocity, positioning, and frequency data for the central controller. The architecture supports advanced diagnostic routines to ensure signal integrity and system uptime in demanding process environments.

Technical Characteristics

• High-Speed Acquisition: The module processes rapid pulse sequences to track fast-moving industrial machinery accurately.
• System Integration: This unit mounts directly onto standard S800 I/O termination units for seamless integration into existing DCS networks.
• Robust Signal Filtering: Built-in hardware filters suppress electromagnetic interference and signal bounce from mechanical encoders.
• Flexible Voltage Compatibility: The electrical interface accommodates standard industrial sensor voltage levels across a broad operating spectrum.
• Comprehensive Diagnostics: Internal circuitry monitors channel status and reports line faults or data discrepancies back to the master controller.

Product Specifications

Industrial Applications

• Rotational Speed Monitoring: The unit measures pulse frequencies from turbomachinery and industrial fans to determine exact shaft velocity.
• Conveyor and Material Handling: This module tracks encoder feedback to manage position and speed on automated sorting lines.
• Robotic Axis Positioning: Industrial control networks utilize the device to interpret quadrature signals from servo motors.
• Flow Meter Interfacing: The hardware tallies volumetric pulses from liquid and gas meters for precise batch processing control.
