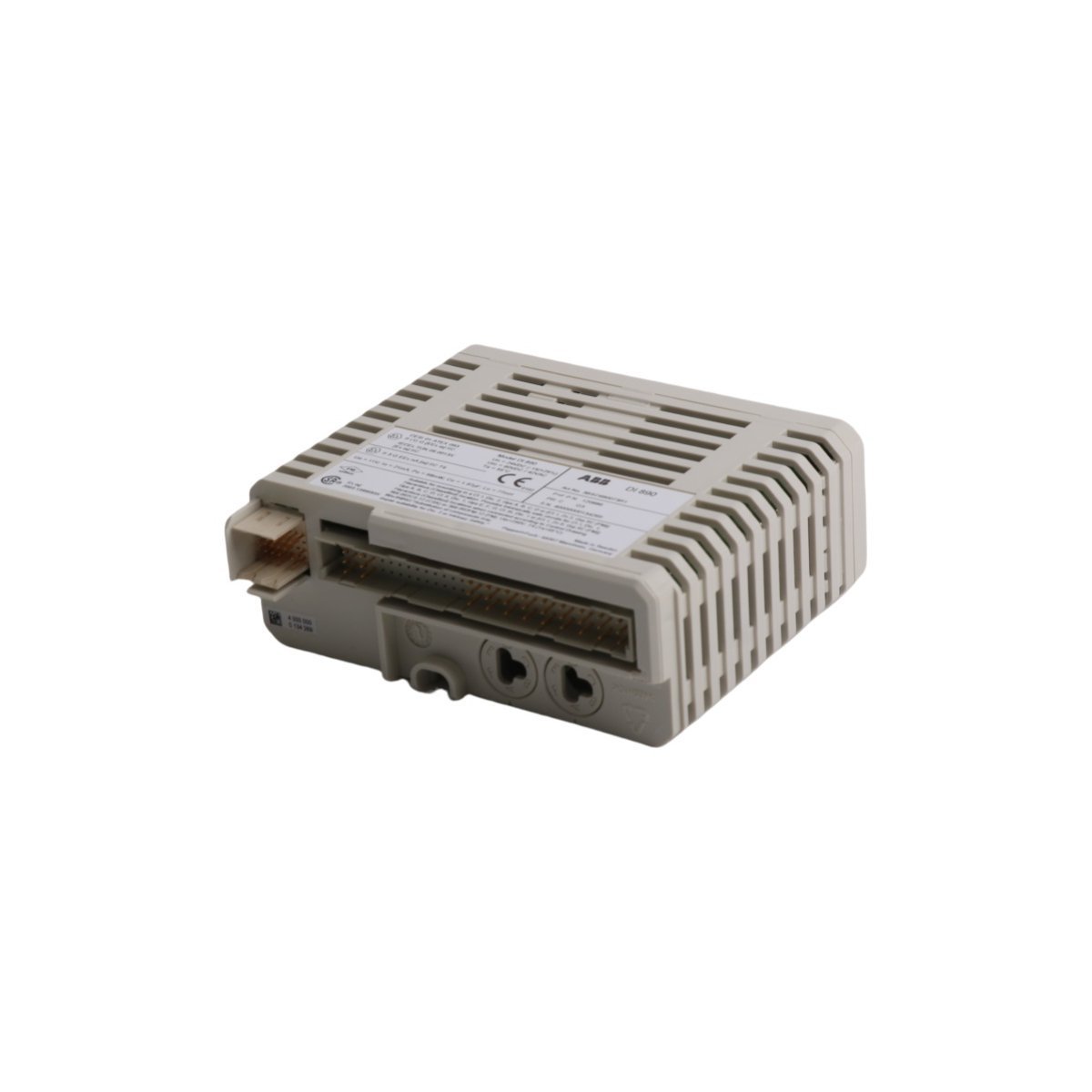

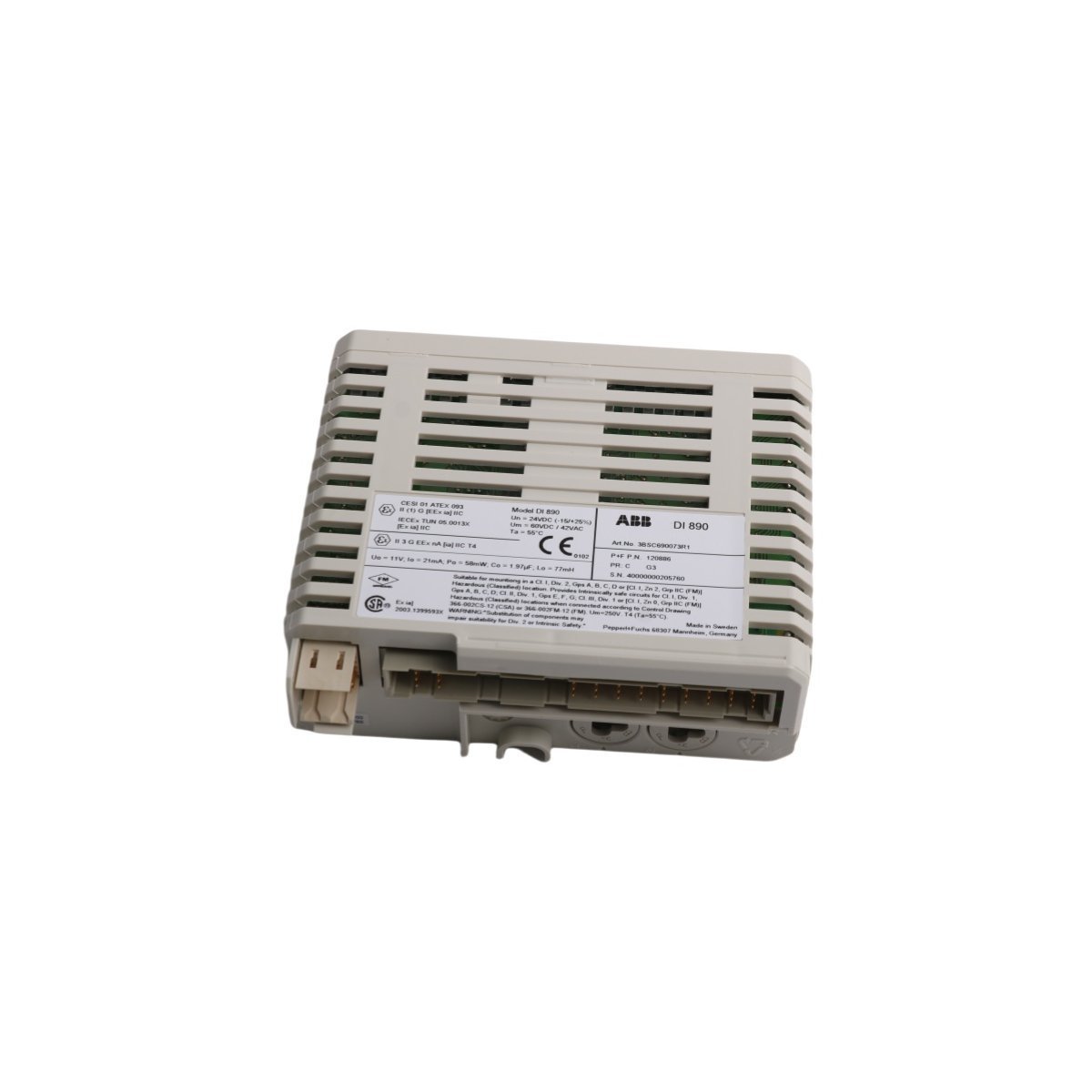

ABB DI890 3BSC690073R1 Digital Input Module

The ABB DI890 (3BSC690073R1) is a high-performance 8-channel digital input module. It belongs to the S800 I/O family for hazardous area deployments. This unit includes integrated intrinsic safety protection for every channel. Therefore, users connect NAMUR sensors directly without using external safety barriers. This design reduces hardware costs and saves cabinet space. The module effectively monitors field devices in explosive environments. It ensures high reliability for critical process automation tasks.

Core Technical Characteristics

• Channel Density: 8 isolated digital input channels per module.
• Safety Integration: Built-in intrinsic safety for Zone 0 or Zone 1 applications.
• Signal Isolation: Individual galvanic isolation between channels, power, and the ModuleBus.
• Fault Detection: Automatic line fault sensing for NAMUR-compliant proximity switches.
• Diagnostics: Front-facing LEDs indicate Fault (Red), Run (Green), and Warning (Yellow) status.
• Connectivity: Compatible with TU890 or TU891 Module Termination Units for two-wire wiring.

Industrial Applications and Integration

This module excels in sectors like oil, gas, and chemical processing. These industries often require equipment for potentially explosive atmospheres. The DI890 simplifies complex wiring by supporting direct field connections. Furthermore, the unit converts 24V DC power internally for its circuitry. It maintains signal integrity across long cable runs to field instruments. Consequently, engineers choose this module for its robust diagnostic capabilities. It provides clear feedback during sensor or wiring failures.
